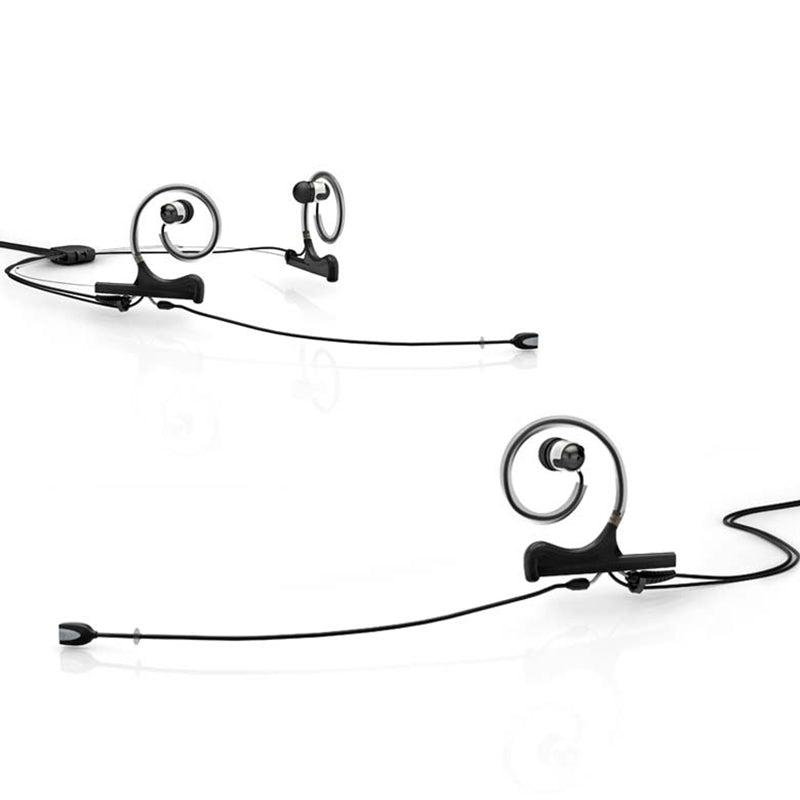

DPA d:fine™ Slim Capsule, Headset Mic., Single Ear, 120mm Boom Interchangeable

DPA d:fine™ Slim Capsule, Headset Mic., Single Ear, 120mm Boom Interchangeable

On order with the manufacturer!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

The d:fine™ Series of headsets has the leading position when it comes to head worn microphones. Combining pristine audio quality with unique and simple mechanical solutions alongside an extensive accessory line.

The d:fine™ Slim In-Ear Broadcast Headset Microphone, Directional rejects side and background noise while creating higher separation from nearby sound sources. This improves the gain-to-feedback ratio and gives more channel control. Yet natural voice intelligibility is preserved. The mic also has very high SPL capabilities. You can both speak and sing into the mic with no hint of distortion.

Windscreens, acapsule protection cap, acable clip(to anchor the cable to your clothing) and acolor-coded cable clip(offering easy recognition of a specific headset among many) are included.

Setting New Standards For The Broadcast Industry

Already the worldwide leader in headset mics for theater and broadcast applications, the d:fine™ In-Ear Broadcast Series now adds an integrated in-ear monitor to create a broadcast and communication headset with outstanding acoustic performance and feather-light comfort.

The in-ear drivers allow no audio leakage to the microphone capsule. They are easily driven due to their high sensitivity. Two sizes of ear-pads are included to fit most ears.

The cable steer, located at the headset mount, controls the cable run down the neck. You can easily adjust the headset mount size.

These innovative headsets – the first of their kind – are designed for broadcast professionals who insist on superior voice reproduction without compromising on simple setup, minimalistic form factor and daylong comfort.

Choose The Mic That Best Meets Your Needs

The d:fine™ Slim In-Ear Broadcast Headset Microphone, Directional are available in a range of variants, colors and boom lengths:

  • Single-Ear Mount, Single In-Ear: Easiest to fit. Leaves the smallest visual footprint.
  • Dual-Ear Mount, Single In-Ear: Even better mount stability. You can keep one ear open to what’s happening around you.
  • Dual-Ear Mount, Dual In-Ear: Allows for two-channel monitoring from producers or for stage monitoring. A great choice for theatre actors and singers.

*Individual microphone booms and cables are available for the d:fine™ In-Ear Broadcast Series. The modular nature of the mics let you easily choose the best mic/headset combination for your specific needs. Contact your local distributor for other variations and other colors.

Flexible Adapter System

The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.

The d:fine™,d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

More Information
Product Name DPA d:fine™ Slim Capsule, Headset Mic., Single Ear, 120mm Boom Interchangeable
Brand DPA
Condition New
MPN FIDB03
Shipping Option Free Shipping to the Continental U.S.
  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Modular adapter system fits most professional wireless systems
  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
  • Total harmonic distortion (THD) - Legacy: < 1% up to 123 dB SPL peak
  • Total harmonic distortion (THD) - CORE: < 1% THD up to 137 dB SPL peak
  • Dynamic range - Legacy: Typ. 97 dB
  • Dynamic range - CORE: Typ. 111 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
  • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
  • Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot
  • Color: Black, beige or brown
  • Weight: Single Ear: 10 g (0.35 oz)
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.25 m (4.1 ft)
  • Cable color: Black, beige or brown
  • Cable diameter: 1.6 mm (0.06 in)
  • Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%

DPA d:fine™ Slim Capsule, Headset Mic., Single Ear, 120mm Boom Interchangeable

Details

The d:fine™ Series of headsets has the leading position when it comes to head worn microphones. Combining pristine audio quality with unique and simple mechanical solutions alongside an extensive accessory line.

The d:fine™ Slim In-Ear Broadcast Headset Microphone, Directional rejects side and background noise while creating higher separation from nearby sound sources. This improves the gain-to-feedback ratio and gives more channel control. Yet natural voice intelligibility is preserved. The mic also has very high SPL capabilities. You can both speak and sing into the mic with no hint of distortion.

Windscreens, acapsule protection cap, acable clip(to anchor the cable to your clothing) and acolor-coded cable clip(offering easy recognition of a specific headset among many) are included.

Setting New Standards For The Broadcast Industry

Already the worldwide leader in headset mics for theater and broadcast applications, the d:fine™ In-Ear Broadcast Series now adds an integrated in-ear monitor to create a broadcast and communication headset with outstanding acoustic performance and feather-light comfort.

The in-ear drivers allow no audio leakage to the microphone capsule. They are easily driven due to their high sensitivity. Two sizes of ear-pads are included to fit most ears.

The cable steer, located at the headset mount, controls the cable run down the neck. You can easily adjust the headset mount size.

These innovative headsets – the first of their kind – are designed for broadcast professionals who insist on superior voice reproduction without compromising on simple setup, minimalistic form factor and daylong comfort.

Choose The Mic That Best Meets Your Needs

The d:fine™ Slim In-Ear Broadcast Headset Microphone, Directional are available in a range of variants, colors and boom lengths:

  • Single-Ear Mount, Single In-Ear: Easiest to fit. Leaves the smallest visual footprint.
  • Dual-Ear Mount, Single In-Ear: Even better mount stability. You can keep one ear open to what’s happening around you.
  • Dual-Ear Mount, Dual In-Ear: Allows for two-channel monitoring from producers or for stage monitoring. A great choice for theatre actors and singers.

*Individual microphone booms and cables are available for the d:fine™ In-Ear Broadcast Series. The modular nature of the mics let you easily choose the best mic/headset combination for your specific needs. Contact your local distributor for other variations and other colors.

Flexible Adapter System

The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.

The d:fine™,d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

More Information
Product Name DPA d:fine™ Slim Capsule, Headset Mic., Single Ear, 120mm Boom Interchangeable
Brand DPA
Condition New
MPN FIDB03
Shipping Option Free Shipping to the Continental U.S.
Features
  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Modular adapter system fits most professional wireless systems
Tech Specs
  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
  • Total harmonic distortion (THD) - Legacy: < 1% up to 123 dB SPL peak
  • Total harmonic distortion (THD) - CORE: < 1% THD up to 137 dB SPL peak
  • Dynamic range - Legacy: Typ. 97 dB
  • Dynamic range - CORE: Typ. 111 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
  • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
  • Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot
  • Color: Black, beige or brown
  • Weight: Single Ear: 10 g (0.35 oz)
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.25 m (4.1 ft)
  • Cable color: Black, beige or brown
  • Cable diameter: 1.6 mm (0.06 in)
  • Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
