Now with CORE by DPA technology
The 4099 is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. 4099 CORE brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE – every musician, live sound engineer and anyone else who takes pride in quality audio.
CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. We’ve minimized distortion. From pianissimo to forte, you will experience increased clarity and openness. Learn more about CORE by DPA.
From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly. The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This instrument condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.
This microphone comes in two versions:
- 4099 CORE Mic, Loud SPL (red marking on gooseneck) – used to close-mike most types of instruments
- 4099 CORE Mic, Extreme SPL (yellow marking on gooseneck) – used to close-mike extremely loud instruments, such as drums and some brass

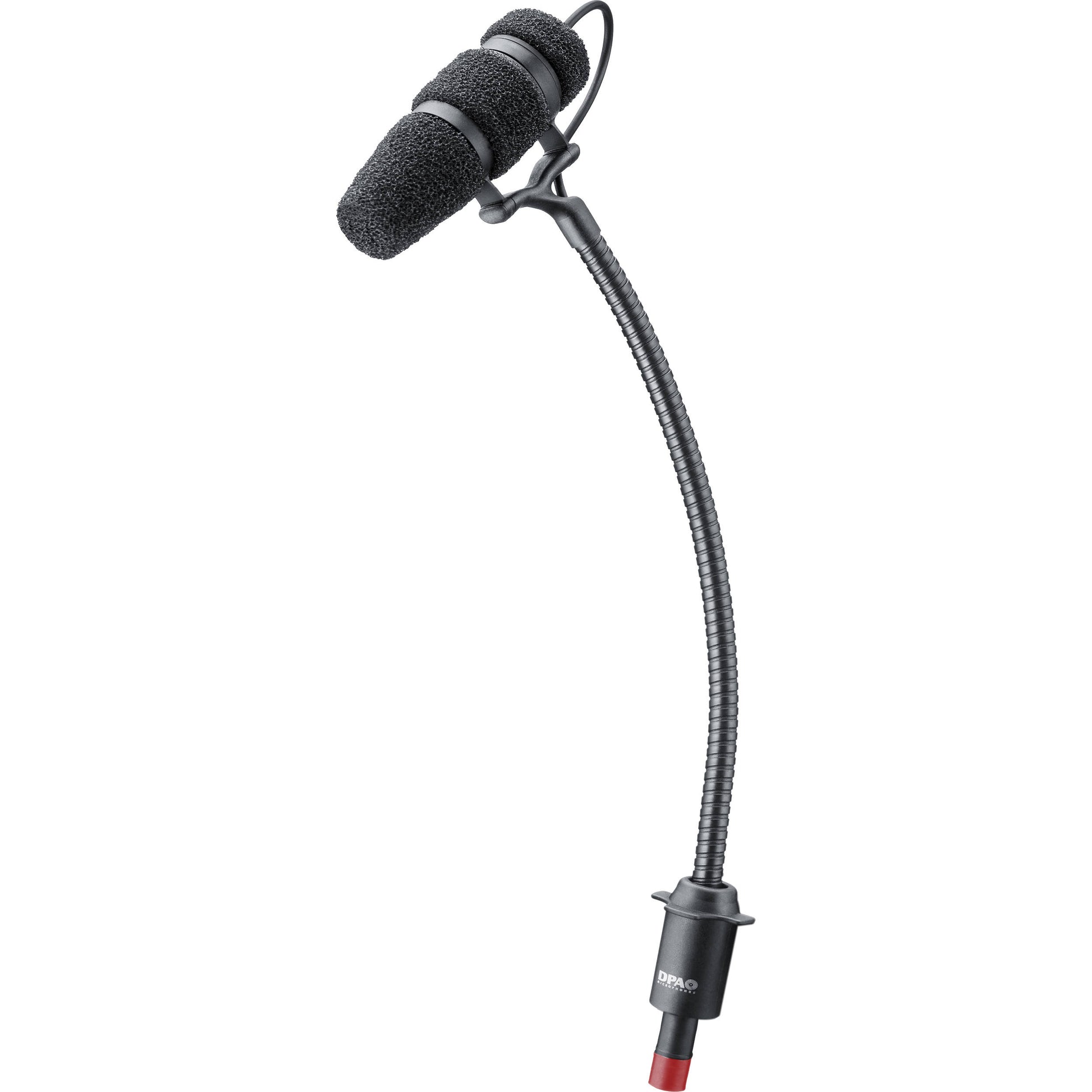

The 4099 CORE also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Detachable cables are available in heavy duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.
Product Name | DPA Microphones Core 4099 Instrument Microphone - Loud SPL |
---|---|
Brand | DPA |
MPN | 4099-DC-1 |
What's in the Box?
- DPA Microphones Core 4099 Instrument Microphone - Loud SPL
- CORE by DPA technology inside
- Supercardioid condenser microphone
- Handles high SPLs
- Superior gain-before-feedback
- Flexible and easy mounting
- Gentle and easy to mount on the instrument
- Detachable cable and a versatile gooseneck extender
Microphone Specifications |
|
---|---|
Directional Pattern | Supercardioid |
Principle of Operation | Pressure gradient |
Cartridge Type | Pre-polarized condenser |
Frequency Response | 20 Hz - 20 kHz |
Effective Frequency Range (±2 dB at 20 cm) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz |
Sensitivity (Nominal, ±3 dB at 1 kHz) | 6 mV/Pa; -44 dB re. 1 V/Pa |
Equivalent Noise Level (A-weighted) | Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) |
Distortion (THD < 1%) | 128 dB SPL RMS, 131 dB SPL peak |
Dynamic Range | Typ. 108 dB |
Max. SPL (THD 10%) | 142 dB SPL peak |
Rated Output Impedance | 30 - 40 Ω (MicroDot); 100 Ω (with DAD4099-BC or DAD6001-BC) |
Cable Drive Capability | Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter |
Output Balance Principle | Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter |
Common Mode Rejection Ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter |
Power Supply (for Full Performance) |
For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC or DAD4099-BC: P48 (Phantom Power); will work from 12 V |
Current Consumption | Typ. 1.5 mA (microphone); 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter |
Connector | MicroDot |
Weight |
Microphone: 17 g (0.60 oz) Instrument Microphone Clips: Various (5 g to 28 g depending on type) |
Microphone Diameter | 5.7 mm (0.22 in) |
Microphone Length | 45 mm (1.8 in) |
Cable Length | 1.8 m (5.9 ft) |
Cable Diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter) |
Temperature Range | -40°C to 45°C (-40°F to 113°F) |
Relative Humidity (RH) | Up to 90% |
Gooseneck Length | 140 mm (5.5 in) |
Sensitivity Selection Tolerance (at 1 kHz) | ±1 dB |
