Drawmer 1973 3-Band Stereo FET Compressor

Drawmer 1973 3-Band Stereo FET Compressor

On order with the manufacturer!

View full details
  • Details
  • Reviews

Why you need the Drawmer 1973 3 Band Stereo FET Compressor

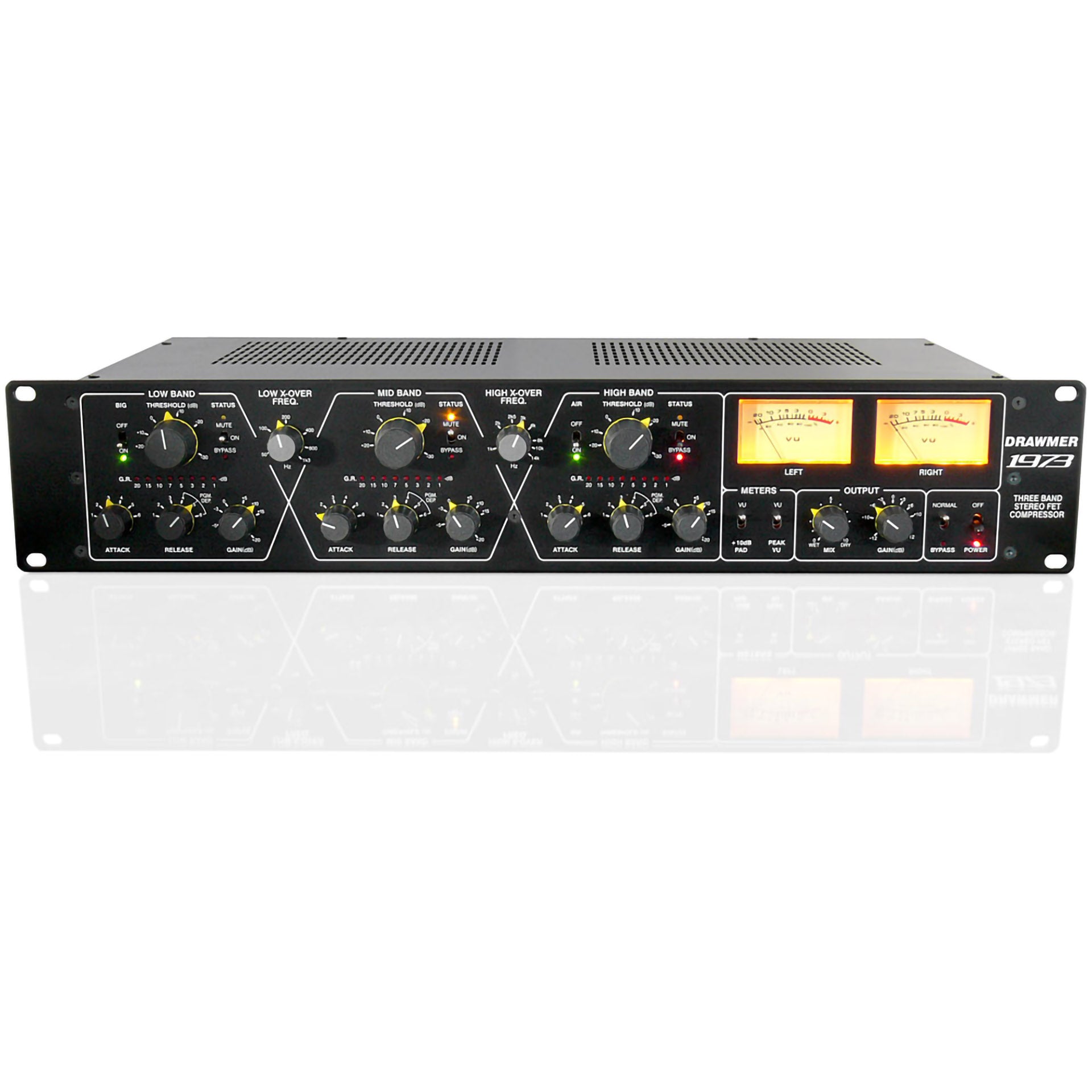

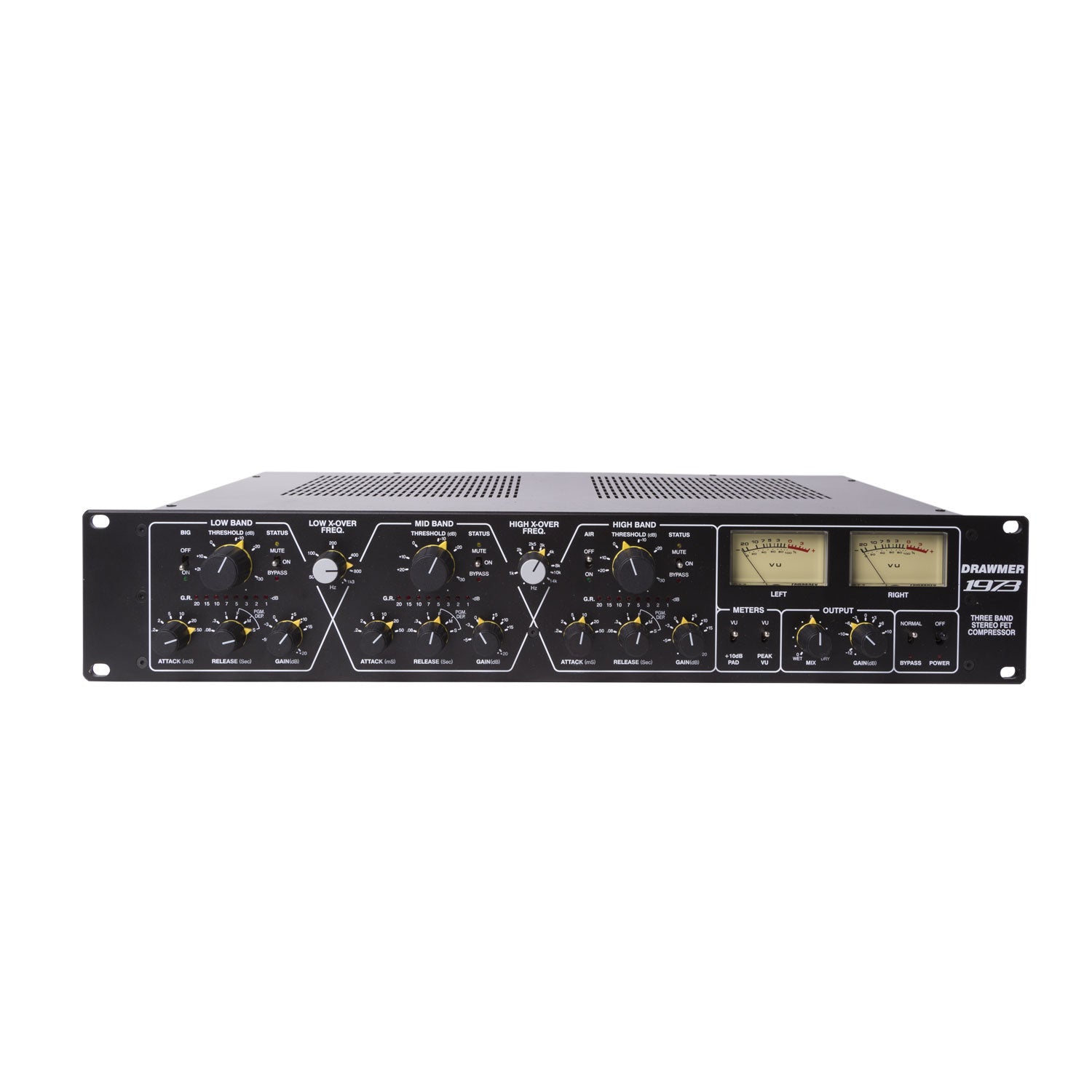

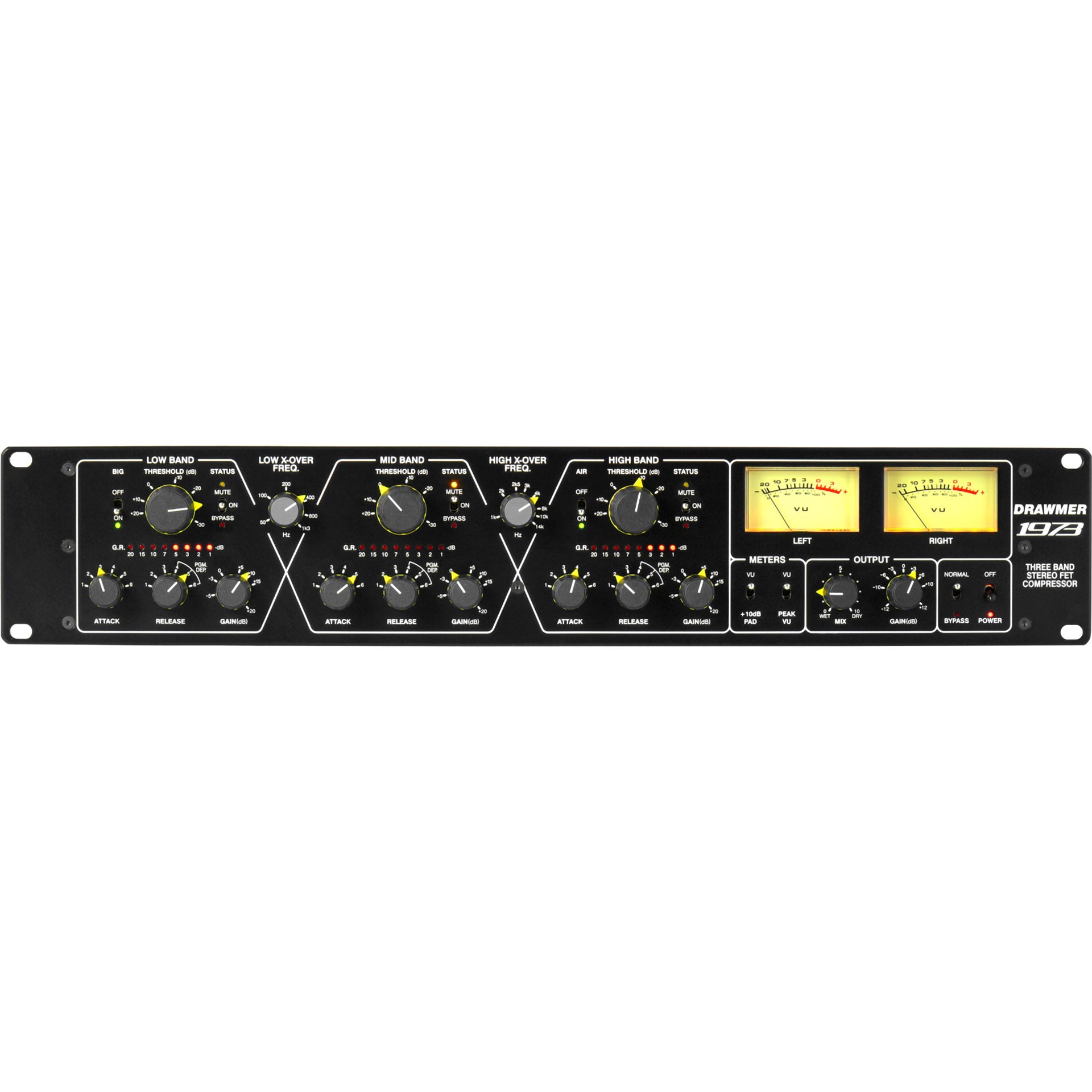

The all-analog Drawmer 1973’s features include three independent compressor sections with two variable-frequency 6dB/octave crossovers to separate them into low, middle, and high frequency compression sections. Each section contains familiar threshold, gain, attack, and release controls, along with gain-reduction metering. Moreover, each section can be independently muted or bypassed for straightforward setup and monitoring. The low section possesses a "Big" switch for enhanced low-end, whereas the high section possesses an "Air" switch for enhanced high-end. The three sections are recombined to form the "wet" signal, which can be mixed to variable degree with the dry signal for easy parallel compression. Illuminated VU meters are designed to make monitoring compression and output intuitive.


Features

  • Standard intuitive controls such as Threshold, Gain, Switched Attack & Release with Gain Reduction Metering on Each Band.
  • Fast Reacting Soft Knee F.E.T. Design with excellent Left/Right Tracking across the Full Range of compression.
  • Variable Wet/Dry Mix plus Output Gain Knobs give a 'Parallel Compression' function without the need for external mixing devices, providing Complete and Effortless Control over the amount of compression used and Output Levels.
  • Variable Band Split Filters at a 6dB Per Octave slope with Switch-able Mute and Bypass on Each Band make 'Tuning In' to a Frequency Simple.
  • ‘Big’ and 'Air' Modes Help to preserve the Very Deep Lows and Enhance the Sparkling Highs.

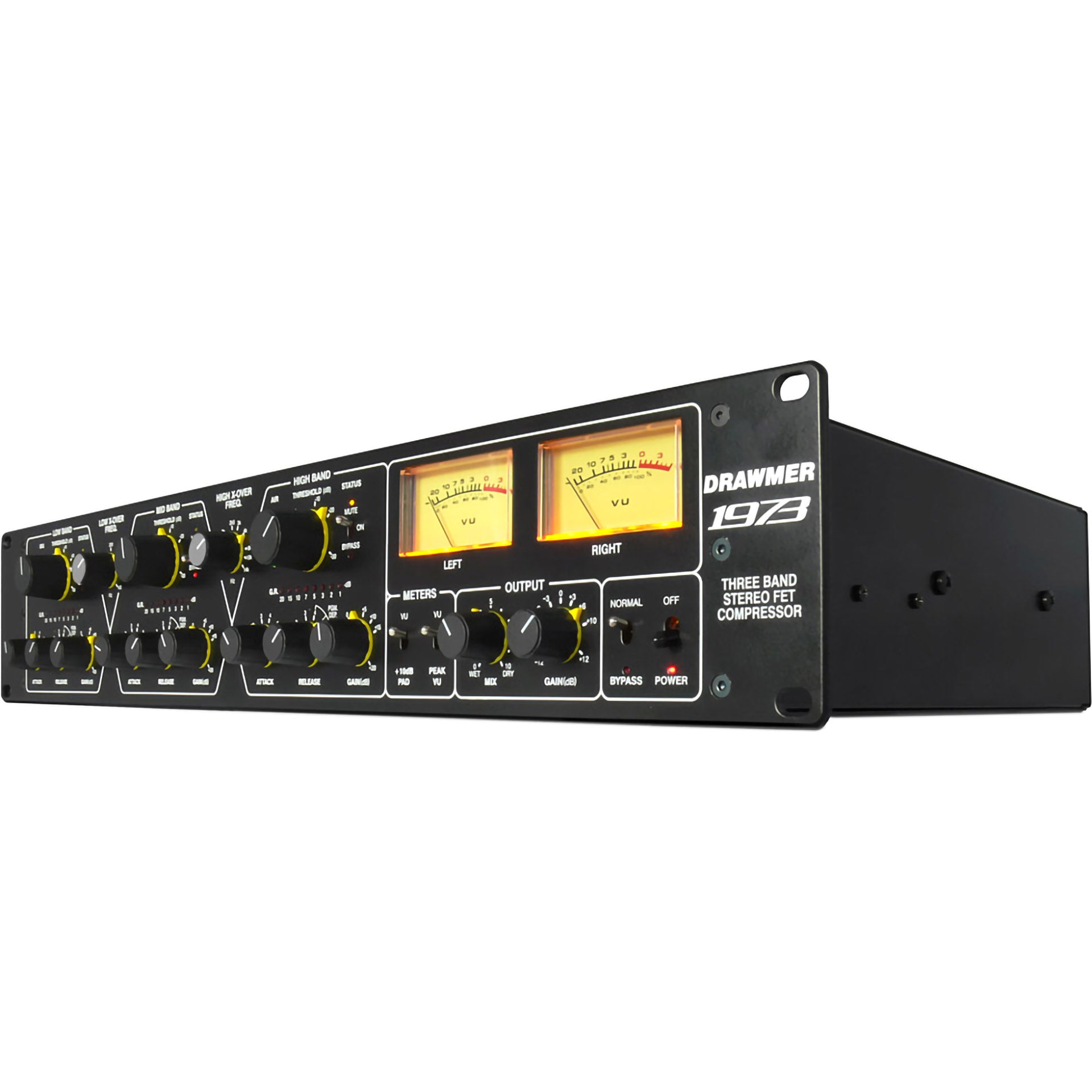

  • Two Analogue V.U. Meters with Switchable +10dB Meter Rescale Modes and a Switchable ‘Peak’ mode to Display Fast Transients Not Normally Seen on Conventional V.U.s.
  • Dedicated Gain Reduction Meters On Each Band.
  • Internal Low Hum Toroidal Linear Power Supply with Voltage Selector Switch.
  • Classic Drawmer Build Quality with Rugged Steel Chassis and Aluminium Front Panel
More Information
Product Name Drawmer 1973 3-Band Stereo FET Compressor
Brand Drawmer
Condition New
MPN 1973DRAW
UPC 5060420660357
Shipping Option Free Shipping to the Continental U.S.

Drawmer 1973 3-Band Stereo FET Compressor

Details

Why you need the Drawmer 1973 3 Band Stereo FET Compressor

The all-analog Drawmer 1973’s features include three independent compressor sections with two variable-frequency 6dB/octave crossovers to separate them into low, middle, and high frequency compression sections. Each section contains familiar threshold, gain, attack, and release controls, along with gain-reduction metering. Moreover, each section can be independently muted or bypassed for straightforward setup and monitoring. The low section possesses a "Big" switch for enhanced low-end, whereas the high section possesses an "Air" switch for enhanced high-end. The three sections are recombined to form the "wet" signal, which can be mixed to variable degree with the dry signal for easy parallel compression. Illuminated VU meters are designed to make monitoring compression and output intuitive.


Features

  • Standard intuitive controls such as Threshold, Gain, Switched Attack & Release with Gain Reduction Metering on Each Band.
  • Fast Reacting Soft Knee F.E.T. Design with excellent Left/Right Tracking across the Full Range of compression.
  • Variable Wet/Dry Mix plus Output Gain Knobs give a 'Parallel Compression' function without the need for external mixing devices, providing Complete and Effortless Control over the amount of compression used and Output Levels.
  • Variable Band Split Filters at a 6dB Per Octave slope with Switch-able Mute and Bypass on Each Band make 'Tuning In' to a Frequency Simple.
  • ‘Big’ and 'Air' Modes Help to preserve the Very Deep Lows and Enhance the Sparkling Highs.
  • Two Analogue V.U. Meters with Switchable +10dB Meter Rescale Modes and a Switchable ‘Peak’ mode to Display Fast Transients Not Normally Seen on Conventional V.U.s.
  • Dedicated Gain Reduction Meters On Each Band.
  • Internal Low Hum Toroidal Linear Power Supply with Voltage Selector Switch.
  • Classic Drawmer Build Quality with Rugged Steel Chassis and Aluminium Front Panel
More Information
Product Name Drawmer 1973 3-Band Stereo FET Compressor
Brand Drawmer
Condition New
MPN 1973DRAW
UPC 5060420660357
Shipping Option Free Shipping to the Continental U.S.
