EarthQuaker Devices Gary Automatic Pulse Width Modulation Fuzz and Dynamic Overdrive

EarthQuaker Devices Gary Automatic Pulse Width Modulation Fuzz and Dynamic Overdrive

Limited quantities available!

View full details
  • Details
  • Tech Specs
  • Reviews

EarthQuaker Devices is proud to introduce you to your new best bud, Gary. This little big guy was dreamt up by the one and only Lee Kiernan from the crushing and most necessary band, Idles!

Gary started as a simple request to create a compact version of the now discontinued Gray Channel, which was a mainstay on Lee’s board and a big part of his main drive tone. This was all fine and good, and sounded quite sick, but Gary was demanding that we look deeper and explore his dark side a little more, Gary after dark, Saturday night Gary. So, we sat him down and began the trek of figuring old Gare-Bear out once and for all. The result is a real exercise in light and dark; smooth to shredded and everything in between.

Gary’s right brain consists of a dynamic and destructive fuzz that is both domineering and interactive. It is a ripping fuzz tone with an envelope-controlled variable pulse width and enough volume to blow everything up. This nasty little fuzz turns the signal into a square wave and allows you to dynamically adjust the duty cycle with pick attack. Yes! Controls the sensitivity of the envelope. When this is all the way down you will get an unadulterated thick and heavy square wave fuzz tone that will sustain for days and go dead quiet when you stop playing. As you increase the Yes! control, the envelope becomes more interactive, and the pulse width narrows the harder you hit it. As the pulse width narrows, the tone becomes more nasal and biting until it gets so narrow that Gary goes to his dark place and disappears completely. In other words, with higher sensitivity settings, the sound will disappear entirely and come cruising back to Gary’s big guy tone. With proper playing dynamics, this creates a very cool effect that can sound like an exploding amp coming in and out of life, blown through a phase shifter.

This effect can also be controlled with an expression pedal for manual operation or for finding just the right pulse width to cut through the mix for a set-and-forget operation. When using an expression pedal, Yes! operates in conjunction with the expression pedal to set the peak of the sweep. Set Yes! to the desired stopping point and express yourself as you please without worry of taking Gary over the edge!

Oosh acts as the master volume for Gary’s nasty side. There is an insane amount of volume on tap so use this control wisely!

Gary’s left brain displays his softer side. This is a simple and natural sounding overdrive that keeps your tone lively and drives your amp crazy. This side is based on the green channel of our Gray Channel, which is our take on the classic little yellow overdrive that started it all for us. Lee used this pedal with the clipping switch permanently set to the middle position, which removes all the diodes from the circuit, producing a full-bodied, cutting opamp distortion with plenty of volume on tap. We have reproduced that tone here with exacting precision. Go sets the opamp drive and can range from a simple full-range clean boost all the way up to a smooth and natural distortion. In conjunction with That’s It, which is the master volume for the drive side, you can use Gary’s softer side as a clean boost to push your amp into overdrive or turn up Go and use all of Gary’s internal magic to create the finely tuned dirt you desire.

Gary’s signal path is fuzz into overdrive for total tonal integrity and cannot be changed. This is where Gary put his foot down, and we obliged.

More Information
Product Name EarthQuaker Devices Gary Automatic Pulse Width Modulation Fuzz and Dynamic Overdrive
Brand EarthQuaker Devices
MPN EQDGARYV1USA
UPC 810019914478

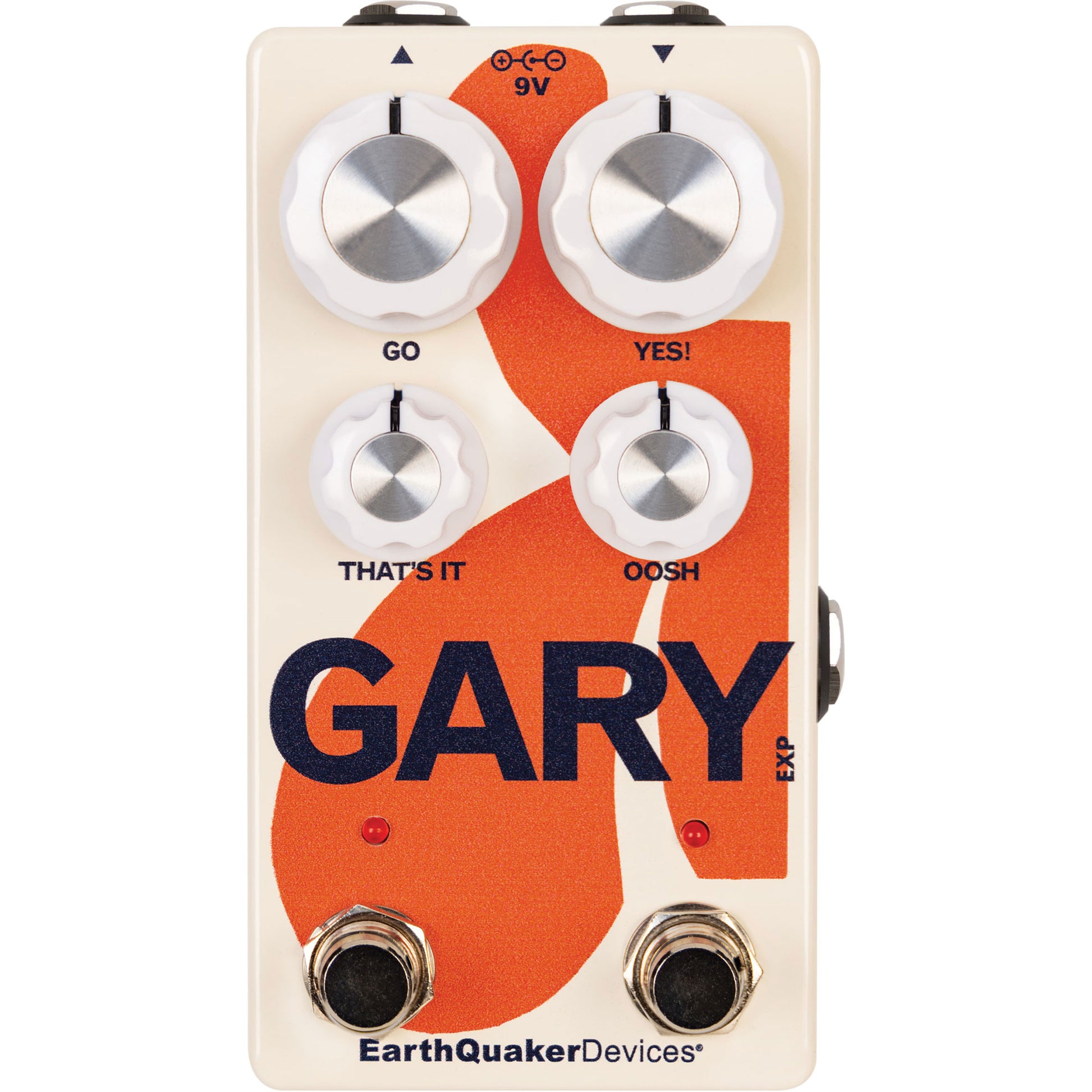

Controls
  • Yes! - Sets the sensitivity for the envelope that controls the duty cycle for the square wave fuzz. For best results, place near the front of the signal chain.
  • Oosh - Master volume for the fuzz side.
  • EXP - Controls pulse width with an expression pedal. Disables the internal envelope, allowing real-time duty cycle adjustment.
  • Go - Gain control for the overdrive. Adjust for a thick distortion or a clean boost by tweaking this alongside That’s It.
  • That’s It - Master volume for the overdrive side.
Footswitches
  • Right Footswitch - Activates Fuzz.
  • Left Footswitch - Activates Overdrive.
Flexi-Switch® Technology

This device features Flexi-Switch® Technology, allowing both momentary and latching operation:

  • Latching - Tap the footswitch once to activate and tap again to bypass.
  • Momentary - Hold the footswitch down for temporary effect activation. Releasing bypasses the effect.

Requires power for relay-based switching to pass signal.

Power
  • Voltage - Standard 9V DC (2.1mm negative center).
  • Current Draw - 20 mA.
  • Recommendation - Use transformer-isolated, pedal-specific supplies to avoid noise.
  • Warning - DO NOT use higher voltages.

EarthQuaker Devices Gary Automatic Pulse Width Modulation Fuzz and Dynamic Overdrive

Details

EarthQuaker Devices is proud to introduce you to your new best bud, Gary. This little big guy was dreamt up by the one and only Lee Kiernan from the crushing and most necessary band, Idles!

Gary started as a simple request to create a compact version of the now discontinued Gray Channel, which was a mainstay on Lee’s board and a big part of his main drive tone. This was all fine and good, and sounded quite sick, but Gary was demanding that we look deeper and explore his dark side a little more, Gary after dark, Saturday night Gary. So, we sat him down and began the trek of figuring old Gare-Bear out once and for all. The result is a real exercise in light and dark; smooth to shredded and everything in between.

Gary’s right brain consists of a dynamic and destructive fuzz that is both domineering and interactive. It is a ripping fuzz tone with an envelope-controlled variable pulse width and enough volume to blow everything up. This nasty little fuzz turns the signal into a square wave and allows you to dynamically adjust the duty cycle with pick attack. Yes! Controls the sensitivity of the envelope. When this is all the way down you will get an unadulterated thick and heavy square wave fuzz tone that will sustain for days and go dead quiet when you stop playing. As you increase the Yes! control, the envelope becomes more interactive, and the pulse width narrows the harder you hit it. As the pulse width narrows, the tone becomes more nasal and biting until it gets so narrow that Gary goes to his dark place and disappears completely. In other words, with higher sensitivity settings, the sound will disappear entirely and come cruising back to Gary’s big guy tone. With proper playing dynamics, this creates a very cool effect that can sound like an exploding amp coming in and out of life, blown through a phase shifter.

This effect can also be controlled with an expression pedal for manual operation or for finding just the right pulse width to cut through the mix for a set-and-forget operation. When using an expression pedal, Yes! operates in conjunction with the expression pedal to set the peak of the sweep. Set Yes! to the desired stopping point and express yourself as you please without worry of taking Gary over the edge!

Oosh acts as the master volume for Gary’s nasty side. There is an insane amount of volume on tap so use this control wisely!

Gary’s left brain displays his softer side. This is a simple and natural sounding overdrive that keeps your tone lively and drives your amp crazy. This side is based on the green channel of our Gray Channel, which is our take on the classic little yellow overdrive that started it all for us. Lee used this pedal with the clipping switch permanently set to the middle position, which removes all the diodes from the circuit, producing a full-bodied, cutting opamp distortion with plenty of volume on tap. We have reproduced that tone here with exacting precision. Go sets the opamp drive and can range from a simple full-range clean boost all the way up to a smooth and natural distortion. In conjunction with That’s It, which is the master volume for the drive side, you can use Gary’s softer side as a clean boost to push your amp into overdrive or turn up Go and use all of Gary’s internal magic to create the finely tuned dirt you desire.

Gary’s signal path is fuzz into overdrive for total tonal integrity and cannot be changed. This is where Gary put his foot down, and we obliged.

More Information
Product Name EarthQuaker Devices Gary Automatic Pulse Width Modulation Fuzz and Dynamic Overdrive
Brand EarthQuaker Devices
MPN EQDGARYV1USA
UPC 810019914478
Tech Specs
Controls
  • Yes! - Sets the sensitivity for the envelope that controls the duty cycle for the square wave fuzz. For best results, place near the front of the signal chain.
  • Oosh - Master volume for the fuzz side.
  • EXP - Controls pulse width with an expression pedal. Disables the internal envelope, allowing real-time duty cycle adjustment.
  • Go - Gain control for the overdrive. Adjust for a thick distortion or a clean boost by tweaking this alongside That’s It.
  • That’s It - Master volume for the overdrive side.
Footswitches
  • Right Footswitch - Activates Fuzz.
  • Left Footswitch - Activates Overdrive.
Flexi-Switch® Technology

This device features Flexi-Switch® Technology, allowing both momentary and latching operation:

  • Latching - Tap the footswitch once to activate and tap again to bypass.
  • Momentary - Hold the footswitch down for temporary effect activation. Releasing bypasses the effect.

Requires power for relay-based switching to pass signal.

Power
  • Voltage - Standard 9V DC (2.1mm negative center).
  • Current Draw - 20 mA.
  • Recommendation - Use transformer-isolated, pedal-specific supplies to avoid noise.
  • Warning - DO NOT use higher voltages.
