In the studio, on stage, and showcased on every top streaming channel, the DM20 became the must-have tom and snare drum microphone. It was the benchmark of success and the fastest way to get the fullest sound. And now, the second generation builds on everything that the industry expects while improving on all aspects of usability and performance. We kept everything that you loved while giving you more of everything else that you asked for.

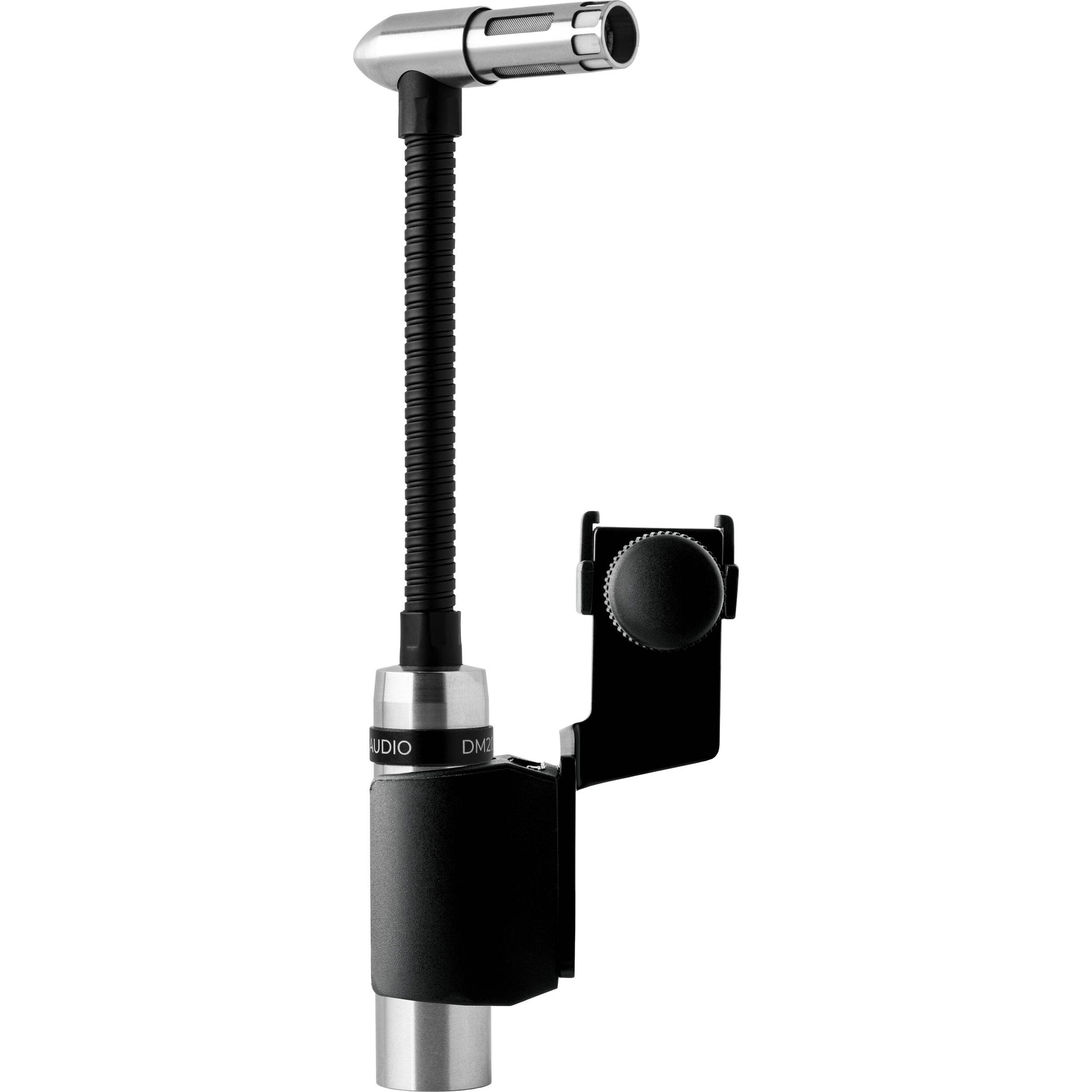

New Rim Mounting System
Everything about the DM20 Gen 2 is designed for speed — and that includes the speed of set up and tear down. The new and improved rim mounting solution saves massive amounts of time while delivering a much better user experience. And it’s compatible with even more kits and percussive instruments.
New Active Electronics
We’ve hardened the internal electronics to draw less phantom power and we’ve built in additional protection features to safeguard against accidental hot swapping. We all know that you shouldn’t plug in a condenser microphone with the power engaged but we also know that’s an inevitably in the field sometimes. These new stacked changes make the DM20 Gen 2 more robust, more compatible, and more user-friendly.
| Product Name | Earthworks DM20 Gen 2 Small-diaphragm Condenser Drum Microphone |
|---|---|
| Brand | Earthworks |
| MPN | DM20GEN2 |
What's in the Box?
- Earthworks DM20 Gen 2 Small-diaphragm Condenser Drum Microphone
- RM2 Rim Mount
- Microphone Bag
- Foam Windscreen
| FREQUENCY RESPONSE | 20Hz – 20KHz |
| POLAR PATTERN | Cardioid |
| SENSITIVITY | -51 dBV/Pa (2.8 mV/Pa) |
| PEAK ACOUSTIC INPUT | 157dB SPL |
| MINIMUM LOAD IMPEDANCE | 1000 Ohms |
| NOISE | 20 dBSPL (A-Weighted) |
| POWER REQUIREMENTS | 48V, 6mA |
| DIMENSIONS (L X D) | 8 in x 0.860 in / 203.2 mm x 21.84 mm |
| COLOR | Stainless Steel |
| WEIGHT | 0.40lbs / 0.18kg |
| MANUFACTURER PART NUMBER | DM20 G2 |
| GOOSENECK L & D | 3.5in x 0.375in / 88.9mm x 9.53mm |
| INCLUDED ACCESSORIES | RM2 Rim Mount, Microphone Bag, Foam Windscreen |

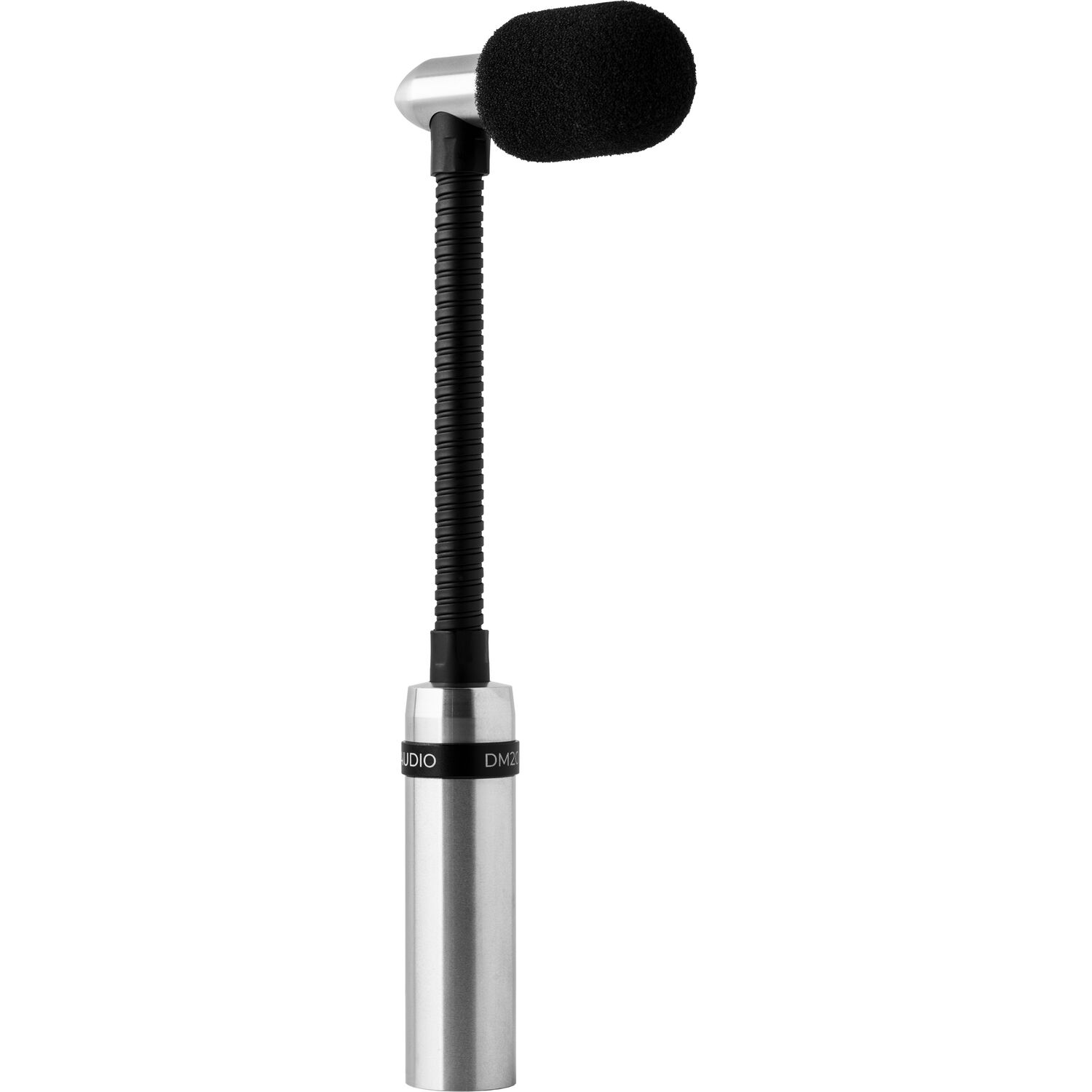

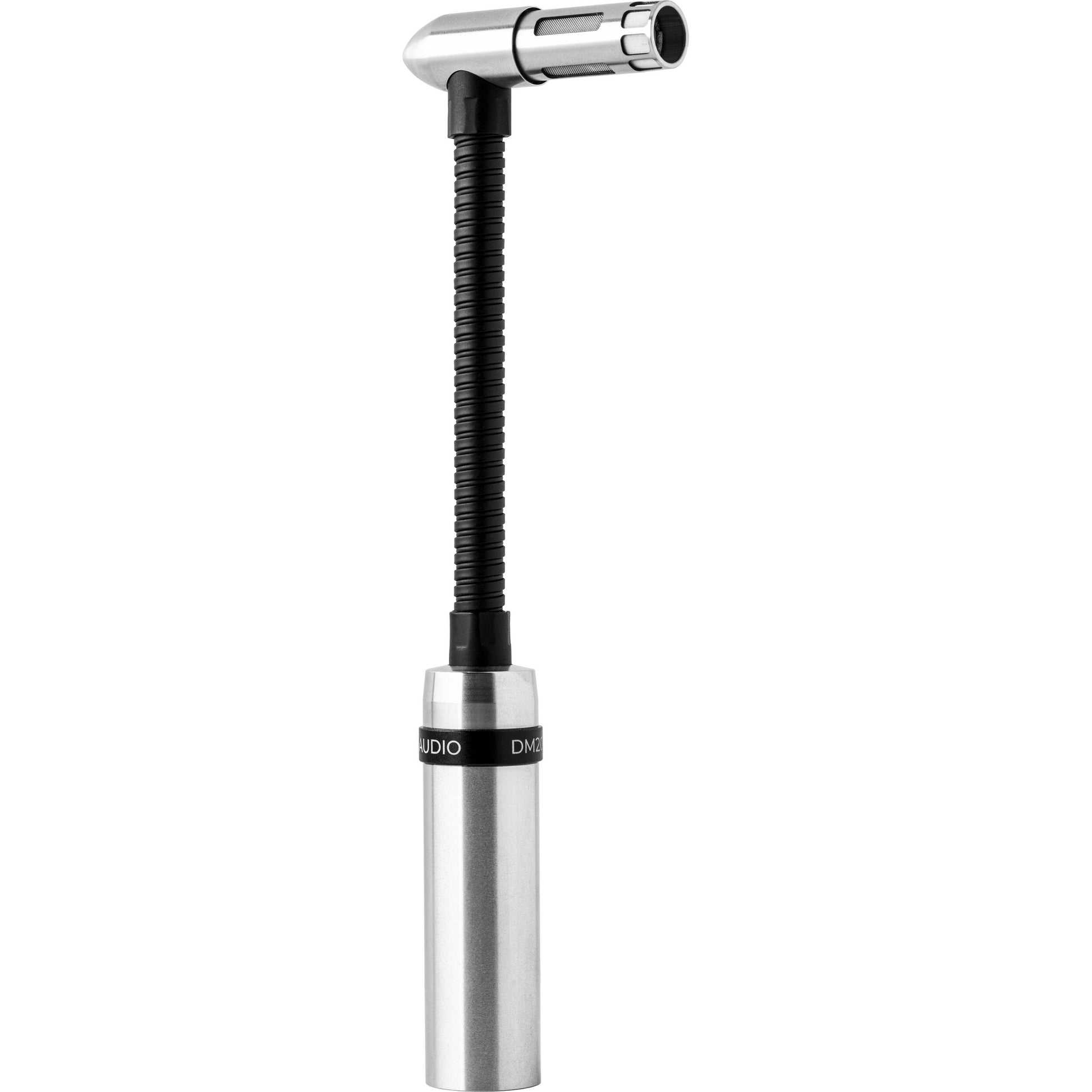

Earthworks DM20 Gen 2 Small-diaphragm Condenser Drum Microphone
In the studio, on stage, and showcased on every top streaming channel, the DM20 became the must-have tom and snare drum microphone. It was the benchmark of success and the fastest way to get the fullest sound. And now, the second generation builds on everything that the industry expects while improving on all aspects of usability and performance. We kept everything that you loved while giving you more of everything else that you asked for.
New Rim Mounting System
Everything about the DM20 Gen 2 is designed for speed — and that includes the speed of set up and tear down. The new and improved rim mounting solution saves massive amounts of time while delivering a much better user experience. And it’s compatible with even more kits and percussive instruments.
New Active Electronics
We’ve hardened the internal electronics to draw less phantom power and we’ve built in additional protection features to safeguard against accidental hot swapping. We all know that you shouldn’t plug in a condenser microphone with the power engaged but we also know that’s an inevitably in the field sometimes. These new stacked changes make the DM20 Gen 2 more robust, more compatible, and more user-friendly.
| Product Name | Earthworks DM20 Gen 2 Small-diaphragm Condenser Drum Microphone |
|---|---|
| Brand | Earthworks |
| MPN | DM20GEN2 |
What's in the Box?
- Earthworks DM20 Gen 2 Small-diaphragm Condenser Drum Microphone
- RM2 Rim Mount
- Microphone Bag
- Foam Windscreen
| FREQUENCY RESPONSE | 20Hz – 20KHz |
| POLAR PATTERN | Cardioid |
| SENSITIVITY | -51 dBV/Pa (2.8 mV/Pa) |
| PEAK ACOUSTIC INPUT | 157dB SPL |
| MINIMUM LOAD IMPEDANCE | 1000 Ohms |
| NOISE | 20 dBSPL (A-Weighted) |
| POWER REQUIREMENTS | 48V, 6mA |
| DIMENSIONS (L X D) | 8 in x 0.860 in / 203.2 mm x 21.84 mm |
| COLOR | Stainless Steel |
| WEIGHT | 0.40lbs / 0.18kg |
| MANUFACTURER PART NUMBER | DM20 G2 |
| GOOSENECK L & D | 3.5in x 0.375in / 88.9mm x 9.53mm |
| INCLUDED ACCESSORIES | RM2 Rim Mount, Microphone Bag, Foam Windscreen |
