Clear, powerful, and musical, the Live X series was born to command the stage for professional music performance. Available in both powered and passive versions, Live X loudspeakers offer top-quality components in remarkably affordable configurations that put the EV-quality experience within reach for artists, engineers, and live-sound businesses. Designed for a wide range of portable sound applications, Live X loudspeakers are housed in hardy stackable enclosures of solid wood, making them lighter than comparable-quality composite or plastic boxes and therefore easier to load, transport, and set up. With high output, extended frequency range, and high sensitivity, Live X loudspeakers are clean, flat, and hot, making music of all kinds sound its best. The Live X series is serious gear for serious sound.





• Designed for House of Worship, Pro Music, and other applications.

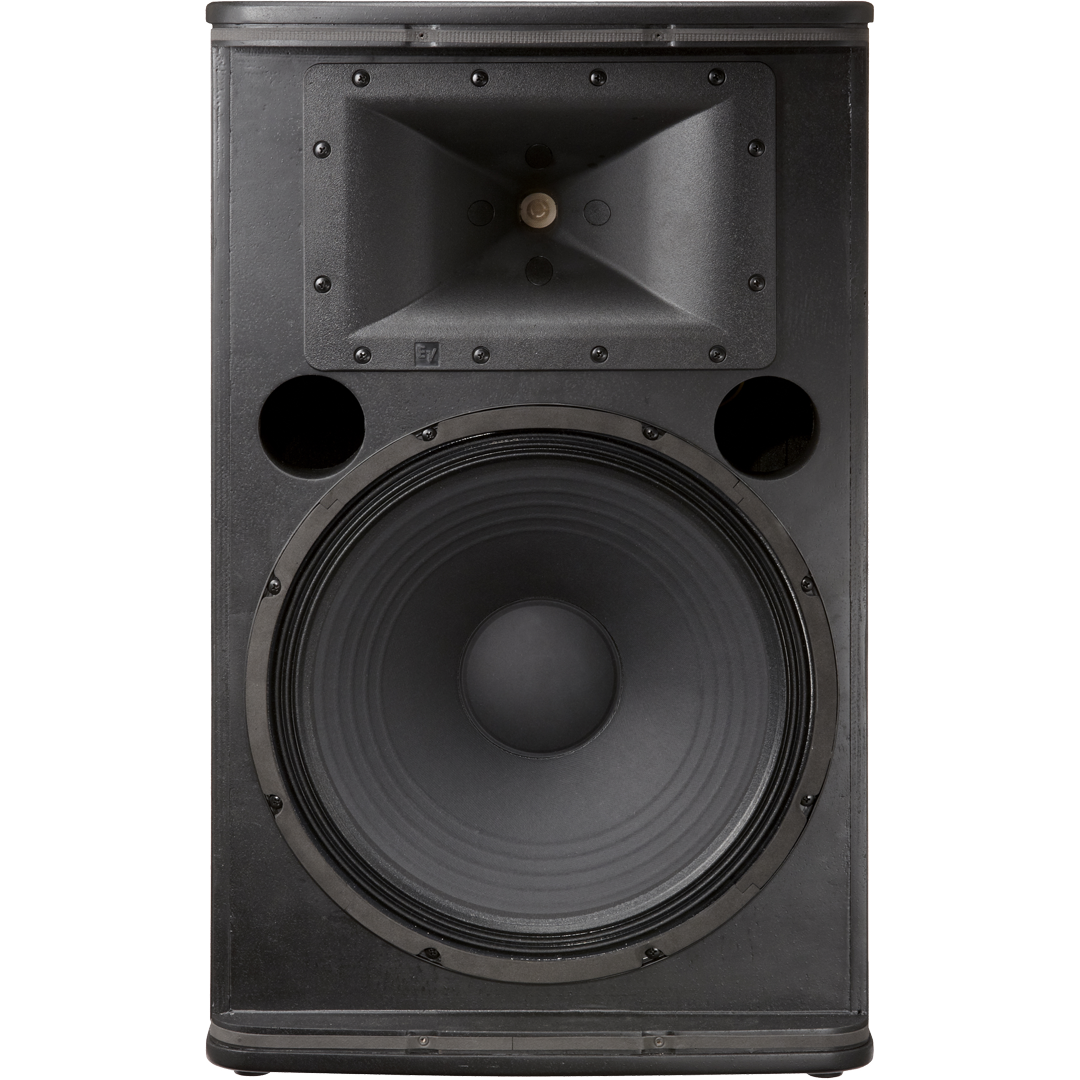

• 15" woofer and 1.5" high-frequency titanium compression driver
• 44 Hz - 20 kHz frequency range; 134 dB max SPL
• 1000 W Class D lightweight amplifier - runs cool without fans
• Easy to connect and control with versatile input and output options

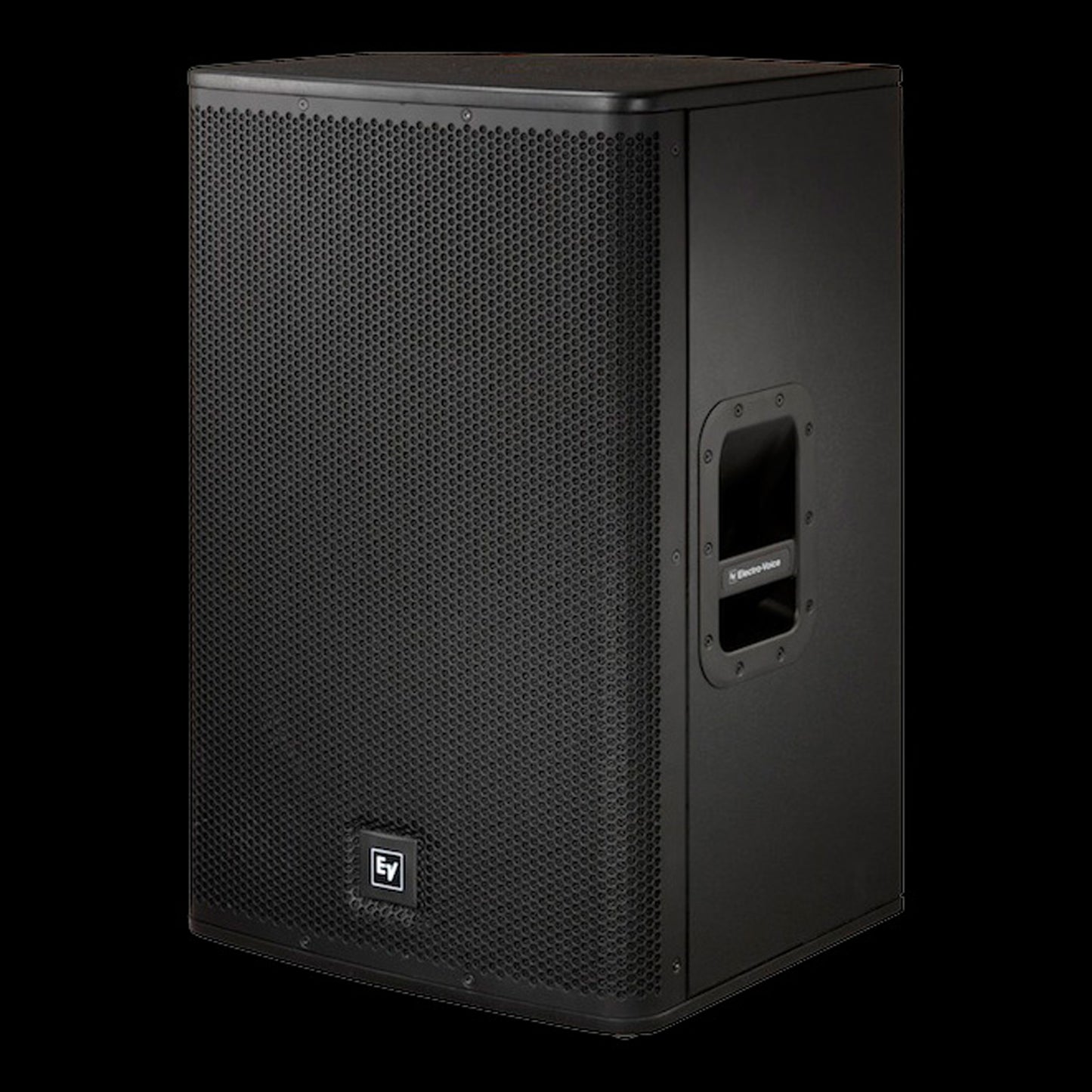

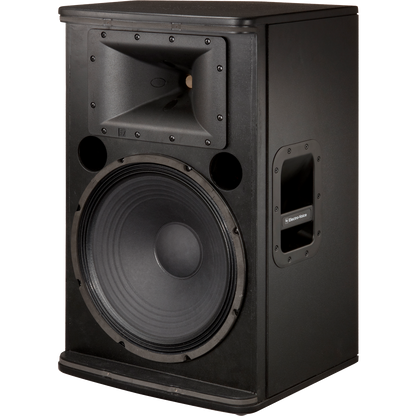

• Rugged wood cabinet - pole mounts or stacks with Live X Subwoofers

• Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB) 56 Hz - 18 k Hz
• Frequency Response (-10 dB) 44 Hz - 20 k Hz
• Max. SPL/1m (calc) 134 dB
• Coverage (Nominal -6 dB) H° 90 °
• Coverage (Nominal -6 dB) V° 50 °

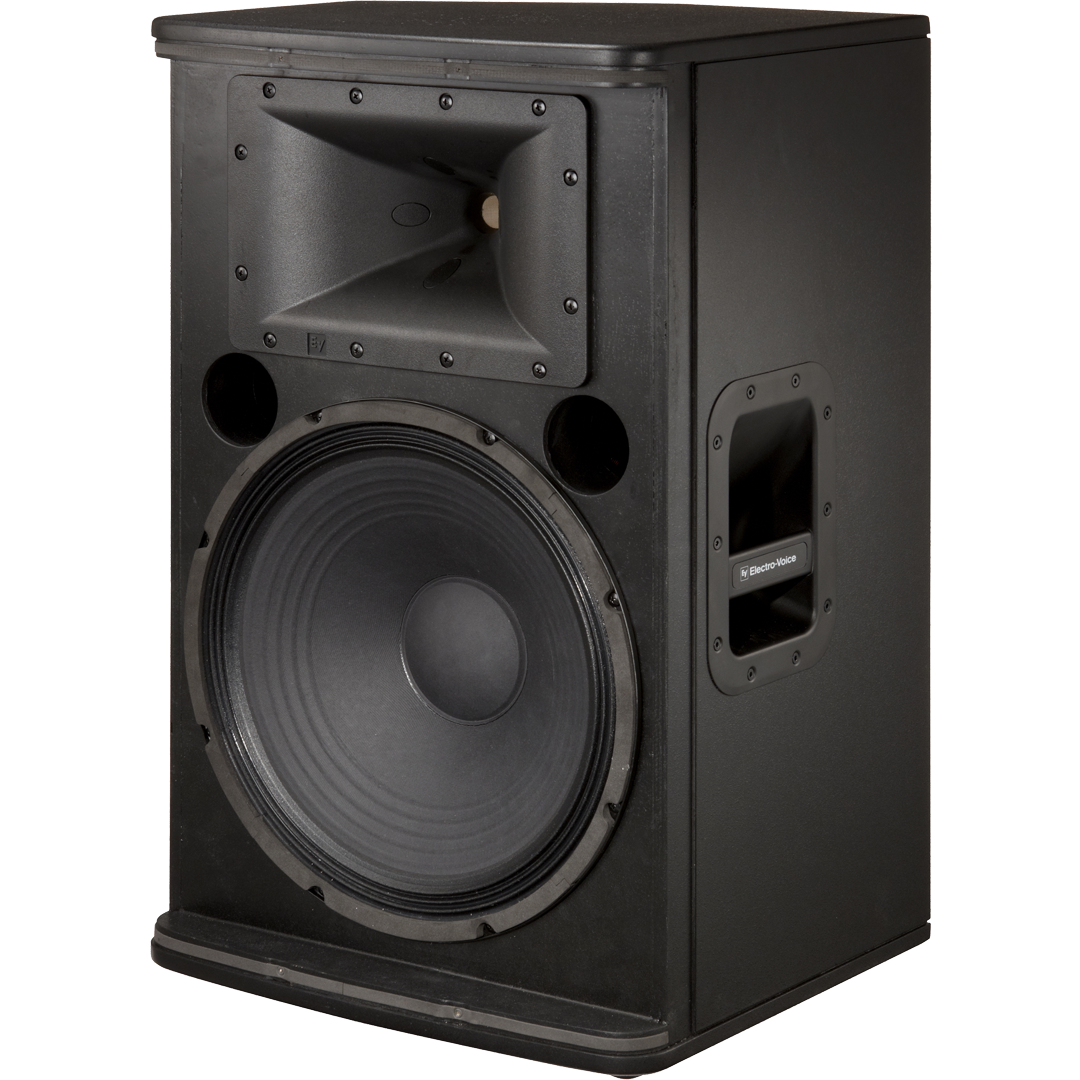

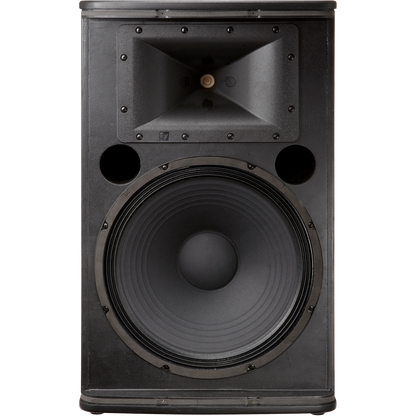

• LF Transducer (1) EVS-15K, 381mm (15") Woofer
• HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency 1.7 k Hz

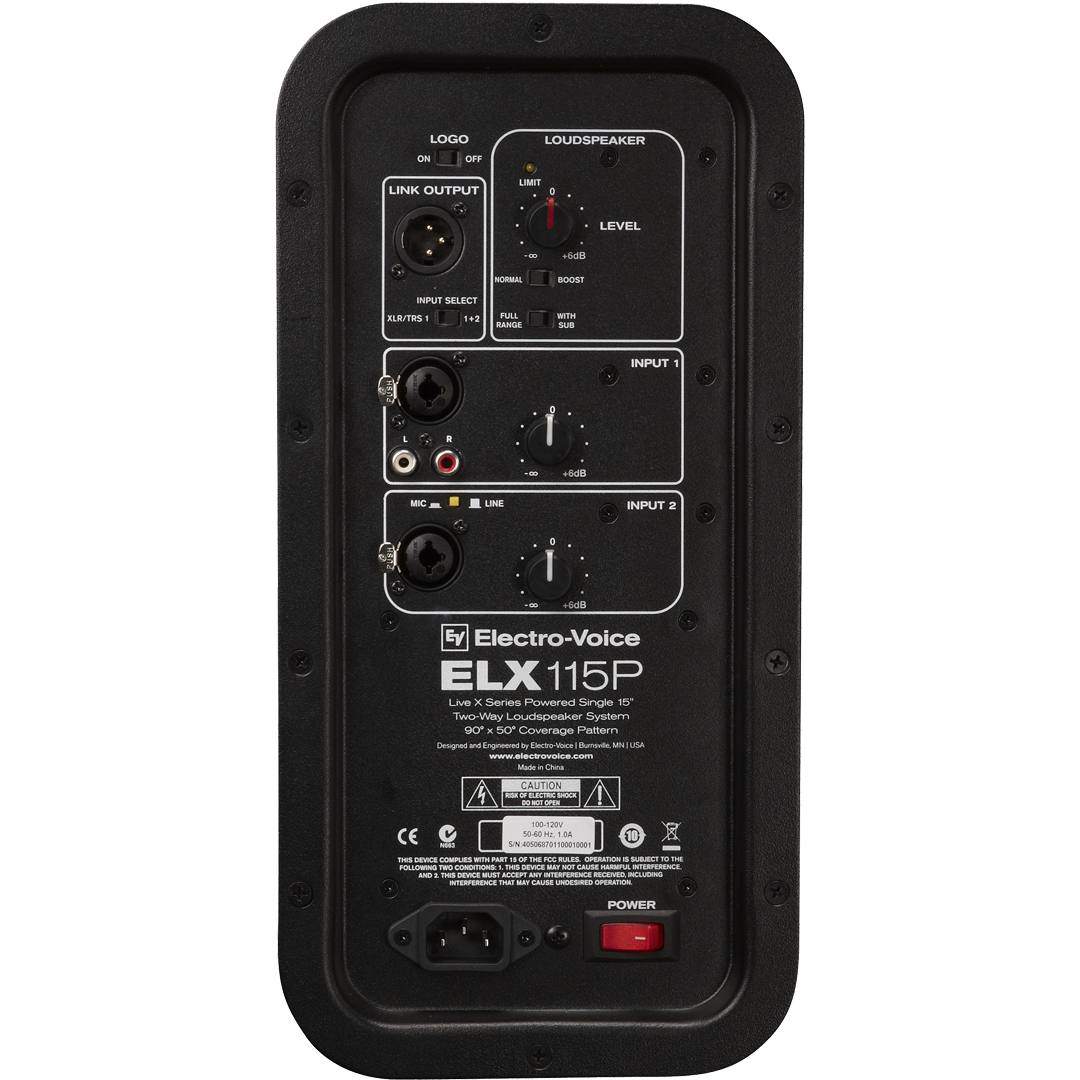

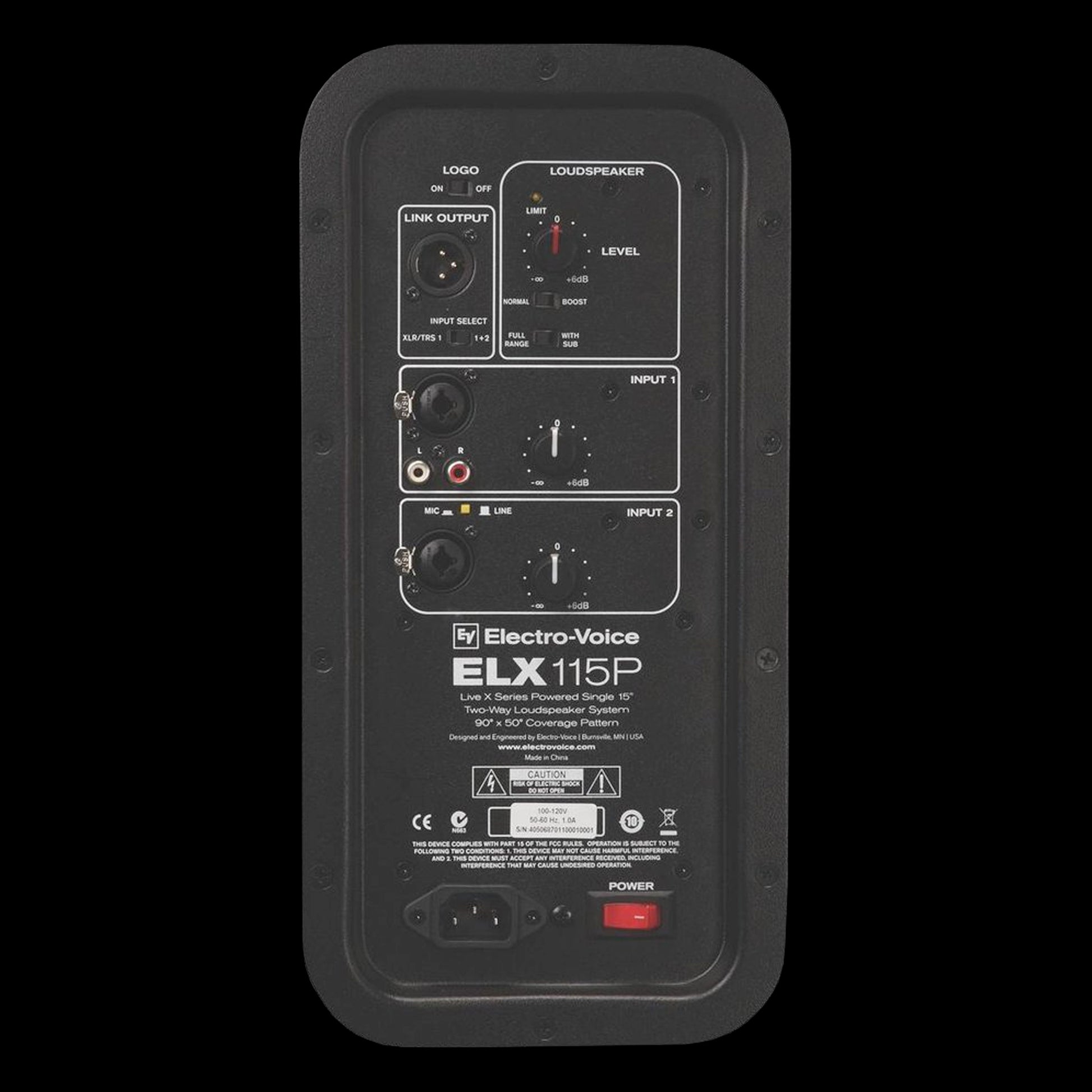

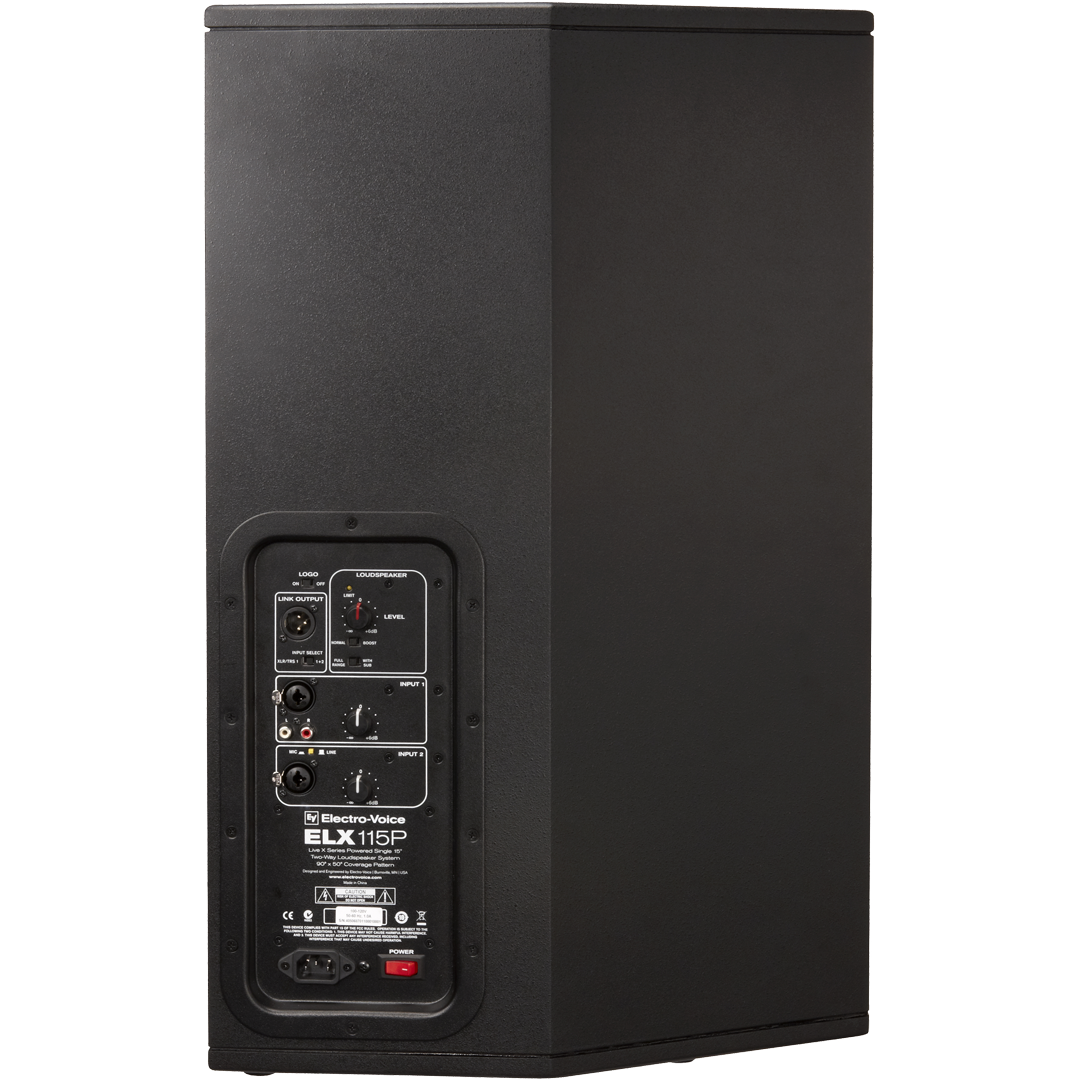

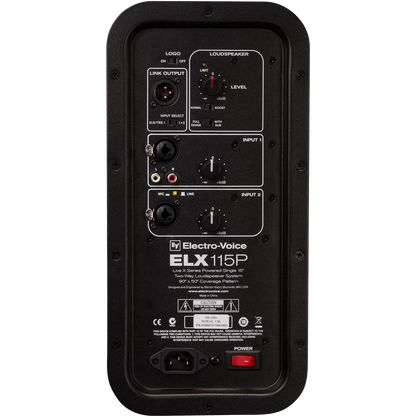

• Connector Type (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output

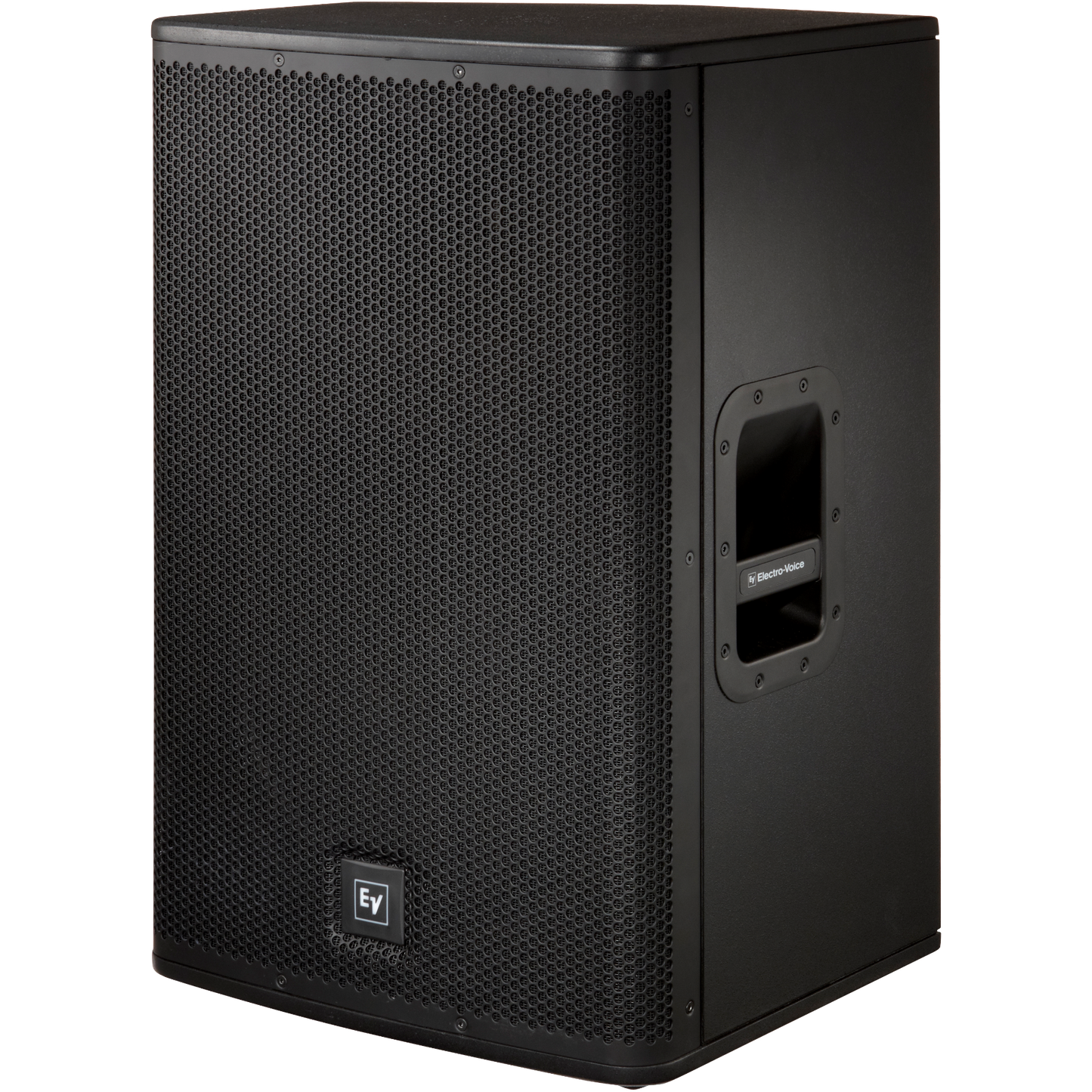

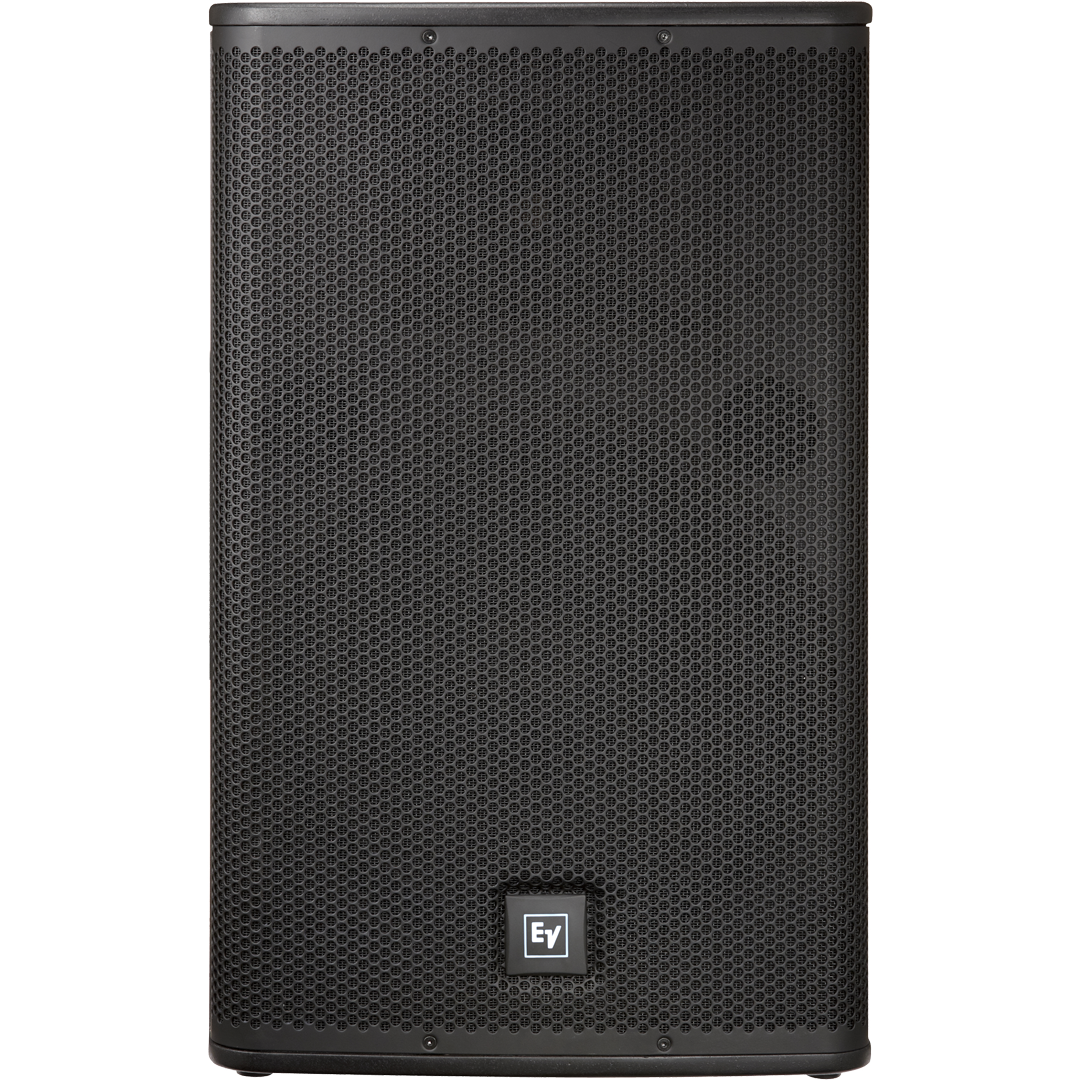

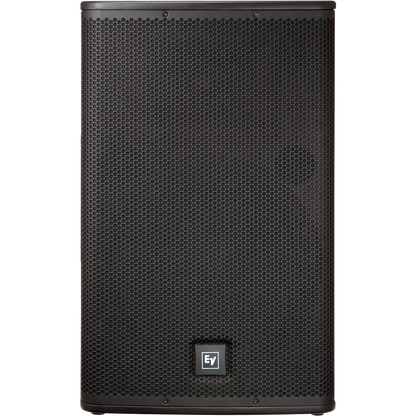

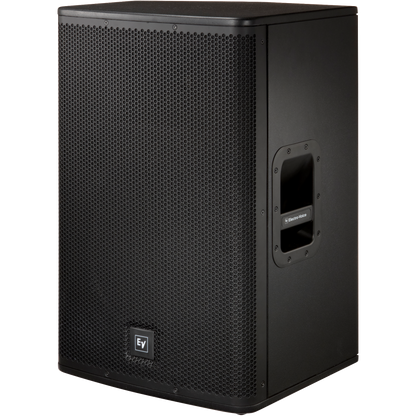

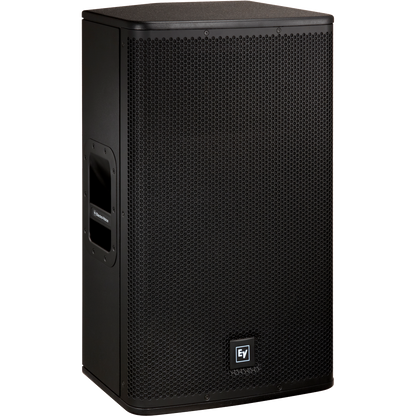

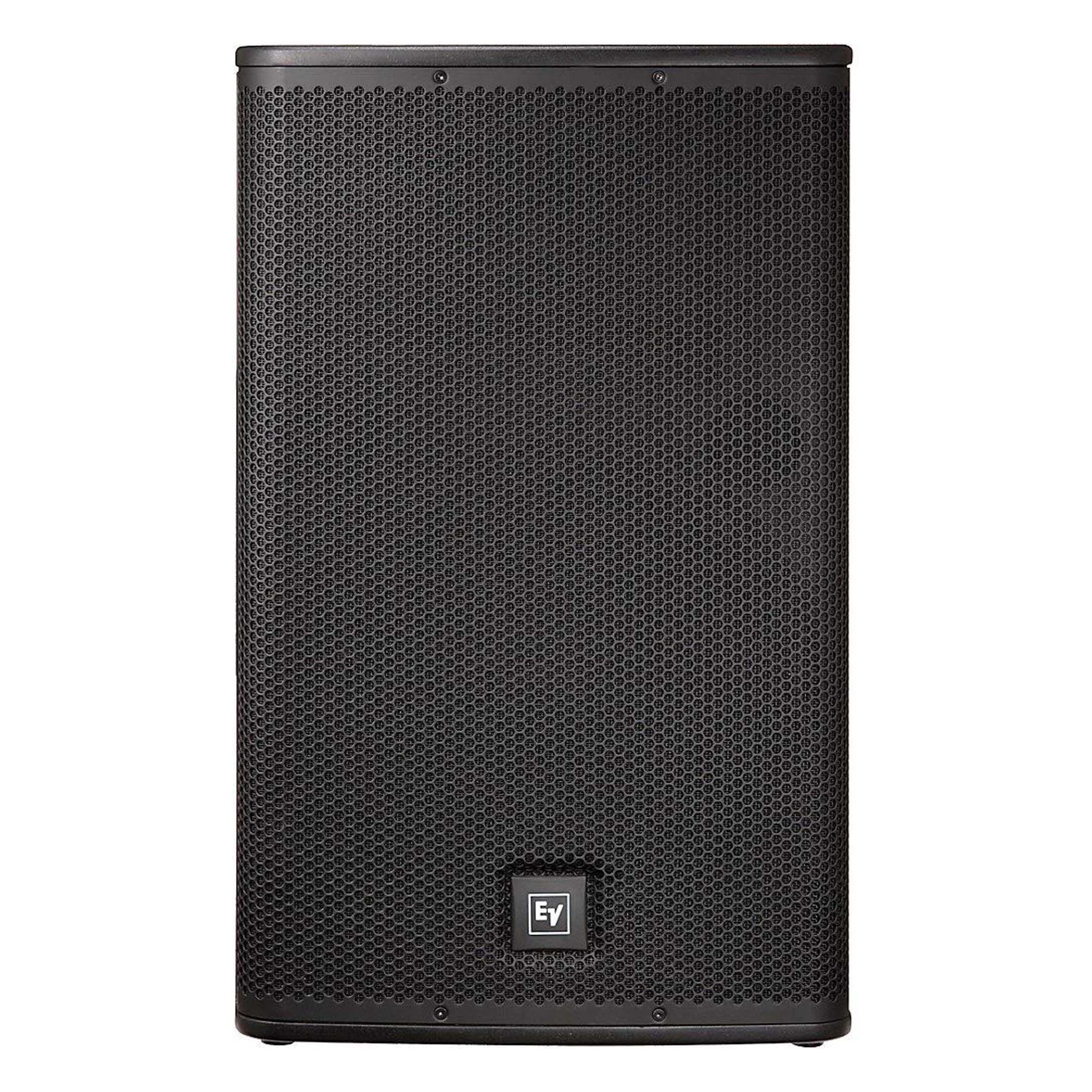

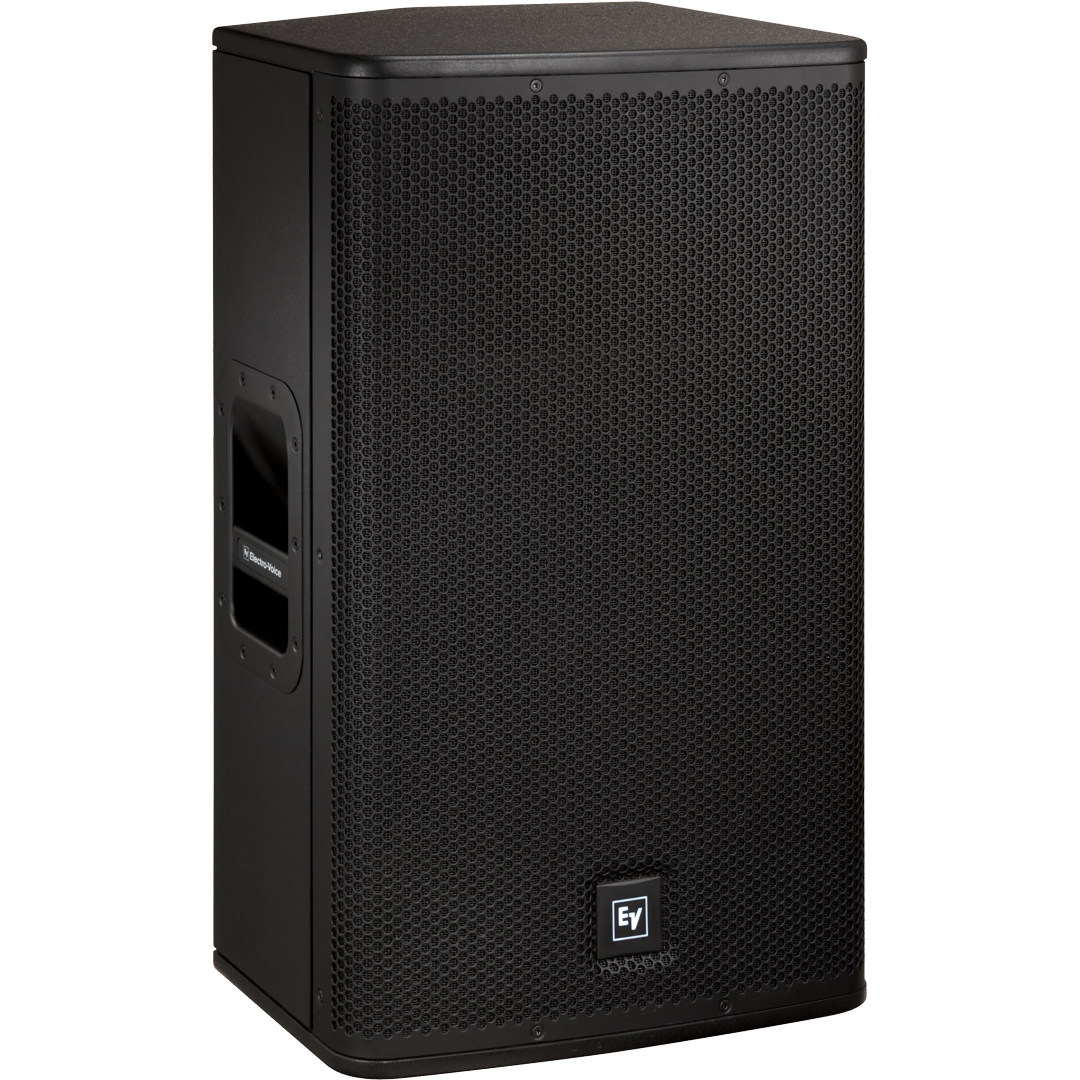

• Grill 18GA Steel with Black Powdercoat
• Height 708 mm (27.87")
• Width 432 mm (17.01")
• Depth 382 mm (15.04")
• Weight Net 24.3 kg (53.57 lbs)
• Shipping Weight 29.5 kg (65.04 lbs)
