ZX1 8-inch Two-Way Full-Range Composite Loudspeaker

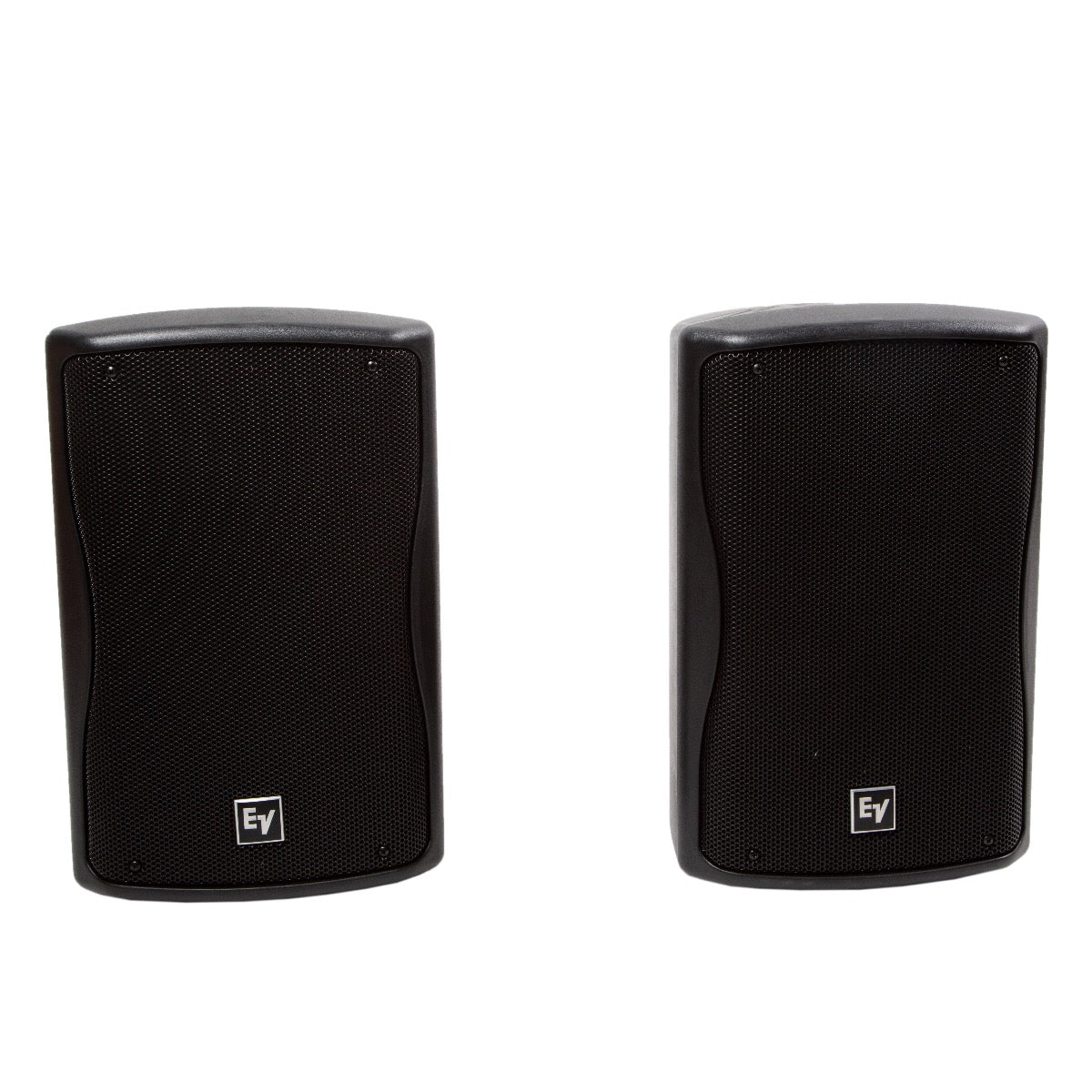

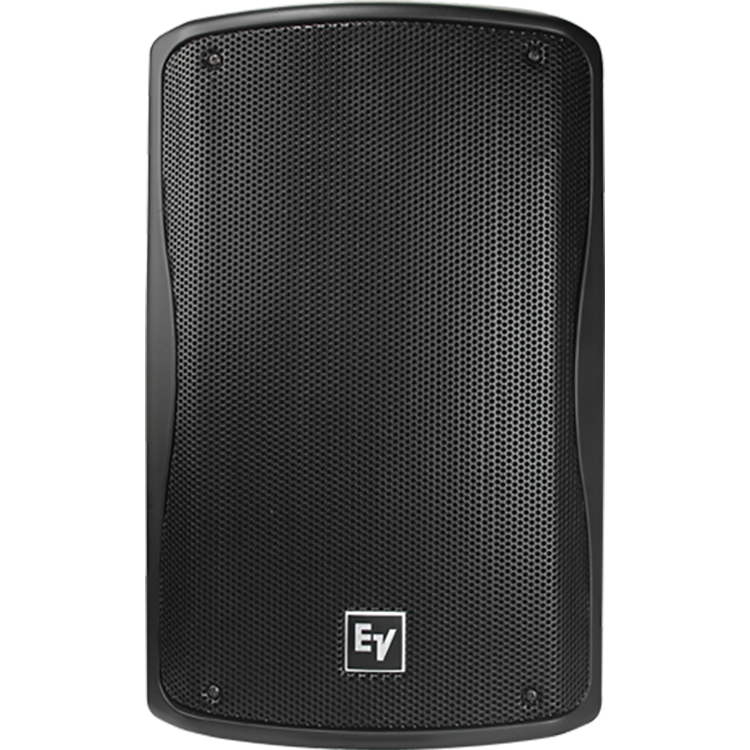

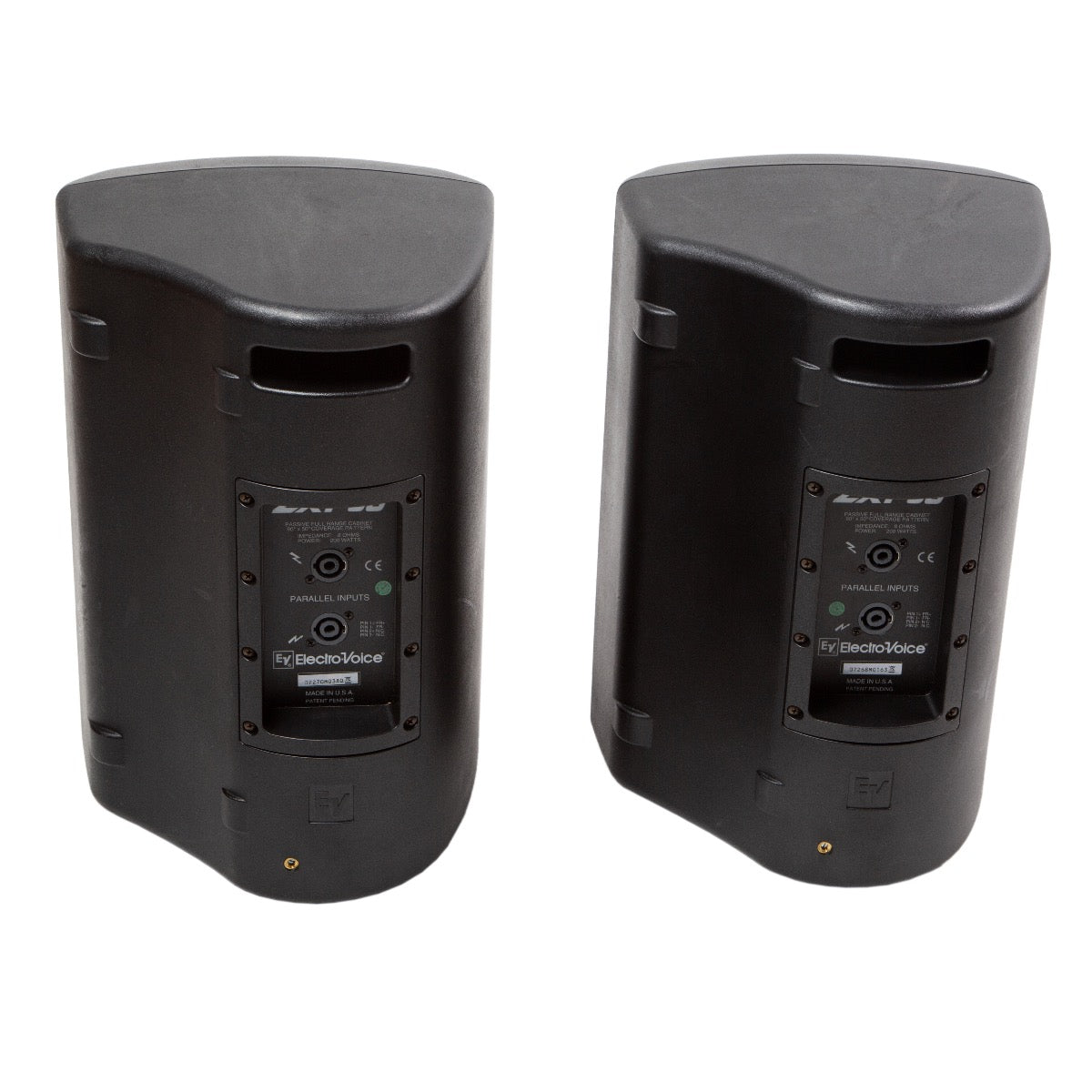

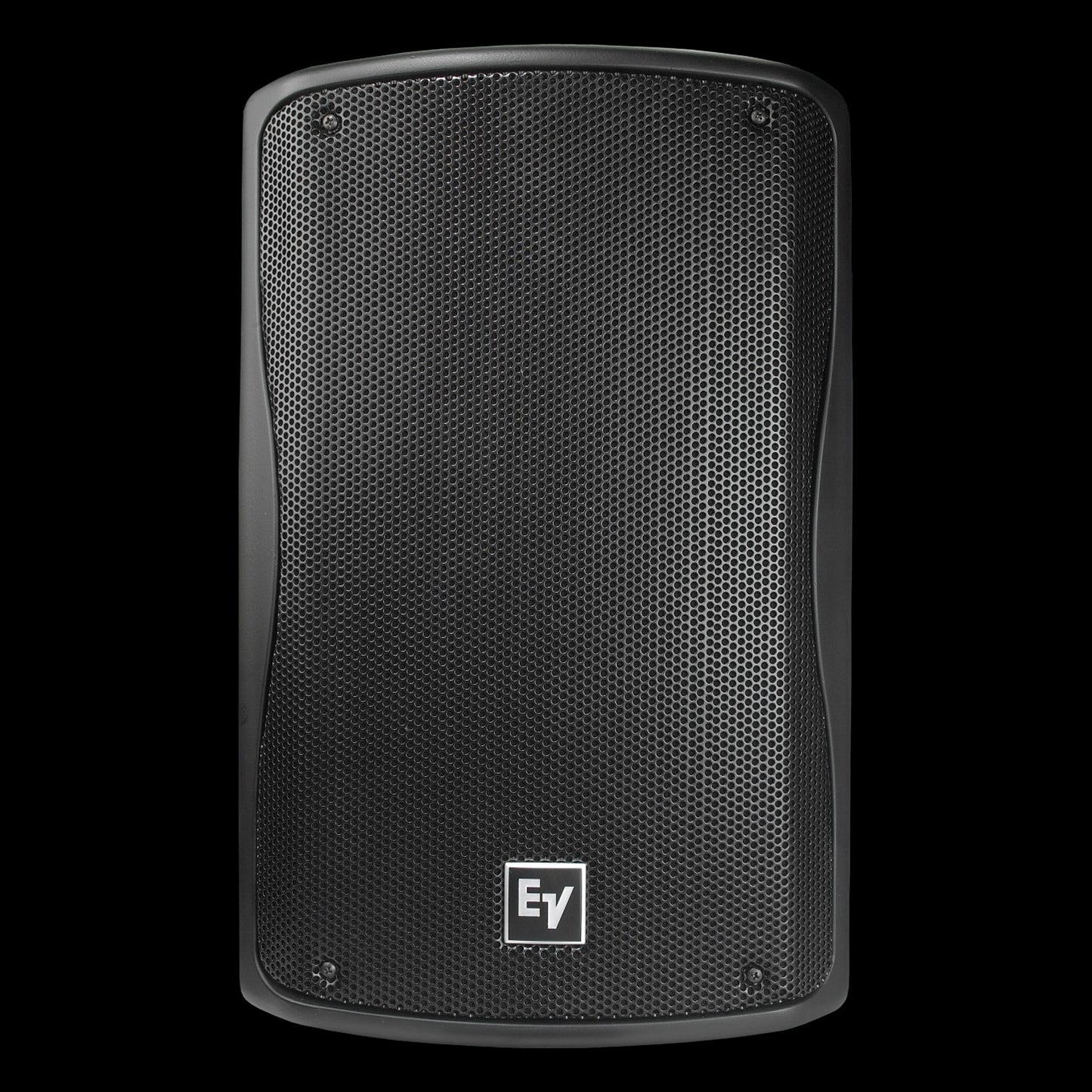

The black Electro-Voice ZX1-90 is a passive, full-range, 2-way PA loudspeaker with a durable all-weather enclosure housing an 8" woofer and a 1"-exit compression driver in a rotatable horn. It offers 200W continuous power handling, a 60 Hz to 20 kHz frequency response, and a high maximum SPL of 123 dB.
The ZX1-90 features an integrated handle for simplified transportation, a built-in speaker pole mount, and a wedge-angle design that allows it to be used as a traditional loudspeaker or as a stage monitor. Full-bandwidth overload protection safeguards the transducers from damaging levels.
| Product Name | Electro Voice Zx1 Watt 8" Two-way Speaker System |
|---|---|
| Brand | Electro Voice |
| Condition | New |
| MPN | zx190 |
| UPC | 701001031559 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Smooth, wide frequency response
- Ideal for mains, fills, or monitors
- Velocity-compensated port for exceptional LF
- Long-excursion weather-treated EV8L woofer
- 1.25-inch DH2005 titanium HF compression driver
- Rotatable 90º x 50º horn for flexible coverage
- Passive crossover with full-band overload protection
- High sensitivity, 123 dB maximum SPL
- Power handling: 200 W continuous, 800 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Integrated pole mount adapter and pocket handle
- Metric mounting inserts (4)
- Available in black or white
- Chassis Size 203.2 mm (8")
- Color Black
- Input Connections Parallel Neutrik® NL4
- Speaker Type Fullrange, Mid-High, Two-Way, Wedges
- Frequency Response (-3 dB) 60 - 20000 Hz
- Frequency Response (-10 dB) 48 - 20000 Hz
- Internal Crossover Yes
- Recommended High-Pass Frequency 40 Hz
- Sensitivity 1 W/1 m 94 dB
- Max. SPL/1m (calc) 123 dB
- Coverage (Nominal -6 dB) H 90 ° Rotatable
- Coverage (Nominal -6 dB) V 50 ° Rotatable
- Rotatable Horn Yes
- System Power Handling (Continuous/Program/Peak) 200//800 Watts
- LF Transducer 8-inch EV8L
- HF Transducer 1.25-inch DH2005
- Crossover Frequency 1700 Hz
- Nominal Impedance (Passive) 8 Ω
- Minimum Impedance 6 Ω
- Enclosure Material High Impact Polystyrene
- Flying No
- Outdoor No
- Grill Polyester Powder Coated, 18GA Galvanized Steel
- Height 457 mm (17.99")
- Width 282 mm (11.1")
- Depth 264 mm (10.39")
- Weight Net 8.4 kg (18.52 lbs)
Electro Voice Zx1 Watt 8" Two-way Speaker System
Details
ZX1
8-inch Two-Way Full-Range Composite Loudspeaker
Features:
- Smooth, wide frequency response
- Ideal for mains, fills, or monitors
- Velocity-compensated port for exceptional LF
- Long-excursion weather-treated EV8L woofer
- 1.25-inch DH2005 titanium HF compression driver
- Rotatable 90º x 50º horn for flexible coverage
- Passive crossover with full-band overload protection
- High sensitivity, 123 dB maximum SPL
- Power handling: 200 W continuous, 800 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Integrated pole mount adapter and pocket handle
- Metric mounting inserts (4)
- Available in black or white
Specifications:
- Chassis Size 203.2 mm (8")
- Color Black
- Input Connections Parallel Neutrik® NL4
- Speaker Type Fullrange, Mid-High, Two-Way, Wedges
- Frequency Response (-3 dB) 60 - 20000 Hz
- Frequency Response (-10 dB) 48 - 20000 Hz
- Internal Crossover Yes
- Recommended High-Pass Frequency 40 Hz
- Sensitivity 1 W/1 m 94 dB
- Max. SPL/1m (calc) 123 dB
- Coverage (Nominal -6 dB) H 90 ° Rotatable
- Coverage (Nominal -6 dB) V 50 ° Rotatable
- Rotatable Horn Yes
- System Power Handling (Continuous/Program/Peak) 200//800 Watts
- LF Transducer 8-inch EV8L
- HF Transducer 1.25-inch DH2005
- Crossover Frequency 1700 Hz
- Nominal Impedance (Passive) 8 Ω
- Minimum Impedance 6 Ω
- Enclosure Material High Impact Polystyrene
- Flying No
- Outdoor No
- Grill Polyester Powder Coated, 18GA Galvanized Steel
- Height 457 mm (17.99")
- Width 282 mm (11.1")
- Depth 264 mm (10.39")
- Weight Net 8.4 kg (18.52 lbs)
| Product Name | Electro Voice Zx1 Watt 8" Two-way Speaker System |
|---|---|
| Brand | Electro Voice |
| Condition | New |
| MPN | zx190 |
| UPC | 701001031559 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Smooth, wide frequency response
- Ideal for mains, fills, or monitors
- Velocity-compensated port for exceptional LF
- Long-excursion weather-treated EV8L woofer
- 1.25-inch DH2005 titanium HF compression driver
- Rotatable 90º x 50º horn for flexible coverage
- Passive crossover with full-band overload protection
- High sensitivity, 123 dB maximum SPL
- Power handling: 200 W continuous, 800 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Integrated pole mount adapter and pocket handle
- Metric mounting inserts (4)
- Available in black or white
Tech Specs
- Chassis Size 203.2 mm (8")
- Color Black
- Input Connections Parallel Neutrik® NL4
- Speaker Type Fullrange, Mid-High, Two-Way, Wedges
- Frequency Response (-3 dB) 60 - 20000 Hz
- Frequency Response (-10 dB) 48 - 20000 Hz
- Internal Crossover Yes
- Recommended High-Pass Frequency 40 Hz
- Sensitivity 1 W/1 m 94 dB
- Max. SPL/1m (calc) 123 dB
- Coverage (Nominal -6 dB) H 90 ° Rotatable
- Coverage (Nominal -6 dB) V 50 ° Rotatable
- Rotatable Horn Yes
- System Power Handling (Continuous/Program/Peak) 200//800 Watts
- LF Transducer 8-inch EV8L
- HF Transducer 1.25-inch DH2005
- Crossover Frequency 1700 Hz
- Nominal Impedance (Passive) 8 Ω
- Minimum Impedance 6 Ω
- Enclosure Material High Impact Polystyrene
- Flying No
- Outdoor No
- Grill Polyester Powder Coated, 18GA Galvanized Steel
- Height 457 mm (17.99")
- Width 282 mm (11.1")
- Depth 264 mm (10.39")
- Weight Net 8.4 kg (18.52 lbs)
