Electro Voice ZXA1SUB 12” Powered Subwoofer

Electro Voice ZXA1SUB 12” Powered Subwoofer

On order with the manufacturer!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Why you need the Electrovoice ZXA1SUB 12" Powered Subwoofer:


Electro-Voice engineers have raised the bar for portable sound once again with the new ZXA1.

The ZXA1-Sub 12" 700W is a compact and powerful subwoofer. The subwoofer has a sturdy 15mm 9-ply wood enclosure that is internally braced for lasting durability. The 12" EVS-12S woofer is powered by a 700W Class-D amplifier for a powerful, crisp performance with deep bass and minimal distortion.

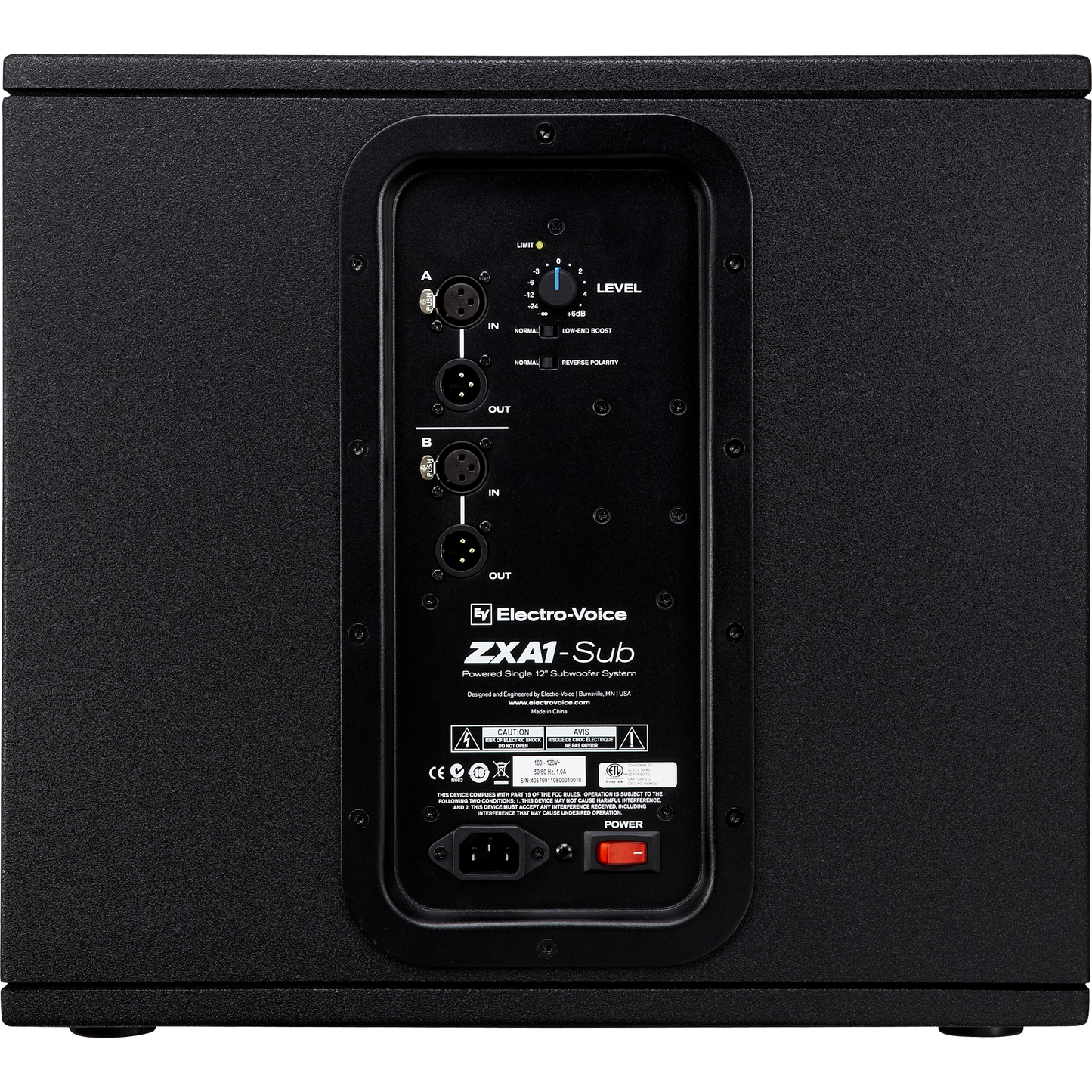

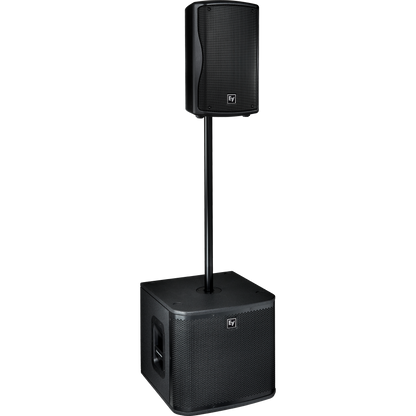

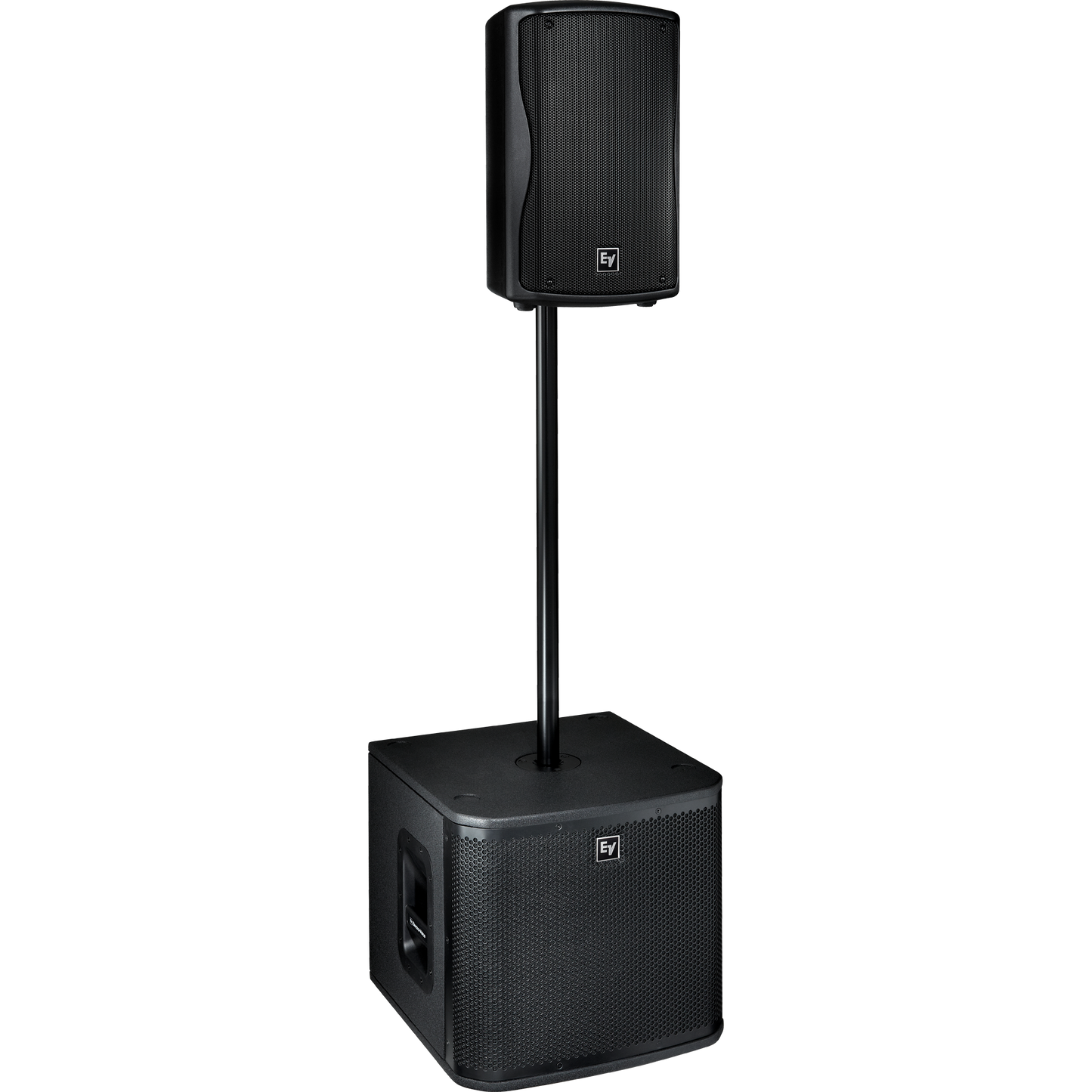

The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems. A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems. The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer. An integrated handle lets you carry the sub easily from one venue to another.


  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint
  • EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
  • Class D Lightweight 800 Watt Amplifier
  • Pole Mount for Full-Range Systems
  • Dual XLR Inputs and Outputs
  • Switchable EQ Modes for Different Applications
  • LED indicators for Power On and Limit

Get your's today at Alto Music!

More Information
Product Name Electro Voice ZXA1SUB 12” Powered Subwoofer
Brand Electro Voice
Condition New
MPN zxa1sub
UPC 800549638449
Shipping Option Free Shipping to the Continental U.S.
  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint
  • EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
  • Class D Lightweight 800 Watt Amplifier
  • Pole Mount for Full-Range Systems
  • Dual XLR Inputs and Outputs
  • Switchable EQ Modes for Different Applications
  • LED indicators for Power On and Limit
Amplifier Power 800 Watts (RMS)
Color Black
Coverage (Nominal -6 dB) Omnidirectional
Input Connections (2) XLR Stereo Input, (2) XLR Stereo Output
Power Requirement 120V: 90V-132v, 1.0 A, 50-60Hz 230V: 190V-264V, 0.6A, 50-60Hz
Speaker Type Powered Subwoofer
Frequency Response (-3 dB) 53–93 Hz Half Space
Frequency Response (-10 dB) 44–118 Hz Half Space
Max. SPL/1m (calc) 126 dB Half Space
System Power Handling (Continuous/Program/Peak) 700 Watts
LF Transducer (1) EVS-12S, 305mm (12”) Woofer
Crossover Frequency 100 Hz
Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Grill 16GA Steel with Black Powdercoat
Height 400 mm (15.75")
Width 444.5 mm (17.5")
Depth 457.2 mm (18")
Weight Net 20.9 kg (46.08 lbs)
Shipping Weight 26.5 kg (58.42 lbs)

Electro Voice ZXA1SUB 12” Powered Subwoofer

Details

Why you need the Electrovoice ZXA1SUB 12" Powered Subwoofer:


Electro-Voice engineers have raised the bar for portable sound once again with the new ZXA1.

The ZXA1-Sub 12" 700W is a compact and powerful subwoofer. The subwoofer has a sturdy 15mm 9-ply wood enclosure that is internally braced for lasting durability. The 12" EVS-12S woofer is powered by a 700W Class-D amplifier for a powerful, crisp performance with deep bass and minimal distortion.

The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems. A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems. The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer. An integrated handle lets you carry the sub easily from one venue to another.


  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint
  • EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
  • Class D Lightweight 800 Watt Amplifier
  • Pole Mount for Full-Range Systems
  • Dual XLR Inputs and Outputs
  • Switchable EQ Modes for Different Applications
  • LED indicators for Power On and Limit

Get your's today at Alto Music!

More Information
Product Name Electro Voice ZXA1SUB 12” Powered Subwoofer
Brand Electro Voice
Condition New
MPN zxa1sub
UPC 800549638449
Shipping Option Free Shipping to the Continental U.S.
Features
  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint
  • EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
  • Class D Lightweight 800 Watt Amplifier
  • Pole Mount for Full-Range Systems
  • Dual XLR Inputs and Outputs
  • Switchable EQ Modes for Different Applications
  • LED indicators for Power On and Limit
Tech Specs
Amplifier Power 800 Watts (RMS)
Color Black
Coverage (Nominal -6 dB) Omnidirectional
Input Connections (2) XLR Stereo Input, (2) XLR Stereo Output
Power Requirement 120V: 90V-132v, 1.0 A, 50-60Hz 230V: 190V-264V, 0.6A, 50-60Hz
Speaker Type Powered Subwoofer
Frequency Response (-3 dB) 53–93 Hz Half Space
Frequency Response (-10 dB) 44–118 Hz Half Space
Max. SPL/1m (calc) 126 dB Half Space
System Power Handling (Continuous/Program/Peak) 700 Watts
LF Transducer (1) EVS-12S, 305mm (12”) Woofer
Crossover Frequency 100 Hz
Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Grill 16GA Steel with Black Powdercoat
Height 400 mm (15.75")
Width 444.5 mm (17.5")
Depth 457.2 mm (18")
Weight Net 20.9 kg (46.08 lbs)
Shipping Weight 26.5 kg (58.42 lbs)
