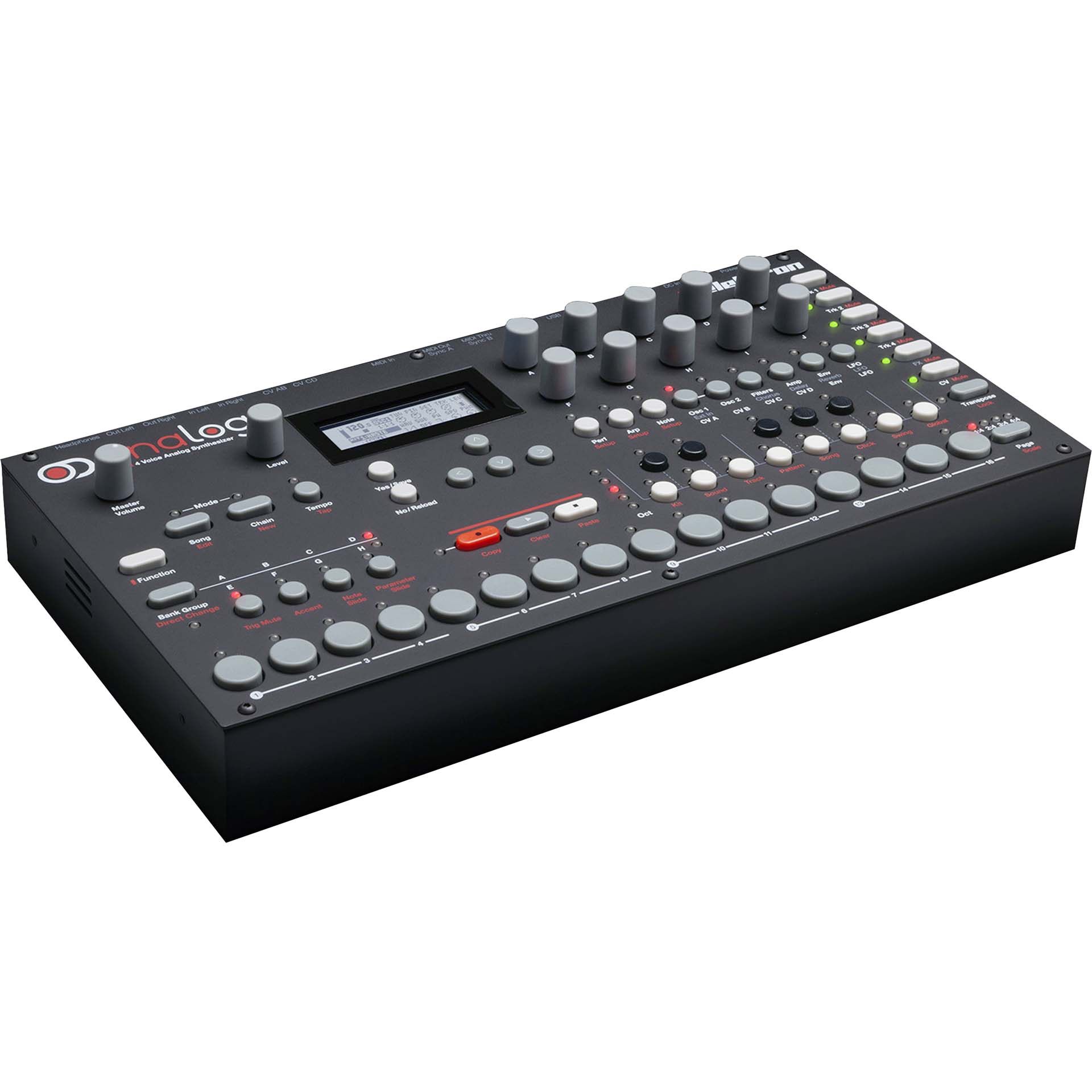

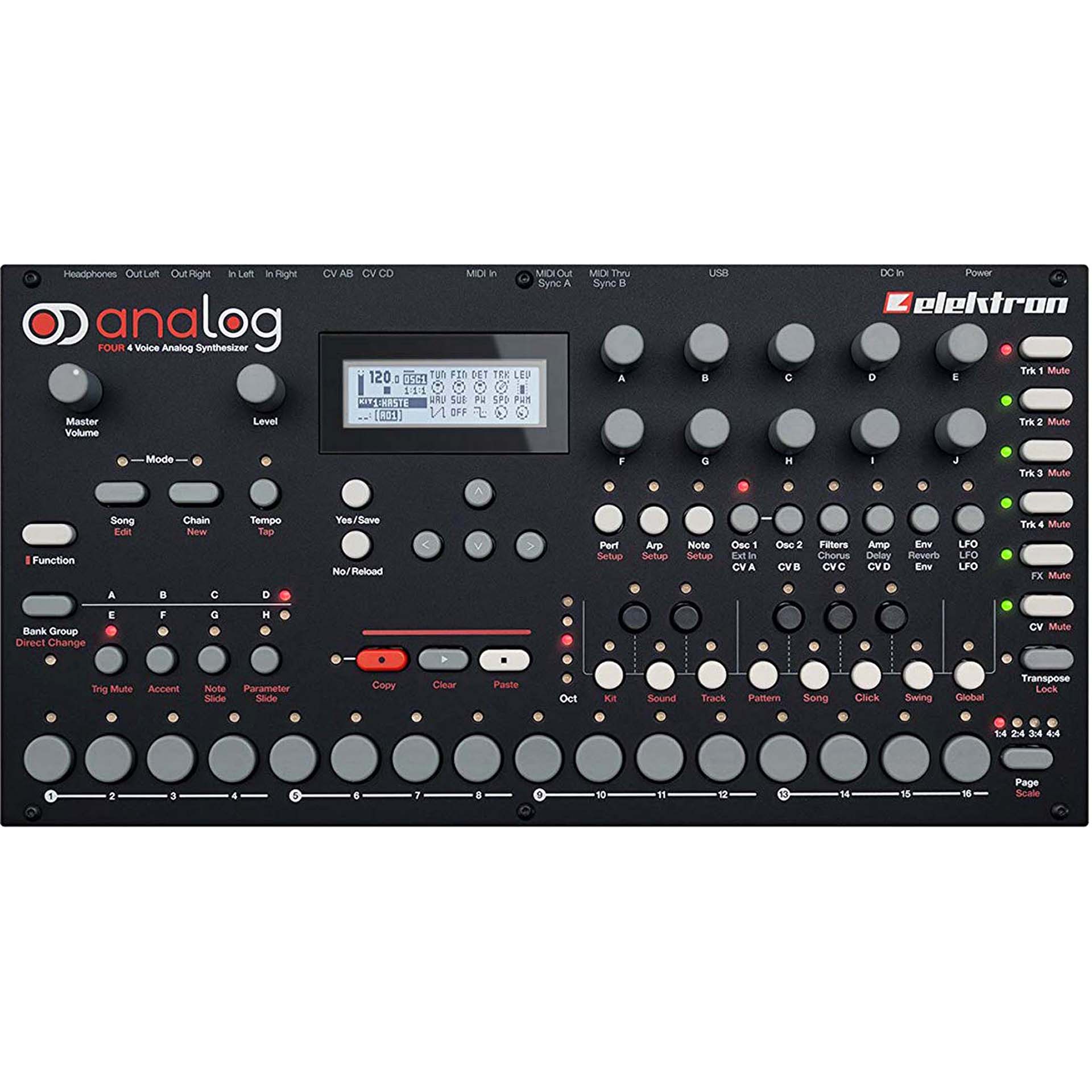

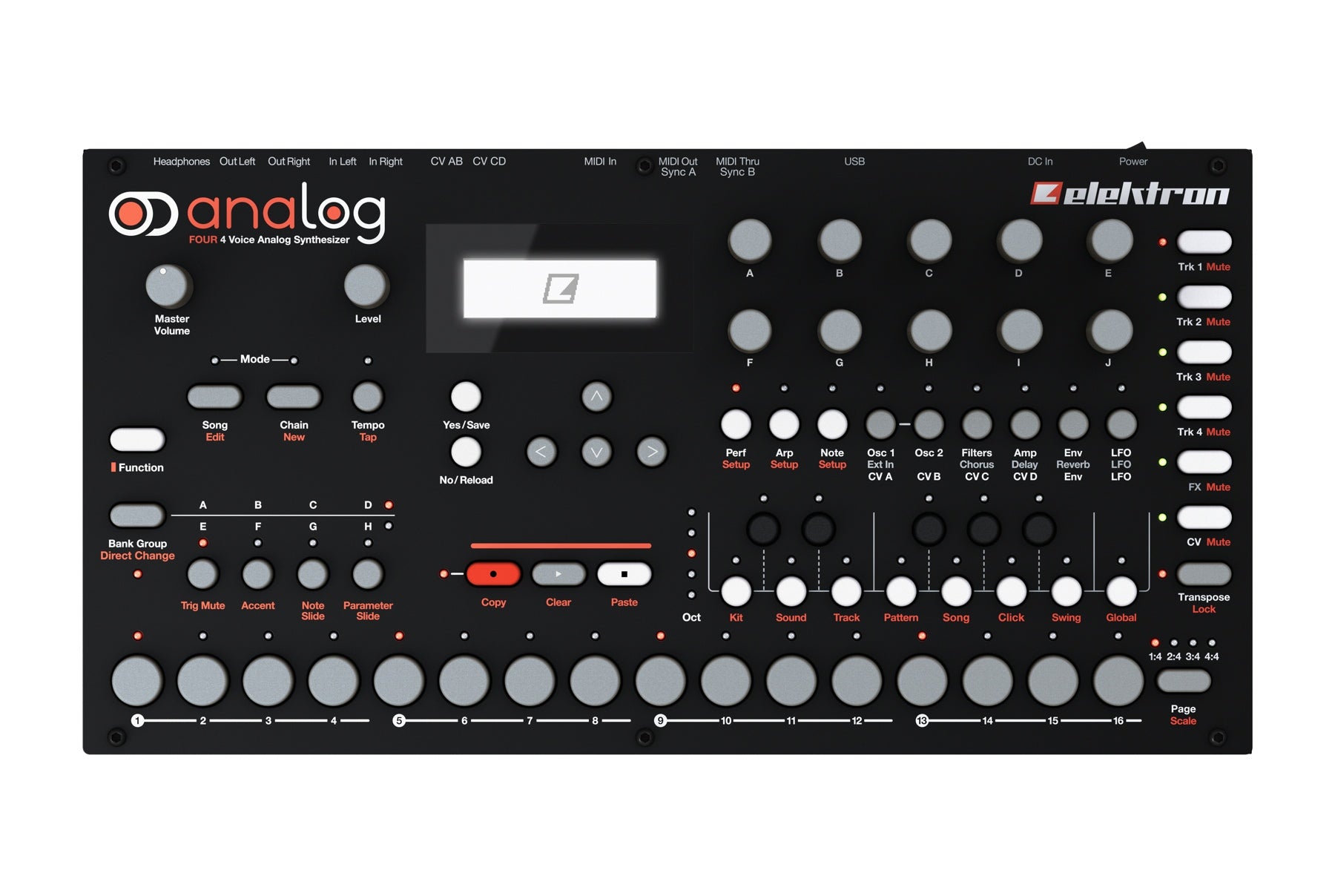

Elektron Analog Four:

Four voice analog synthesizer with state-of-the-art digital controls.

Key features: 4 synth voices. 2 Analog oscillators per voice. 2 Analog filters per voice. 1 Analog overdrive circuit per voice. Multiple LFOs and envelopes per voice. Elektron step sequencer with parameter locks. Kit and Sound storage. All new hi-quality effects. 2x dual CV/Gate outputs. Dedicated CV/Gate and FX sequencer tracks. MIDI IN/THRU/OUT with DIN sync out. 2x External inputs. 2x Main outputs. 1x Headphones output. Included in the box: 1 Power Supply Unit. 1 Power Supply cable of your selection (EU, US, UK, AUS). 1 Analog Quickstart Guide. 1 USB cable.

Dual filter force

Each synth voice features two separate analog filters. The 4-pole lowpass ladder filter and 2-pole multi-mode filter are incredible tools when shaping sounds. To add more sonic crunch, the filter section also contains a fully analog overdrive circuit. The saturation can range from gentle warming to total destruction. All bases are covered.

Brilliant FX

The effects section of the Analog Four has been constructed from the ground up and is a perfect match for the strong analog tones. Use the Wideshift Chorus, Saturator Delay and Supervoid Reverb for situating sounds in acid cathedrals, the deepest abysses and head-spinning rotating rooms or for simply adding a final, subtle, audio finish. They make things shine.

Total Sound Control

The critically acclaimed Elektron step sequencer gives unprecedented control over synth and FX parameters. Create patterns and songs with ease and use parameter locks to lock track parameters to specific values. It is even possible to change synth patches per sequencer step; an unbeatable method when creating expressive patterns. The dedicated track, of course featuring parameter locks, sending CV/Gate signals is perfect for sequencing external analog instruments. Analog Four is in control.

Wild modulation

The internal architecture opens up for extensive modulation possibilities. Each synth voice offers two assignable LFOs and envelopes, AM cross-modulation, oscillator sync and dedicated LFOs for both pulse width modulation and vibrato. The range of potential sounds is as wide as it possibly can get.

Convenient storage

Sounds can of course be stored. Kits contain complete settings for all tracks, Sounds contain settings for the synth tracks. Save the best Kits and Sounds and create a collection of the most inspiring analog patches, ready to be recalled at all times. No tedious and time-consuming recreation of analog sounds is necessary. This machine is instant and direct.

Full connectivity

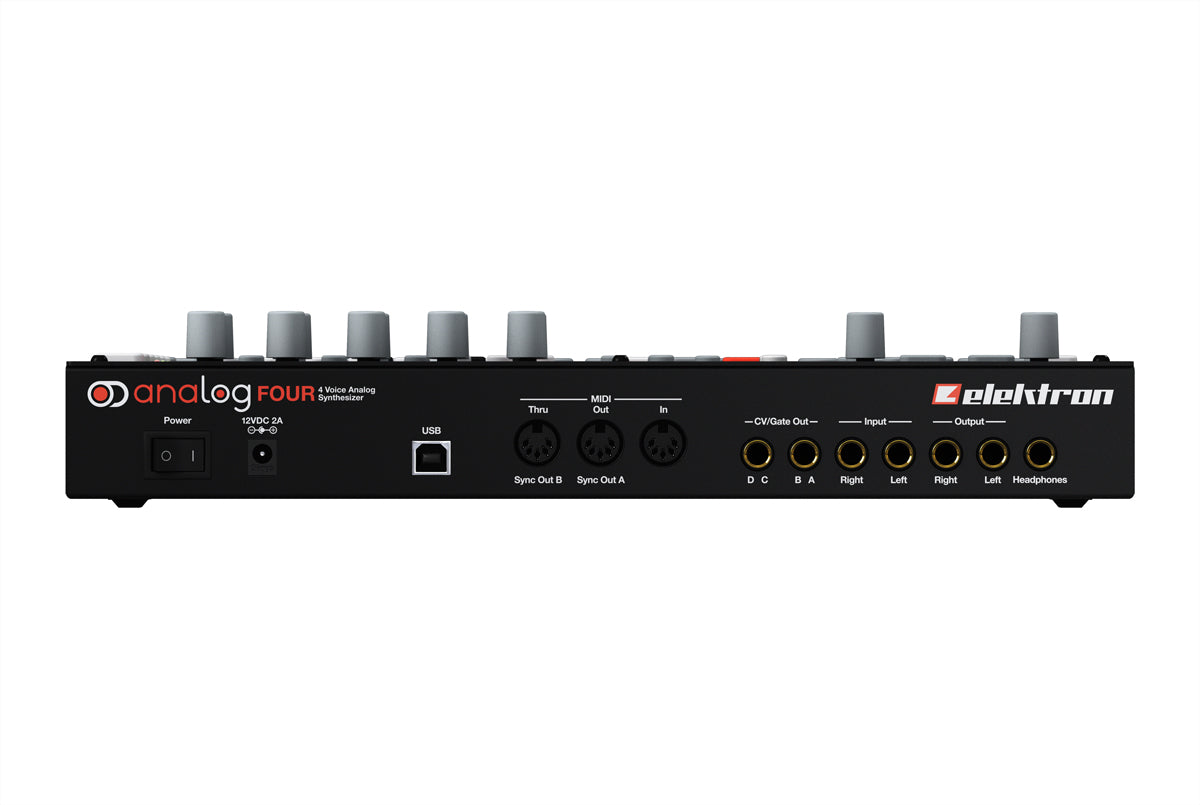

All the ports necessary to incorporate the Analog Four in a modern studio are at hand. A headphone output, two main outputs, two external inputs, two dual CV/Gate outputs, a USB port and MIDI IN/OUT/THRU ports featuring DIN sync out means the Analog Four can communicate with everything from legacy instruments and modular synthesizers to computers. It is at home everywhere.
