Suitable for installation in nightclubs and other entertainment venues, as well as for mobile use by production companies and entertainers, Eliminator Lighting’s Stryker Beam is a potent moving head beam fixture. It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects.

The Stryker Beam offers fast, precise movement as well as a diverse collection of beam-shaping tools, which provide lighting designers lots of creative potential. A dedicated GOBO wheel features 11 die-cut metal shapes (plus open), which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects. A motorized focus function allows GOBOs to be kept sharp, while a separate color wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-colored beam effects, A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light. Finally, two circular rotating prisms are provided, 8-facet and 16-facet, which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect.#160;

For a fixture of its class, the Stryker Beam is a compact and lightweight moving head, which is easily portable. It features a large full color display screen, providing access to an intuitive menu-driven interface for DMX addressing and customization of the unit’s operating parameters. It features locking power input and output sockets, to allow multiple fixtures to daisy chain from a single outlet, together with both 3-pin and 5-pin DMX sockets for easy integration into any existing DMX system.

More Information

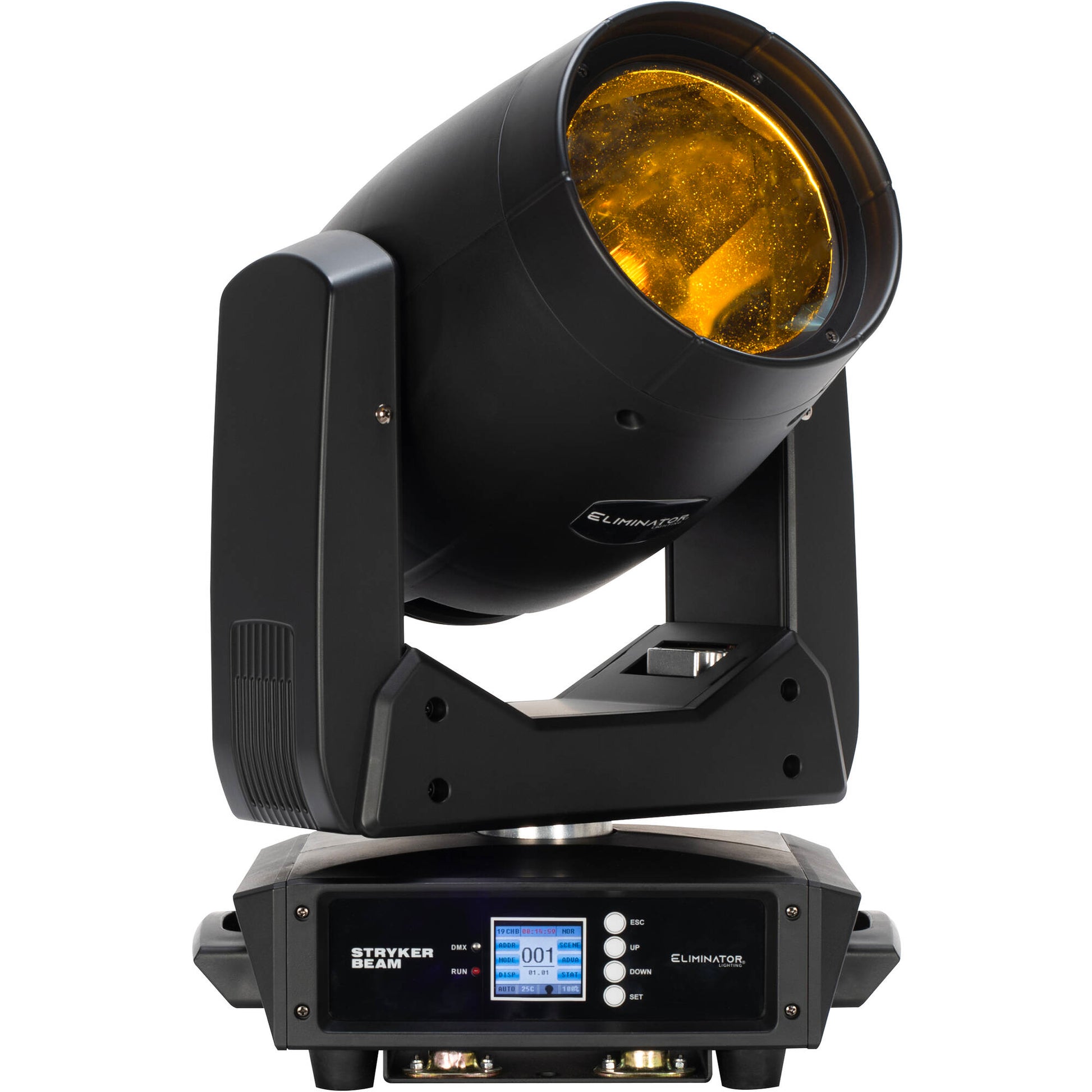

Product Name Eliminator Lighting Stryker Beam 13-Color LED Beam Moving Head
Brand ELIMINATOR LIGHTING
Condition New
MPN STRYKERBEAM
UPC 810087371197
Shipping Option Free Shipping on orders over $94.72

What's in the Box?

  • Eliminator Lighting Stryker Beam 13-Color LED Beam Moving Head
  • Locking power cord
  • Omega bracket
  • Full color function display with 4 buttons
  • Fast, precise, pan tilt movements
  • Primary / Secondary stand-alone mode
  • Motorized Focus
  • Frost Filter (50-Degree Wash Effect)

LIGHT SOURCE:

  • 100W LED Engine
  • 6-Degree Beam Angle
COLOR WHEEL:
  • 13 colors + open
  • Separate 6-Color flag for multi-color effects
GOBO WHEEL:
  • Metal wheel with 11 GOBOS + open (2 are beam reducers)
  • GOBO Shake Effect
PRISM WHEEL:
  • 8-facet rotating circular prism
  • 16-facet rotating circular prism
  • Prism layering
CONTROL:
  • 2 DMX channel modes: 16 19 channels
  • Protocols: DMX-512, RDM, Auto and Primary/Secondary control modes
  • Electronic Dimmer: 0- 100 %
  • Variable Strobe: 0-20HZ
  • With Wired Digital Communication Network

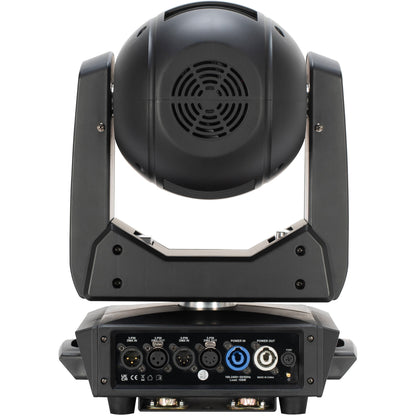

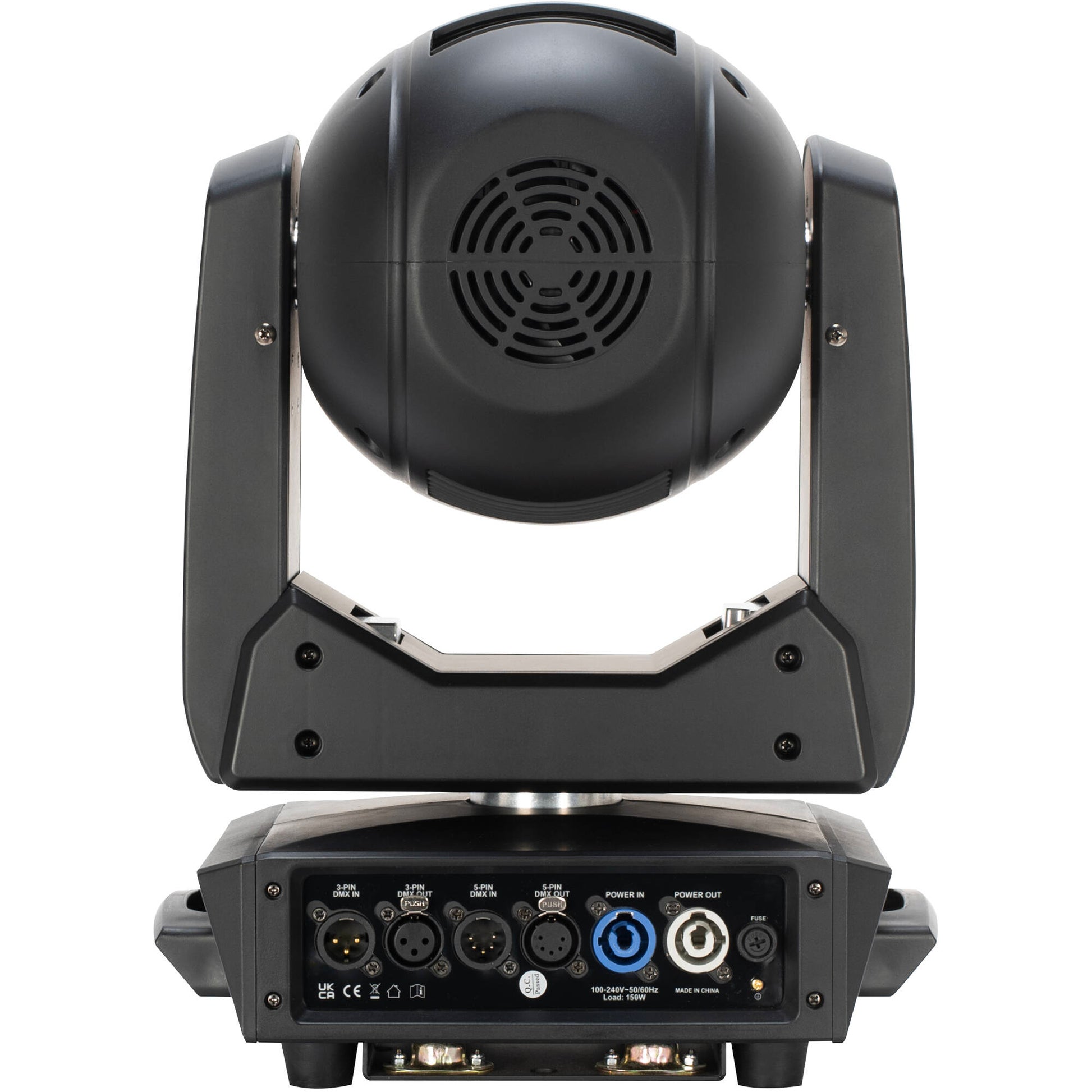

CONNECTIONS:
  • DMX Data In/Out: 3-pin 5-pin connections
  • Power In: Blue Locking indoor power connection
  • Power Out: White Locking indoor power connection
PAN/TILT:
  • Pan/Tilt: 540-degrees / 270-degrees
  • 16-bit Fine Pan
  • 16-bit Fine Tilt
ELECTRICAL:
  • Multi-voltage operation: AC 100-24V, 50/60Hz
  • Maximum Power Consumption: 150W
  • Power daisy chain: 2 units @120V, 3 units @230V
DIMENSIONS WEIGHT:
  • Dimensions (LxWxH): 11.5” x 11.9” x 18.3” / 292.1x302.3x464.0mm
  • Weight: 29 lbs. / 12.8 kg.
Road Cases (Sold Separately):
  • Two (2) Stryker Beam fit inside the ADJ DRC MH road case
  • Four (4) Stryker Beam fit inside the ADJ QRC HM road case
WHAT’S INCLUDED:
  • Locking power cord
  • Omega bracket
APPROVALS:
  • cETL Approved (Control # 5027824)
  • FCC Compliant
  • CE Compliant
  • IP20
Details

Suitable for installation in nightclubs and other entertainment venues, as well as for mobile use by production companies and entertainers, Eliminator Lighting’s Stryker Beam is a potent moving head beam fixture. It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects.

The Stryker Beam offers fast, precise movement as well as a diverse collection of beam-shaping tools, which provide lighting designers lots of creative potential. A dedicated GOBO wheel features 11 die-cut metal shapes (plus open), which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects. A motorized focus function allows GOBOs to be kept sharp, while a separate color wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-colored beam effects, A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light. Finally, two circular rotating prisms are provided, 8-facet and 16-facet, which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect.#160;

For a fixture of its class, the Stryker Beam is a compact and lightweight moving head, which is easily portable. It features a large full color display screen, providing access to an intuitive menu-driven interface for DMX addressing and customization of the unit’s operating parameters. It features locking power input and output sockets, to allow multiple fixtures to daisy chain from a single outlet, together with both 3-pin and 5-pin DMX sockets for easy integration into any existing DMX system.

More Information
Product Name Eliminator Lighting Stryker Beam 13-Color LED Beam Moving Head
Brand ELIMINATOR LIGHTING
Condition New
MPN STRYKERBEAM
UPC 810087371197

What's in the Box?

  • Eliminator Lighting Stryker Beam 13-Color LED Beam Moving Head
  • Locking power cord
  • Omega bracket
Features
  • Full color function display with 4 buttons
  • Fast, precise, pan tilt movements
  • Primary / Secondary stand-alone mode
  • Motorized Focus
  • Frost Filter (50-Degree Wash Effect)
Tech Specs

LIGHT SOURCE:

  • 100W LED Engine
  • 6-Degree Beam Angle
COLOR WHEEL:
  • 13 colors + open
  • Separate 6-Color flag for multi-color effects
GOBO WHEEL:
  • Metal wheel with 11 GOBOS + open (2 are beam reducers)
  • GOBO Shake Effect
PRISM WHEEL:
  • 8-facet rotating circular prism
  • 16-facet rotating circular prism
  • Prism layering
CONTROL:
  • 2 DMX channel modes: 16 19 channels
  • Protocols: DMX-512, RDM, Auto and Primary/Secondary control modes
  • Electronic Dimmer: 0- 100 %
  • Variable Strobe: 0-20HZ
  • With Wired Digital Communication Network
CONNECTIONS:
  • DMX Data In/Out: 3-pin 5-pin connections
  • Power In: Blue Locking indoor power connection
  • Power Out: White Locking indoor power connection
PAN/TILT:
  • Pan/Tilt: 540-degrees / 270-degrees
  • 16-bit Fine Pan
  • 16-bit Fine Tilt
ELECTRICAL:
  • Multi-voltage operation: AC 100-24V, 50/60Hz
  • Maximum Power Consumption: 150W
  • Power daisy chain: 2 units @120V, 3 units @230V
DIMENSIONS WEIGHT:
  • Dimensions (LxWxH): 11.5” x 11.9” x 18.3” / 292.1x302.3x464.0mm
  • Weight: 29 lbs. / 12.8 kg.
Road Cases (Sold Separately):
  • Two (2) Stryker Beam fit inside the ADJ DRC MH road case
  • Four (4) Stryker Beam fit inside the ADJ QRC HM road case
WHAT’S INCLUDED:
  • Locking power cord
  • Omega bracket
APPROVALS:
  • cETL Approved (Control # 5027824)
  • FCC Compliant
  • CE Compliant
  • IP20
