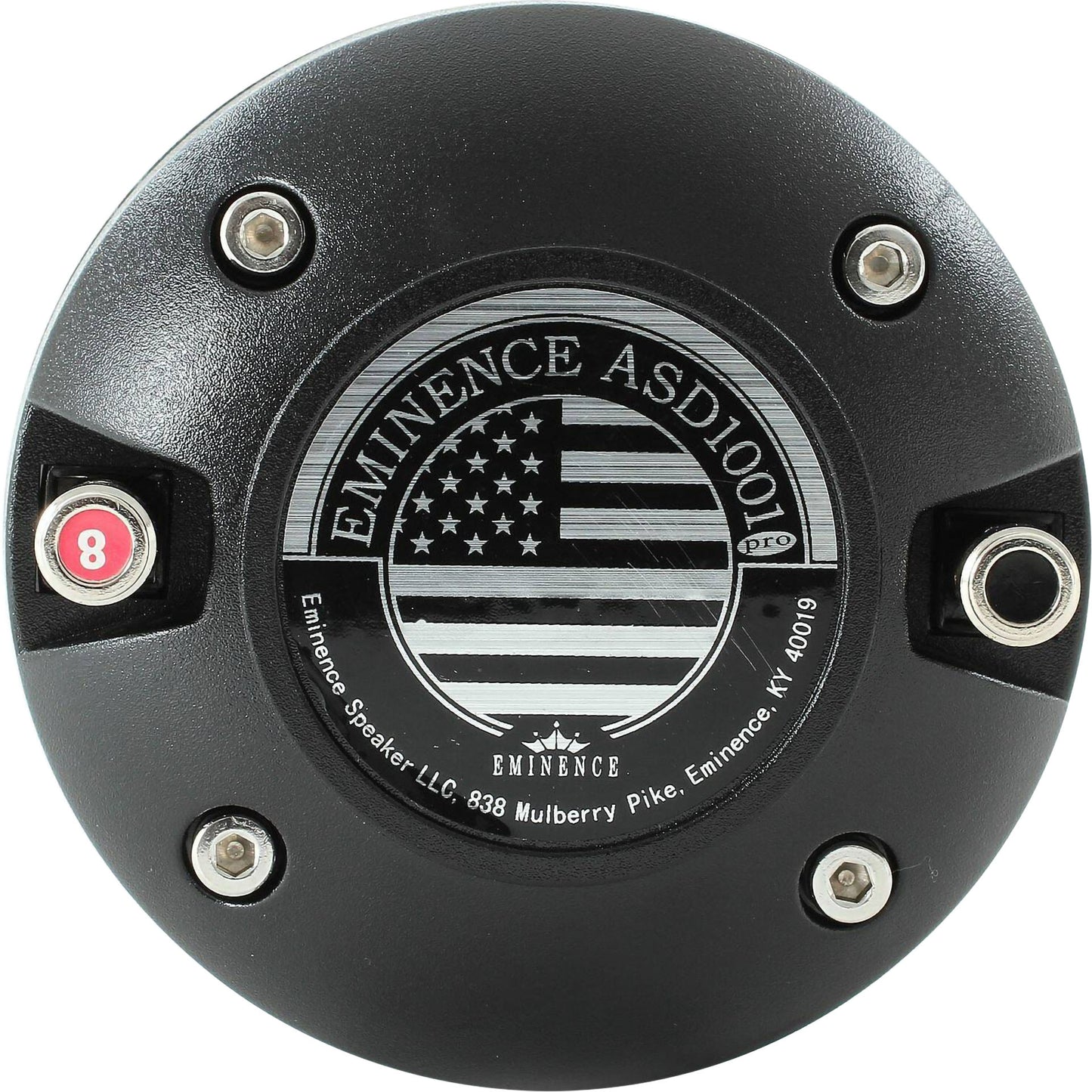

Eminence ASD1001S High Frequency Driver for JBL JRX Series

Name: Eminence ASD1001S High Frequency Driver for JBL JRX Series
Brand: Eminence
SKU: ASD1001S
Price: 39.99 USD
Availability: InStock

$39.99

Sale Sold out

New: $39.99

Product variants

On order with the manufacturer!

Eminence ASD1001S High Frequency Driver for JBL JRX Series. Throat Size 1", 25.4mm.

View full details

Details
Reviews

Eminence ASD1001S High Frequency Driver for JBL JRX Series

SPECIFICATION

Throat Size 1", 25.4mm

Nominal Impedance* 8 ohms

Power Rating** 50W @ 2.5kHz

Free Air Resonace 1.23kHz

Usable Frequency Range 2.5Hz-20kHz

Sensitivity*** 104.3dB (1W/1m across 2.5kHz-20kHz)

Magnet Weight 12oz, 0.34kg

Voice Coil Diameter 1.3" / 33mm

THIELE & SMALL PARAMETERS

DC Resistance (Re) 6.7

Coil Inductance (Le) 1.1mH

MOUNTING INFO

Overall Diameter 3.5", 88.9mm

Mounting Holes Diameter ~

Mounting Holes B.C.D. ~

Mounting Thread 1 3/8" 18 NEF ext.

Depth 2.45", 62mm

Weight 2 lbs, 0.9 kg

MATERIALS OF CONSTRUCTION

Diaphragm Material Diamond Titanium

Magnet Composition Ferrite
