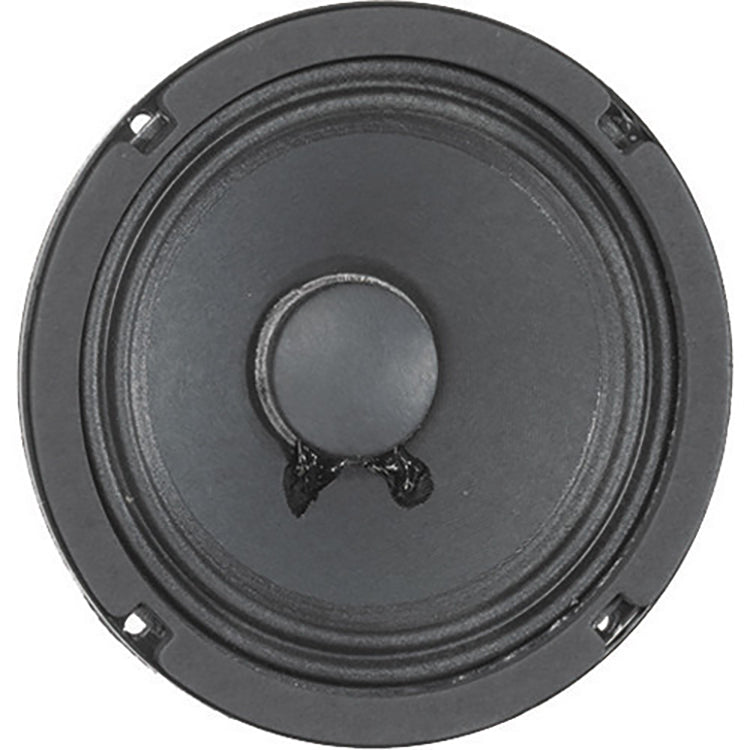

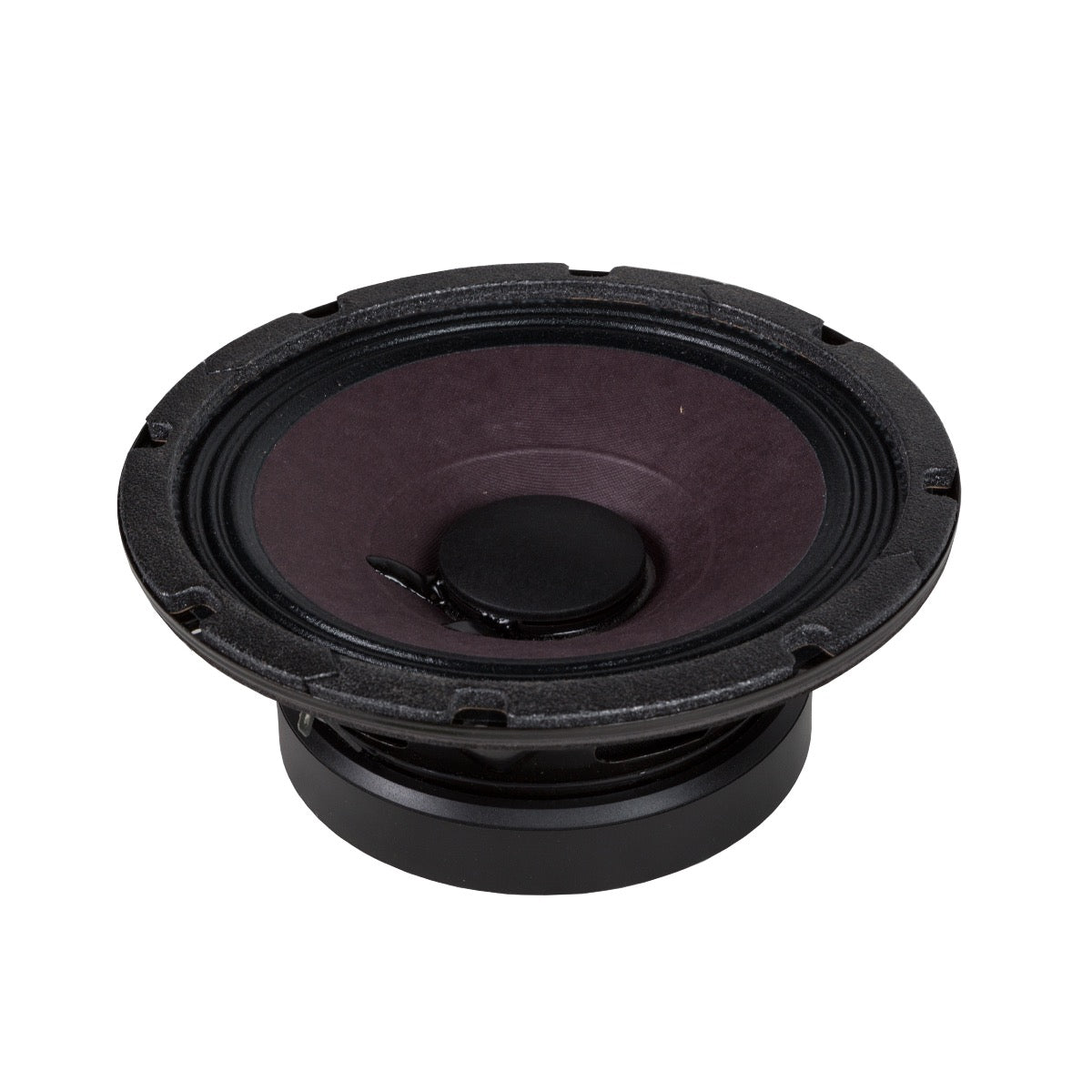

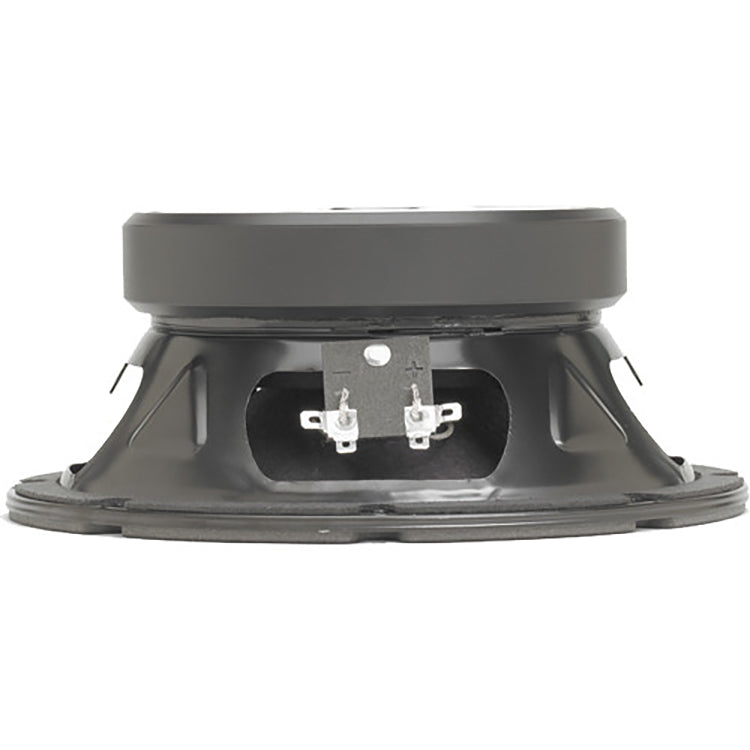

Eminence Beta 8A 8 Inch Loudspeaker
SPECIFICATION
Nominal Basket Diameter 8", 203.2mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 225W
Music Program 450W
Resonance 65Hz
Usable Frequency Range 78Hz - 4.5kHz
Sensitivity*** 95.1dB
Magnet Weight 34 oz.
Gap Height 0.31", 7.92mm
Voice Coil Diameter 2", 50.8mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 65Hz
DC Resistance (Re) 5.99
Coil Inductance (Le) 0.49mH
Mechanical Q (Qms) 4.95
Electromagnetic Q (Qes) 0.42
Total Q (Qts) 0.38
Compliance Equivalent Volume (Vas) 23.3 liters / 0.82 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 63cc
Mechanical Compliance of Suspension (Cms) 0.37mm/N
BL Product (BL) 9.6 T-M
Diaphragm Mass Inc. Airload (MMs) 16 grams
Efficiency Bandwidth Product (EBP) 156
Maximum Linear Excursion (Xmax) 3mm
Surface Area of Cone (Sd) 210 cm2
Maximum Mechanical Limit (Xlim) 7.4mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 5.7-9.9 liters / 0.2-0.35 cu.ft.
Vented 8.5-19 liters / 0.3-0.67 cu.ft.
Driver Volume Displaced 46.3 cu.in. / 0.76 liters
Overall Diameter 8.24", 209.2mm
Baffle Hole Diameter 7.13", 181mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.22", 5.5mm
Mounting Holes B.C.D. 7.75", 196.9mm
Depth 3.5", 89mm
Net Weight 6.6 lbs, 3 kg
Shipping Weight 7.4 lbs, 3.4 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Pressed steel basket
Cone Composition Paper Cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
| Product Name | Eminence Beta 8A 8" Loudspeaker |
|---|---|
| Brand | Eminence |
| Condition | New |
| MPN | BETA8A |
| UPC | 876358000067 |
| Shipping Option | Free Shipping on orders over $94.72 |
