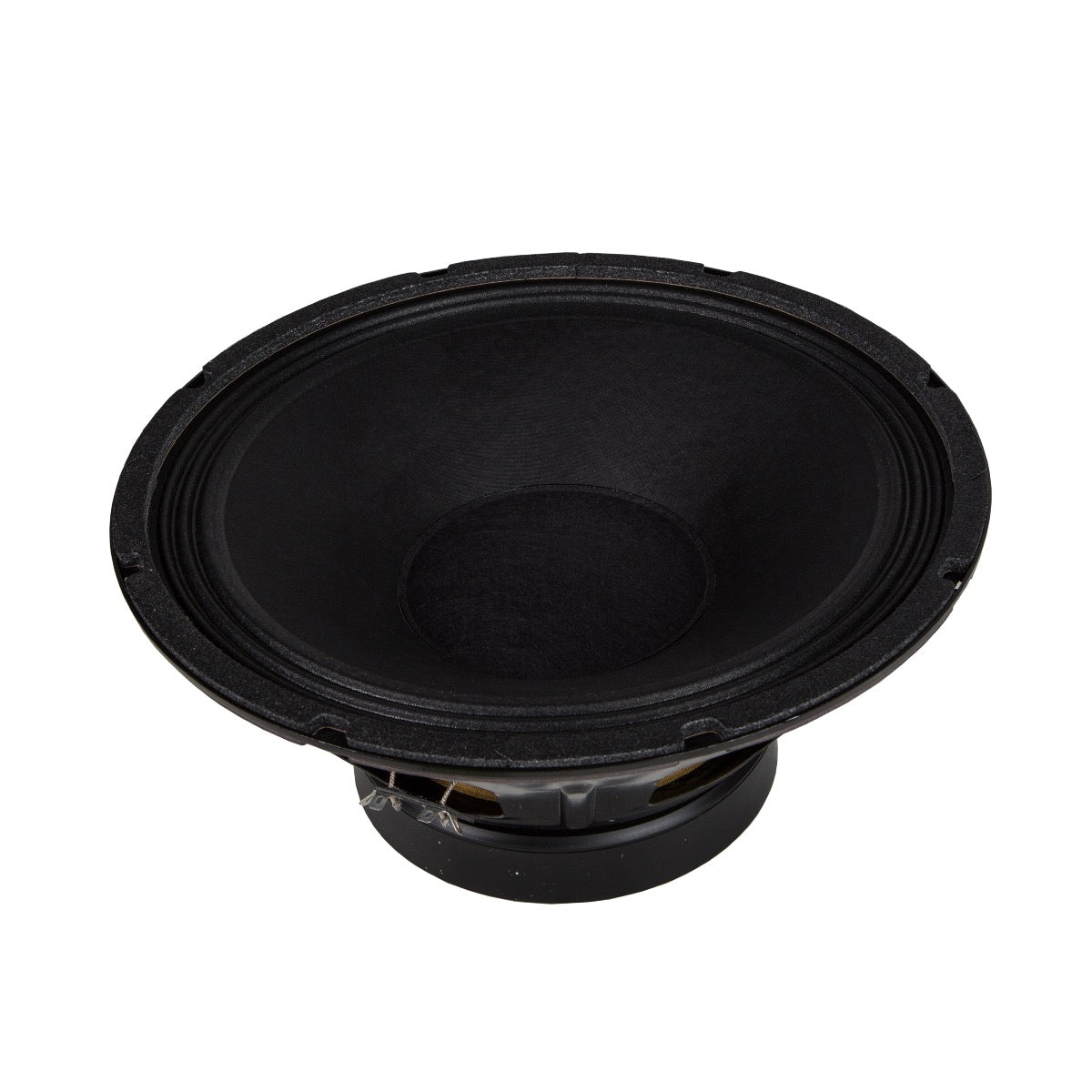

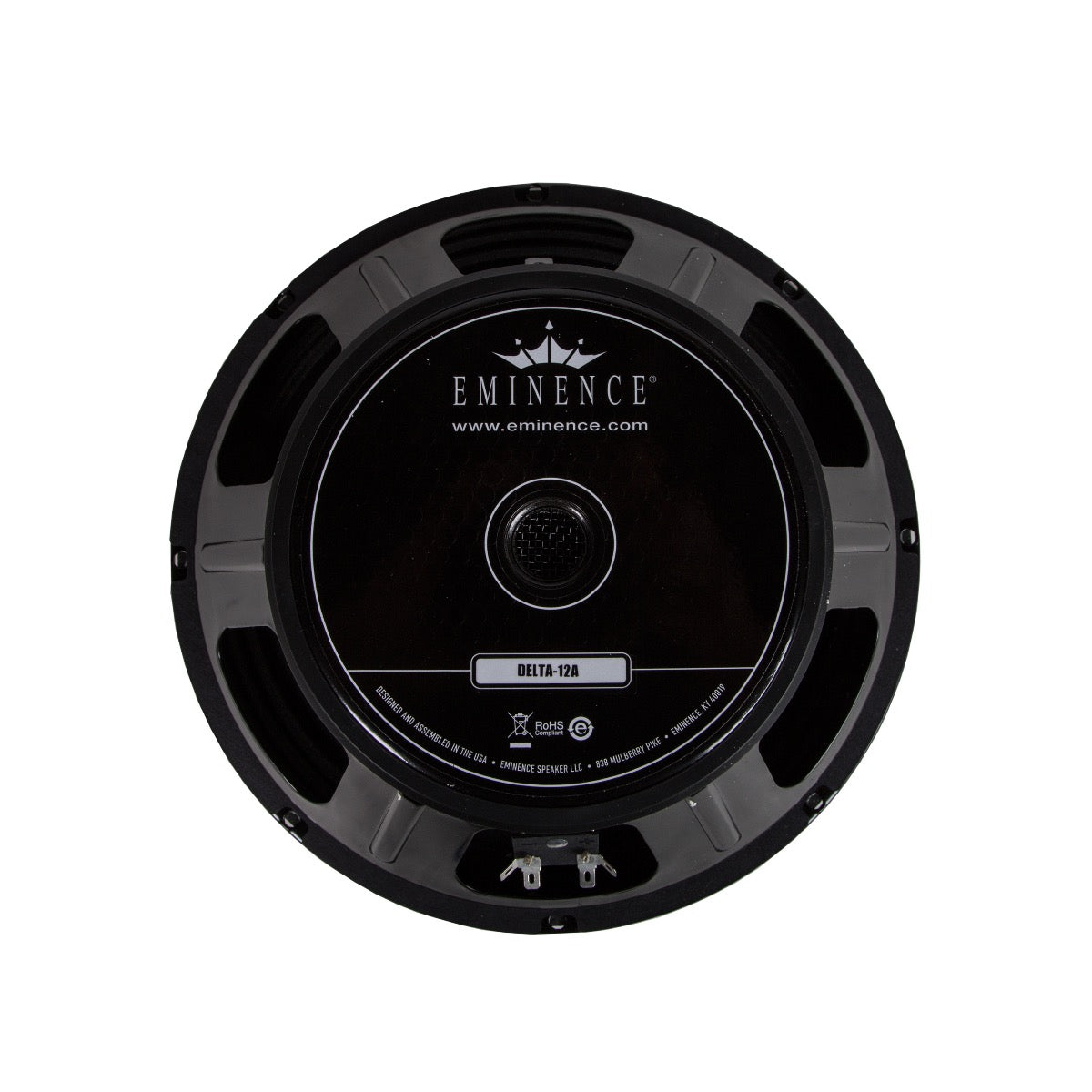

Eminence Delta 12A 12 Inch Speaker
SPECIFICATION
Nominal Basket Diameter 12", 304.8mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 400W
Music Program 800W
Resonance 55Hz
Usable Frequency Range 54Hz - 5kHz
Sensitivity*** 98.3dB
Magnet Weight 56 oz.
Gap Height 0.37", 9.53mm
Voice Coil Diameter 2.5", 63.5mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 55Hz
DC Resistance (Re) 6.3
Coil Inductance (Le) 0.74mH
Mechanical Q (Qms) 5.27
Electromagnetic Q (Qes) 0.46
Total Q (Qts) 0.43
Compliance Equivalent Volume (Vas) 81.3 liters / 2.9 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 125cc
Mechanical Compliance of Suspension (Cms) 0.21mm/N
BL Product (BL) 13.5 T-M
Diaphragm Mass Inc. Airload (MMs) 39 grams
Efficiency Bandwidth Product (EBP) 120
Maximum Linear Excursion (Xmax) 2.4mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) 9.9mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 25.5-85 liters / 0.9-3 cu.ft.
Driver Volume Displaced 137.3 cu.in. / 2.25 liters
Overall Diameter 12.03", 305.5mm
Baffle Hole Diameter 10.95", 278.1mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.59", 294.3mm
Depth 5.35", 136mm
Net Weight 11.4 lbs, 5.2 kg
Shipping Weight 13.5 lbs, 6.1 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Pressed steel basket
Cone Composition Paper Cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition felt dust cap
| Product Name | Eminence Delta 12A 12" Speaker |
|---|---|
| Brand | Eminence |
| Condition | New |
| MPN | DELTA12A |
| UPC | 876358000227 |
| Shipping Option | Free Shipping on orders over $94.72 |
