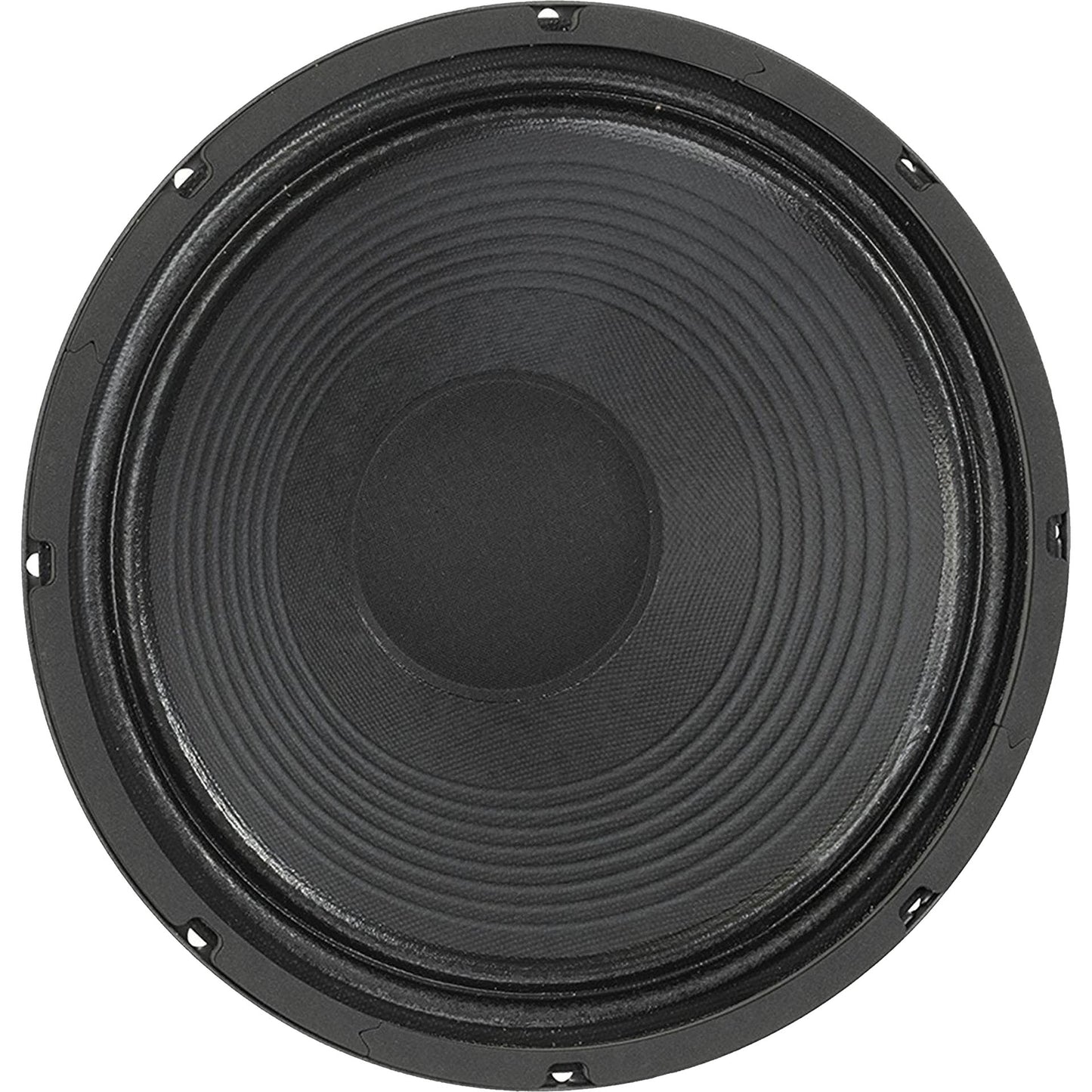

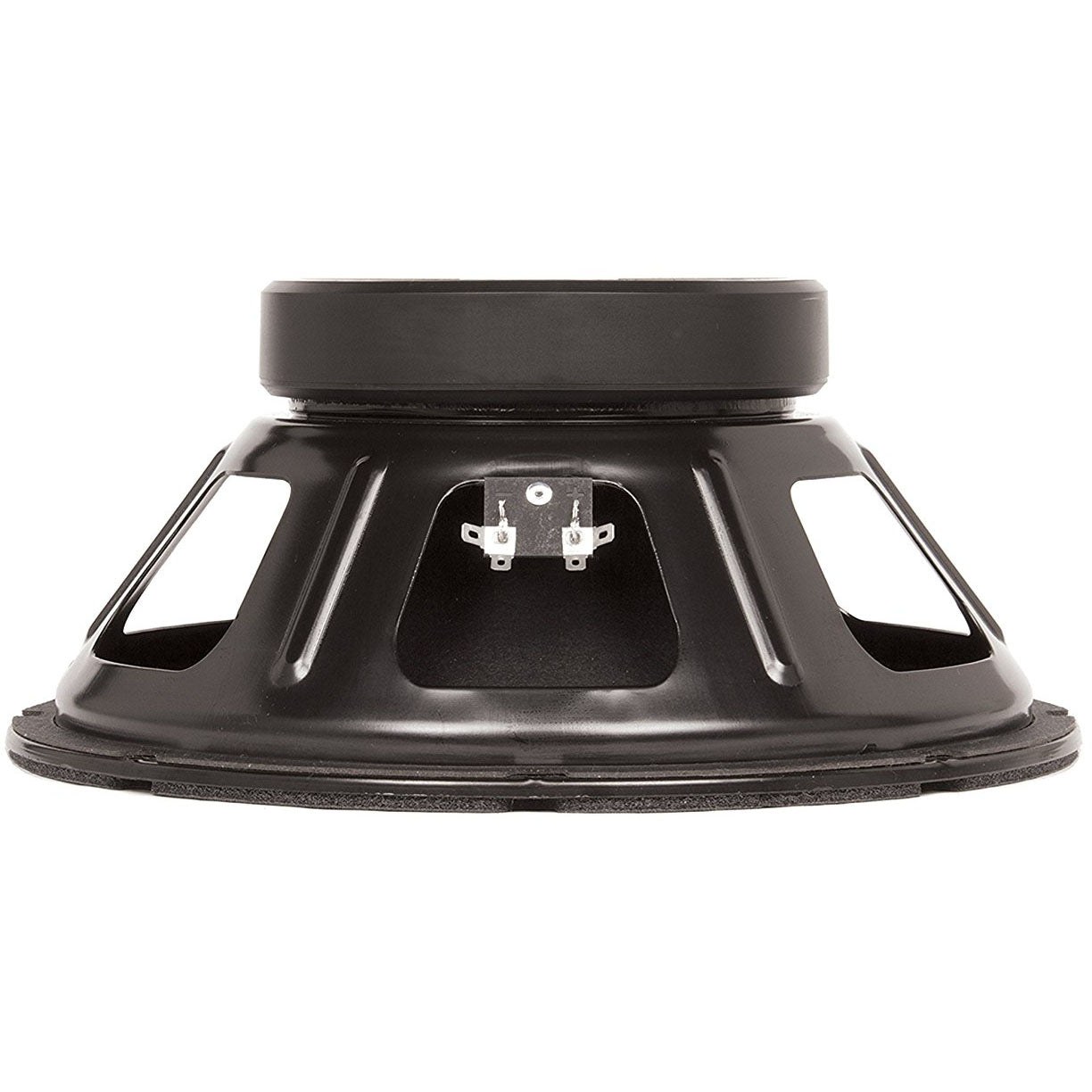

Eminence Swamp Thang 12" 16-Ohm 150W Speaker

Name: Eminence Swamp Thang 12" 16-Ohm 150W Speaker
Brand: Eminence
SKU: SWAMPTHANG16OHM
Price: 139.99 USD
Availability: InStock

$139.99

Sale Sold out

+ Free Shipping

New: $139.99

Product variants

On order with the manufacturer!

Eminence Swamp Thang 12 Inch 16OHM 150W Speaker. Nominal Basket Diameter 12", 304.8mm.

View full details

Details
Reviews

Eminence Swamp Thang 12 Inch 16OHM 150W Speaker

Designed with heavier players in mind, the Swamp Thang provides a thick and chunky tone with loads of sustain. The awesome bottom end will hold up to even the most demanding drop-tune or 7 string players.

SPECIFICATION

Nominal Basket Diameter 12", 304.8mm

Nominal Impedance* 16 ohms

Power Rating**

Watts 150W

Music Program N/A

Resonance 113Hz

Usable Frequency Range 70Hz - 5kHz

Sensitivity*** 102dB

Magnet Weight 59 oz.

Gap Height 0.31", 7.92mm

Voice Coil Diameter 2", 50.8mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs) 113Hz

DC Resistance (Re) 14.7

Coil Inductance (Le) 0.67mH

Mechanical Q (Qms) 8.6

Electromagnetic Q (Qes) 0.67

Total Q (Qts) 0.62

Compliance Equivalent Volume (Vas) 26.4 liters / 0.9 cu.ft.

Peak Diaphragm Displacement Volume (Vd) 43cc

Mechanical Compliance of Suspension (Cms) 0.07mm/N

BL Product (BL) 21.8 T-M

Diaphragm Mass Inc. Airload (MMs) 30 grams

Efficiency Bandwidth Product (EBP) 168

Maximum Linear Excursion (Xmax) 0.8mm

Surface Area of Cone (Sd) 532.4 cm2

Maximum Mechanical Limit (Xlim) N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed Acceptable

Vented Acceptable

Driver Volume Displaced 137.3 cu.in. / 2.25 liters

Overall Diameter 12.01", 305.1mm

Baffle Hole Diameter 10.95", 278.1mm

Front Sealing Gasket Fitted as standard

Rear Sealing Gasket Fitted as standard

Mounting Holes Diameter 0.25", 6.4mm

Mounting Holes B.C.D. 11.63", 295.4mm

Depth 5.2", 132mm

Net Weight 11.1 lbs, 5 kg

Shipping Weight 12.8 lbs, 5.8 kgs

MATERIALS OF CONSTRUCTION

Coil Construction Copper voice coil

Coil Former Polyimide former

Magnet Composition Ferrite magnet

Core Details Non-vented core

Basket Materials Pressed steel basket

Cone Composition Paper Cone

Cone Edge Composition Paper cone edge

Dust Cap Composition Zurette dust cap

More Information
Product Name	Eminence Swamp Thang 12" 16-Ohm 150W Speaker
Brand	Eminence
Condition	New
MPN	SWAMPTHANG-16
UPC	8176358001057
Shipping Option	Free Shipping to the Continental U.S.
