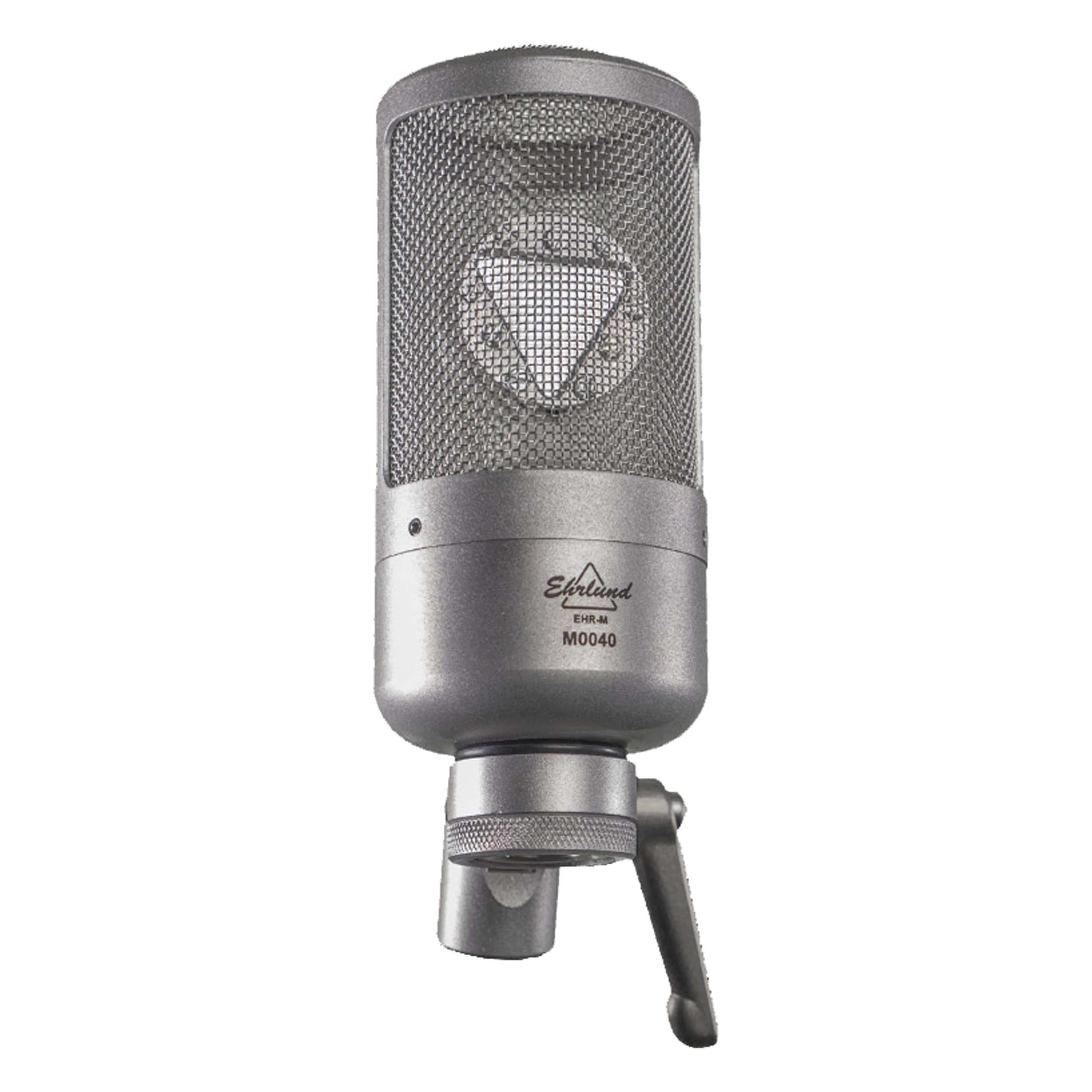

Ehrlund EHR-M Large Diaphragm Condenser Cardioid Microphone
Ehrlund EHR-M Large Diaphragm Condenser Cardioid Microphone
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews
The EHR-M is a Swedish manufactured condenser microphone for studio use, it has been designed to deliver the cleanest sound possible. Its patented triangular membrane design has been allied to a patented very low noise and low power phantom feed amplifier. The EHR-M has both broad and smooth pickup characteristics, with deep bass and extended treble. This microphone has impressive stats in self-induced noise, sensitivity and frequency range. The output signal is strong and usually does not need much amplification.
| Product Name | Ehrlund EHR-M Large Diaphragm Condenser Cardioid Microphone |
|---|---|
| Condition | New |
| MPN | EHR-M |
| UPC | 7350013080050 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Large diaphragm condenser microphone
- Patented triangular membrane
- Patented internal amplification and power circuits
- Optimised for studio environments
- Transparent and natural sound
- Great low-noise performance
- Phase and frequency linear internal amplifiers
- Excels at distance miking
- Broad pickup range, linear frequency response even at distance or off axis
- Bass frequencies are picked up in an accurate way even at some distance
- Natural reproduction of fast transients
- Colouring of sound is negligible and true to the original source
- Frequency range spans from infrasonic bass to ultrasonic treble
- Low energy consumption, ~2.0 mA
- Strong output signal; usually doesn’t need any external amplification
- No pre-filtering needed, Ehrlund microphones are made for flat EQs
- Each and every Ehrlund microphone is stereo matched with its own model
- Handles all impedances without altering frequency or phase
- Type: Condenser microphone
- Membrane type: Triangular membrane, combines the characteristics of both large and small membranes
- Pickup pattern: Cardioid
- Frequency range: 7 – 87,000 Hz
- Sensitivity at 1kHz: -33 dBV/Pa (23 mV/Pa)
- Impedance: Handles all impedances
- Equivalent noise level: < 7 dBA
- Signal-to-noise: 87 dBA
- Dynamic range: 115 dB
- Max​ SPL (peak)
- 0.5% THD: 116 dB
- 1% THD: 122 dB
- Power supply: 48 V Phantom power
- Current consumption: 2.0 mA
- Connector: XLR 3-pin
- Materials: Aircraft-grade aluminium body, hardened nickel-plated stainless-steel net
- Finish: Glass bead blasting
- Dimensions: 60 mm x 155 mm
- Weight: 340 grams
Ehrlund EHR-M Large Diaphragm Condenser Cardioid Microphone
The EHR-M is a Swedish manufactured condenser microphone for studio use, it has been designed to deliver the cleanest sound possible. Its patented triangular membrane design has been allied to a patented very low noise and low power phantom feed amplifier. The EHR-M has both broad and smooth pickup characteristics, with deep bass and extended treble. This microphone has impressive stats in self-induced noise, sensitivity and frequency range. The output signal is strong and usually does not need much amplification.
| Product Name | Ehrlund EHR-M Large Diaphragm Condenser Cardioid Microphone |
|---|---|
| Condition | New |
| MPN | EHR-M |
| UPC | 7350013080050 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Large diaphragm condenser microphone
- Patented triangular membrane
- Patented internal amplification and power circuits
- Optimised for studio environments
- Transparent and natural sound
- Great low-noise performance
- Phase and frequency linear internal amplifiers
- Excels at distance miking
- Broad pickup range, linear frequency response even at distance or off axis
- Bass frequencies are picked up in an accurate way even at some distance
- Natural reproduction of fast transients
- Colouring of sound is negligible and true to the original source
- Frequency range spans from infrasonic bass to ultrasonic treble
- Low energy consumption, ~2.0 mA
- Strong output signal; usually doesn’t need any external amplification
- No pre-filtering needed, Ehrlund microphones are made for flat EQs
- Each and every Ehrlund microphone is stereo matched with its own model
- Handles all impedances without altering frequency or phase
- Type: Condenser microphone
- Membrane type: Triangular membrane, combines the characteristics of both large and small membranes
- Pickup pattern: Cardioid
- Frequency range: 7 – 87,000 Hz
- Sensitivity at 1kHz: -33 dBV/Pa (23 mV/Pa)
- Impedance: Handles all impedances
- Equivalent noise level: < 7 dBA
- Signal-to-noise: 87 dBA
- Dynamic range: 115 dB
- Max​ SPL (peak)
- 0.5% THD: 116 dB
- 1% THD: 122 dB
- Power supply: 48 V Phantom power
- Current consumption: 2.0 mA
- Connector: XLR 3-pin
- Materials: Aircraft-grade aluminium body, hardened nickel-plated stainless-steel net
- Finish: Glass bead blasting
- Dimensions: 60 mm x 155 mm
- Weight: 340 grams
