ESI Audiotechnik U22 XT

ESI Audiotechnik U22 XT

On order with the manufacturer!

U22 XT offers a maximum of flexibility as fully bus powered USB device with pristine professional 24-bit audio quality.
View full details
  • Details
  • Features
  • Reviews

U22 XT offers a maximum of flexibility as fully bus powered USB device with pristine professional 24-bit audio quality.

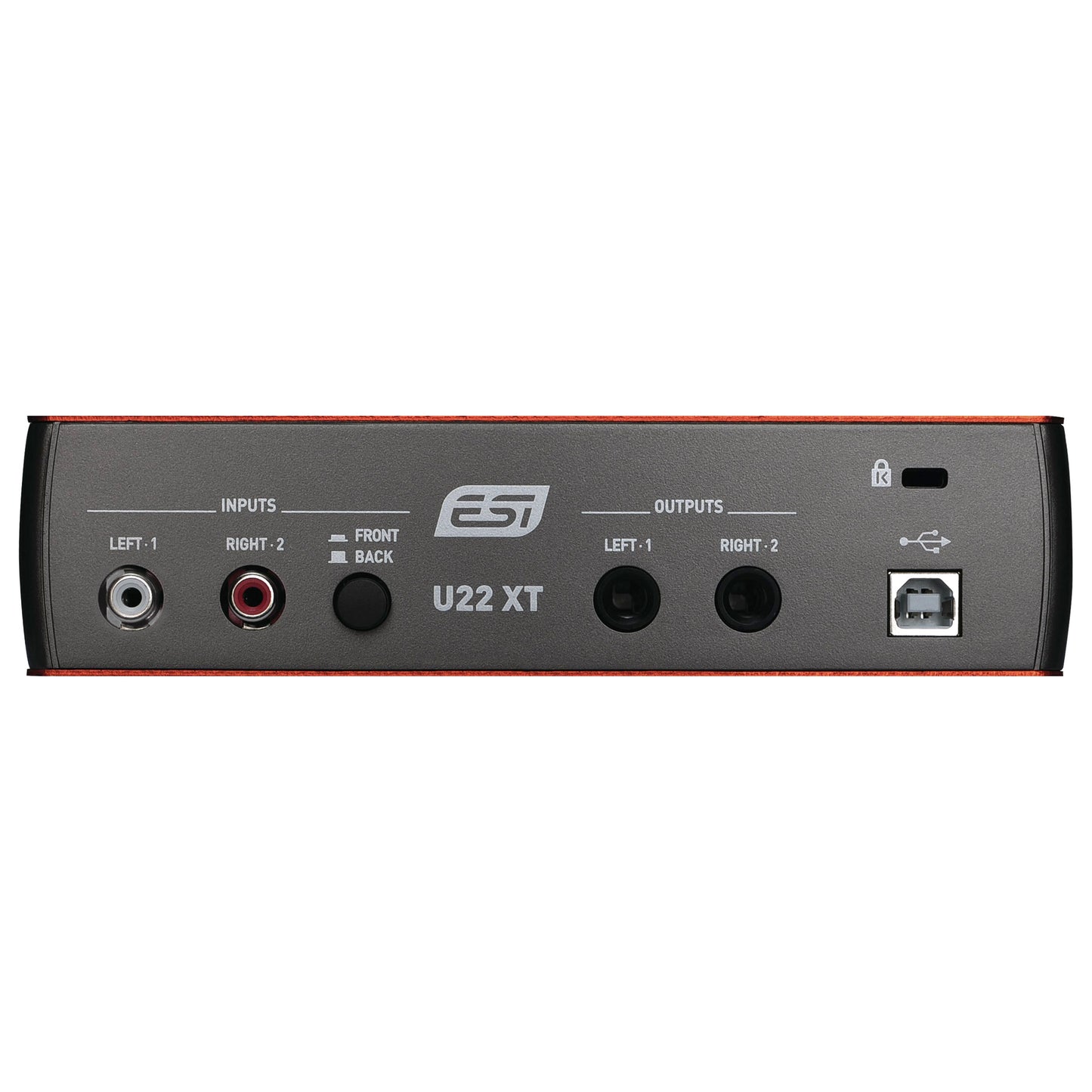

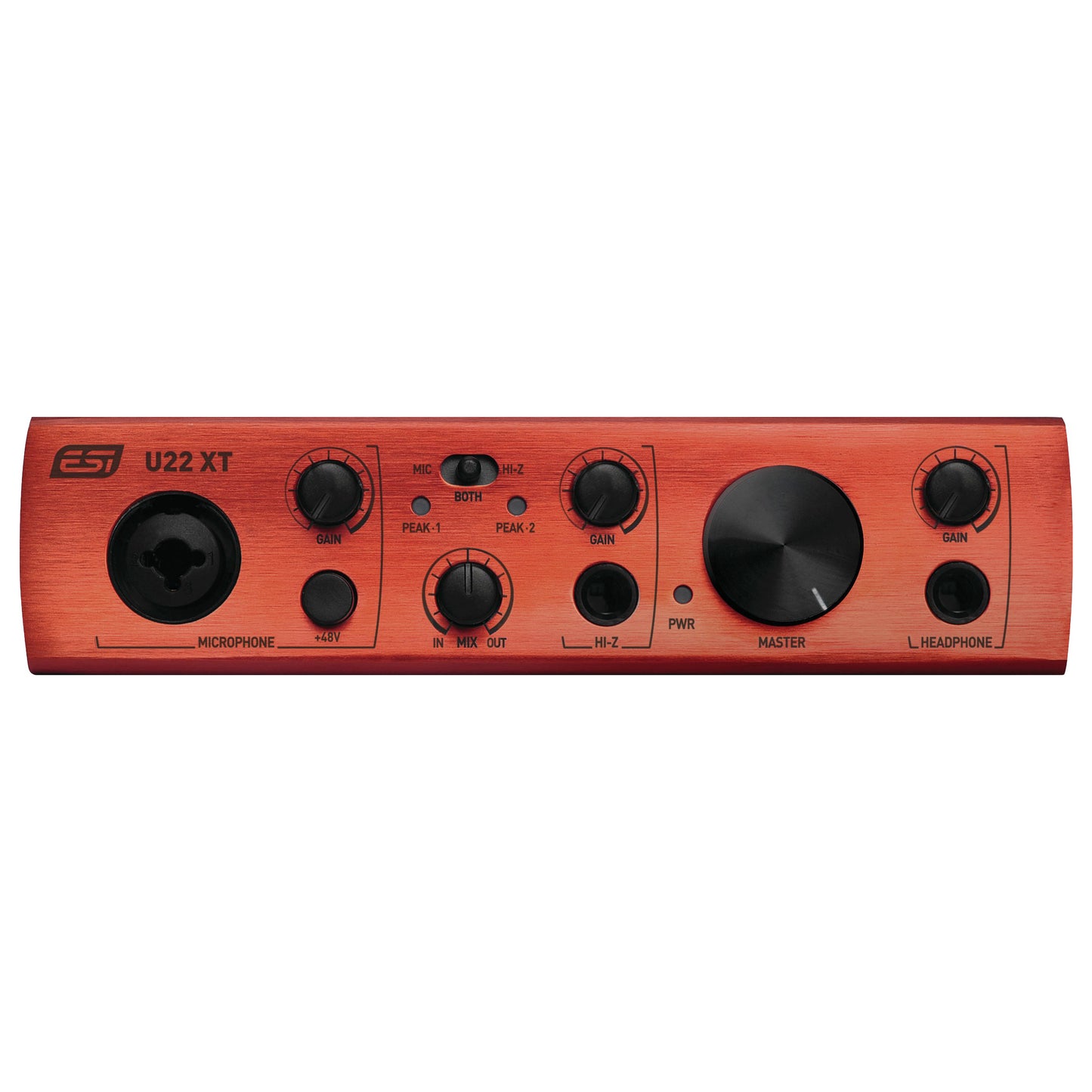

The interface features 2 analog input and 2 analog output channels with RCA connection, a microphone preamplifier with XLR input and support for +48V phantom power, a Hi-Z instrument input for guitars, a high quality headphone output and TRS line outputs. Master and headphone volume as well as monitoring are controlled on the front panel.

On the software side, U22 XT provides low latency drivers with support for WDM, ASIO 2.0 and CoreAudio based on our EWDM and DirectWIRE technology.

Included with U22 XT is the Bitwig 8-Track software, the trim and effective digital audio workstation to start producing, performing, and designing audio like a pro. With Bitwig 8-Track, you can start working right out of the box without other additional software. Record and arrange, improvise and perform, or do it all at once, with this professional solution developed by musicians, for musicians.

If you're looking for a really powerful USB audio solution for your PC or Mac to start working out of the box, then U22 XT is for you!

More Information
Product Name ESI Audiotechnik U22 XT
Brand ESI Audiotechnik
Condition New
MPN ESI-U22XT
UPC 4260265610369
Shipping Option Free Shipping to the Continental U.S.
  • 2 input / 2 output 24-bit / 96kHz USB 2.0 Full Speed 24-bit Audio Interface
  • microphone preamp with +48V phantom power support
  • Hi-Z instrument input with 1/4" connector
  • USB bus powered
  • max. 24bit/96kHz
  • line input with RCA connectors
  • line output with balanced 1/4" TRS connectors
  • headphone output with 1/4" connector
  • ADC with 102dB(a) dynamic range
  • DAC with 108dB(a) dynamic range
  • input / output monitoring controlled on front panel
  • master volume control on front panel
  • supports Windows Vista, Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
  • supports Mac OS X (10.7 and above) via the native CoreAudio USB audio driver from Apple (no driver install required)
  • supports many Linux distributions via the ALSA USB audio class support
  • includes license of Deckadance LE from Stanton
  • includes Bitwig 8-Track digital audio workstation software
  • dimensions roughly 17.5cm x 12.0cm x 4.5cm

ESI Audiotechnik U22 XT

Details

U22 XT offers a maximum of flexibility as fully bus powered USB device with pristine professional 24-bit audio quality.

The interface features 2 analog input and 2 analog output channels with RCA connection, a microphone preamplifier with XLR input and support for +48V phantom power, a Hi-Z instrument input for guitars, a high quality headphone output and TRS line outputs. Master and headphone volume as well as monitoring are controlled on the front panel.

On the software side, U22 XT provides low latency drivers with support for WDM, ASIO 2.0 and CoreAudio based on our EWDM and DirectWIRE technology.

Included with U22 XT is the Bitwig 8-Track software, the trim and effective digital audio workstation to start producing, performing, and designing audio like a pro. With Bitwig 8-Track, you can start working right out of the box without other additional software. Record and arrange, improvise and perform, or do it all at once, with this professional solution developed by musicians, for musicians.

If you're looking for a really powerful USB audio solution for your PC or Mac to start working out of the box, then U22 XT is for you!

More Information
Product Name ESI Audiotechnik U22 XT
Brand ESI Audiotechnik
Condition New
MPN ESI-U22XT
UPC 4260265610369
Shipping Option Free Shipping to the Continental U.S.
Features
  • 2 input / 2 output 24-bit / 96kHz USB 2.0 Full Speed 24-bit Audio Interface
  • microphone preamp with +48V phantom power support
  • Hi-Z instrument input with 1/4" connector
  • USB bus powered
  • max. 24bit/96kHz
  • line input with RCA connectors
  • line output with balanced 1/4" TRS connectors
  • headphone output with 1/4" connector
  • ADC with 102dB(a) dynamic range
  • DAC with 108dB(a) dynamic range
  • input / output monitoring controlled on front panel
  • master volume control on front panel
  • supports Windows Vista, Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
  • supports Mac OS X (10.7 and above) via the native CoreAudio USB audio driver from Apple (no driver install required)
  • supports many Linux distributions via the ALSA USB audio class support
  • includes license of Deckadance LE from Stanton
  • includes Bitwig 8-Track digital audio workstation software
  • dimensions roughly 17.5cm x 12.0cm x 4.5cm
