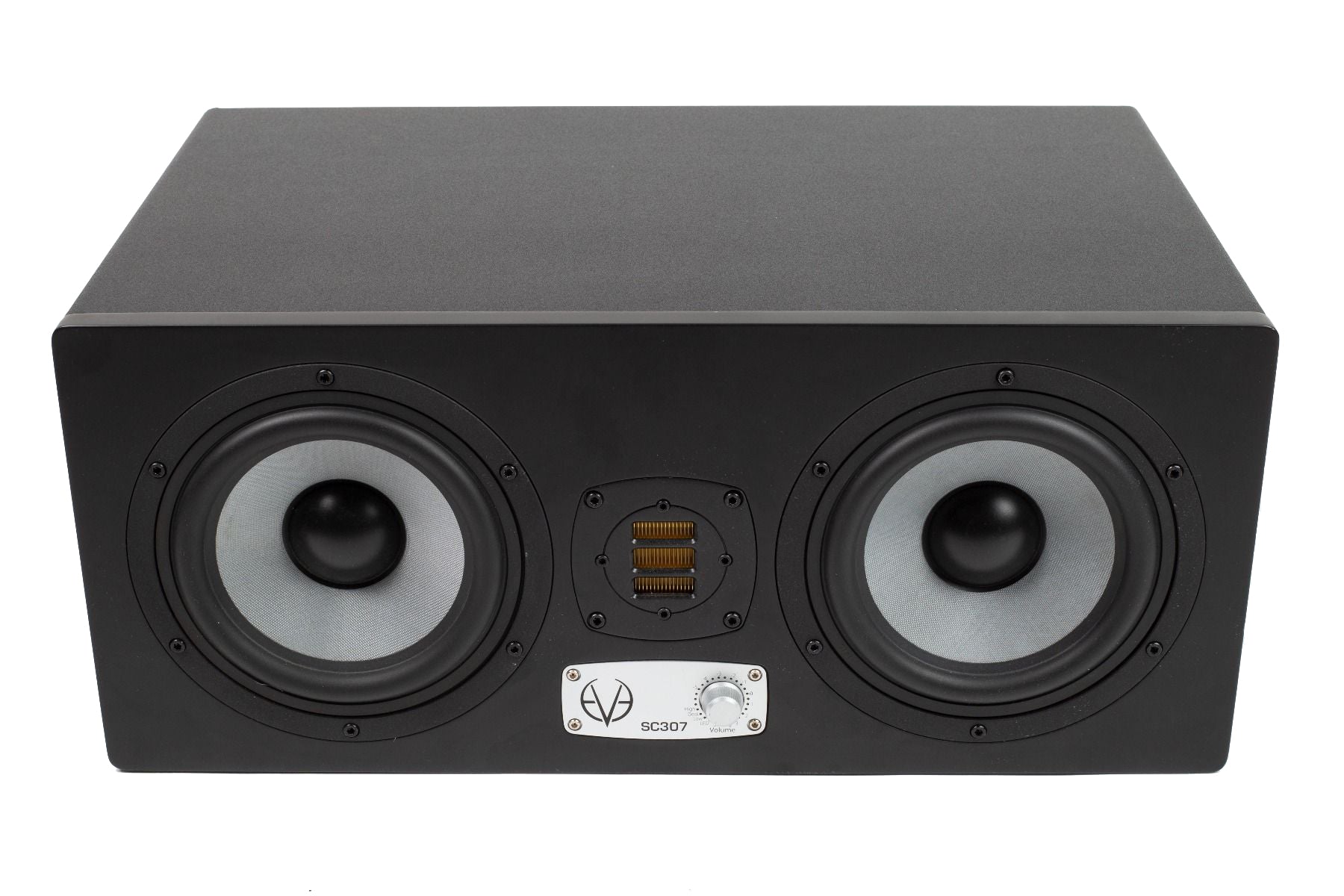

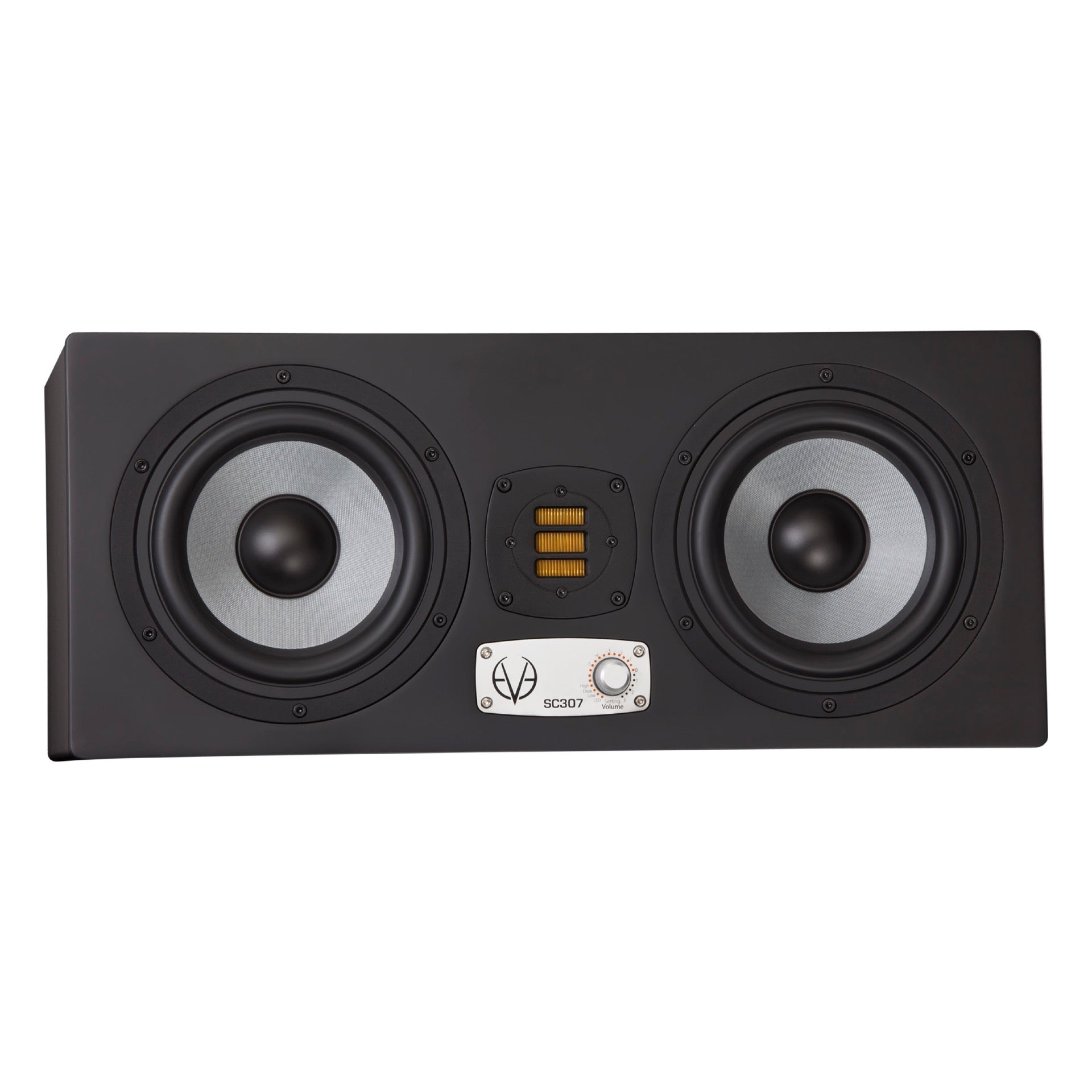

The SC307 combines the power from three different amplifiers to deliver a very efficient, dynamic and low noise sound reproduction.

Our three-way systems are developed for critical and detailed listening. Although they will be able to provide lots of power and thunderous bass frequencies, they will also excel if you're looking for a precise and very detailed pair of speakers.

With every EVE Audio speaker, you also get high resolution DSP electronics. One push knob operation and you will have access to accurate volume control and several different filter settings that will help you tailor your monitors to the way you work. And if you always avoid digital processing, they've got you covered. The DSP engine is supported with a high quality A/D converter from Burr-Brown, which delivers a pristine signal to the DSP section. And since the PWM amplifiers are directly connected to the DSP, no additional conversion is necessary.

Tech Talk

The three-way systems are designed around the concept to distribute the frequencies properly between all individual components and raise the efficiency of your speakers effectively.

In their three-way systems, each driver (woofers or tweeter) gets its own amplifier. One of the woofers serves frequencies up to 300 Hz as a kind of "bass" whilst the other woofer gives you a fuller range as a bass-midrange driver, up to the 3000 Hz crossover frequency. From that frequency on, the AMT tweeter takes over. This minimizes interference between the drivers and also allows the SC307 to deliver a very efficient and dynamic sound reproduction.

What this design philosophy means is that less effective physical work is being made by each individual woofer, as the band of frequencies to be reproduced are divided between both woofers. This in turn will result in less mechanical inertia and a more efficient sound transmission.

Both woofers consist of the proprietary 6.5" SilverCone, the same which is used in the two-way system, the SC207. However, due to the fact that two of these woofers are being used simultaneously, you get a bigger frequency response down to 40 Hz.

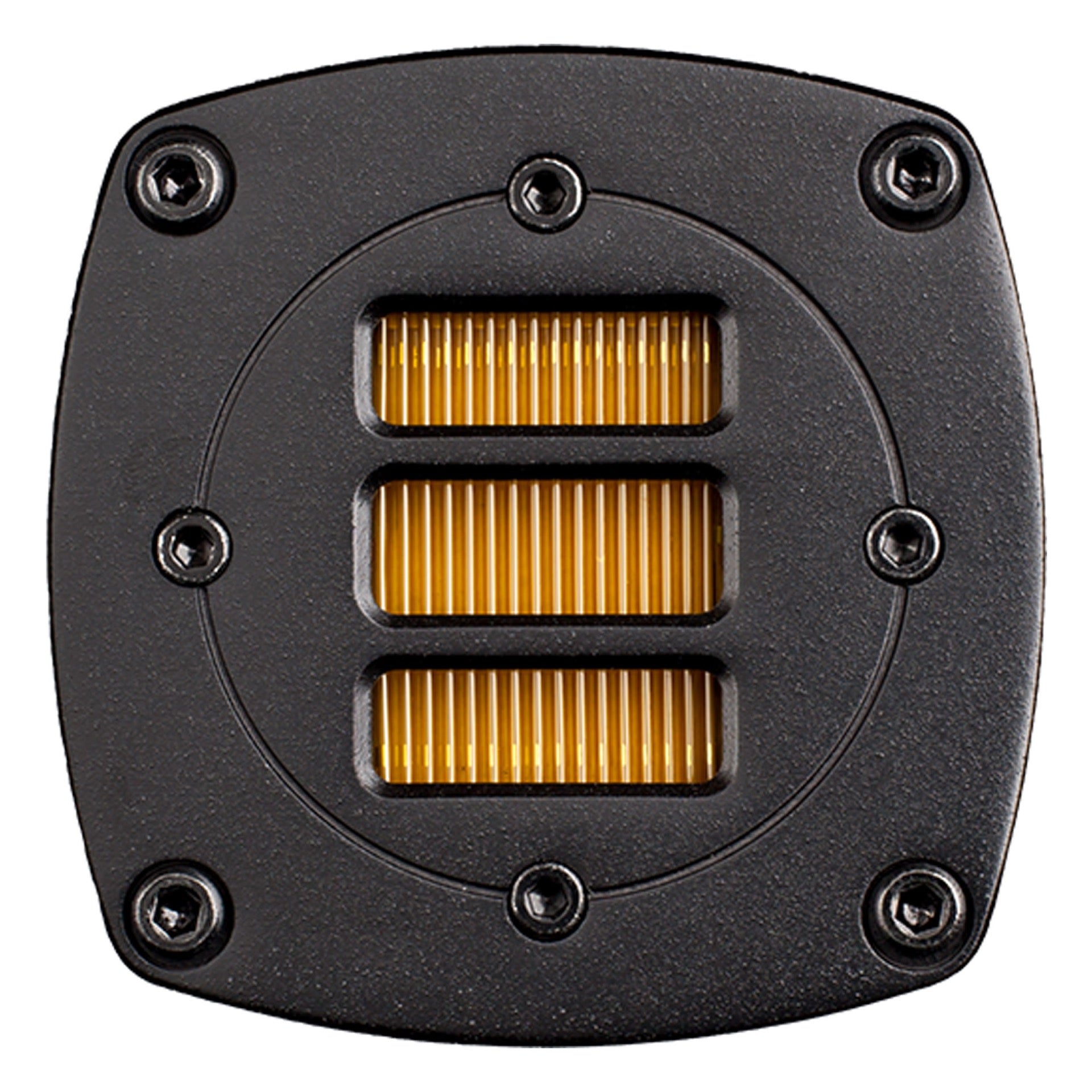

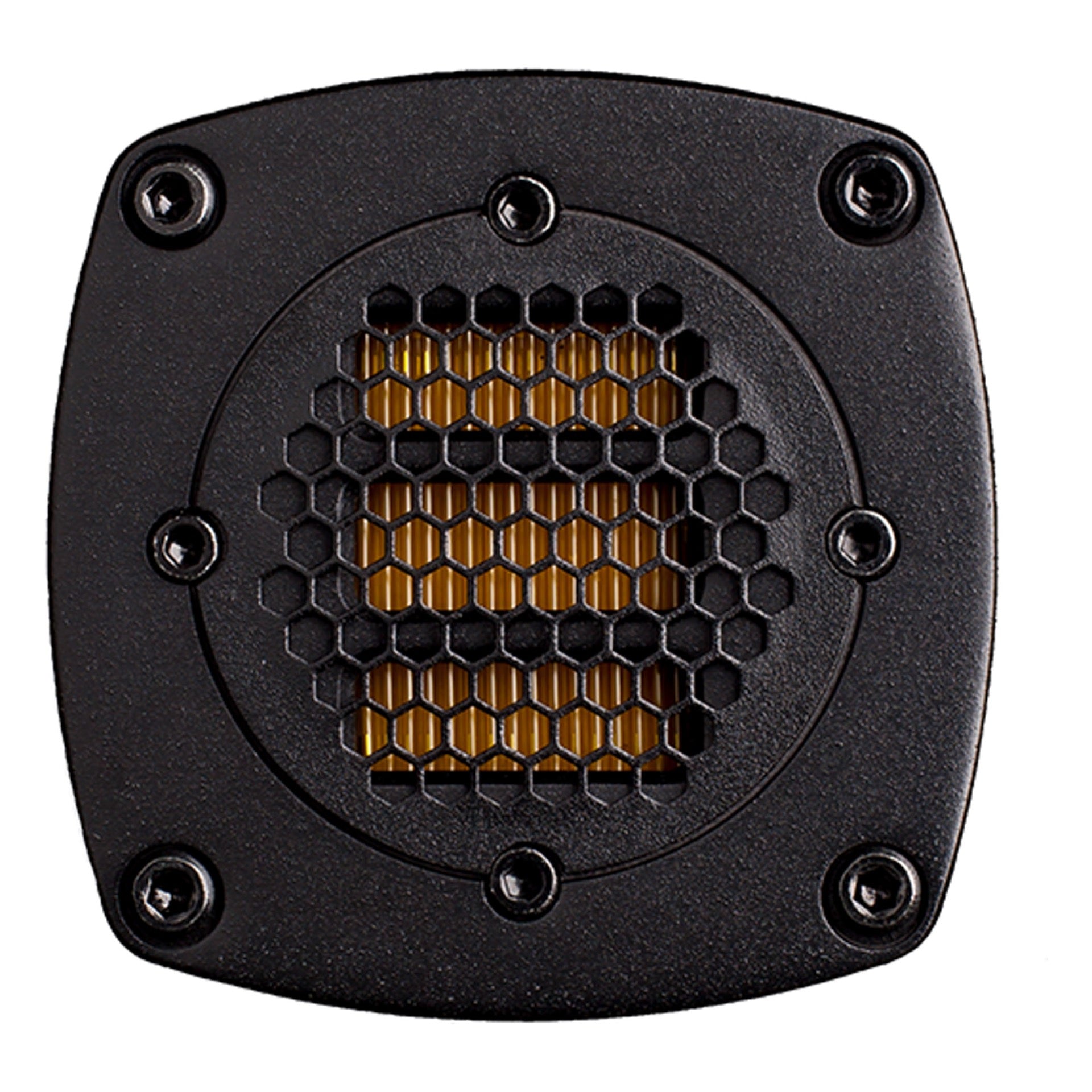

The SC307 also makes use of the proprietary AMT RS2 tweeter, which uses a bigger front plate, and a bigger internal magnet to drive the AMT tweeter with greater efficiency.

The three 100 W PWM power amplifiers won't leave you lacking any power either, as the maximum sound pressure level of 114 dB (SPL @ 1m) will attest.

And no worries determining how to place the SC307 in your room or studio properly. Eve's DSP section will assist you in choosing the speaker for left and right hand side. So you will always get proper symmetry between your speakers, instead of having to move them around as usually. With a DIP switch located, on the rear of speakers these settings for room adaption can be temporarely locked.

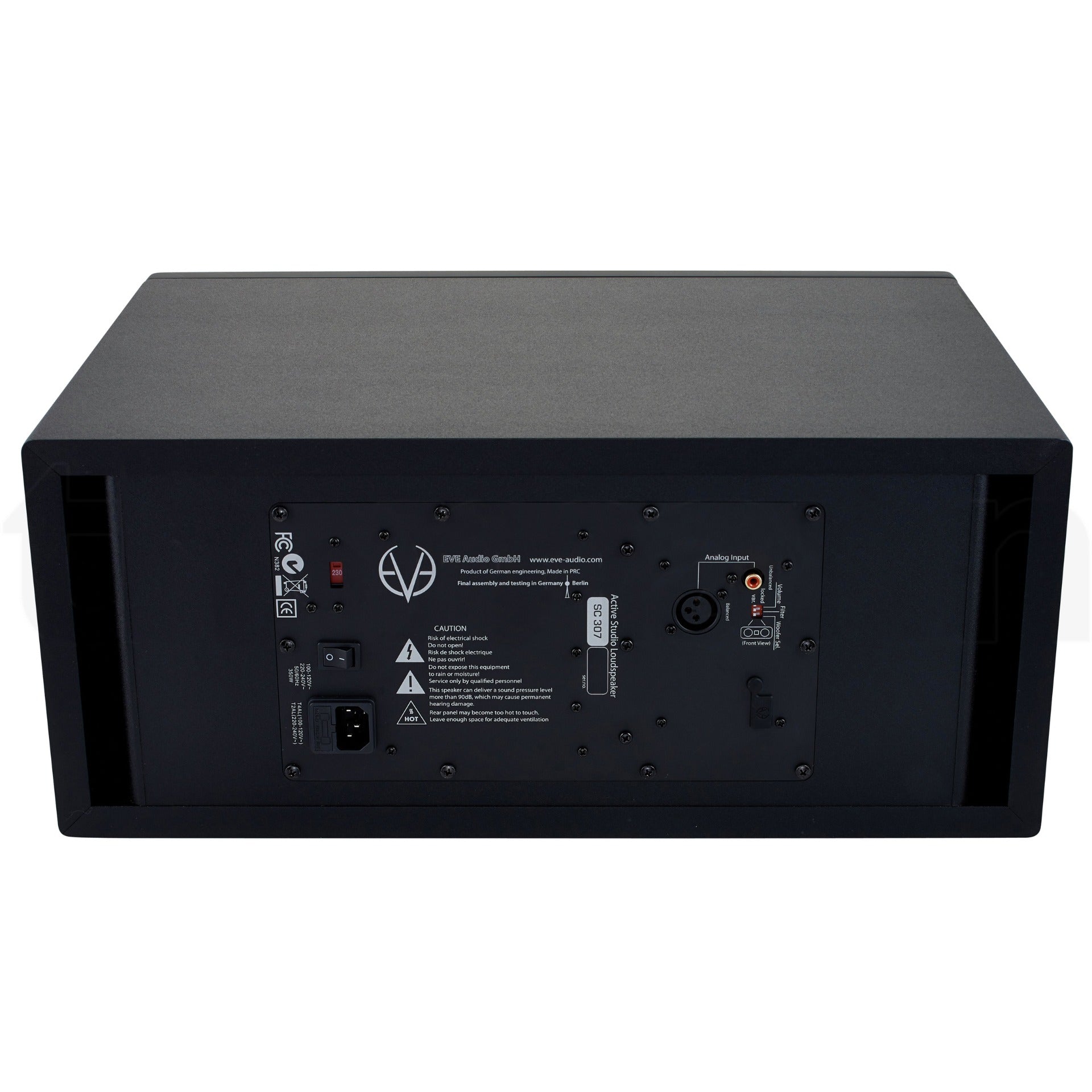

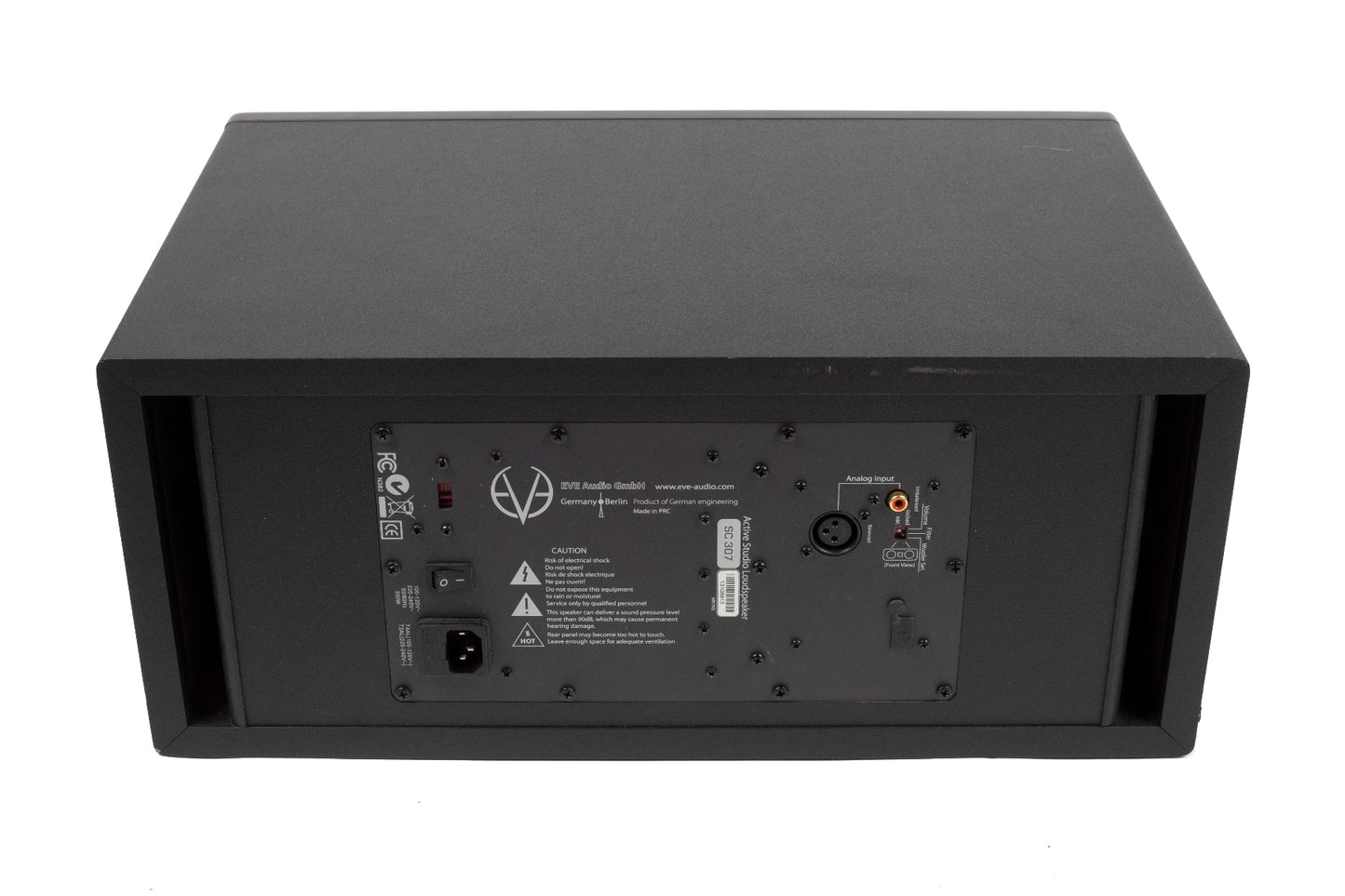

As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.

DSP

All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP ensures latency-free filtering and simultaneously protects the entire frequency range from overload. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud.

Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications.

High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments.

Bass Port Design

It's all in the geometry. One of the downside effects of port compression is bass distortion. As you turn up the volume, the efficiency of the port reduces and distortion will increase.

EVE opted for a large rear rectangular port with no hard edges for their bass port designs. That's one of the reasons EVE monitors have a high efficiency on the lower frequencies.

The results? High sound pressures with tight and punchy bass frequencies that don't cause port distortion. Crank up the volume, and EVE will deliver a round bass. And with no holes to look at every time you glance at your speakers.
