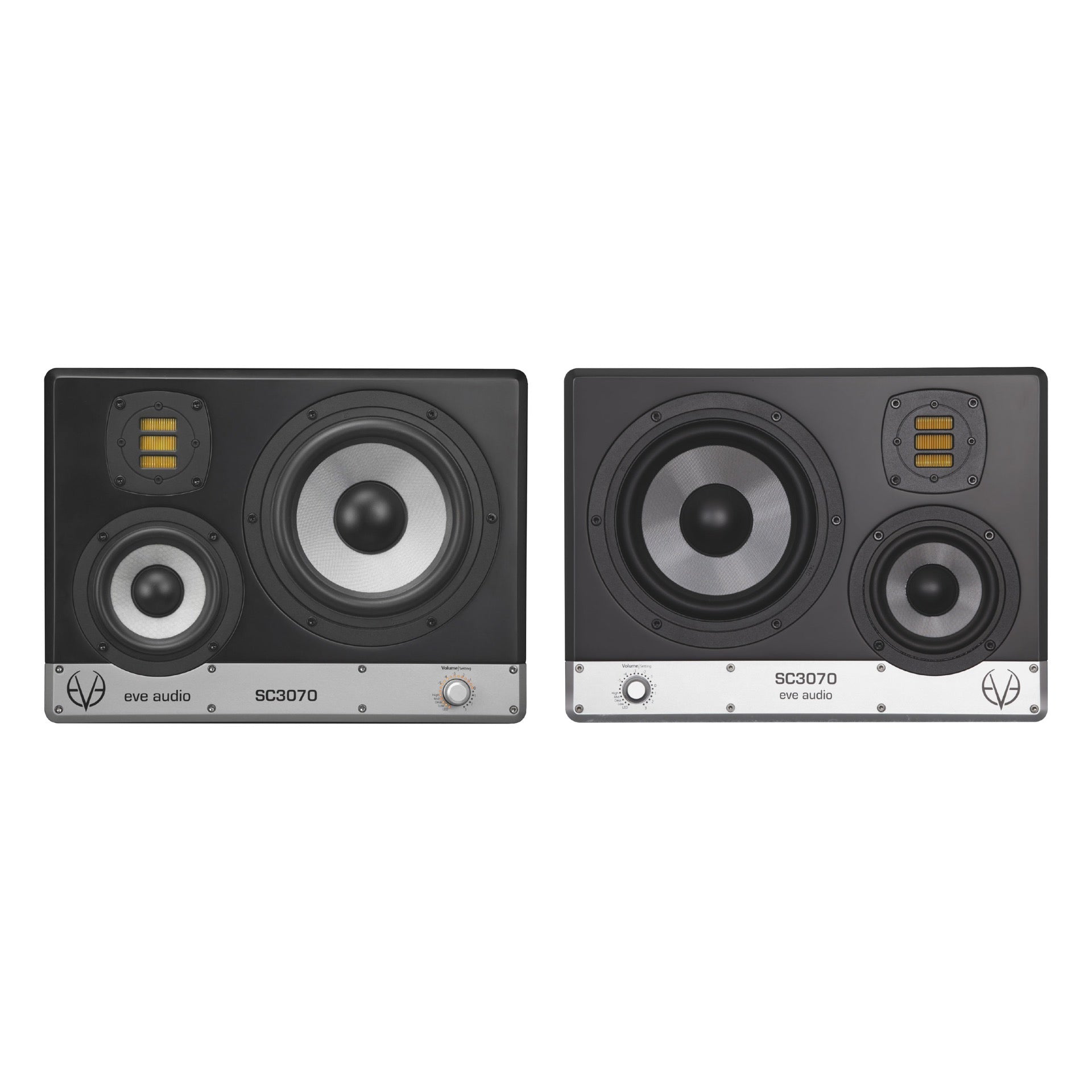

The SC3070 active reference studio monitor expands the existing range of main monitors with a smaller studio monitor. This 3-way model achieves the outstanding mid-range reproduction of the SC407's mid-high section with exceptional balance and low distortion over the entire frequency range, but in a much more compact cabinet. The SC3070 is the ideal solution for recording, mastering and home studios.

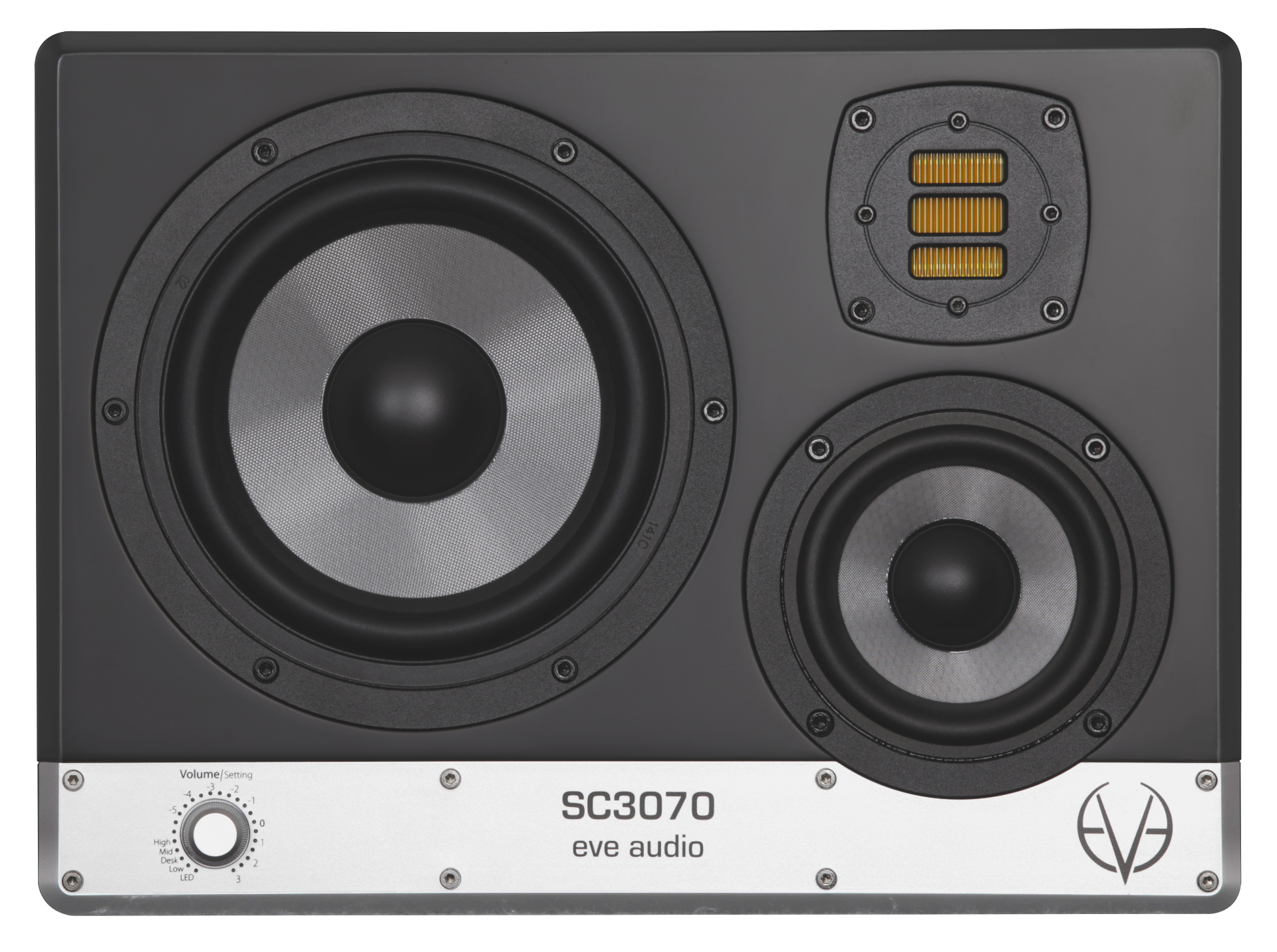

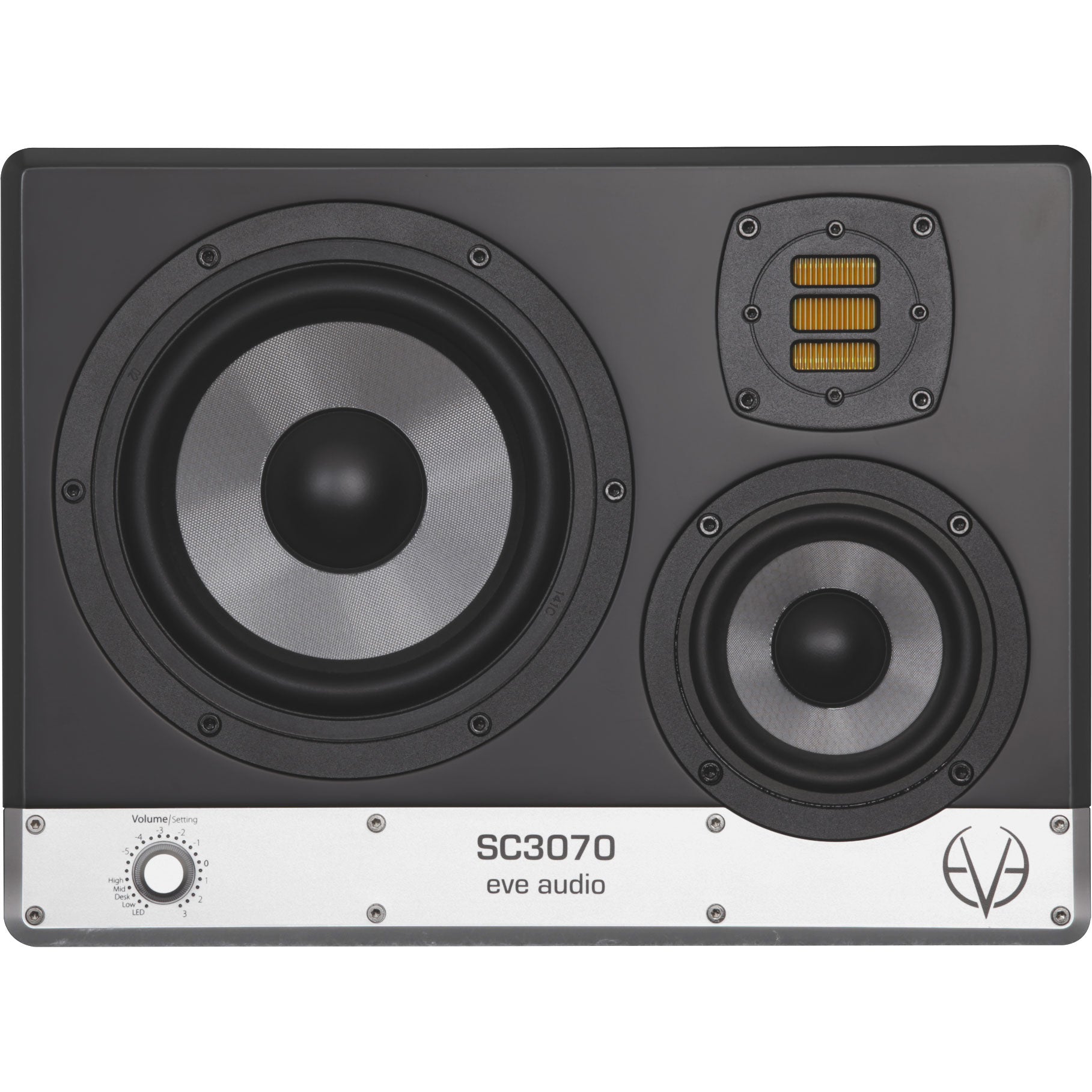

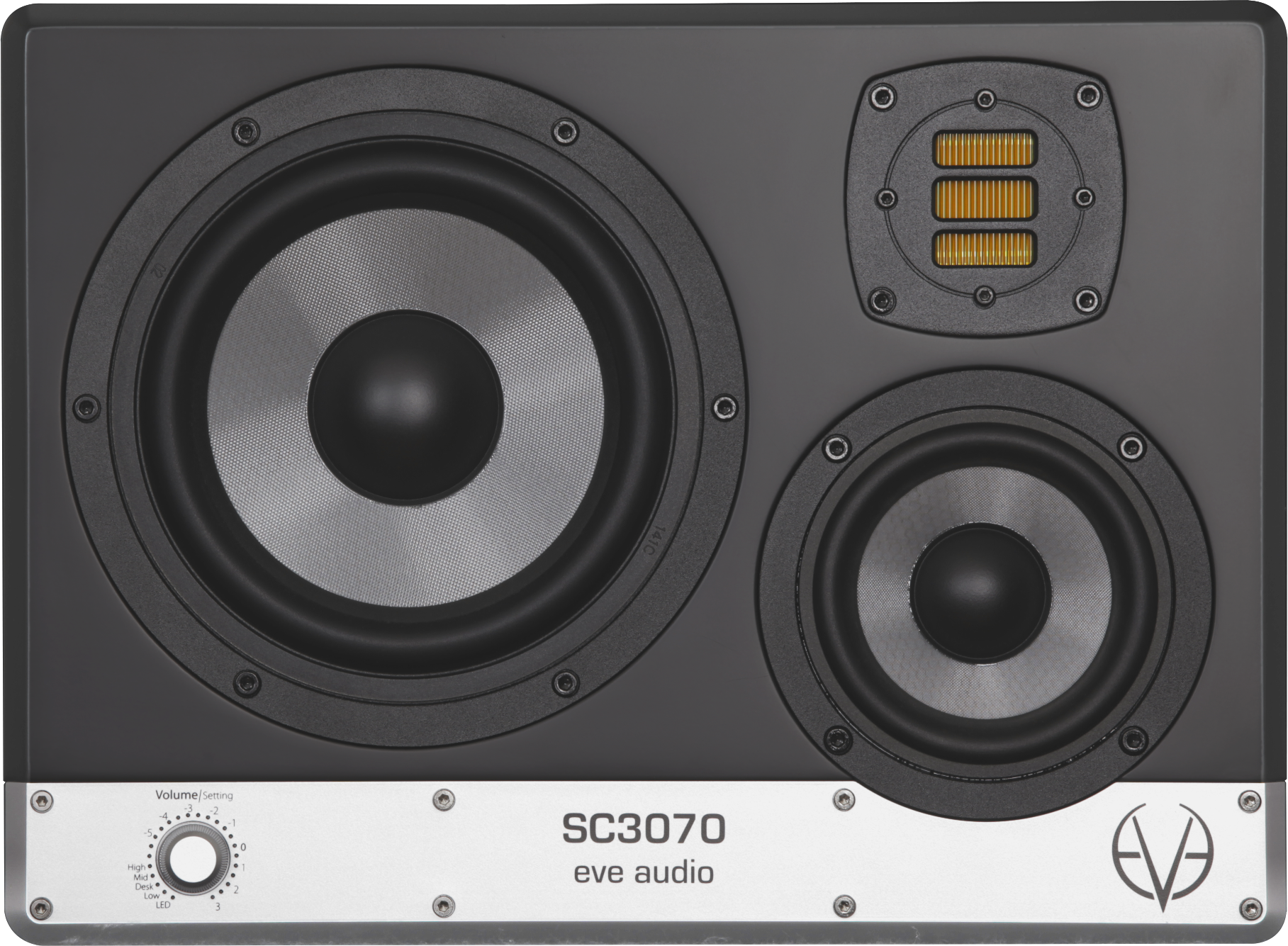

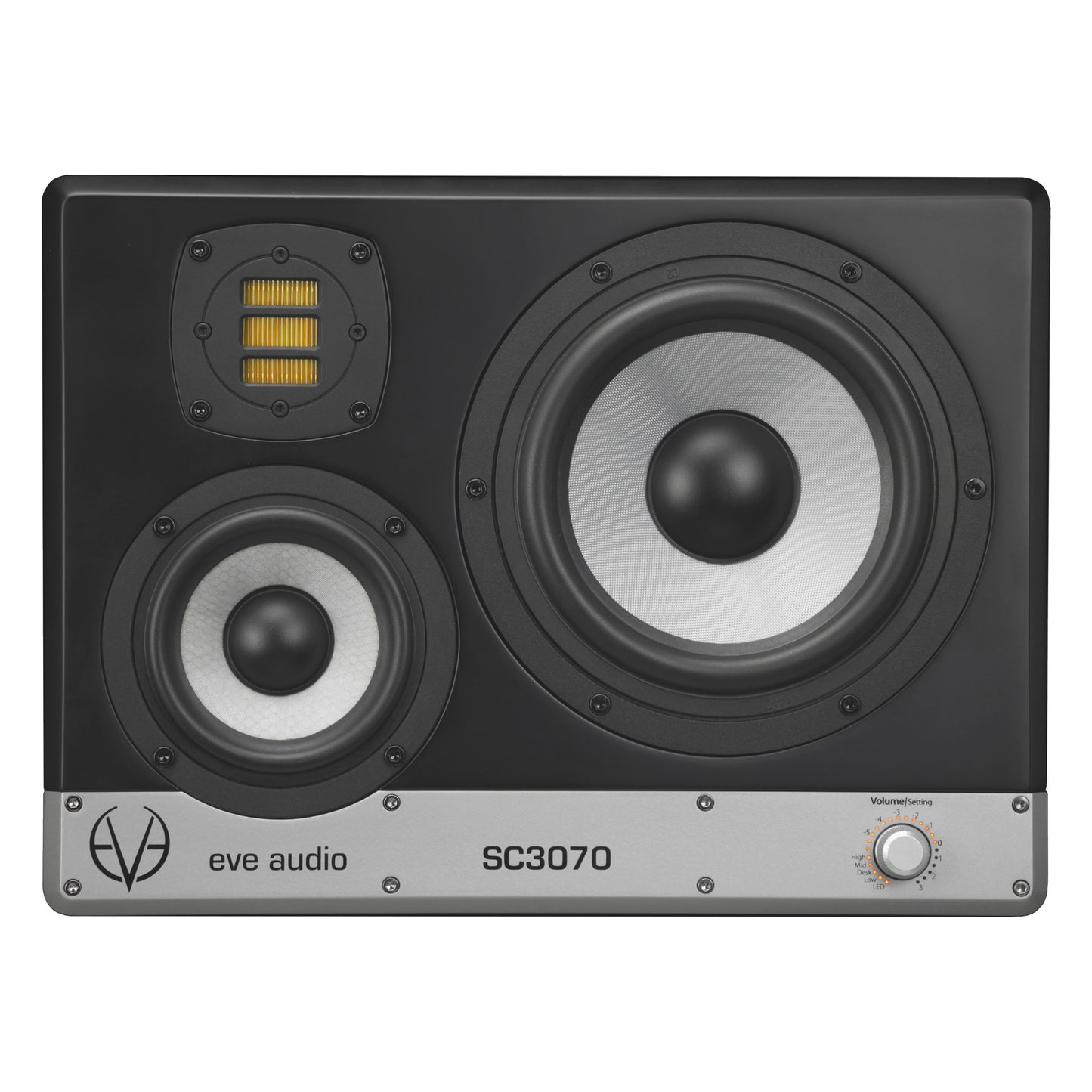

EVE Audio's own Air Motion Transformer RS3 is combined with a specially designed 4" midrange driver to give the SC3070 accurate and un-hyped transmission of high and mid frequencies without being tiring. A 7" woofer driver rounds out the SC3070 by providing precise and powerful low frequencies.

The bass and mid-range drivers are the same SilverCone found in existing models from EVE Audio that have proven their worth in top studios all over the world. These drivers work with a low-distortion copper-cap magnet system, which significantly reduces the distortion factor. The fiberglass-coated membrane material is constructed in a stable honeycomb structure to guarantee true tonal reproduction.

Tech Talk

EVE Audio's own Air Motion Transformer RS3.1 is combined with a specially designed 4" midrange driver to give the SC3070 accurate and un-hyped transmission of high and mid frequencies without being tiring. A 7" woofer driver rounds out the SC3070 by providing precise and powerful low frequencies.

The bass and mid-range drivers are the same SilverCone found in existing models from EVE Audio that have proven their worth in top studios all over the world. These drivers work with a low-distortion copper-cap magnet system, which significantly reduces the distortion factor. The fiberglass-coated membrane material is constructed in a stable honeycomb structure to guarantee true tonal reproduction.

DSP

All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP ensures latency-free filtering and simultaneously protects the entire frequency range from overload. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud.

Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications.

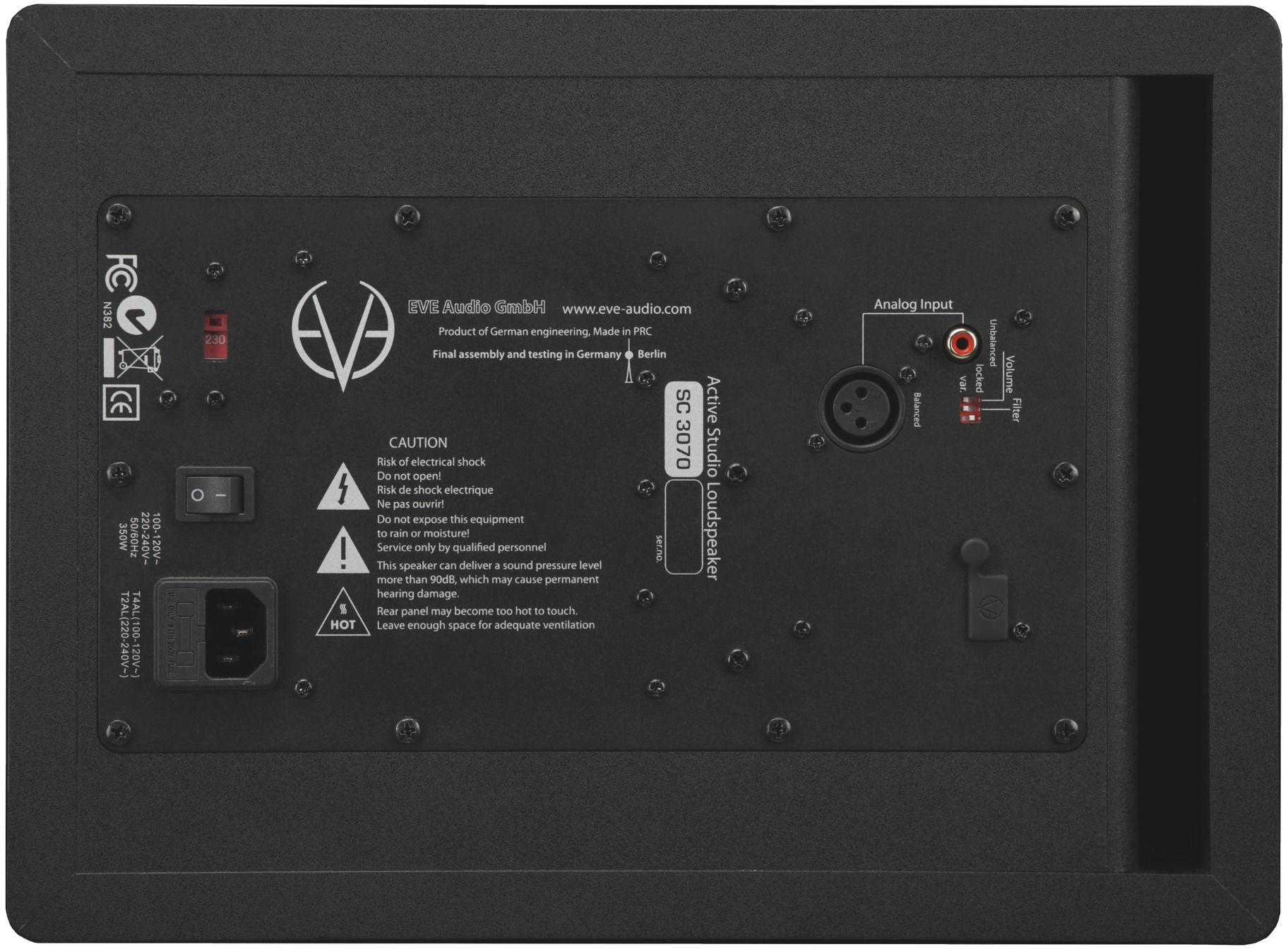

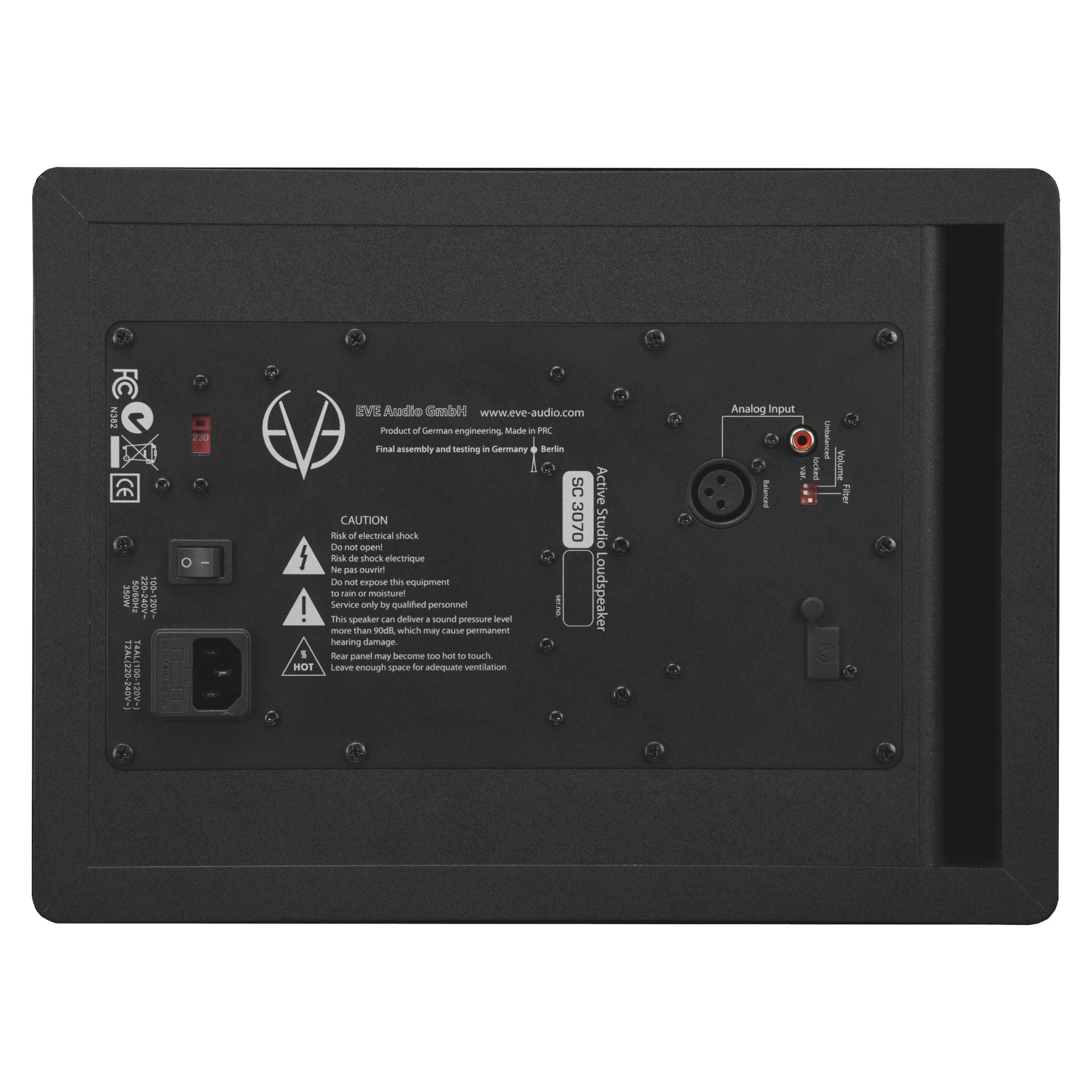

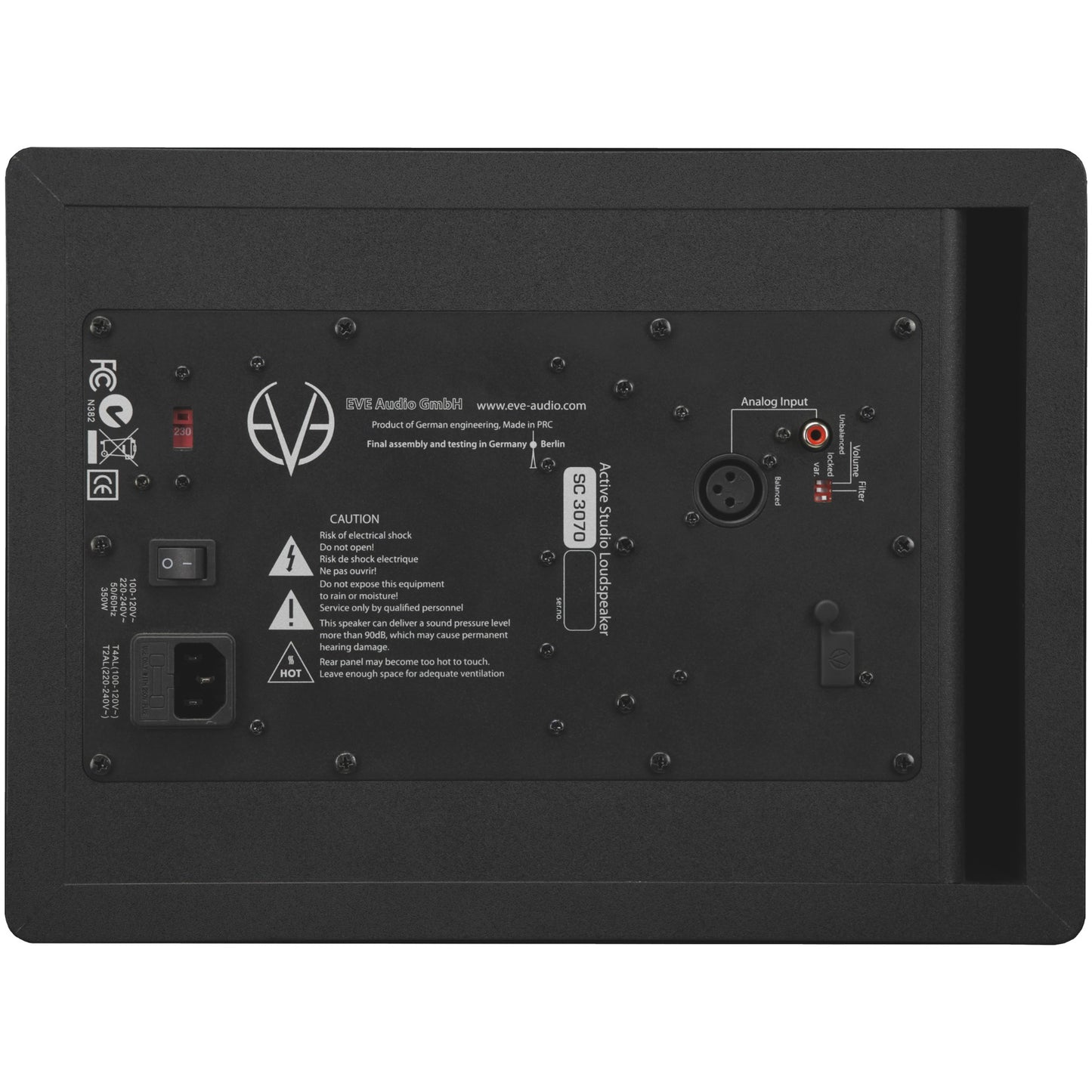

High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments.

Bass Port Design

The rear-firing bass reflex channel is designed with low flow noise and reinforces the SC3070’s powerful and precise bass reproduction.

It's all in the geometry. One of the downside effects of port compression is bass distortion. As you turn up the volume, the efficiency of the port reduces and distortion will increase.

They opted for a large rear rectangular port with no hard edges for our bass port designs. That's one of the reasons EVE monitors have a high efficiency on the lower frequencies.

The results? High sound pressures with tight and punchy bass frequencies that don't cause port distortion. Crank up the volume, and EVE will deliver a round bass. And with no holes to look at every time you glance at your speakers.
