TITAN

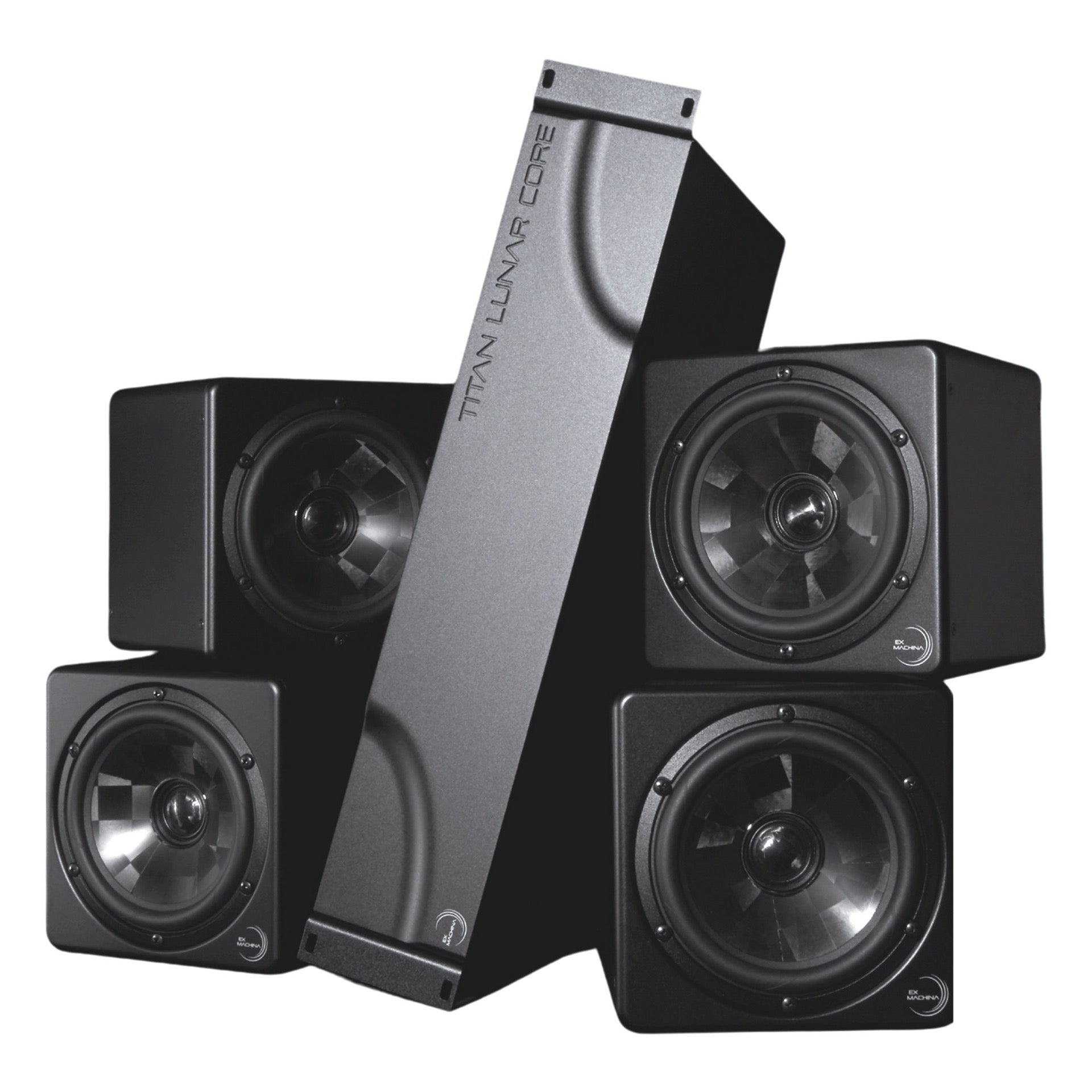

Titan is our dedicated surround and object based audio solution. Rather than trying to repackage a nearfield monitor for this unique application, Titan was designed from the ground up to serve the needs of modern multipoint formats. Mini, but mighty, with 90×90, true point source coverage angle, ultra rigid extruded aluminum cabinets and our signature Composite Sound Metamodal TX diaphragms, Titan retains all the core Ex Machina DNA, just without the subs. Titan is sold exclusively as a package of four satellites with a mating 2RU amplifier/DSP pack.

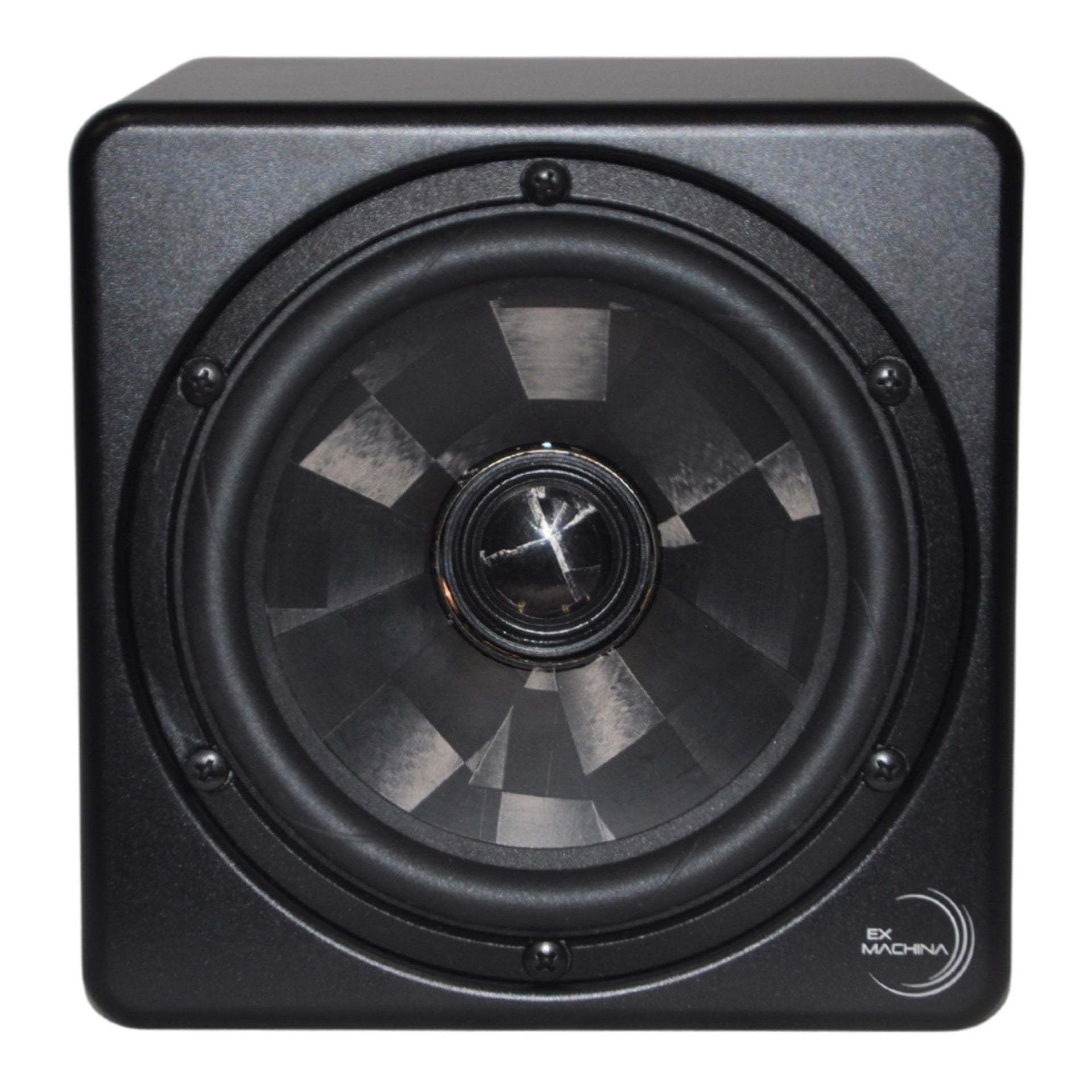

Custom SEAS Coaxial Woofer/Tweeter
Bleeding edge Composite Sound Metamodal TeXtreme diaphragms: ultralight, ultra-stiff carbon fabrics with optimized fiber geometries to actively control and suppress resonances.
Mathematically optimal woofer waveguide shape and true point source behavior, for eerily lifelike imaging.
FEA optimized, very low distortion ferrite motor design, with an advanced copper shorting sleeve for very low inductance.
Electronics
Flagship AKM Velvet Sound AK4493/AK5572 based conversion leaves no sonic footprint.
Hypex Ncore amplifiers provide gobs of squeaky clean, efficient power.
5th gen SHARC+ DSP hardware can crunch many, many numbers at once.

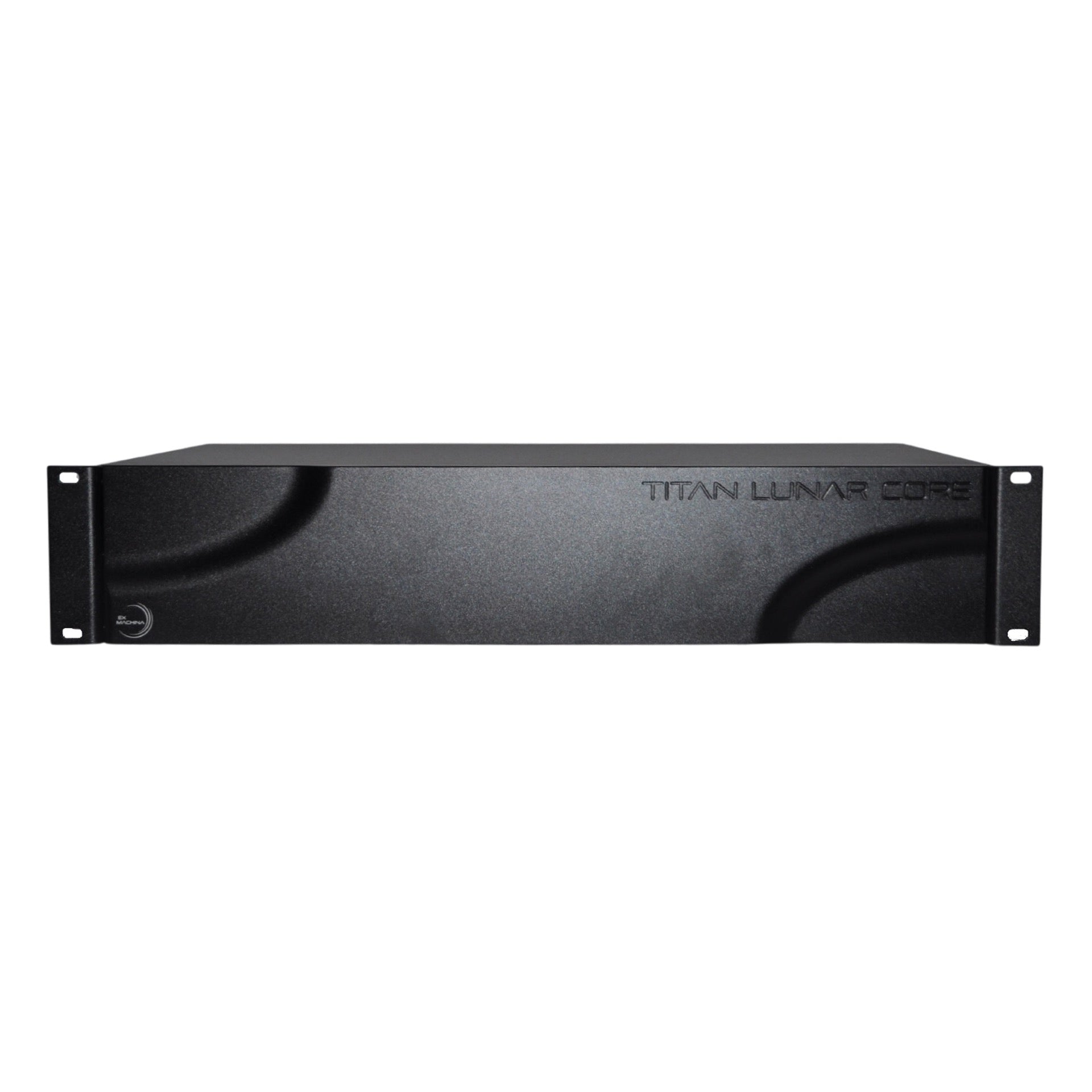

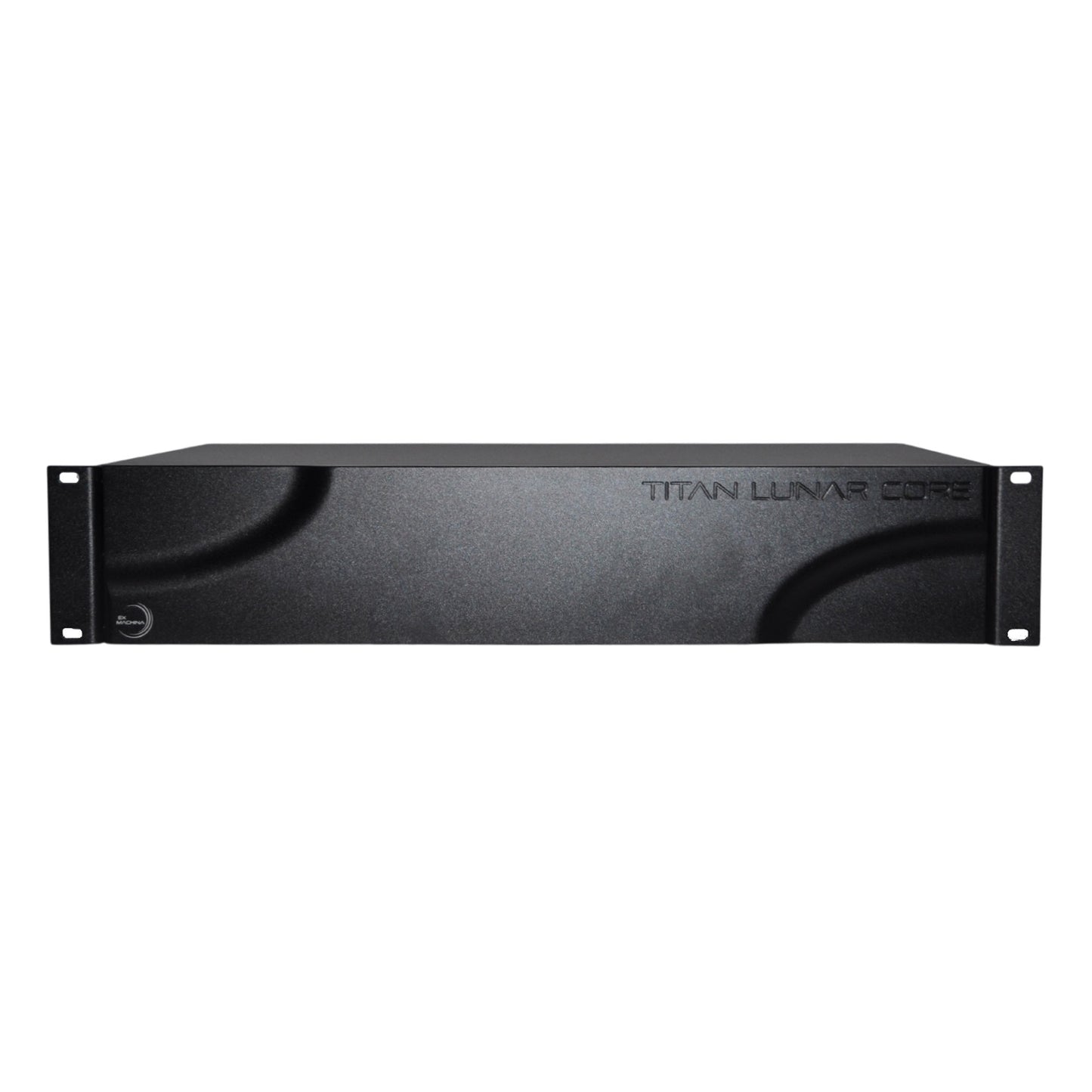

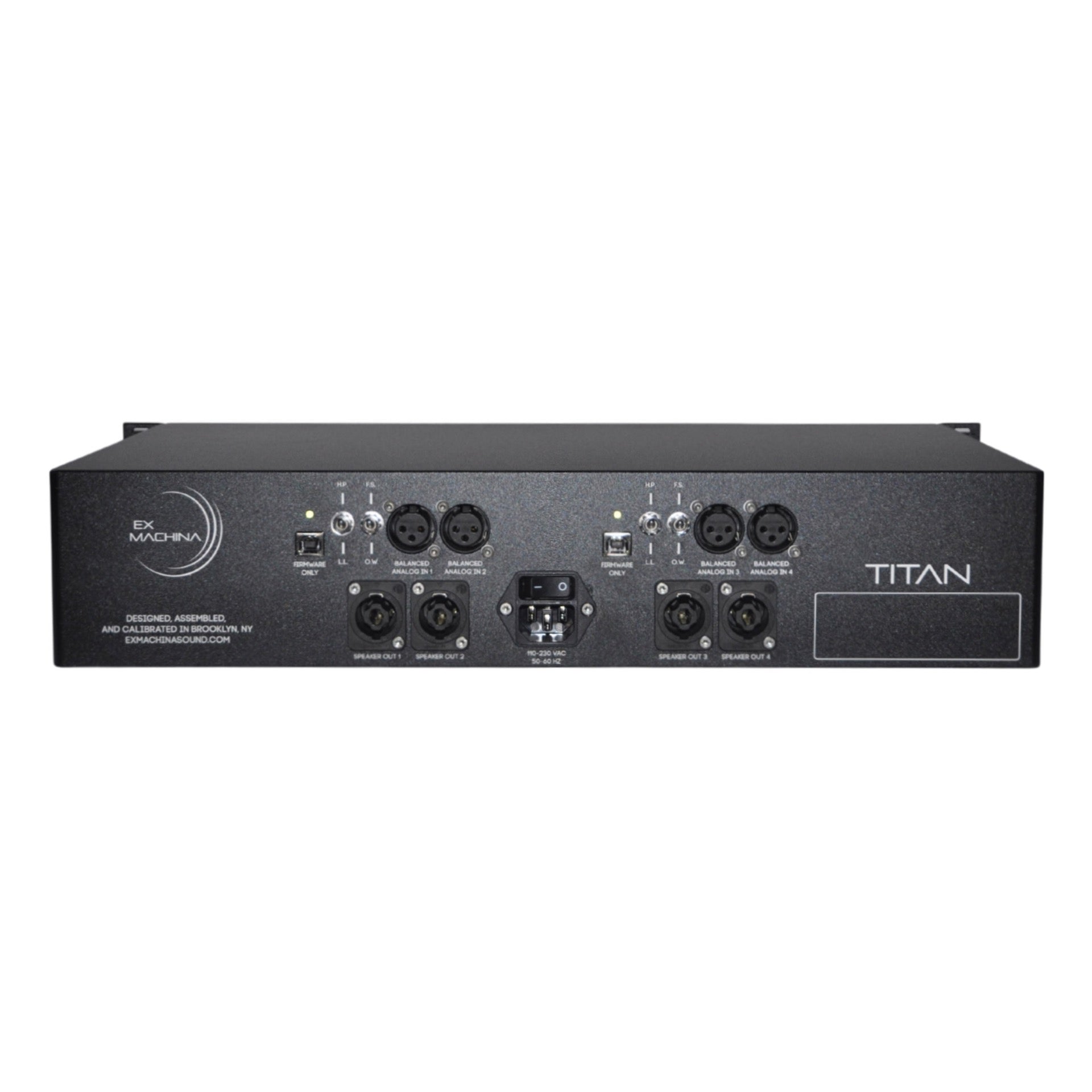

Included 4-channel remote AMP/DSP pack takes up only 2RU.

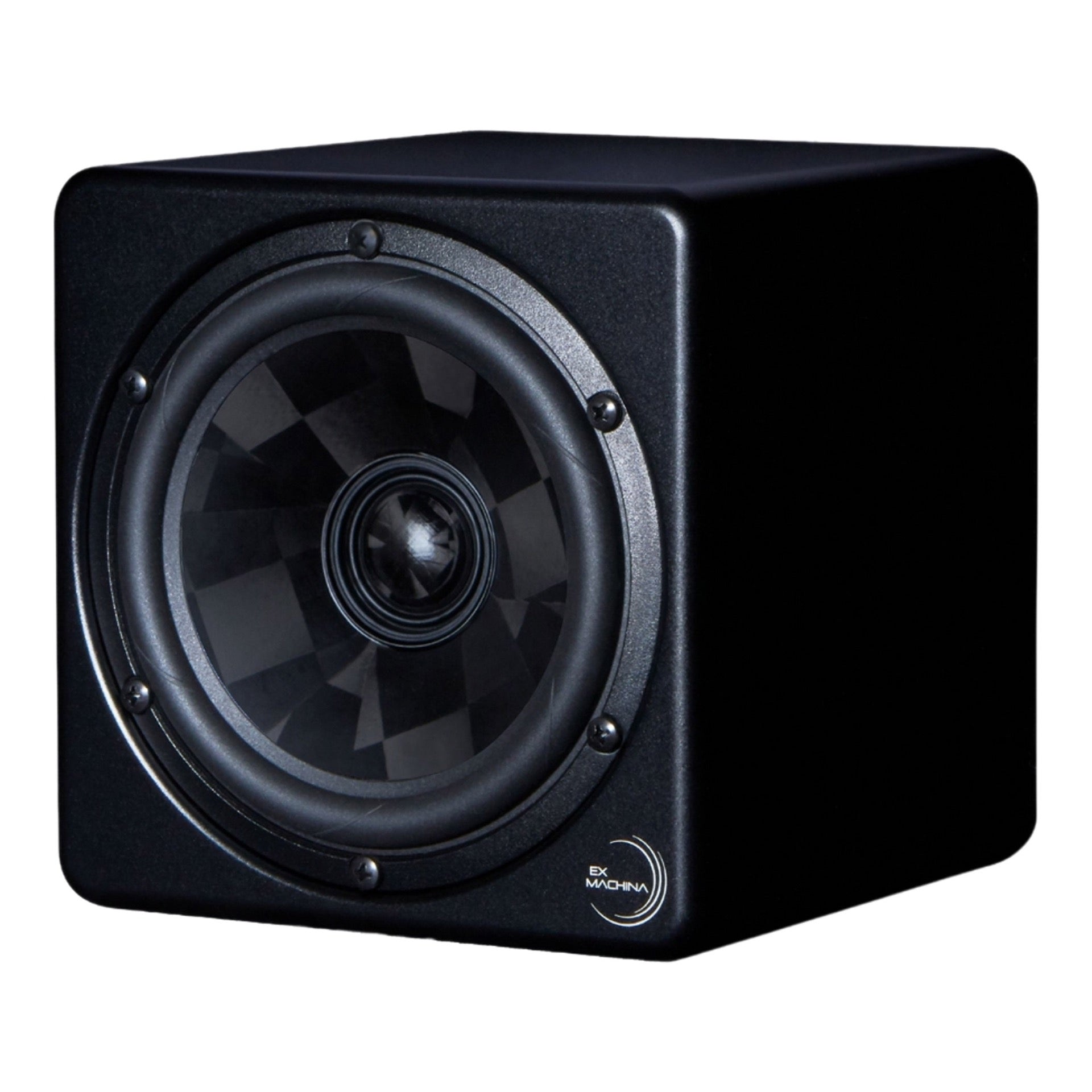

Sealed Extruded Aluminum Cabinets
Ridiculously rigid aluminum extrusion provides arguably the deadest cabinet we have ever offered.

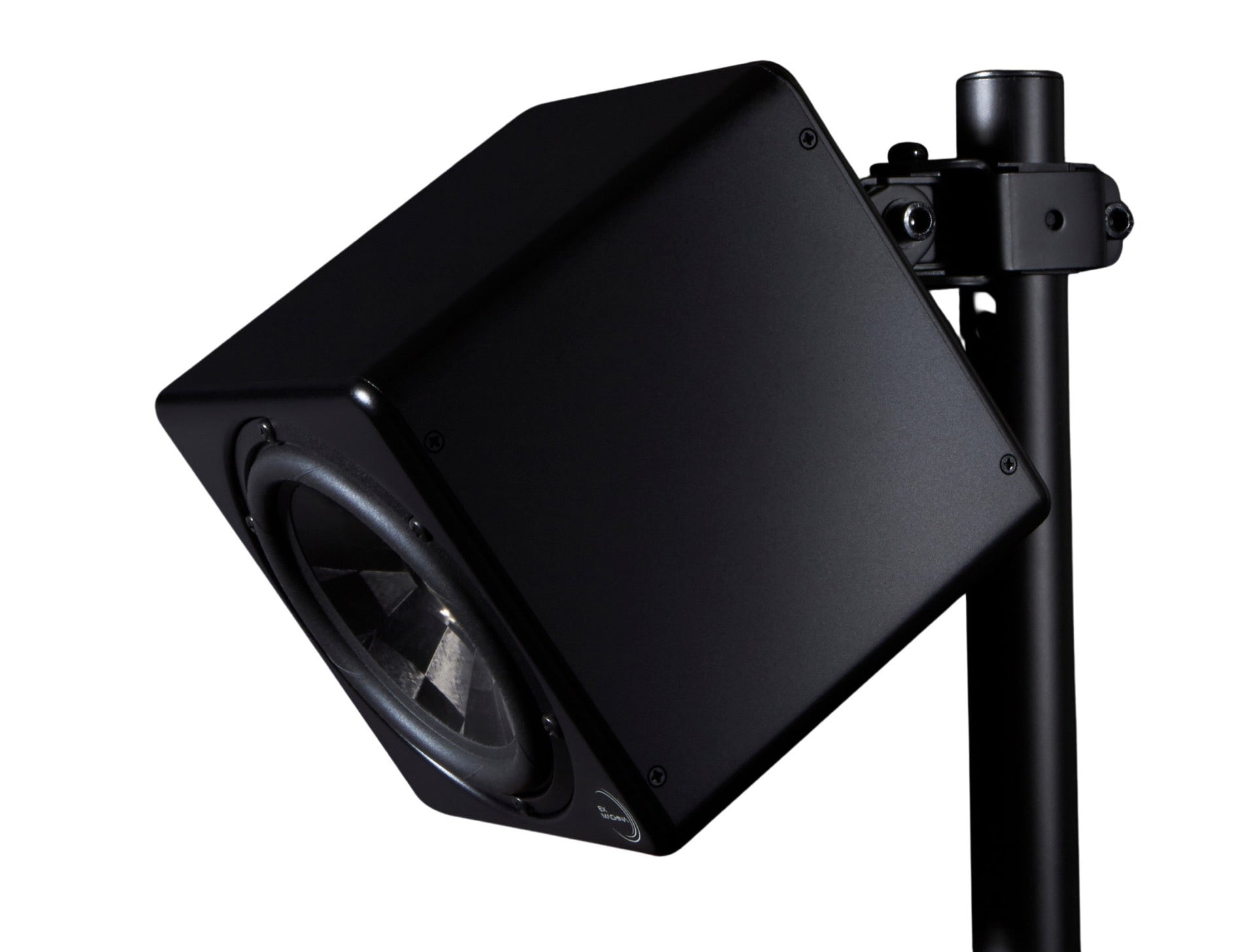

Integral 75x75mm and 100x100mm MIS-D VESA mounting points enable many inexpensive, flexible deployment options.

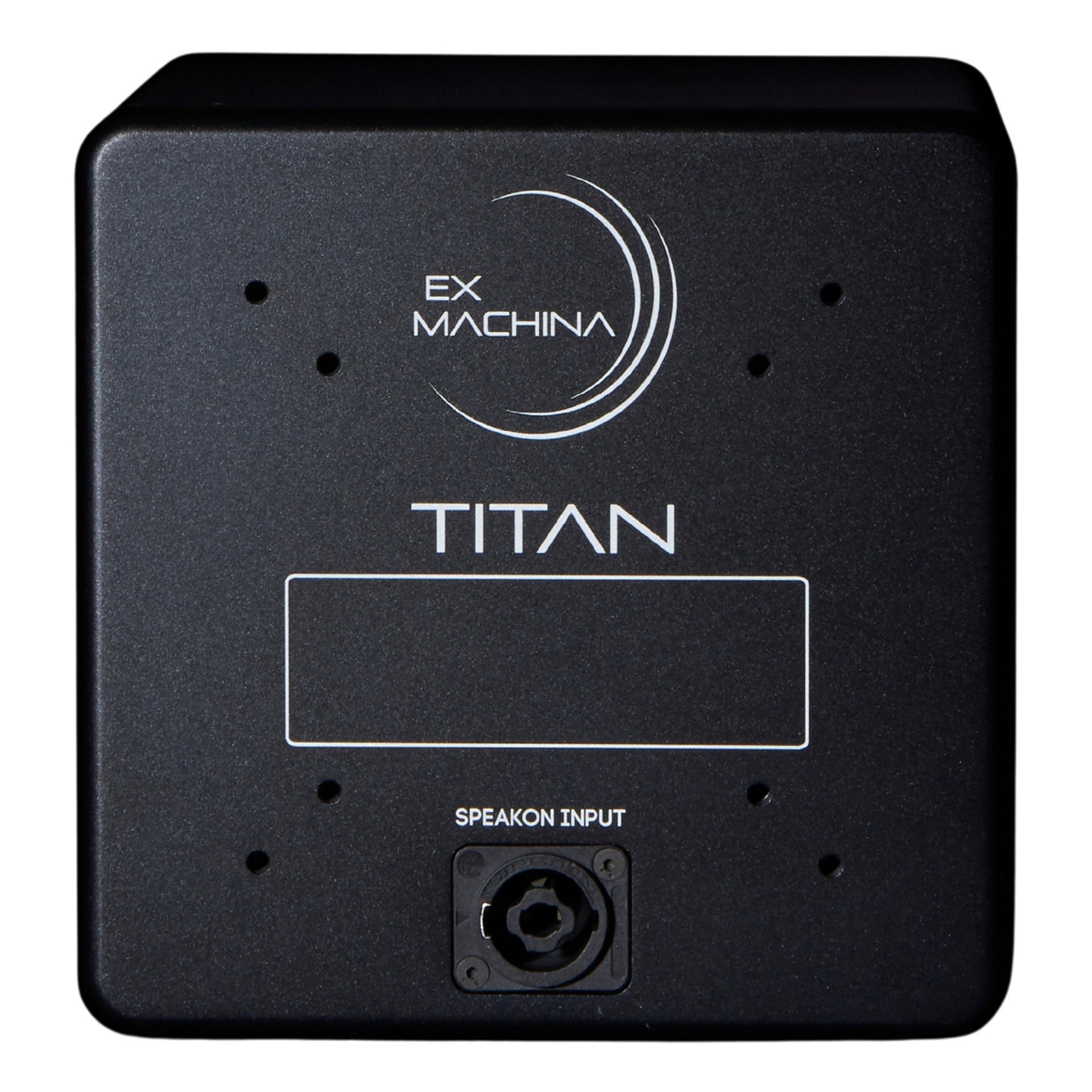

4-pole SpeakON input allows for remote bi-amping over a single cable.
| Product Name | Ex Machina Soundworks Titan Satellite Speaker System |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
- Compact 2-way active monitor with a 6.5" footprint and 12lb weight, ideal for Dolby Atmos setups in mixing and mastering rooms
- Single cable run to each speaker for hassle-free installation
- Wide sweet spot with 90-degree conical dispersion for easy positioning
- 100mm VESA mounting points
- 5th generation SHARC DSP deploying higher computing headroom and improved proprietarycalibration technology
- Flagship discrete AKM AK5572EN and AK4493EQ AD/DA chips and commensurately optimizedclocking and analog circuitry improves the S/N ratio
- Custom SEAS drivers with custom-designed cutting-edge diaphragm materials in collaborationwith Composite Sound
- Extruded aluminum cabinets for maximum rigidity and minimal resonance
- Integral 75x75mm and 100x100mm MIS-D VESA mounting points enable many inexpensive, flexible deployment options
- 4-pole SpeakON input allows for remote bi-amping over a cable
Ex Machina Soundworks Titan Satellite Speaker System
TITAN
Titan is our dedicated surround and object based audio solution. Rather than trying to repackage a nearfield monitor for this unique application, Titan was designed from the ground up to serve the needs of modern multipoint formats. Mini, but mighty, with 90×90, true point source coverage angle, ultra rigid extruded aluminum cabinets and our signature Composite Sound Metamodal TX diaphragms, Titan retains all the core Ex Machina DNA, just without the subs. Titan is sold exclusively as a package of four satellites with a mating 2RU amplifier/DSP pack.
Custom SEAS Coaxial Woofer/Tweeter
Bleeding edge Composite Sound Metamodal TeXtreme diaphragms: ultralight, ultra-stiff carbon fabrics with optimized fiber geometries to actively control and suppress resonances.
Mathematically optimal woofer waveguide shape and true point source behavior, for eerily lifelike imaging.
FEA optimized, very low distortion ferrite motor design, with an advanced copper shorting sleeve for very low inductance.
Electronics
Flagship AKM Velvet Sound AK4493/AK5572 based conversion leaves no sonic footprint.
Hypex Ncore amplifiers provide gobs of squeaky clean, efficient power.
5th gen SHARC+ DSP hardware can crunch many, many numbers at once.
Included 4-channel remote AMP/DSP pack takes up only 2RU.
Sealed Extruded Aluminum Cabinets
Ridiculously rigid aluminum extrusion provides arguably the deadest cabinet we have ever offered.
Integral 75x75mm and 100x100mm MIS-D VESA mounting points enable many inexpensive, flexible deployment options.
4-pole SpeakON input allows for remote bi-amping over a single cable.
| Product Name | Ex Machina Soundworks Titan Satellite Speaker System |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
- Compact 2-way active monitor with a 6.5" footprint and 12lb weight, ideal for Dolby Atmos setups in mixing and mastering rooms
- Single cable run to each speaker for hassle-free installation
- Wide sweet spot with 90-degree conical dispersion for easy positioning
- 100mm VESA mounting points
- 5th generation SHARC DSP deploying higher computing headroom and improved proprietarycalibration technology
- Flagship discrete AKM AK5572EN and AK4493EQ AD/DA chips and commensurately optimizedclocking and analog circuitry improves the S/N ratio
- Custom SEAS drivers with custom-designed cutting-edge diaphragm materials in collaborationwith Composite Sound
- Extruded aluminum cabinets for maximum rigidity and minimal resonance
- Integral 75x75mm and 100x100mm MIS-D VESA mounting points enable many inexpensive, flexible deployment options
- 4-pole SpeakON input allows for remote bi-amping over a cable
