The Eric Johnson signature Stratocaster guitar features a light two-piece alder body with deep ’57-style body contours and cavities; one-piece, vintage-tinted quartersawn plain maple neck (contours sanded very smooth) with light ’57-style V shape, 12” fingerboard radius and highly-polished frets; special Eric Johnson single-coil pickups with countersunk screws and a five-way switch; vintage tremolo with silver-painted block; ’57-style string recess; no paint between the base plate and the block; five springs (no tremolo cover); master volume; neck and bridge tone controls; thin neck-cap with staggered machine heads; and ’57-style parchment pickguard. Available with .010-.046 gauge strings and a thin-skin nitrocellulose lacquer finish.



Model Name: Eric Johnson Stratocaster Maple

Series: Artist

Color / MSRP* / Part # :

2-Color Sunburst

$2,599.99

011-7702-803



Body

Body: Alder

Body Shape: Stratocaster

Body Finish:

(0117702803, 0117702806, 0117702809, 0117702801)

Nitrocellulose Lacquer Body Finish



Neck

Neck Shape: Soft "V" Shape

Number of Frets: 21

Fret Size: Medium Jumbo

Position Inlays: Black Dot Position Inlays

Fretboard Radius: 12" Radius (305 mm)

Fretboard: Maple

Neck Material: 1-Piece Quartersawn Maple

Neck Finish: Nitrocellulose Lacquer Neck Finish

Nut Width: 1.650” (42 mm)

Scale Length: 25.5" (64.8 cm)

Neck Plate: Custom 4 Bolt Neckplate

Truss Rod Nut: Original Vintage Style



Electronics

Pickup Configuration: S/S/S

Bridge Pickup: Specially Voiced Eric Johnson Single-Coil Pickup with Countersunk Mounting Screws

Middle Pickup: Specially Voiced Eric Johnson Single-Coil Pickup with Countersunk Mounting Screws

Neck Pickup: Specially Voiced Eric Johnson Single-Coil Pickup with Countersunk Mounting Screws

Pickup Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup)



Hardware

Hardware: Nickel/Chrome

Bridge: American Vintage Synchronized Tremolo

Bridge Cover/Tailpiece: Includes Chrome Bridge Cover

Tuning Machines: Staggered Vintage Style Tuning Machines

String Nut: Synthetic Bone

Switch Tip: Parchment Switch Tip

Tremolo Arm/Handle: American Vintage Tremolo Arm



Tools

Saddle Height Adjustment Wrench: .050" Hex (Allen) Wrench



Miscellaneous

Strings: Fender® USA Super 250R, NPS, (.010-.046 Gauges)

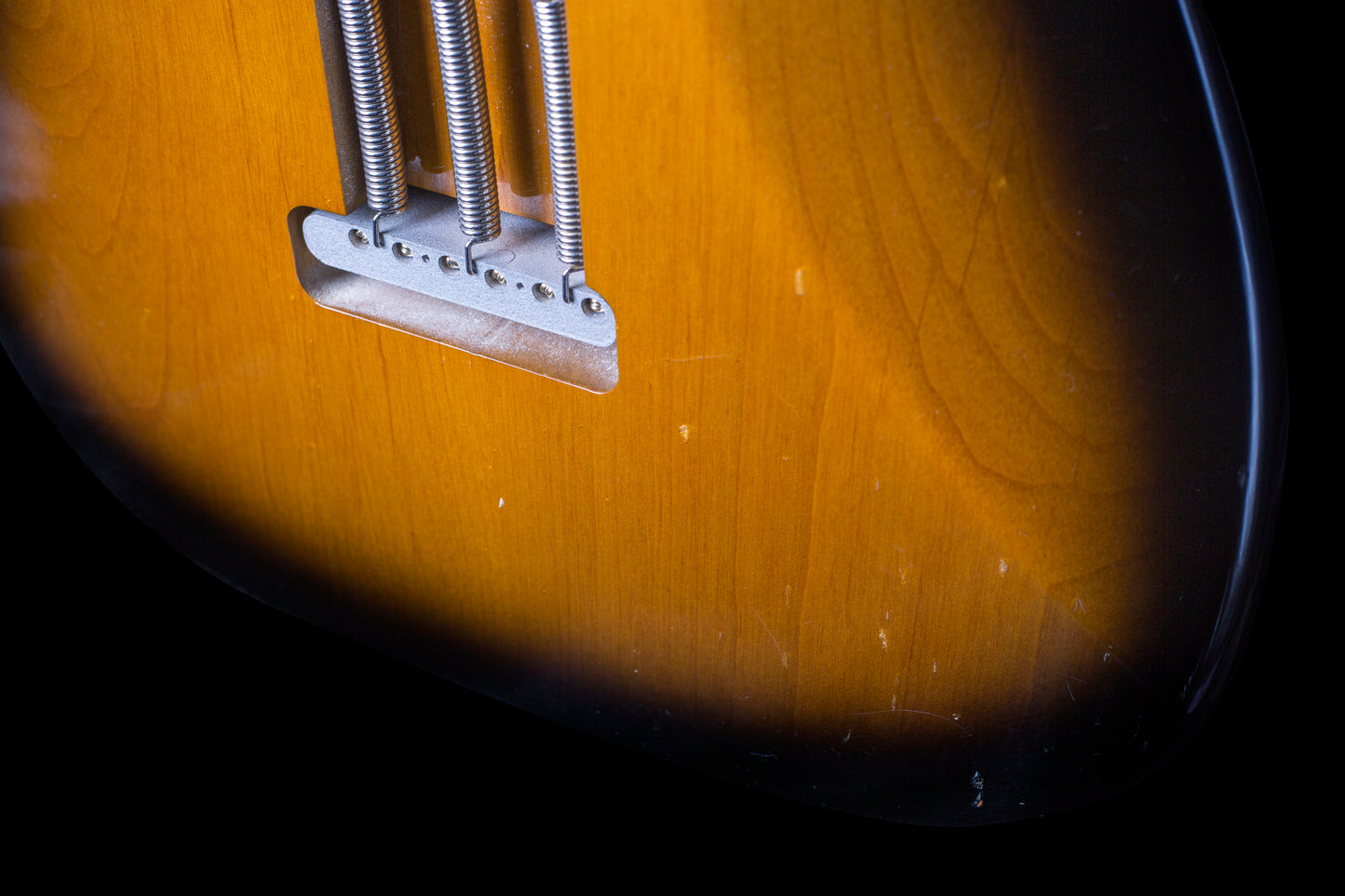

Unique Features: 12" Radius Fingerboard, Countersunk Holes in Pickguard for Pickup Mounting Screws, Height Staggered Vintage Style Tuners which Eliminate the Need for String Trees, Vintage Tremolo with Silver Painted Block and '57 Style String Recess (No Paint Between Base Plate and Block), 5 Tremolo Springs and No Back Tremolo Cover Plate



Accessories

Case/Gig Bag: Deluxe Blonde Hardshell Case with Black Ends (Black Interior)

Pickguard: 1-Ply Parchment, (8 Hole)

Included Accessories: Deluxe Blonde Hardshell Case with Black Ends (Black Interior), Strap, Cable, "Ash Tray" Bridge Cover

Control Knobs: Parchment Plastic
