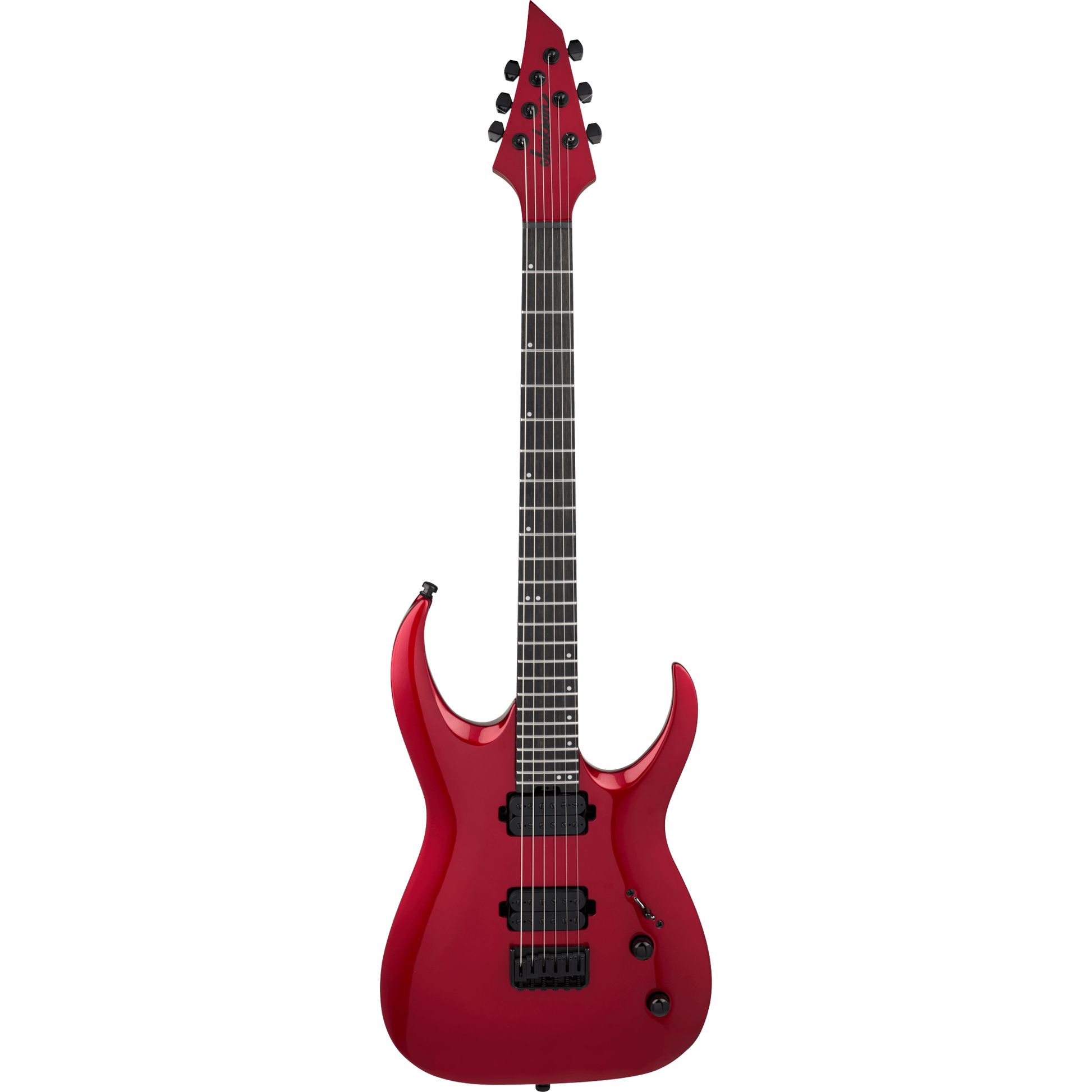

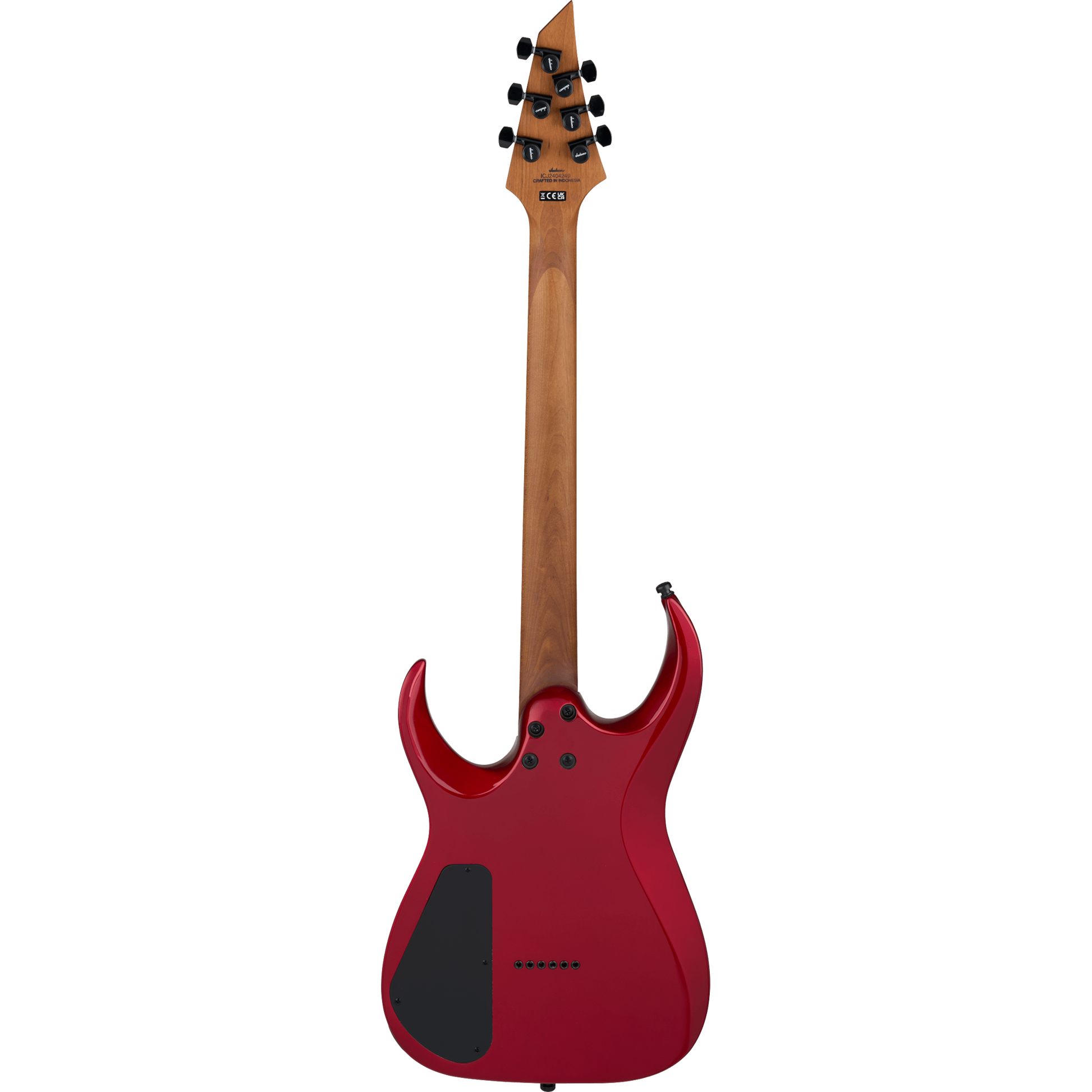

Jackson Pro Series Signature Misha Mansoor Juggernaut HT6 Guitar - Red Crystal

Jackson Pro Series Signature Misha Mansoor Juggernaut HT6 Guitar - Red Crystal

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Djent forefather and speed demon Misha Mansoor has gained widespread acclaim as the mastermind behind the axe-centric progressive metal band Periphery. He's known to impress the most discerning of metal fans with his steadfast, fleet-fingered technique, and his personally designed collection of Jackson signature Juggernaut instruments is sure to set any shredder's tone ablaze.

The Pro Juggernaut HT6 offers a 25.5" scale length, poplar body and bolt-on caramelized maple neck with graphite reinforcement, wrap-around heel and oiled back finish for greater playing comfort. Enjoy blazing fast leads with a 20" flat radius ebony fingerboard featuring rolled edges, 24 jumbo stainless steel frets and offset dot inlays. Luminlay® side-dots will guide your way even on the darkest of stages, while the heel-mount truss rod adjustment wheel allows for convenient neck relief tweaks.

Not willing to sacrifice tone, Mansoor spent considerable time working with Jackson to develop killer-sounding uncovered direct mount Jackson MM1 pickups, which can be shaped with a five-way blade switch, single volume control and single tone control with push/pull (activation) feature.

Available in Red Crystal with a matching reverse Jackson 3x3 AT-1 headstock, this signature Pro Juggernaut also features a Jackson HT6 string-through-body hardtail bridge, Jackson sealed die-cast locking tuners, Dunlop® dual-locking strap locks and a gig bag.

More Information
Product Name Jackson Pro Series Signature Misha Mansoor Juggernaut HT6 Guitar - Red Crystal
Brand Jackson
MPN 2914006552
UPC 885978521999
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Jackson Pro Series Signature Misha Mansoor Juggernaut HT6, Ebony Fingerboard, Red Crystal
  • Gig Bag
  • 25.5" scale length
  • Poplar body
  • Bolt-on caramelized maple neck with graphite reinforcement, scarf joint and oiled back finish
  • 20" radius ebony fingerboard with rolled edges, 24 jumbo frets, offset white dot inlays and Luminlay® side dots
  • Heel-mount truss rod adjustment wheel
  • Uncovered direct mount Jackson MM1 pickups
  • Five-way blade switch, single volume control and single tone control with push/pull select feature
  • Jackson HT6 string-through-body hardtail bridge
  • Jackson sealed die-cast locking tuners
  • Horizon Devices Strings - Progressive Tension Heavy 6
  • Gigbag included

Neck

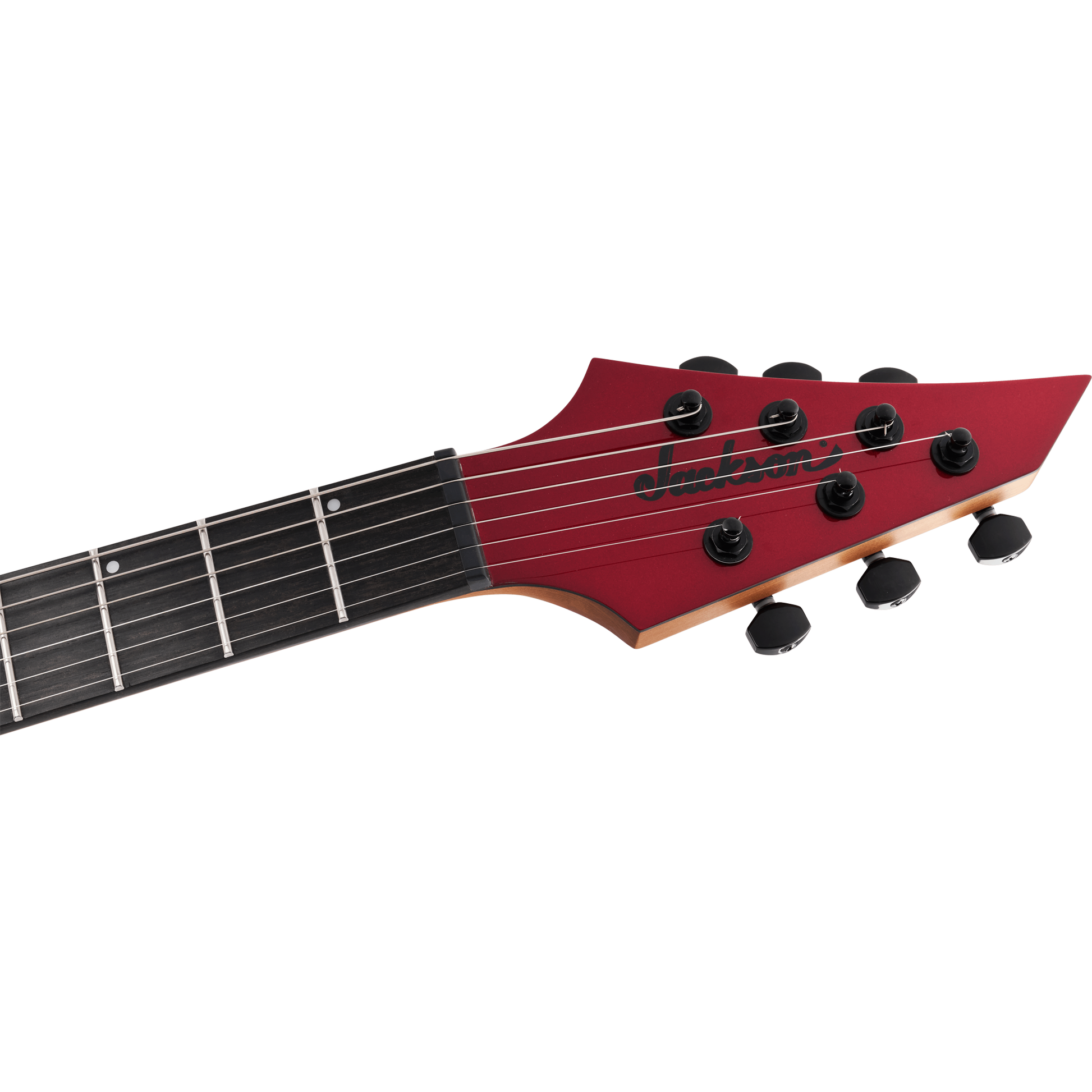

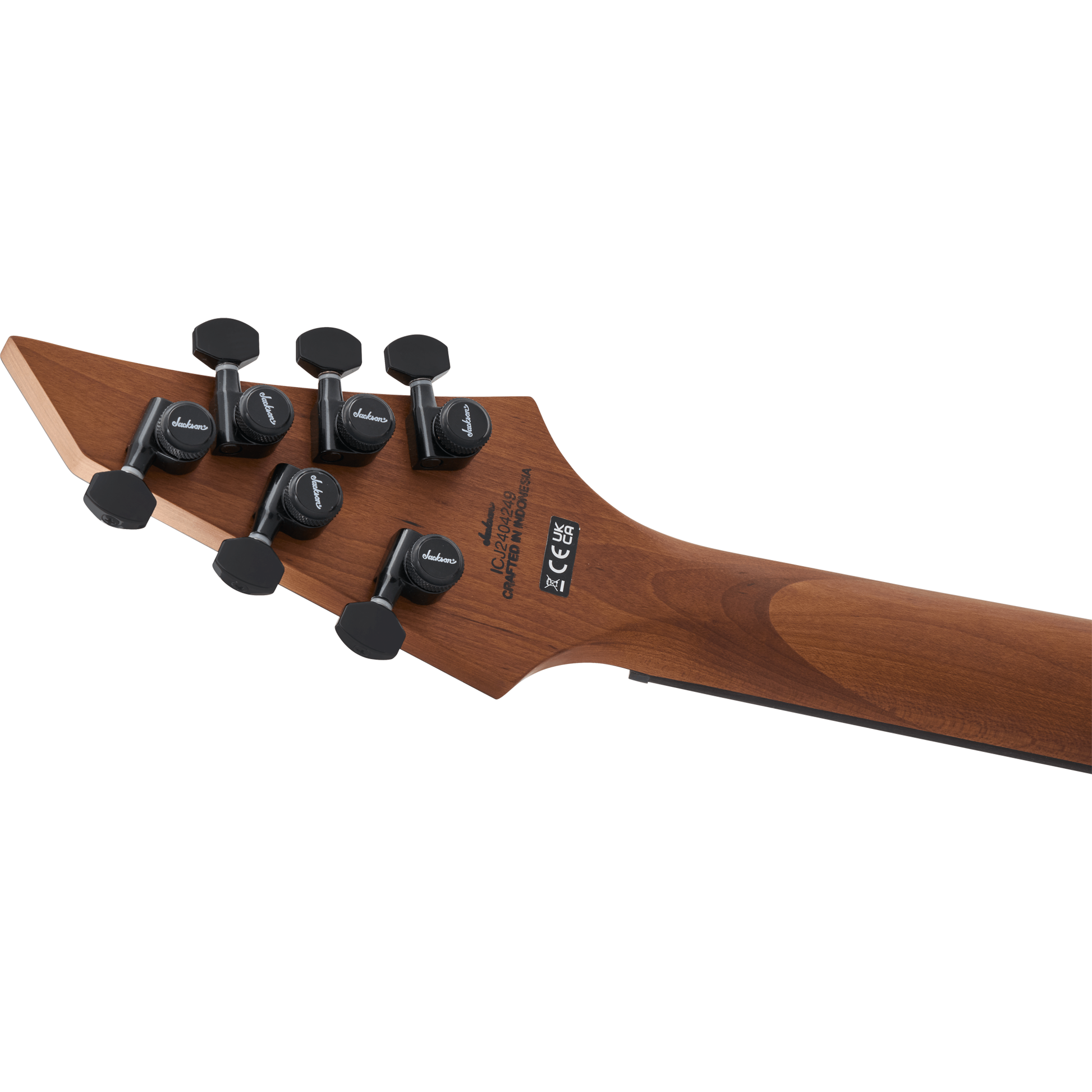

Headstock Reverse Jackson® AT-1 3x3 (3 Over/3 Under)
Neck Material Caramelized Maple
Neck Finish Oiled
Neck Construction Bolt-On with Graphite Reinforcement and Scarf Joint
Fingerboard Radius 20" (508 mm)
Fingerboard Material Ebony
Position Inlays Offset White Dot
Number of Frets 24
Truss Rod Dual-Action with Wheel
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
String Nut Black Plastic
Nut Width 1.6875" (42.86 mm)
Nut Material Black Plastic
Fret Size Jumbo Stainless Steel
Scale Length 25.5" (64.77 cm)

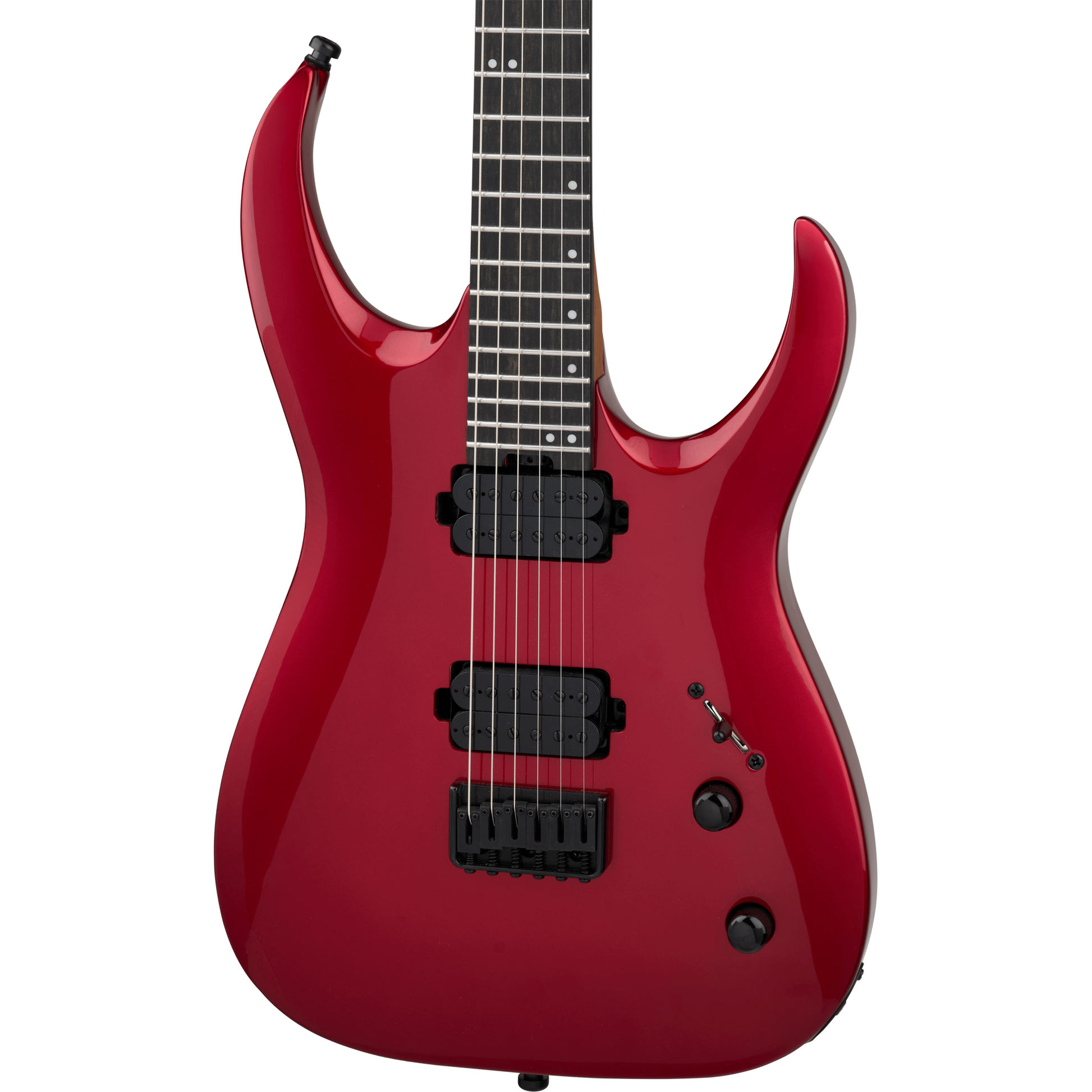

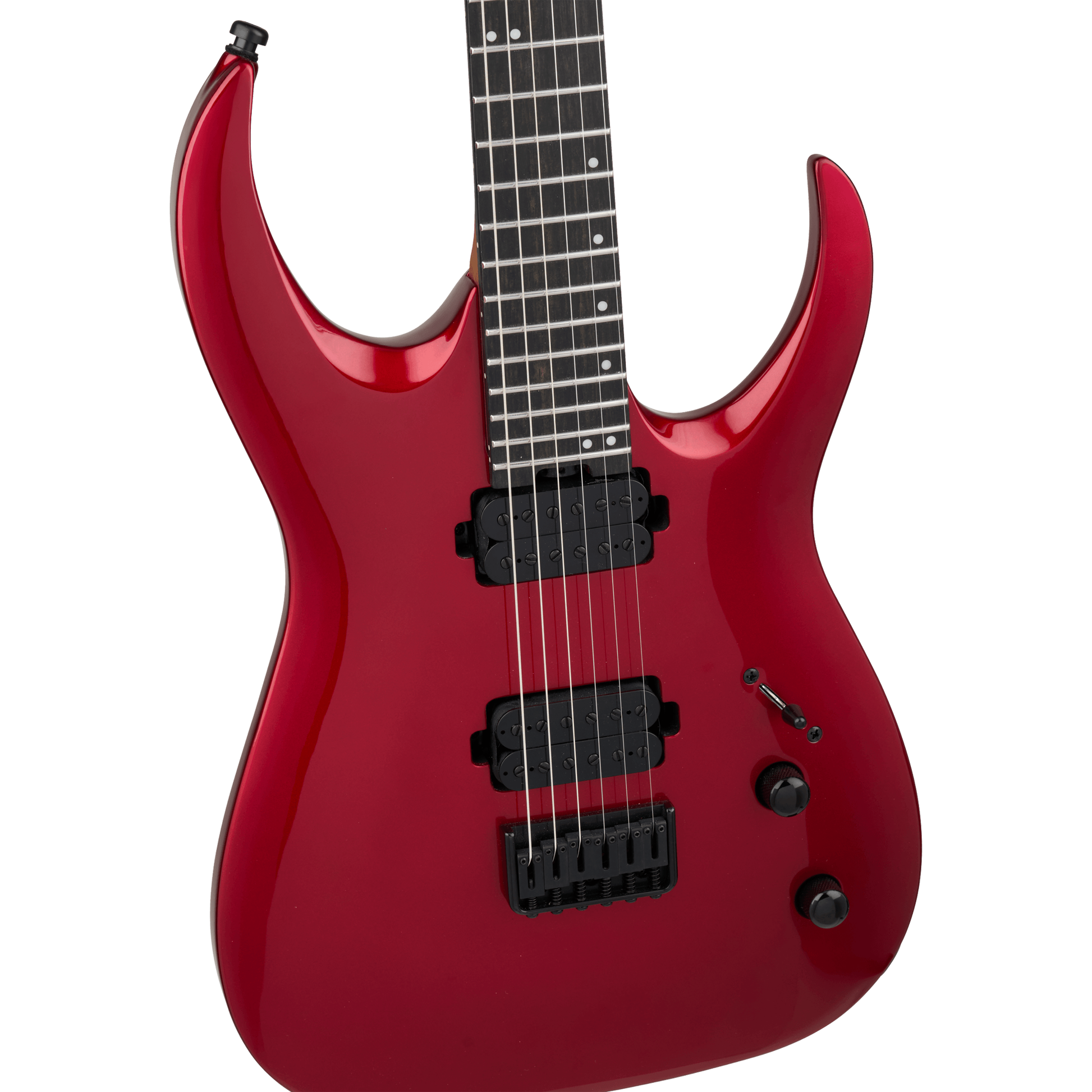

Body

Body Poplar
Body Finish Gloss
Body Shape Juggernaut
Body Material Poplar

Hardware

Bridge Jackson® HT6 String-Through-Body Hardtail
Pickguard None
Pickup Covers Black
Control Knobs Dome-Style
Switch Tip Black
Hardware Finish Black
Tuning Machines Jackson® Sealed Die-Cast Locking
Strings Horizon Devices Strings - Progressive Tension Heavy 6
Neck Plate 4-Bolt (recessed screws)
Strap Buttons Dunlop® Dual-Locking

Electronics

Bridge Pickup Jackson® Uncovered MM1
Neck Pickup Jackson® Uncovered MM1
Pickup Configuration HH
Controls Volume, Tone (with Push/Pull Select Feature)
Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Coils, Position 3. Both Full Humbucking Pickups, Position 4. Two Outer Coils, Position 5. Full Neck Pickup

Jackson Pro Series Signature Misha Mansoor Juggernaut HT6 Guitar - Red Crystal

Details

Djent forefather and speed demon Misha Mansoor has gained widespread acclaim as the mastermind behind the axe-centric progressive metal band Periphery. He's known to impress the most discerning of metal fans with his steadfast, fleet-fingered technique, and his personally designed collection of Jackson signature Juggernaut instruments is sure to set any shredder's tone ablaze.

The Pro Juggernaut HT6 offers a 25.5" scale length, poplar body and bolt-on caramelized maple neck with graphite reinforcement, wrap-around heel and oiled back finish for greater playing comfort. Enjoy blazing fast leads with a 20" flat radius ebony fingerboard featuring rolled edges, 24 jumbo stainless steel frets and offset dot inlays. Luminlay® side-dots will guide your way even on the darkest of stages, while the heel-mount truss rod adjustment wheel allows for convenient neck relief tweaks.

Not willing to sacrifice tone, Mansoor spent considerable time working with Jackson to develop killer-sounding uncovered direct mount Jackson MM1 pickups, which can be shaped with a five-way blade switch, single volume control and single tone control with push/pull (activation) feature.

Available in Red Crystal with a matching reverse Jackson 3x3 AT-1 headstock, this signature Pro Juggernaut also features a Jackson HT6 string-through-body hardtail bridge, Jackson sealed die-cast locking tuners, Dunlop® dual-locking strap locks and a gig bag.

More Information
Product Name Jackson Pro Series Signature Misha Mansoor Juggernaut HT6 Guitar - Red Crystal
Brand Jackson
MPN 2914006552
UPC 885978521999
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Jackson Pro Series Signature Misha Mansoor Juggernaut HT6, Ebony Fingerboard, Red Crystal
  • Gig Bag
Features
  • 25.5" scale length
  • Poplar body
  • Bolt-on caramelized maple neck with graphite reinforcement, scarf joint and oiled back finish
  • 20" radius ebony fingerboard with rolled edges, 24 jumbo frets, offset white dot inlays and Luminlay® side dots
  • Heel-mount truss rod adjustment wheel
  • Uncovered direct mount Jackson MM1 pickups
  • Five-way blade switch, single volume control and single tone control with push/pull select feature
  • Jackson HT6 string-through-body hardtail bridge
  • Jackson sealed die-cast locking tuners
  • Horizon Devices Strings - Progressive Tension Heavy 6
  • Gigbag included
Tech Specs

Neck

Headstock Reverse Jackson® AT-1 3x3 (3 Over/3 Under)
Neck Material Caramelized Maple
Neck Finish Oiled
Neck Construction Bolt-On with Graphite Reinforcement and Scarf Joint
Fingerboard Radius 20" (508 mm)
Fingerboard Material Ebony
Position Inlays Offset White Dot
Number of Frets 24
Truss Rod Dual-Action with Wheel
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
String Nut Black Plastic
Nut Width 1.6875" (42.86 mm)
Nut Material Black Plastic
Fret Size Jumbo Stainless Steel
Scale Length 25.5" (64.77 cm)

Body

Body Poplar
Body Finish Gloss
Body Shape Juggernaut
Body Material Poplar

Hardware

Bridge Jackson® HT6 String-Through-Body Hardtail
Pickguard None
Pickup Covers Black
Control Knobs Dome-Style
Switch Tip Black
Hardware Finish Black
Tuning Machines Jackson® Sealed Die-Cast Locking
Strings Horizon Devices Strings - Progressive Tension Heavy 6
Neck Plate 4-Bolt (recessed screws)
Strap Buttons Dunlop® Dual-Locking

Electronics

Bridge Pickup Jackson® Uncovered MM1
Neck Pickup Jackson® Uncovered MM1
Pickup Configuration HH
Controls Volume, Tone (with Push/Pull Select Feature)
Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Coils, Position 3. Both Full Humbucking Pickups, Position 4. Two Outer Coils, Position 5. Full Neck Pickup
