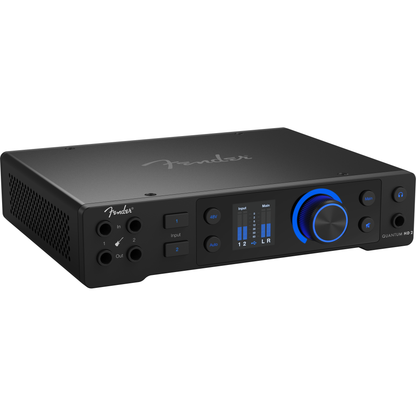

The Fender Quantum HD 2 is a professional USB-C recording interface engineered for creators who demand clarity, speed, and versatility. Featuring next-generation MAX-HD mic preamps with +75 dB of gain, ultra-low-latency drivers, and high-performance 32-bit / 192 kHz converters, HD 2 captures every nuance of vocals, instruments, and full-band sessions with incredible detail.
Front-facing Fender instrument inputs deliver clean, dynamic recordings for guitars and basses. Auto Gain simplifies setup, while re-amp outputs allow experimentation with amps and pedals. The DSP monitor mixer and loopback make streaming, podcasting, and monitor mix creation effortless.
Control all critical functions through Fender Studio Pro or the Universal Control app, including preamp gain, phantom power, and routing. Compact and versatile, the HD 2 scales perfectly for project studios, home studios, and mobile recording setups.
| Product Name | Fender Studio Quantum HD 2 USB-C Audio Interface |
|---|---|
| Brand | Fender |
| Condition | New |
| MPN | 2777700608 |
| UPC | 673454015038 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Fender Quantum HD 2 USB-C Audio Interface
- DB-9 breakout cable
- 1.5M USB-C to USB-C cable
- 20 x 24 USB-C interface with ultra-low-latency drivers
- MAX-HD mic preamps with +75 dB gain for transparent, low-noise capture
- Fender instrument inputs optimized for guitar and bass
- Auto Gain for fast, hassle-free level setting
- Re-amp outputs for creative tone experimentation
- DSP monitor mixer and loopback for streaming and monitoring
- Universal Control app and Fender Studio Pro integration
- Fender Studio Pro perpetual license
Performance |
|
|---|---|
| Digital Audio Bit Depth | 32-bit |
| Digital Audio Dynamic Range | 124 dB |
Inputs |
|
| Instrument Inputs Dynamic Range | 111 dB (A-Weighted, Minimum Gain) |
| Instrument Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Instrument Inputs Gain Range | 75 dB |
| Instrument Inputs Maximum Level | +21 dBu (Unbalanced, Minimum Gain) |
| Line Inputs Dynamic Range | 118 dB (A-Weighted, Minimum Gain) |
| Line Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Line Inputs Gain Range | ± 10 dB |
| Line Inputs Impedance | 10K Ohms |
| Line Inputs Maximum Level | +18 dBu (Balanced, Minimum Gain) |
| Line Inputs Total Harmonic Distortion | 0.001% (1 kHz, Minimum Gain) |
| Microphone Input Connection Type | XLR Female (Combo), Balanced |
| Microphone Preamp Dynamic Range | 116 dB (A-Weighted, Minimum Gain) |
| Microphone Preamp Equivalent Input Noise | -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted) |
| Microphone Preamp Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Microphone Preamp Gain Control Range | 75 dB |
| Microphone Preamp Input Impedance | 1600 Ohms |
| Microphone Preamp Maximum Input Level | +18 dBu (Balanced, Minimum Gain) |
| Microphone Preamp Total Harmonic Distortion | 0.002% (1 kHz, Minimum Gain) |
Outputs |
|
| Headphone Outputs Connection Type | — |
| Headphone Outputs Dynamic Range | 118 dB (A-Weighted) |
| Headphone Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz) |
| Headphone Outputs Impedance Working Range | 33 Ohms |
| Headphone Outputs Maximum Output | 11 dBu (50 Ohms) |
| Headphone Outputs Total Harmonic Distortion | 0.001% (1 kHz) |
| Line Outputs Connection Type | 1/4" TRS Female |
| Main And Line Outputs Dynamic Range | 123 dB (A-Weighted) |
| Main And Line Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Main And Line Outputs Maximum Level | +18 dBu (Balanced) |
| Main And Line Outputs Output Impedance | 51 Ohms |
| Main And Line Outputs Total Harmonic Distortion | 0.001% (1 kHz, +4 dBu) |
| Main Outputs Connection Type | 1/4" TRS Female |
Hardware |
|
| MIDI I/O | 5-Pin Female DIN |
