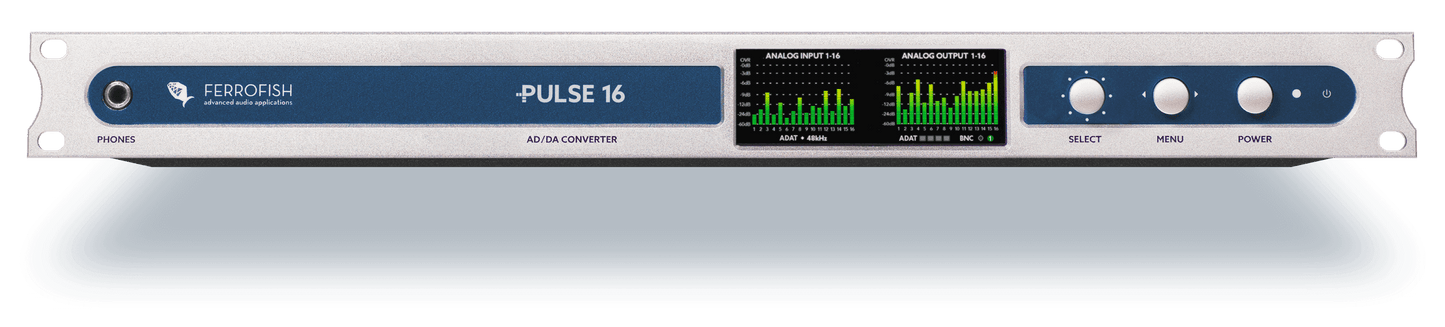

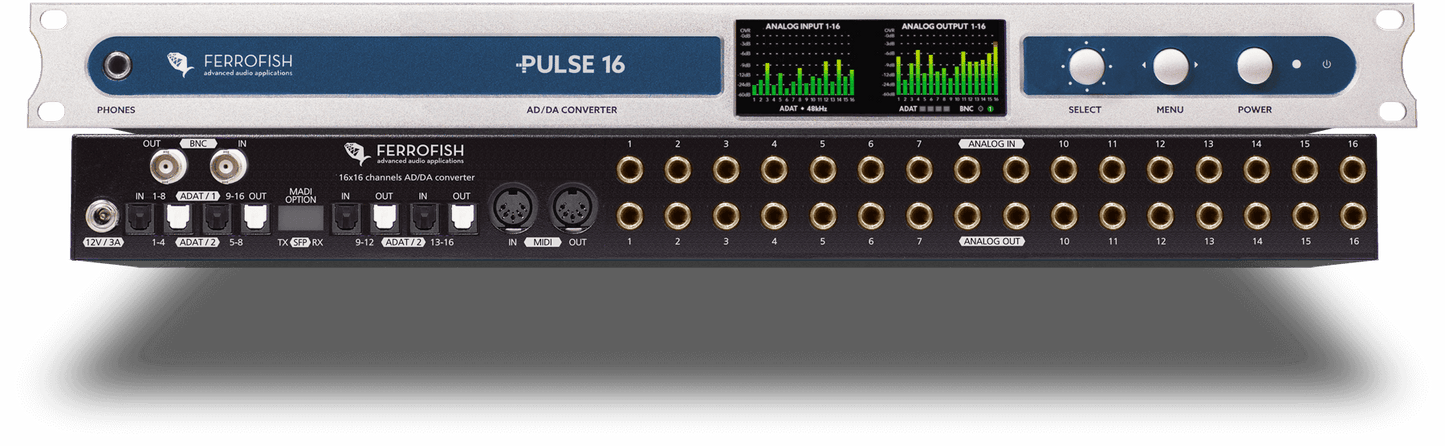

The PULSE16 is the high-quality solution to connect a wide range of external analog and ADAT studio equipment to a mixer or a computer interface. The high-density converter provides 16 x 16 balanced analoge TRS-I/Os and can handle pro studio levels up to +20dBu – adjustable in 1 dB steps. Optional +24 dBU I/Os and/or CV outputs are available.
2 x 4 ADAT ports provide full 16 x 16 channel operation – even with up to 96 kHz. The optical ADAT ‘Lightpipe’ interface is still the most affordable way to transfer a variety of audio channels. Originally designed for the Alesis Digital Audio Tape machine – hence the name – in 1991 ADAT is reliable, standardized and still everywhere.
The PULSE series is using the recent high-performance low-latency converter generation from Cirrus Logic. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the fan-less, 98-channel PULSE16 delivers an exceptional detailed sound.
The Pulse16 incorporates a Word Clock I/O and a MIDI I/O for embedding signals and remote control of the unit. Many popular features from the flagship A32 have been added as well: Preset Management, Panel Lock and the sophisticated routing matrix.
| Product Name | Ferrofish Pulse 16 - 16 x 16 AD/DA <> ADAT Converter |
|---|---|
| Brand | Ferrofish |
What's in the Box?
- Ferrofish Pulse 16 - 16 x 16 AD/DA <> ADAT Converter
Ferrofish Pulse 16 - 16 x 16 AD/DA <> ADAT Converter
The PULSE16 is the high-quality solution to connect a wide range of external analog and ADAT studio equipment to a mixer or a computer interface. The high-density converter provides 16 x 16 balanced analoge TRS-I/Os and can handle pro studio levels up to +20dBu – adjustable in 1 dB steps. Optional +24 dBU I/Os and/or CV outputs are available.
2 x 4 ADAT ports provide full 16 x 16 channel operation – even with up to 96 kHz. The optical ADAT ‘Lightpipe’ interface is still the most affordable way to transfer a variety of audio channels. Originally designed for the Alesis Digital Audio Tape machine – hence the name – in 1991 ADAT is reliable, standardized and still everywhere.
The PULSE series is using the recent high-performance low-latency converter generation from Cirrus Logic. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the fan-less, 98-channel PULSE16 delivers an exceptional detailed sound.
The Pulse16 incorporates a Word Clock I/O and a MIDI I/O for embedding signals and remote control of the unit. Many popular features from the flagship A32 have been added as well: Preset Management, Panel Lock and the sophisticated routing matrix.
| Product Name | Ferrofish Pulse 16 - 16 x 16 AD/DA <> ADAT Converter |
|---|---|
| Brand | Ferrofish |
What's in the Box?
