PATCH LV revolutionizes the live sound industry as the first ever digitally controlled analog routing solution. Featuring 24 channels of Flock Audio's award winning, multi-patented analog routing technology along with 16 Channels of DANTE. PATCH LV empowers Live Sound Engineers to seamlessly integrate analog hardware into live applications. Delivering unparalleled performances with minimal AD/DA conversion and virtually no latency, it sets a new standard for live audio systems.
| Product Name | Flock Audio Patch LV - Digitally-Controlled All-Analog Patchbay |
|---|---|
| Brand | Flock Audio |
| MPN | PATCHLV |
What's in the Box?
- Flock Audio Patch LV - Digitally-Controlled All-Analog Patchbay
- Power Supply
- Cable
- 64 Point Connections (Total)
- (8 Inputs / 8 Outputs - DANTE Enabled Connections) 192 kHz / 32 Bit
- (24 Inputs / 24 Outputs - Fully Analog PATCH Series Routing)

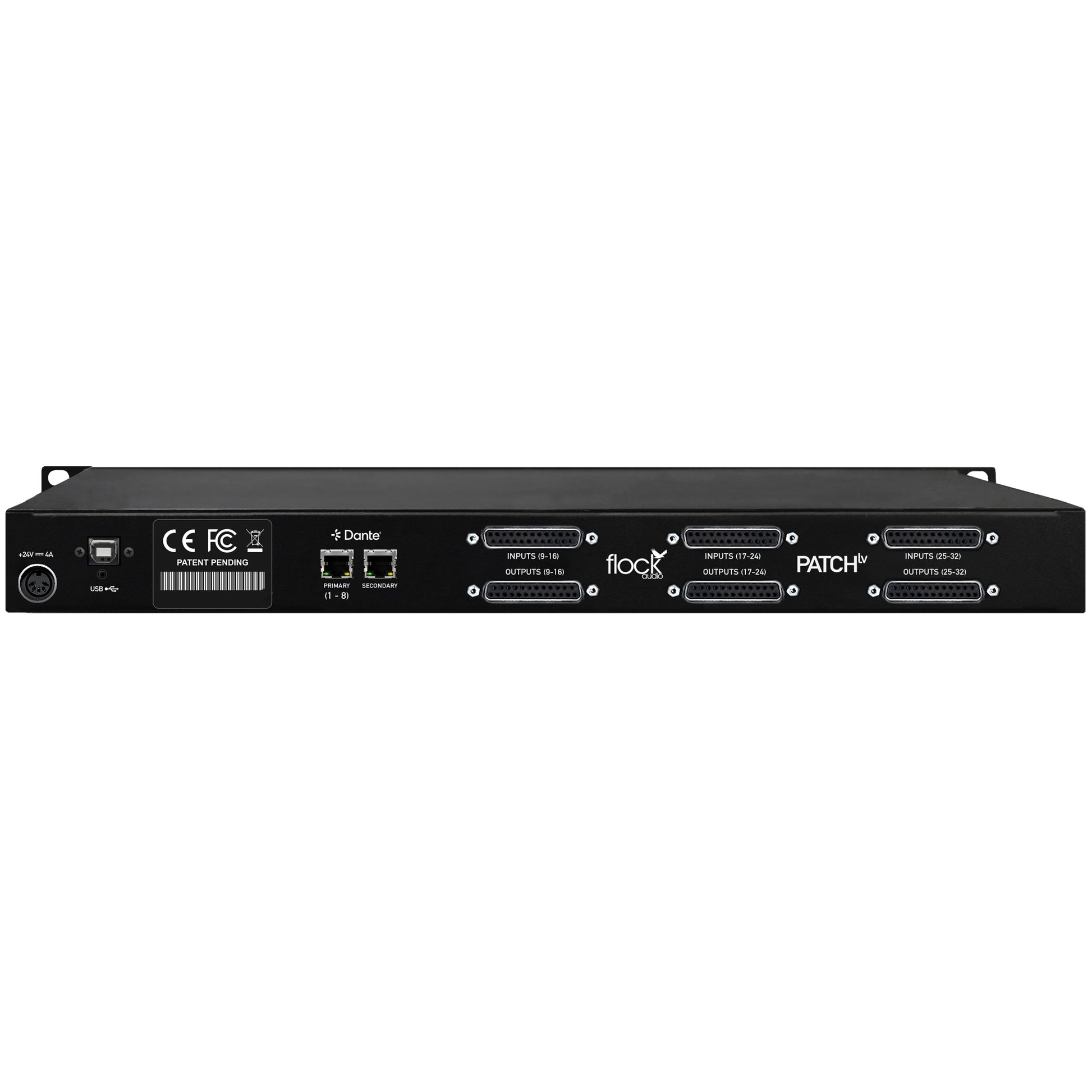

- DB-25/D-SUB Tascam Standard Pinout Format Connectors (24 Ins x 24 Outs)
- PATCH APP Routing Software (OSX & Windows)
- Create, Store & Recall Routings in Seconds
- Create Complex Multing Combinations w/ No Impedance Issues
- No AD/DA Conversion, 100% Transparent Analog Signal Path (24 Ins x 24 Outs)
- Patented Flock Audio Matrix Technology -48 Channels - (24 Ins x 24 Outs)
- Multiple Unit Expansion via DANTE for Larger I/O Systems
- External 5Pin 24VDC Locking Power Supply w/ IEC Cable Included
- Threaded Locking USB Connector w/ 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included

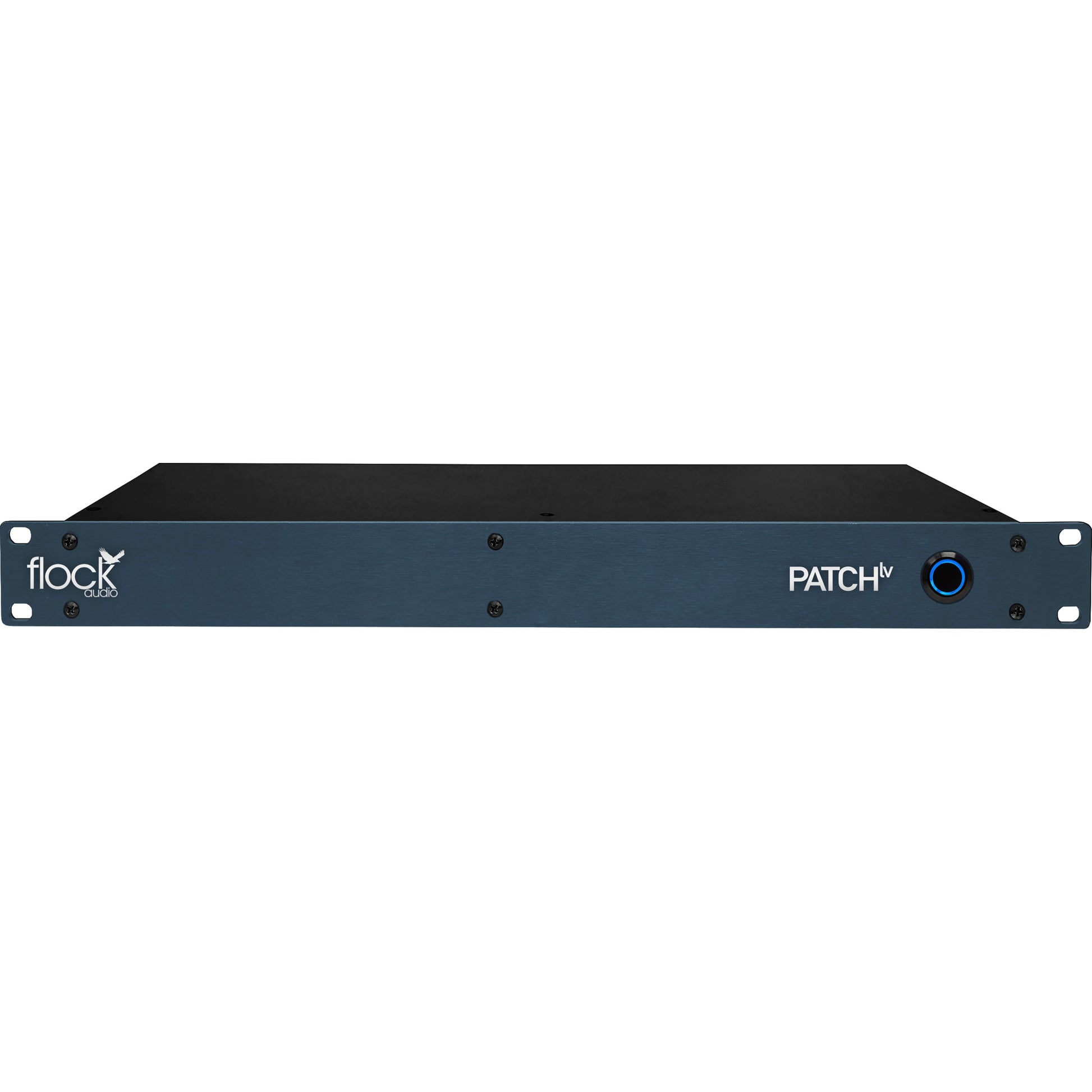

Flock Audio Patch LV - Digitally-Controlled All-Analog Patchbay
PATCH LV revolutionizes the live sound industry as the first ever digitally controlled analog routing solution. Featuring 24 channels of Flock Audio's award winning, multi-patented analog routing technology along with 16 Channels of DANTE. PATCH LV empowers Live Sound Engineers to seamlessly integrate analog hardware into live applications. Delivering unparalleled performances with minimal AD/DA conversion and virtually no latency, it sets a new standard for live audio systems.
| Product Name | Flock Audio Patch LV - Digitally-Controlled All-Analog Patchbay |
|---|---|
| Brand | Flock Audio |
| MPN | PATCHLV |
What's in the Box?
- Flock Audio Patch LV - Digitally-Controlled All-Analog Patchbay
- Power Supply
- Cable
- 64 Point Connections (Total)
- (8 Inputs / 8 Outputs - DANTE Enabled Connections) 192 kHz / 32 Bit
- (24 Inputs / 24 Outputs - Fully Analog PATCH Series Routing)
- DB-25/D-SUB Tascam Standard Pinout Format Connectors (24 Ins x 24 Outs)
- PATCH APP Routing Software (OSX & Windows)
- Create, Store & Recall Routings in Seconds
- Create Complex Multing Combinations w/ No Impedance Issues
- No AD/DA Conversion, 100% Transparent Analog Signal Path (24 Ins x 24 Outs)
- Patented Flock Audio Matrix Technology -48 Channels - (24 Ins x 24 Outs)
- Multiple Unit Expansion via DANTE for Larger I/O Systems
- External 5Pin 24VDC Locking Power Supply w/ IEC Cable Included
- Threaded Locking USB Connector w/ 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
