Flock Audio Patch XT 192 Point Digitally Controlled, Analog Patch Routing System

Flock Audio Patch XT 192 Point Digitally Controlled, Analog Patch Routing System

$12,999.00
$12,999.00
Sale Sold out

+ Free Shipping

On order with the manufacturer!
View full details
  • Details
  • Reviews
  • 192 Point Connections (96 Inputs / 96 Outputs)

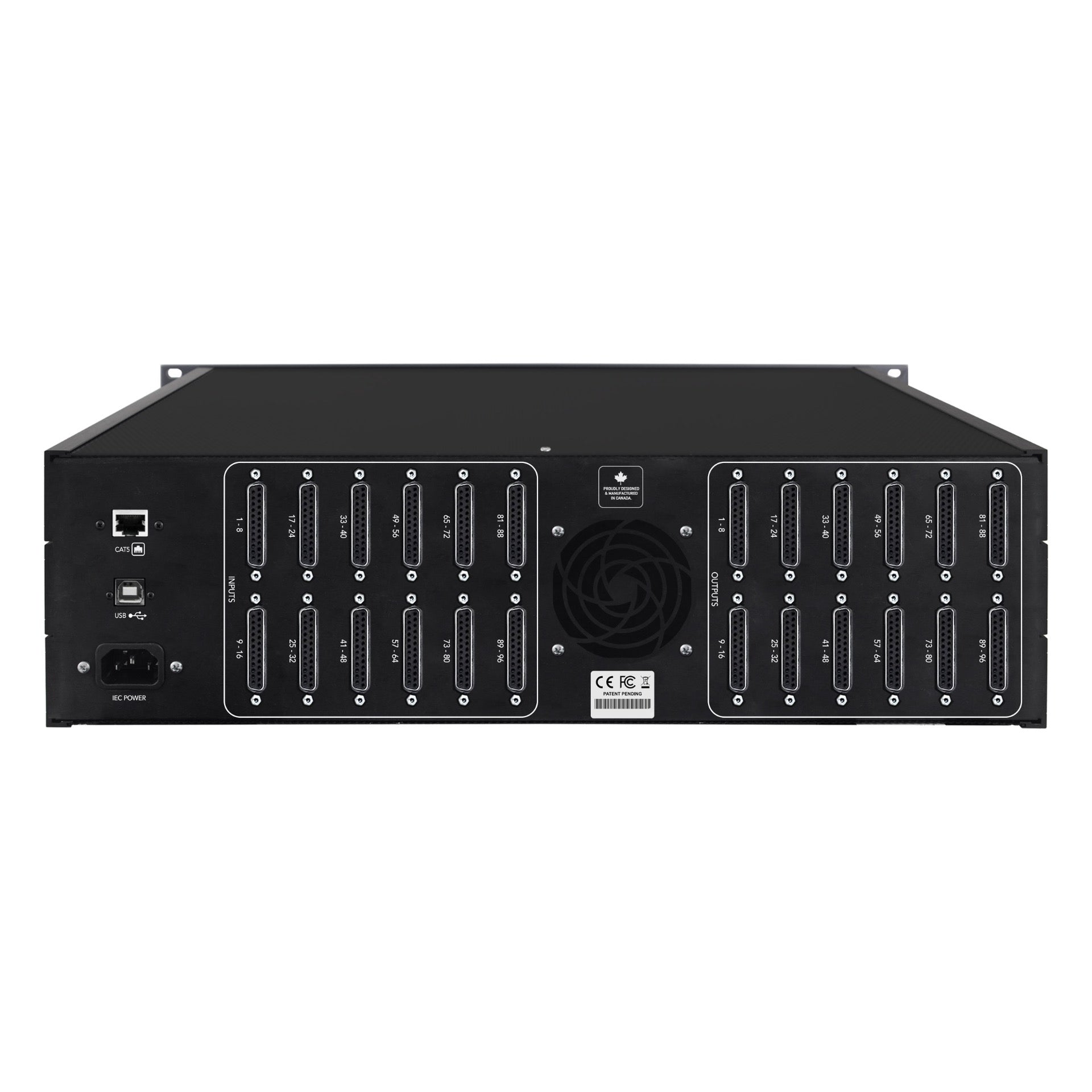

  • DB-25/D-SUB Tascam Standard Pinout Format Connectors
  • 32 Assignable Independent Channels of 48V Phantom Power

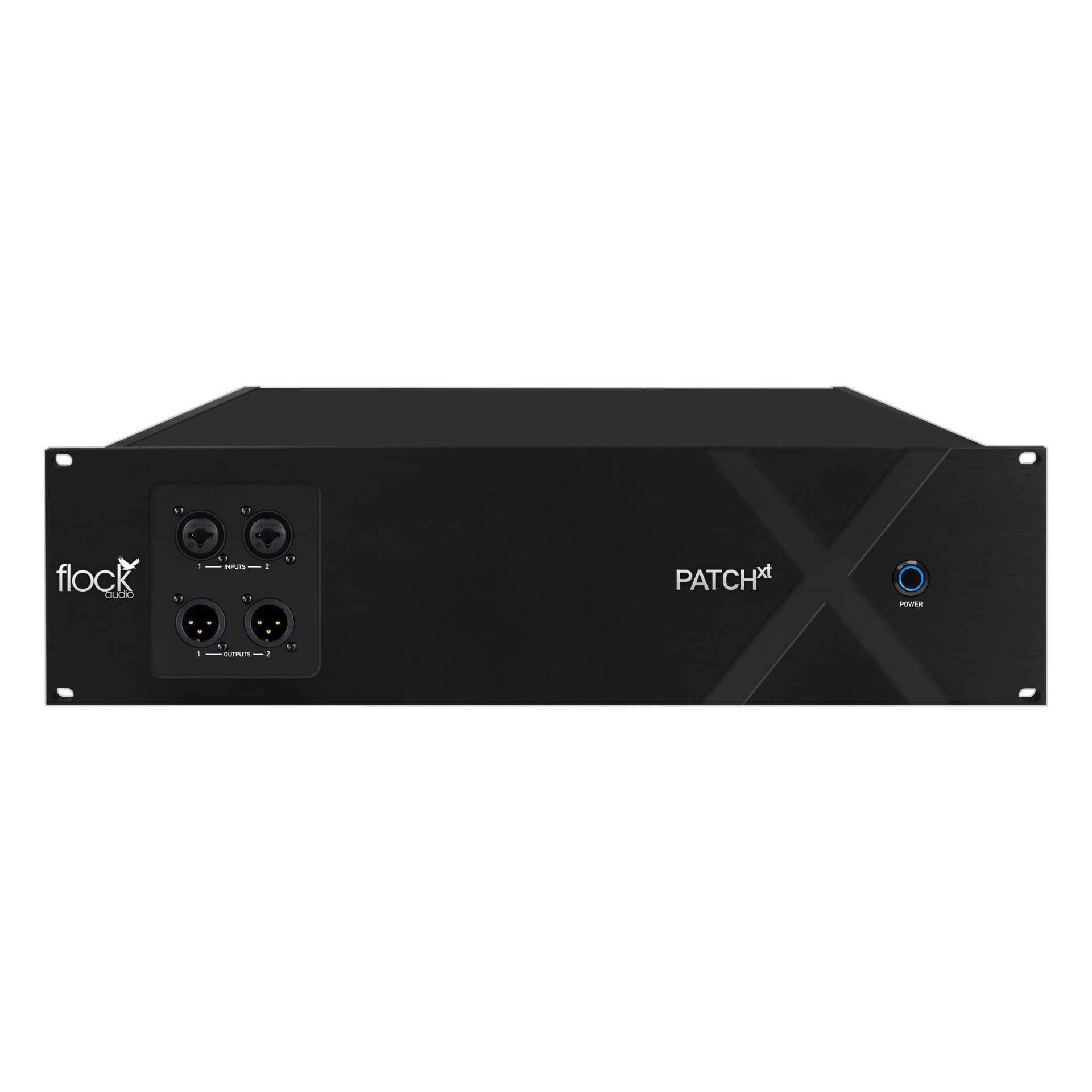

  • Front Panel - 2 Combo TRS/XLR Input & 2 XLR Output

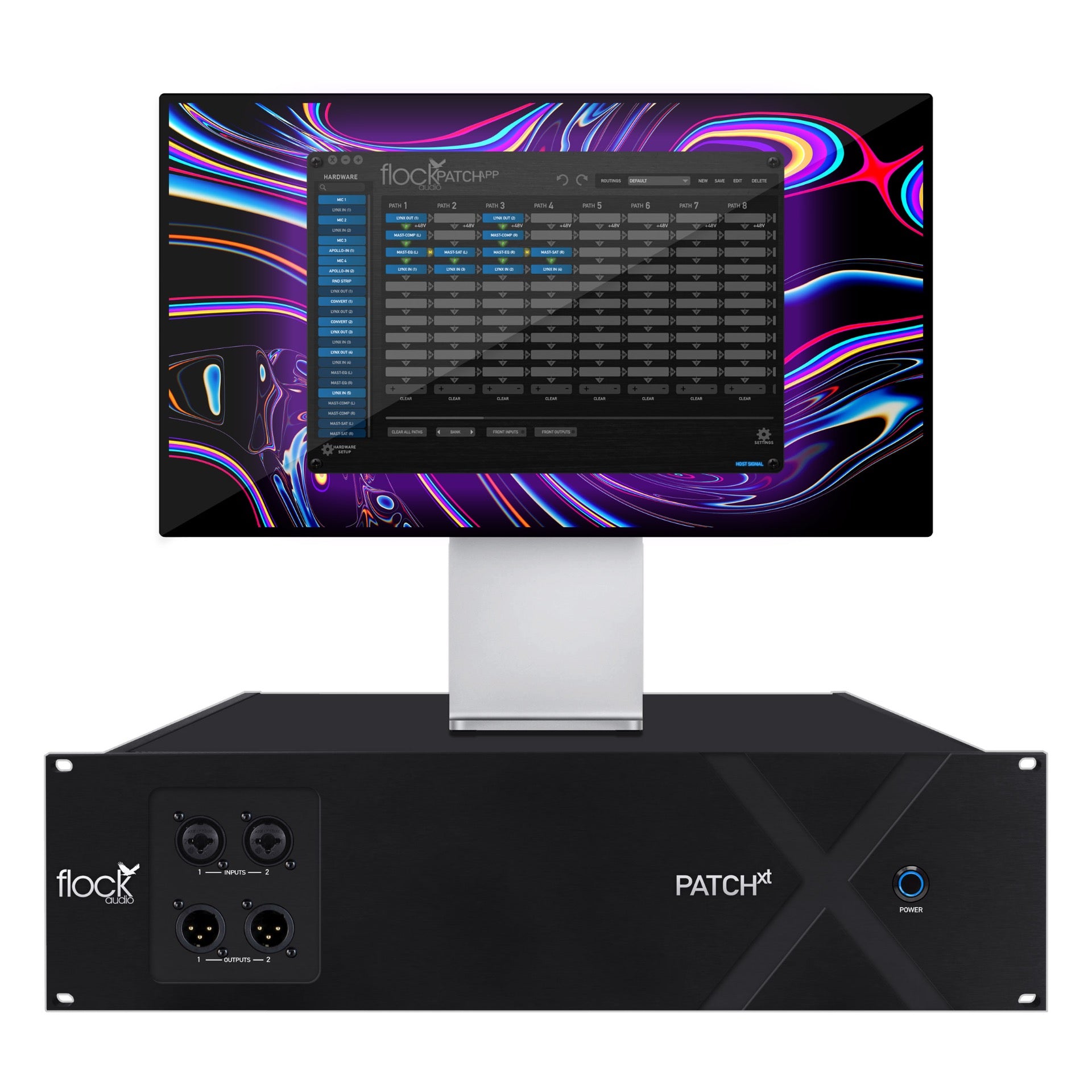

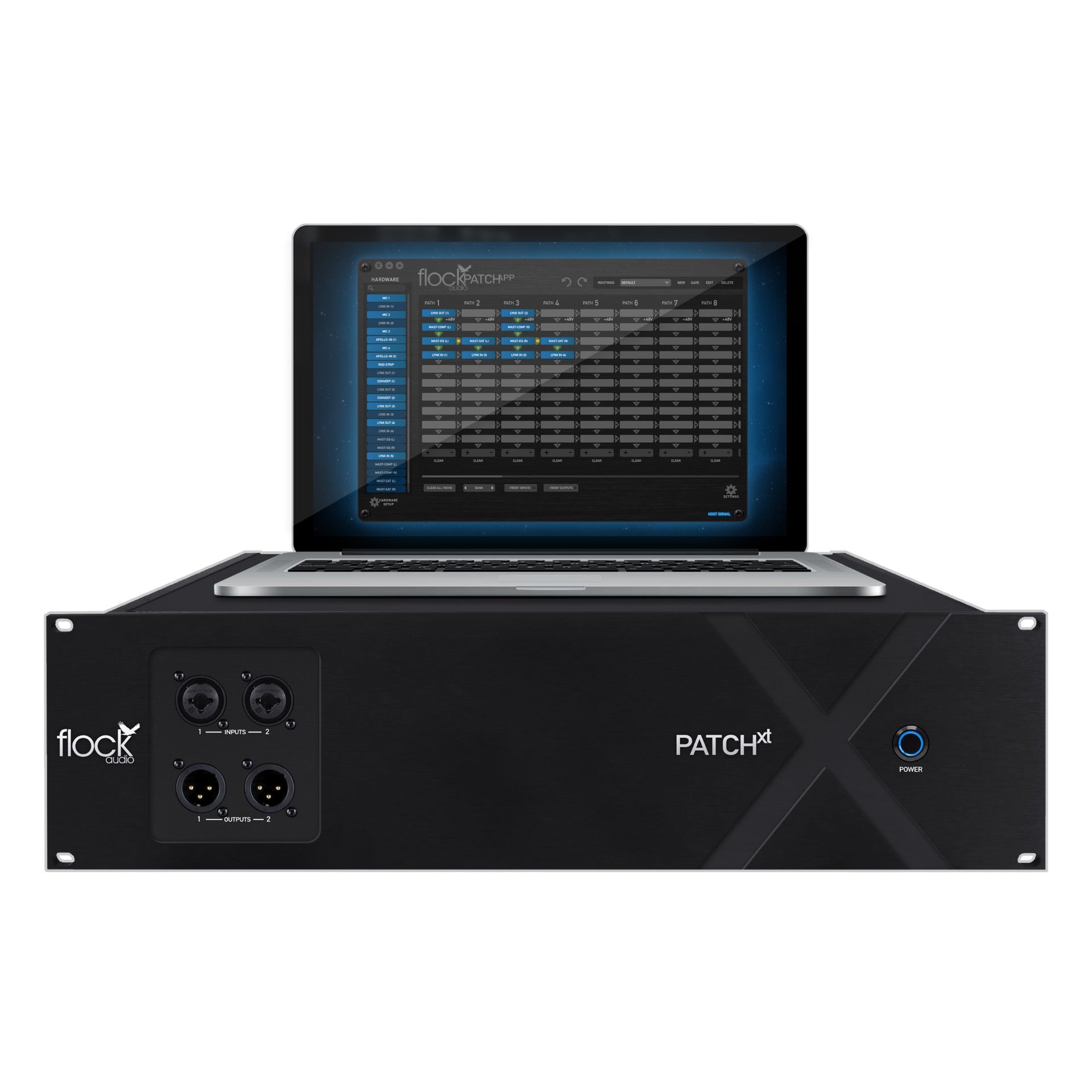

  • PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon) Create, Store & Recall Routings in Seconds
  • Create Complex Multing Combinations w/ No Impedance Issues
  • No AD/DA Conversion, 100% Transparent Analog Signal Path
  • Remote Sleep/Wake Mode Control of PXT Hardware
  • Patented Flock Audio Matrix Technology
  • Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
  • Internal Power Supply w/ IEC Cable Included
  • 6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Securement - Cable
  • Included CAT5 Network (Optional Control) Capability (Cable Not Included)
  • Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 35 lbs
  • Optional Rear mount Cable Hanger Accessory (Product Code: XTH)
More Information
Product Name Flock Audio Patch XT 192 Point Digitally Controlled, Analog Patch Routing System
Shipping Option Free Shipping to the Continental U.S.

Flock Audio Patch XT 192 Point Digitally Controlled, Analog Patch Routing System
Details
  • 192 Point Connections (96 Inputs / 96 Outputs)
  • DB-25/D-SUB Tascam Standard Pinout Format Connectors
  • 32 Assignable Independent Channels of 48V Phantom Power
  • Front Panel - 2 Combo TRS/XLR Input & 2 XLR Output
  • PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon) Create, Store & Recall Routings in Seconds
  • Create Complex Multing Combinations w/ No Impedance Issues
  • No AD/DA Conversion, 100% Transparent Analog Signal Path
  • Remote Sleep/Wake Mode Control of PXT Hardware
  • Patented Flock Audio Matrix Technology
  • Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
  • Internal Power Supply w/ IEC Cable Included
  • 6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Securement - Cable
  • Included CAT5 Network (Optional Control) Capability (Cable Not Included)
  • Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 35 lbs
  • Optional Rear mount Cable Hanger Accessory (Product Code: XTH)
