*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
RedNet PCIeR provides bi-directional Dante audio connectivity to Mac* or Windows computers, with full network redundancy. The card supports up to 128 channels of 24-bit bidirectional audio at 44.1, 48, 88.2 and 96 kHz sample rates, and 64 channels at 176.4 and 192 kHz. RedNet PCIeR mounts via a standard 4-lane PCI Express card slot. ASIO and Core Audio drivers are provided.
RedNet PCIeR uses the Dante audio-over-IP implementation, which can carry up to 512 bidirectional audio channels over a standard Gigabit (or higher) Ethernet link. Software is provided for the routing, controlling, and configuration of the card and attached interfaces, including remote control of reference level, selection of preferred master clock, and sample rate.
RedNet PCIeR includes fully redundant network access via dual rear panel RJ45 ports and will switch between primary and secondary networks automatically based on network availability.
| Product Name | Focusrite RedNet PCIeR Dante Audio Interface Card |
|---|---|
| Brand | Focusrite |
| Condition | Pre-Owned |
| MPN | AMS-REDNET-PCIENX |
| UPC | 815301001614 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Focusrite RedNet PCIeR Dante Audio Interface Card
- Ultra low latency Dante audio interface for Mac and Windows computers
- 128 inputs / 128 outputs at 44.1, 48, 88.2 and 96kHz (64 I/O at 176.4 and 192kHz)
- Supports high-quality 24-bit/192kHz audio
- Compatible with most modern computers with a standard 4-lane PCI Express card slot
General |
|
|---|---|
| Form | PCIe card requiring standard PCIe slot in a Windows or Mac computer; Thunderbolt PCIe chassis compatible |
| Ports | 2x RJ45 Gigabit Ethernet |
| Sample Rate | Up to 192 kHz |
| Channels of I/O | 128 channels in and 128 channels out at 96 kHz and below; 64 channels in and 64 channels out at 176.4 kHz and 192 kHz |
| Latency | Under 3 ms analog-to-analog round-trip latency through DAW with Focusrite RedNet A-D/D-A (Dependent on ASIO/Core Audio buffer size) |

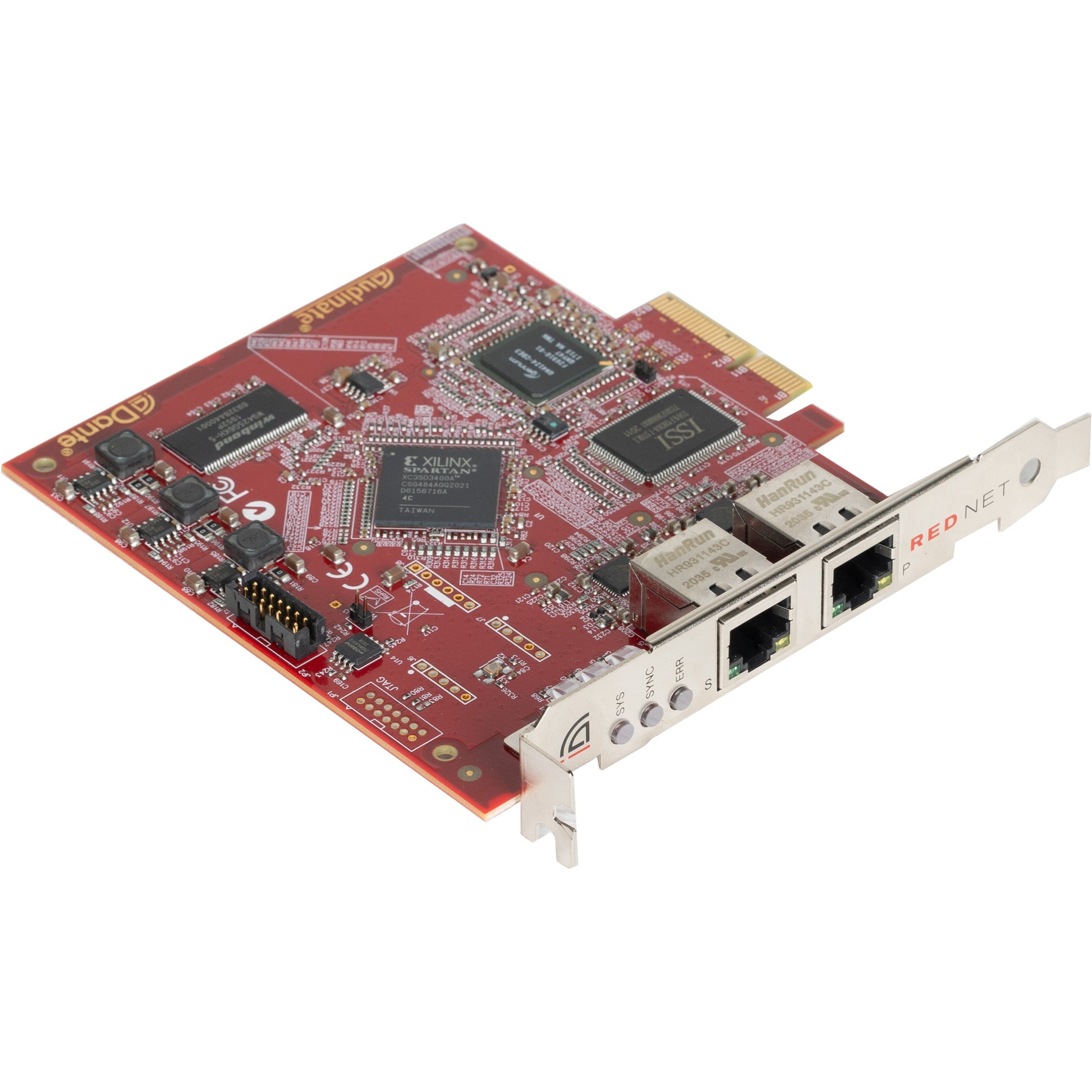

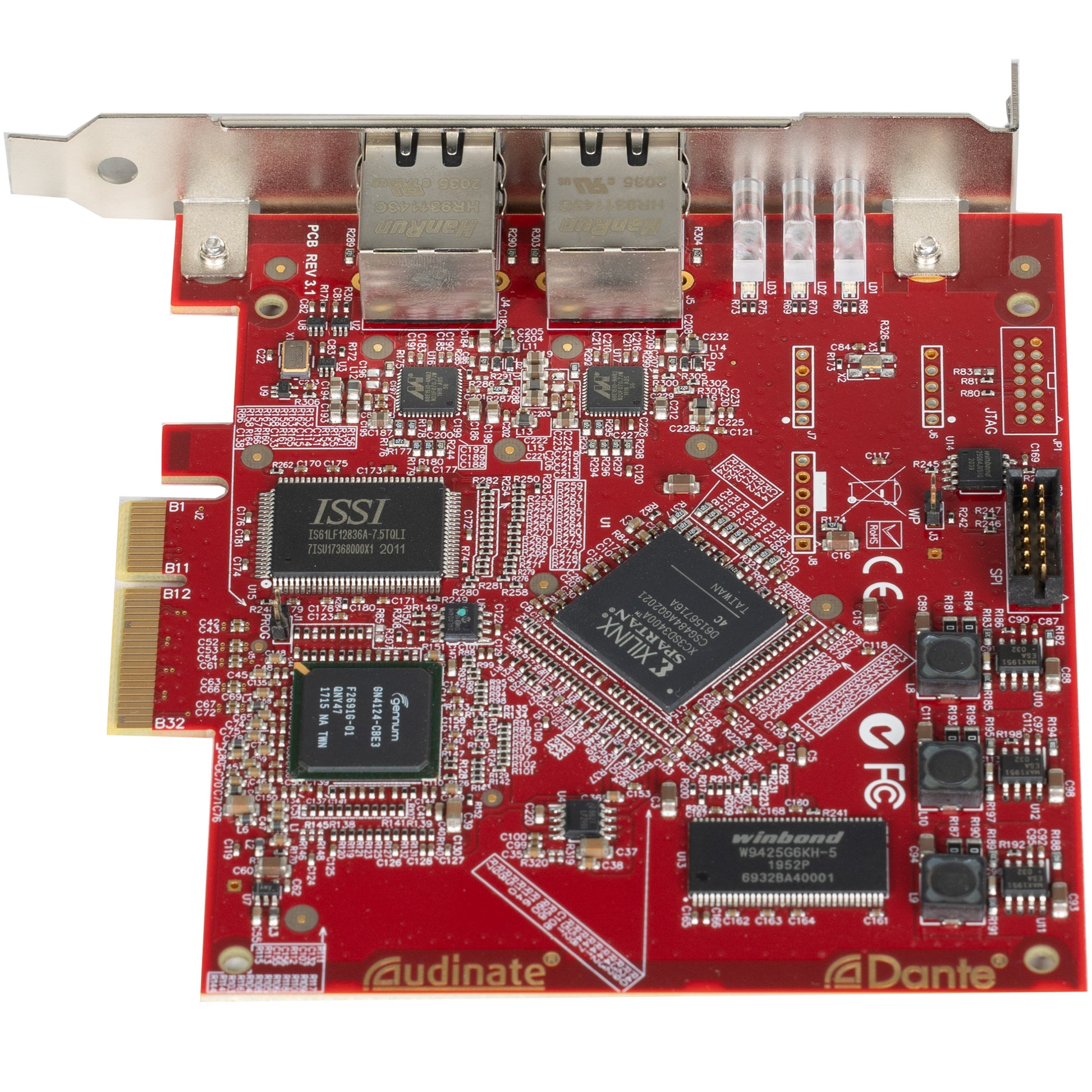

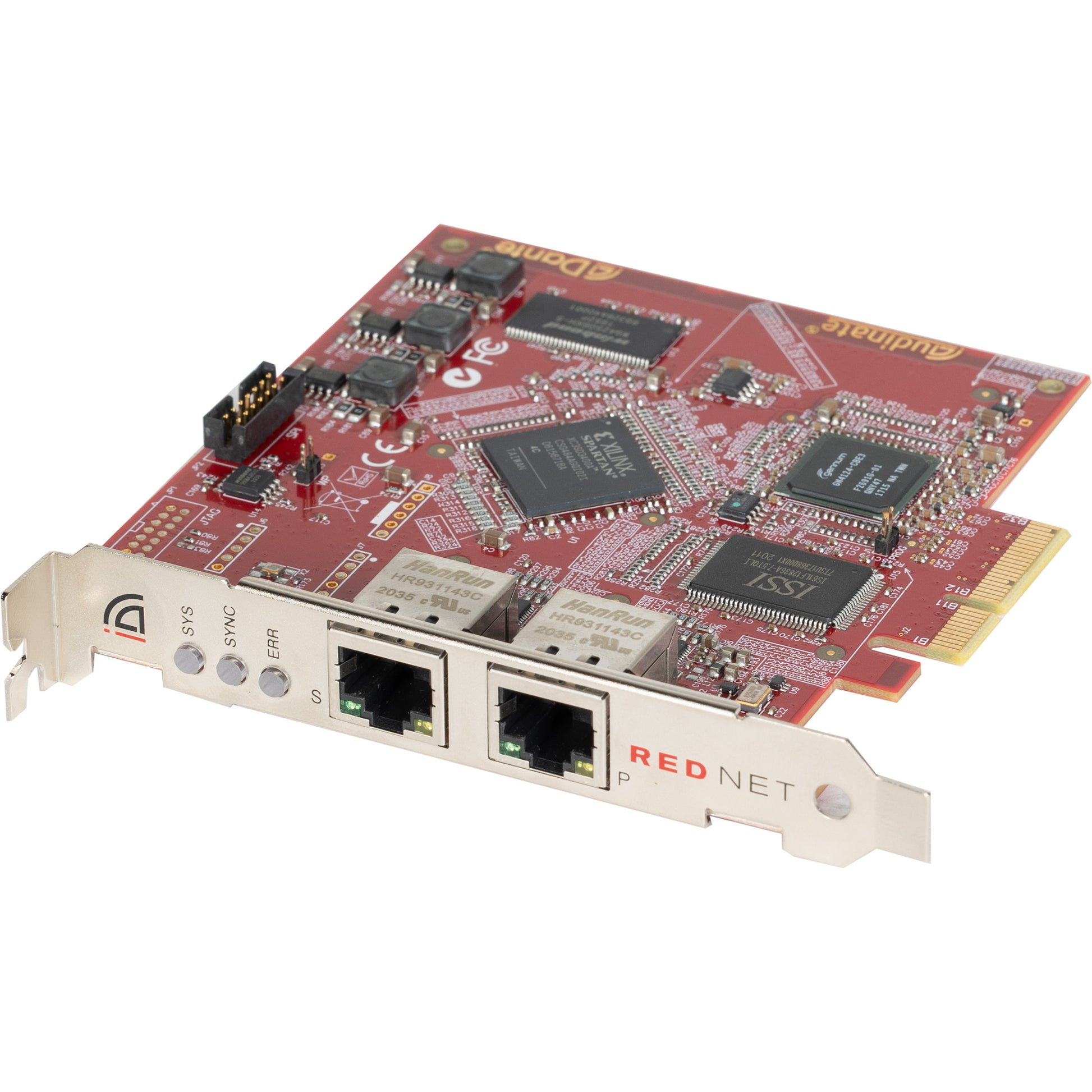

Focusrite RedNet PCIeR Dante Audio Interface Card
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
RedNet PCIeR provides bi-directional Dante audio connectivity to Mac* or Windows computers, with full network redundancy. The card supports up to 128 channels of 24-bit bidirectional audio at 44.1, 48, 88.2 and 96 kHz sample rates, and 64 channels at 176.4 and 192 kHz. RedNet PCIeR mounts via a standard 4-lane PCI Express card slot. ASIO and Core Audio drivers are provided.
RedNet PCIeR uses the Dante audio-over-IP implementation, which can carry up to 512 bidirectional audio channels over a standard Gigabit (or higher) Ethernet link. Software is provided for the routing, controlling, and configuration of the card and attached interfaces, including remote control of reference level, selection of preferred master clock, and sample rate.
RedNet PCIeR includes fully redundant network access via dual rear panel RJ45 ports and will switch between primary and secondary networks automatically based on network availability.
| Product Name | Focusrite RedNet PCIeR Dante Audio Interface Card |
|---|---|
| Brand | Focusrite |
| Condition | Pre-Owned |
| MPN | AMS-REDNET-PCIENX |
| UPC | 815301001614 |
What's in the Box?
Focusrite RedNet PCIeR Dante Audio Interface Card- Ultra low latency Dante audio interface for Mac and Windows computers
- 128 inputs / 128 outputs at 44.1, 48, 88.2 and 96kHz (64 I/O at 176.4 and 192kHz)
- Supports high-quality 24-bit/192kHz audio
- Compatible with most modern computers with a standard 4-lane PCI Express card slot
General |
|
|---|---|
| Form | PCIe card requiring standard PCIe slot in a Windows or Mac computer; Thunderbolt PCIe chassis compatible |
| Ports | 2x RJ45 Gigabit Ethernet |
| Sample Rate | Up to 192 kHz |
| Channels of I/O | 128 channels in and 128 channels out at 96 kHz and below; 64 channels in and 64 channels out at 176.4 kHz and 192 kHz |
| Latency | Under 3 ms analog-to-analog round-trip latency through DAW with Focusrite RedNet A-D/D-A (Dependent on ASIO/Core Audio buffer size) |
