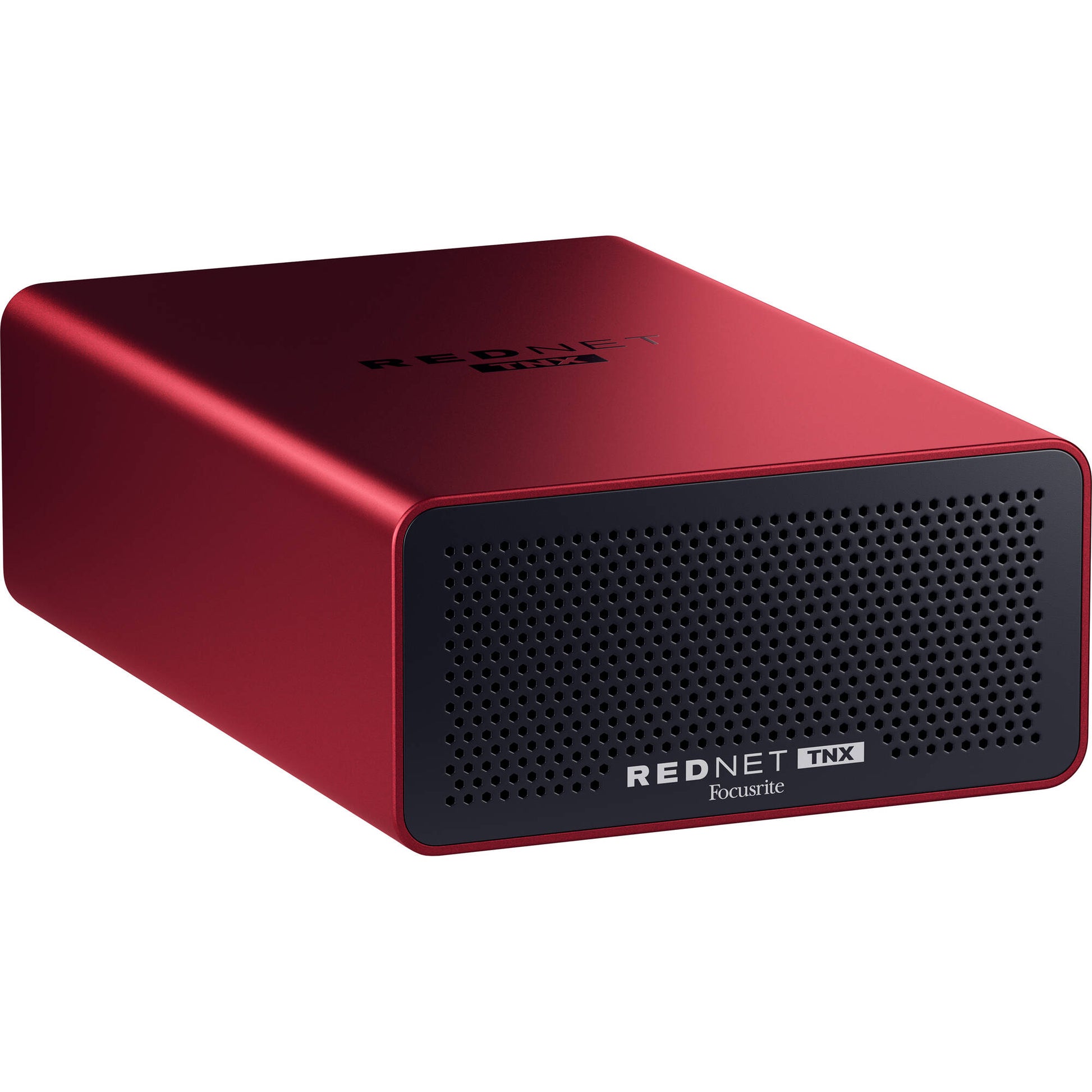

RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready™, you can expand your system to 256x256 channels at 24-bit/96kHz — all via a single Thunderbolt™ connection for powerful and versatile audio workflows.
Designed for powerful workflows
Tap into the power of high-channel-count Dante workflows with 128x128 channels at up to 192 kHz with ultra-low latency — all via a single Thunderbolt™ connection. RedNet TNX brings simplicity and flexibility to large recording, post-production, and broadcast setups.
Ready for recording
For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256x256 channels of uncompressed, high-resolution audio at ultra-low latency.
Integrated control with flexible connectivity
RedNet TNX integrates with RedNet Control for centralized monitoring and management of all RedNet devices. Dual Ethernet RJ-45 ports support switched and redundant modes, ensuring flexible, reliable connectivity for critical applications.
Integrate within your setup

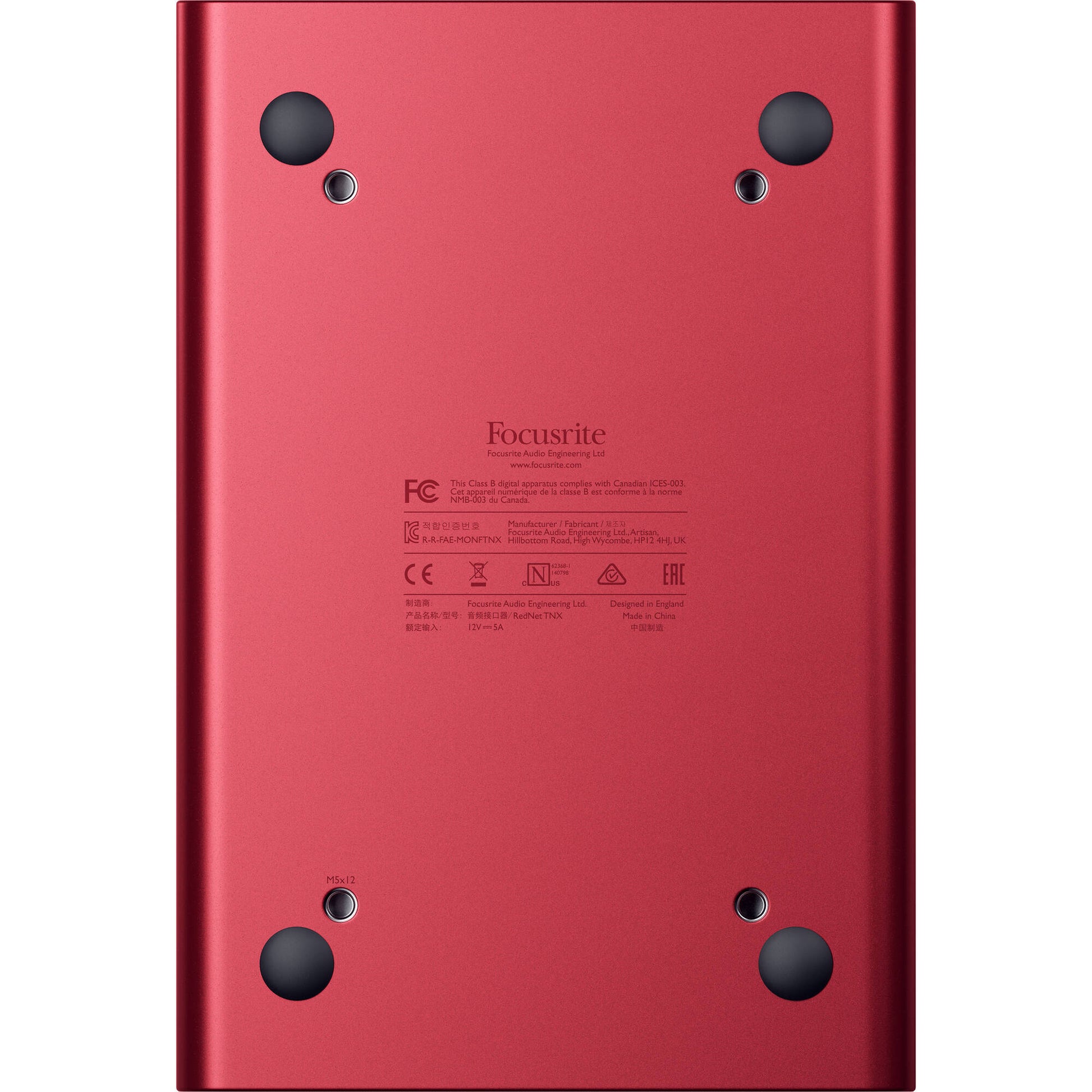

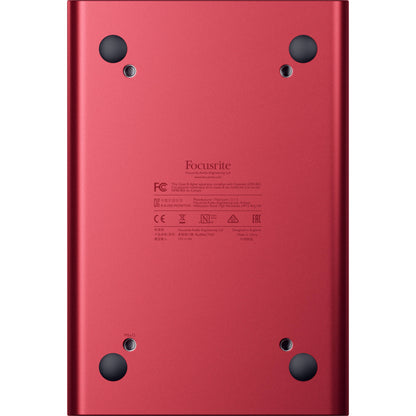

Each of the two Thunderbolt™ ports provides 15W of power and allows you to run multiple Thunderbolt devices in series. Secure RedNet TNX to a rack shelf using the exposed M5 x 12mm screw threads located underneath.
| Product Name | Focusrite RedNet TNX Portable Thunderbolt 3 and Dante Interface |
|---|---|
| Brand | Focusrite |
| Condition | New |
| MPN | AMS-REDNET-TNX |
| UPC | 815301001737 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- RedNet TNX unit
- 2m Thunderbolt™ 3 cable
- 2m cat6A Ethernet cable
- External DC power supply and cable
- Upgradable to 256x256 channels at 96kHz
- 2x Thunderbolt™ 3 ports
- Windows and macOS compatible
- AES67 and SMPTE ST 2110 compliant
Simultaneous Inputs & Outputs |
|
|---|---|
| Channels | 128x128 (all sample rates) |
| Expanded Channels | 256x256 (up to 96kHz) with a paid upgrade |
Digital Performance |
|
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit |
Dante Connectivity |
|
| Ethernet Ports | 2 x Ethernet standard RJ45 connectors (Cat 5e and above compatible) |
Driver Compatibility |
|
| Windows | Multi-client ASIO and WDM |
| Mac | CoreAudio |

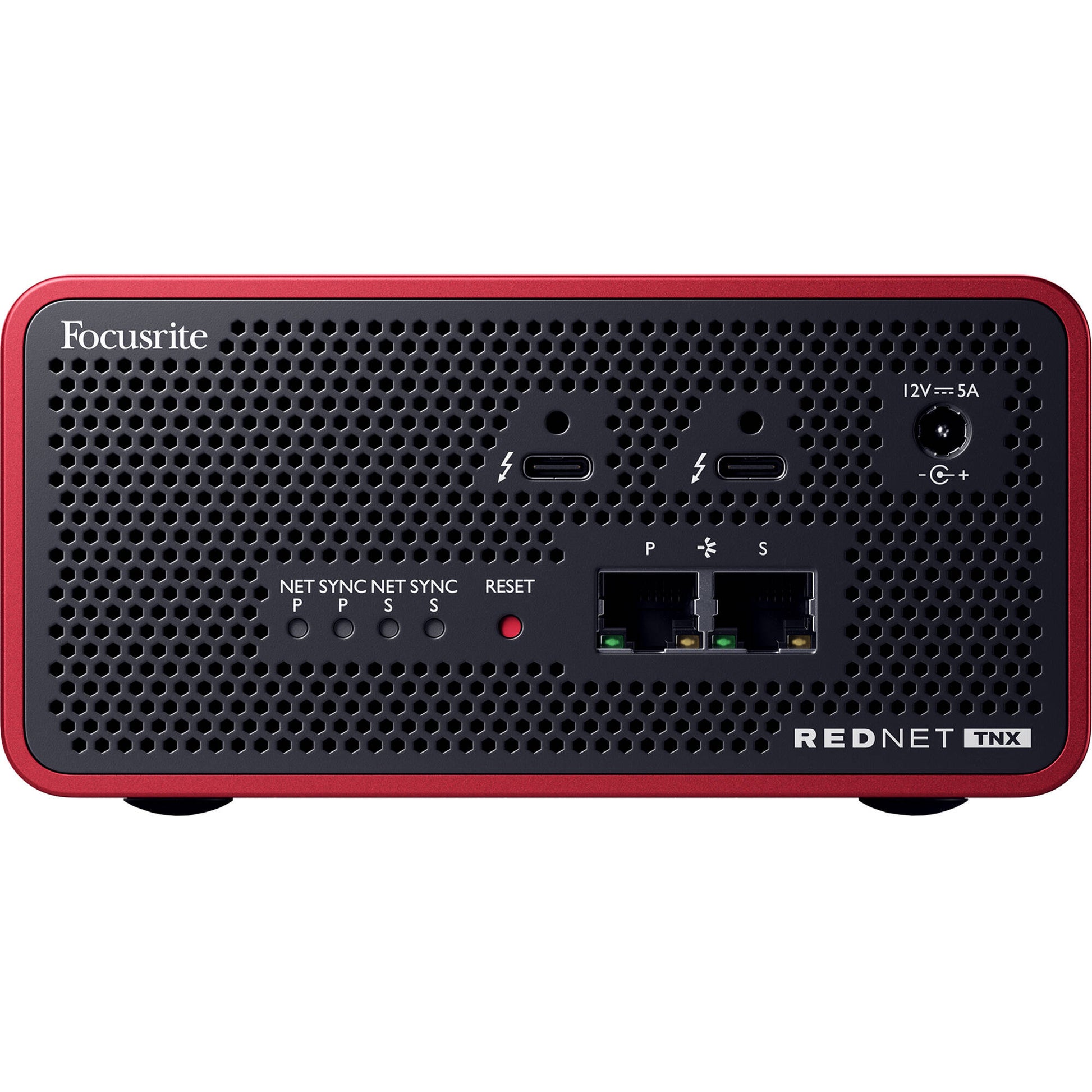

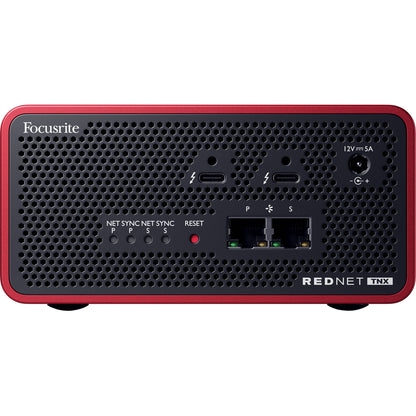

Rear Panel |
|
| Thunderbolt Ports | 2x Thunderbolt™ 3 ports (provide 15W power) |
| Locking Mechanism | 2 x Sonnet ThunderLok™ |
| Network LEDs | 2x Network Active LED indicators (Primary/Secondary) |
| Network Lock LEDs | 2x Network Lock LED indicators (Primary/Secondary) |
| DC Power Inlet | 1x |
| Factory Reset | 1x Button |
Heat Performance |
|
| Max Ambient Temperature | 50°C / 122°F |
Miscellaneous |
|
| Mounting | Exposed threads for rack shelf/cradle mounting |
Dimensions |
|
| Width | 144 mm |
| Depth | 212.4 mm |
| Height | 71.6 mm |
Weight |
|
| Total | 1.49 kg |
Power Requirements |
|
| Power Supply | External DC power supply |
Focusrite RedNet TNX Portable Thunderbolt 3 and Dante Interface
Details
RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready™, you can expand your system to 256x256 channels at 24-bit/96kHz — all via a single Thunderbolt™ connection for powerful and versatile audio workflows.
Designed for powerful workflows
Tap into the power of high-channel-count Dante workflows with 128x128 channels at up to 192 kHz with ultra-low latency — all via a single Thunderbolt™ connection. RedNet TNX brings simplicity and flexibility to large recording, post-production, and broadcast setups.
Ready for recording
For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256x256 channels of uncompressed, high-resolution audio at ultra-low latency.
Integrated control with flexible connectivity
RedNet TNX integrates with RedNet Control for centralized monitoring and management of all RedNet devices. Dual Ethernet RJ-45 ports support switched and redundant modes, ensuring flexible, reliable connectivity for critical applications.
Integrate within your setup
Each of the two Thunderbolt™ ports provides 15W of power and allows you to run multiple Thunderbolt devices in series. Secure RedNet TNX to a rack shelf using the exposed M5 x 12mm screw threads located underneath.
| Product Name | Focusrite RedNet TNX Portable Thunderbolt 3 and Dante Interface |
|---|---|
| Brand | Focusrite |
| Condition | New |
| MPN | AMS-REDNET-TNX |
| UPC | 815301001737 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- RedNet TNX unit
- 2m Thunderbolt™ 3 cable
- 2m cat6A Ethernet cable
- External DC power supply and cable
Features
- Upgradable to 256x256 channels at 96kHz
- 2x Thunderbolt™ 3 ports
- Windows and macOS compatible
- AES67 and SMPTE ST 2110 compliant
Tech Specs
Simultaneous Inputs & Outputs |
|
|---|---|
| Channels | 128x128 (all sample rates) |
| Expanded Channels | 256x256 (up to 96kHz) with a paid upgrade |
Digital Performance |
|
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit |
Dante Connectivity |
|
| Ethernet Ports | 2 x Ethernet standard RJ45 connectors (Cat 5e and above compatible) |
Driver Compatibility |
|
| Windows | Multi-client ASIO and WDM |
| Mac | CoreAudio |
Rear Panel |
|
| Thunderbolt Ports | 2x Thunderbolt™ 3 ports (provide 15W power) |
| Locking Mechanism | 2 x Sonnet ThunderLok™ |
| Network LEDs | 2x Network Active LED indicators (Primary/Secondary) |
| Network Lock LEDs | 2x Network Lock LED indicators (Primary/Secondary) |
| DC Power Inlet | 1x |
| Factory Reset | 1x Button |
Heat Performance |
|
| Max Ambient Temperature | 50°C / 122°F |
Miscellaneous |
|
| Mounting | Exposed threads for rack shelf/cradle mounting |
Dimensions |
|
| Width | 144 mm |
| Depth | 212.4 mm |
| Height | 71.6 mm |
Weight |
|
| Total | 1.49 kg |
Power Requirements |
|
| Power Supply | External DC power supply |
