Fredenstein Artistic 500 Series FET Compressor

Fredenstein Artistic 500 Series FET Compressor

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

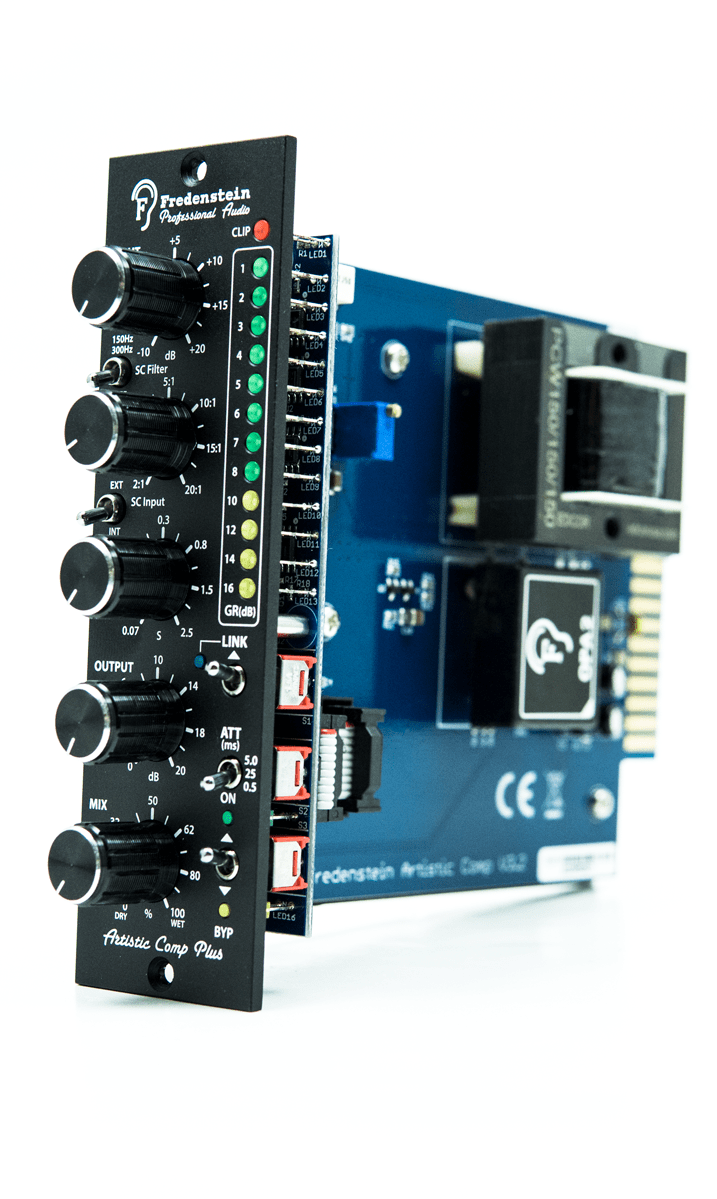

The Artistic Compressor is a single channel FET compressor with multi-channel link capability in the 500 series form factor.

Familiar controls include; rotary controls for Input Gain, Release Time, Compression Ratio, Make-up Gain and Wet-Dry Mixing (parallel compression). Like many vintage compressors there is no Threshold control. Instead, one uses the Input Gain knob to increase the gain until the appropriate amount of compression is achieved. This tends to feel more natural and musical, but perhaps less nerdy and precise. The Attack Time can be set in three steps with a toggle switch, and the side-chain low cut filter offers 2 frequencies. There is also one toggle switch for Bypass and another for Link. The LED bar-graph meter indicates the gain reduction in the range of 1dB to 16dB.

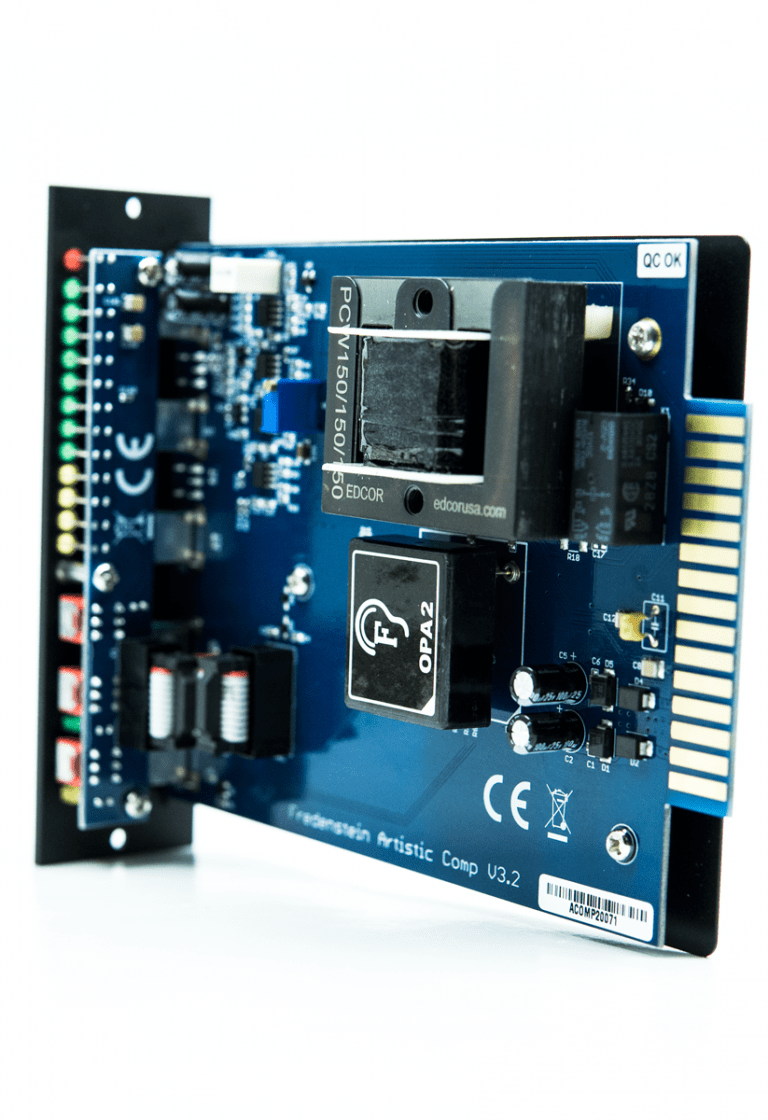

It's punchy and detailed sound is generated by three major components:

1) Fredenstein's proprietary Reverse-Mancini FET architecture
2) Our advanced OPA2 discrete Audio Operational Amplifier
3) The American made vintage style steel core output transformer

The Artistic Compressor shares some of the well understood sonic characterisics of famous FET compressors but brings some extra refinements, such as, virtually no interaction between the Attack, Release and Threshold controls. The Mix knob also brings some extra versatility to the FET compressor architecture and gives the option of keeping some transients while lifting up the quiet bits.

The Artistic Compressor can be an aggressive brick wall, become bouncy for dance tracks, or just enhance sweetly, smoothly and subtly, depending on how you want to set it. This is a rather versatile dynamics processor, built with surprisingly high quality parts for the price.

More Information
Product Name Fredenstein Artistic 500 Series FET Compressor
Brand Fredenstein
Condition New
MPN artisticcomp
UPC 4712968190407
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Fredenstein Artistic 500 Series FET Compressor
  • Classic FET compression, updated for the modern studio
  • Fredenstein's proprietary OPA2 op-amp and Reverse-Mancini FET architecture
  • High-quality, US-made steel-core transformer
  • Input, Release, Ratio, Make-up Gain, and Wet/Dry Mix rotary controls
  • 3-position switches for Attack Time and the side-chain highpass filter
  • Toggle switches for Bypass and Link
Frequency Response 20 Hz – 20,000 Hz, +/- 1dB
Make-up Gain + 20 dB
Distortion < 0.05%, no compression
Noise < -90 dB, no make-up gain
Input Impedance > 5000 Ohms
Max. Input Level + 26dBu
Output Impedance 600 Ohms
Max. Output Level + 26 dBu
Clip Indicator + 24 dBu
Input Gain Range -10 dB to +20 dB
Side-chain Filter 150 or 300 Hz (switchable)
Attack Time 0.5, 5, and 25 ms (switchable)
Release Time 70ms to 2.5s
Compression Ratio 2:1 to 20:1
Power Consumption +/-16V < +/- 75mA (~2W)

Fredenstein Artistic 500 Series FET Compressor

Details

The Artistic Compressor is a single channel FET compressor with multi-channel link capability in the 500 series form factor.

Familiar controls include; rotary controls for Input Gain, Release Time, Compression Ratio, Make-up Gain and Wet-Dry Mixing (parallel compression). Like many vintage compressors there is no Threshold control. Instead, one uses the Input Gain knob to increase the gain until the appropriate amount of compression is achieved. This tends to feel more natural and musical, but perhaps less nerdy and precise. The Attack Time can be set in three steps with a toggle switch, and the side-chain low cut filter offers 2 frequencies. There is also one toggle switch for Bypass and another for Link. The LED bar-graph meter indicates the gain reduction in the range of 1dB to 16dB.

It's punchy and detailed sound is generated by three major components:

1) Fredenstein's proprietary Reverse-Mancini FET architecture
2) Our advanced OPA2 discrete Audio Operational Amplifier
3) The American made vintage style steel core output transformer

The Artistic Compressor shares some of the well understood sonic characterisics of famous FET compressors but brings some extra refinements, such as, virtually no interaction between the Attack, Release and Threshold controls. The Mix knob also brings some extra versatility to the FET compressor architecture and gives the option of keeping some transients while lifting up the quiet bits.

The Artistic Compressor can be an aggressive brick wall, become bouncy for dance tracks, or just enhance sweetly, smoothly and subtly, depending on how you want to set it. This is a rather versatile dynamics processor, built with surprisingly high quality parts for the price.

More Information
Product Name Fredenstein Artistic 500 Series FET Compressor
Brand Fredenstein
Condition New
MPN artisticcomp
UPC 4712968190407
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Fredenstein Artistic 500 Series FET Compressor
Features
  • Classic FET compression, updated for the modern studio
  • Fredenstein's proprietary OPA2 op-amp and Reverse-Mancini FET architecture
  • High-quality, US-made steel-core transformer
  • Input, Release, Ratio, Make-up Gain, and Wet/Dry Mix rotary controls
  • 3-position switches for Attack Time and the side-chain highpass filter
  • Toggle switches for Bypass and Link
Tech Specs
Frequency Response 20 Hz – 20,000 Hz, +/- 1dB
Make-up Gain + 20 dB
Distortion < 0.05%, no compression
Noise < -90 dB, no make-up gain
Input Impedance > 5000 Ohms
Max. Input Level + 26dBu
Output Impedance 600 Ohms
Max. Output Level + 26 dBu
Clip Indicator + 24 dBu
Input Gain Range -10 dB to +20 dB
Side-chain Filter 150 or 300 Hz (switchable)
Attack Time 0.5, 5, and 25 ms (switchable)
Release Time 70ms to 2.5s
Compression Ratio 2:1 to 20:1
Power Consumption +/-16V < +/- 75mA (~2W)
