PLASMA Voice is a synthesizer module that produces sounds by controlling high-voltage electrical discharges between two electrodes on a specially designed xenon-filled gas tube. These discharges are converted to analog audio using a specialized rectifier circuit. The result is mesmerizing electric sounds that match the visual intensity of the blue bolt of electricity.
The electric discharges are driven by a proprietary ultrasound pulse-width oscillator. This oscillator is modulated by predefined samples and envelope shapes (or SOUNDS for simplicity’s sake) that you can select, trigger, waveshape, and modulate with sliders and CV inputs. This puts you in control of the electrical discharges and the resulting sounds.
Even though the selectable SOUNDS are organized into BANKS dedicated to specific musical parts, you can transform each one of them beyond the intended use. We invite you to explore the sonic possibilities both wonderful and strange.
PLASMA Voice is the latest addition to our PLASMA product line. Although it shares the same technology, previous products were specifically designed as distortion units. Most of the sound shaping parameters were set at optimal sweet spots to ensure stable distortion. By utilizing the full potential of modulating the tube’s driver, we have created the first PLASMA product that doesn’t need an external sound source. It is a fully independent voice on its own.
Product Name | Gamechanger Audio PLASMA VOICE Synthesizer Eurorack Module |
---|---|
Brand | Gamechanger Audio |
MPN | GCAPVM |
UPC | 750258555240 |
What's in the Box?
- Gamechanger Audio PLASMA VOICE Synthesizer Eurorack Module
- Proprietary plasma tube driver and electromagnetic discharge detector
- 49 transformable SOUNDS across 7 BANKS
- SOUNDS are complex digital synth engines that modulate the PLASMA tube driver to achieve various sounds. The engine building blocks are tube driver pulse width and frequency modulation, sample pitch modulation, envelope time stretch, wavefold, crossmod, suboctave modulation
- Soft clipping DRIVE circuit
- BASS and TREBLE frequency boost/cut EQ section
- Analog state variable VCF (selectable 12dB/Oct LP or HP) with resonance amplifier
- Analog output VCA
- VCF and VCA are digitally controlled with internal analog control voltages
- Audio output level +/-8V max
- 6 center Indent SLIDER potentiometers
- PITCH +/- 1 oct (fine tune and octave settings are also available)
- TIME – envelope time stretch
- MOD – pitch modulation effect
- HARM – harmonic content effect
- FLUX – electric artefact effect
- FILTER – cutoff with and without envelope modulation
- 5 center indent ATTENUVERTERS for CV inputs
- ALT button for accessing the alternative SLIDER functions for FINE TUNE, ACCENT parameters and FILTER RESONANCE
- Manual TRIGGER / GATE button
- CLUTCH button for temporary parameter editing buffer
- Push & turn ENCODER and a 7:7 LED indicator for SOUND & BANK selection, octave select and navigating the settings menu
- 7 CV inputs. One for each SLIDE and 1 assignable MULTI CV input as an additional CV for any of the SLIDERS or BANK & SOUND selection
- Pitch CV 1V/Oct, +/-10V range
- Parameter CV, +/-5V range
- TRIGGER and ACCENT inputs: 2V minimum, rising and falling edge detect.
- 5 TRIGGER input modes: TRIG, GATE, LOOP, OSC, ON/OFF
- 7 ACCENT modes: ACC, DUCK, STARVE, CVFREEZE, JUMP, REVERSE, BURST
- Voltage: +/-12V DC, (10-16 pin cable included)
- Power draw: Peak 220mA at +12V (mean 75mA), 35mA at -12V. 0 at +5V
- Size: 16HP (W x H: 81.3 x 128.5mm)
- Max depth: 35mm excl. knobs, 54mm incl. knobs
- Mass: 190g

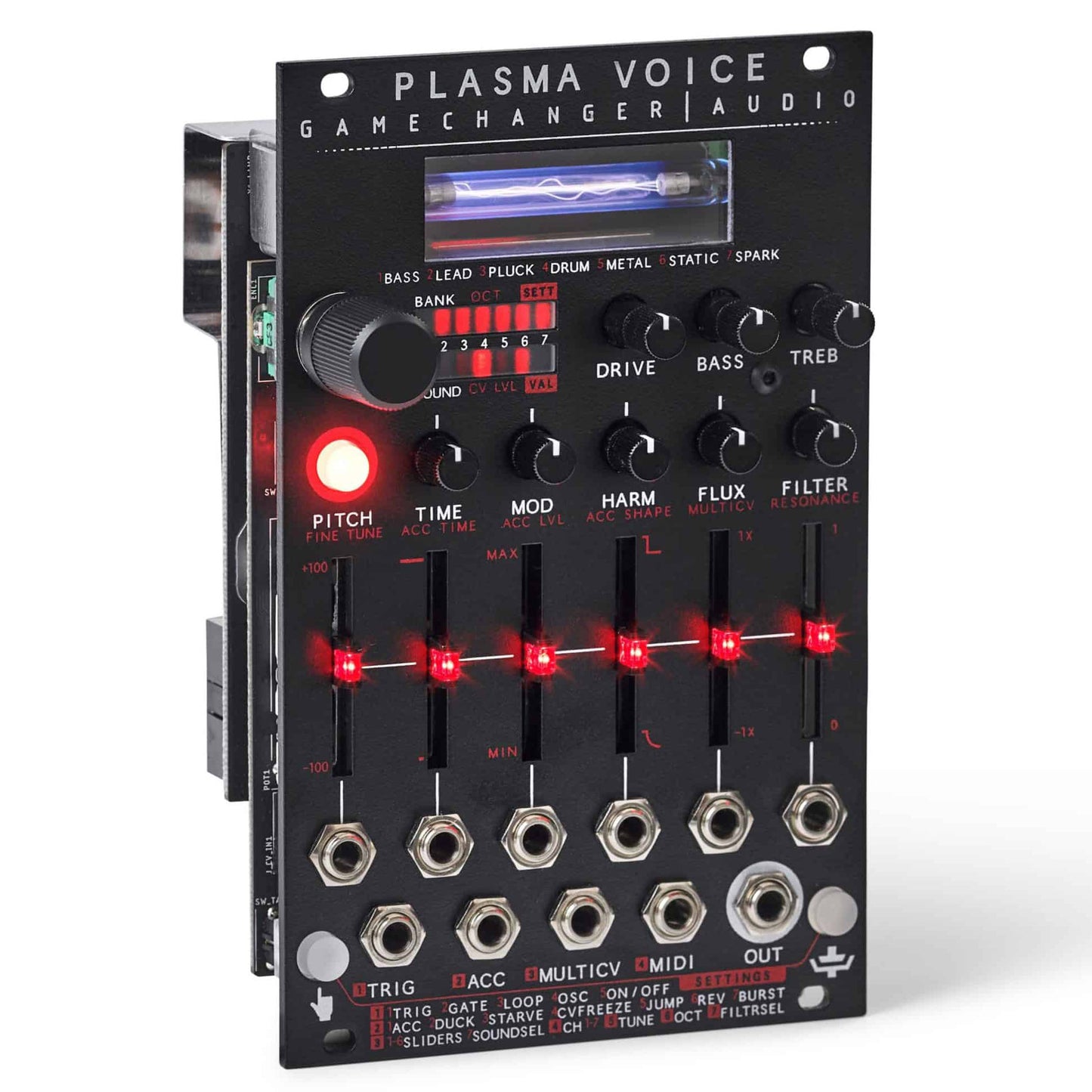

Gamechanger Audio PLASMA VOICE Synthesizer Eurorack Module
PLASMA Voice is a synthesizer module that produces sounds by controlling high-voltage electrical discharges between two electrodes on a specially designed xenon-filled gas tube. These discharges are converted to analog audio using a specialized rectifier circuit. The result is mesmerizing electric sounds that match the visual intensity of the blue bolt of electricity.
The electric discharges are driven by a proprietary ultrasound pulse-width oscillator. This oscillator is modulated by predefined samples and envelope shapes (or SOUNDS for simplicity’s sake) that you can select, trigger, waveshape, and modulate with sliders and CV inputs. This puts you in control of the electrical discharges and the resulting sounds.
Even though the selectable SOUNDS are organized into BANKS dedicated to specific musical parts, you can transform each one of them beyond the intended use. We invite you to explore the sonic possibilities both wonderful and strange.
PLASMA Voice is the latest addition to our PLASMA product line. Although it shares the same technology, previous products were specifically designed as distortion units. Most of the sound shaping parameters were set at optimal sweet spots to ensure stable distortion. By utilizing the full potential of modulating the tube’s driver, we have created the first PLASMA product that doesn’t need an external sound source. It is a fully independent voice on its own.
Product Name | Gamechanger Audio PLASMA VOICE Synthesizer Eurorack Module |
---|---|
Brand | Gamechanger Audio |
MPN | GCAPVM |
UPC | 750258555240 |
What's in the Box?
Gamechanger Audio PLASMA VOICE Synthesizer Eurorack Module- Proprietary plasma tube driver and electromagnetic discharge detector
- 49 transformable SOUNDS across 7 BANKS
- SOUNDS are complex digital synth engines that modulate the PLASMA tube driver to achieve various sounds. The engine building blocks are tube driver pulse width and frequency modulation, sample pitch modulation, envelope time stretch, wavefold, crossmod, suboctave modulation
- Soft clipping DRIVE circuit
- BASS and TREBLE frequency boost/cut EQ section
- Analog state variable VCF (selectable 12dB/Oct LP or HP) with resonance amplifier
- Analog output VCA
- VCF and VCA are digitally controlled with internal analog control voltages
- Audio output level +/-8V max
- 6 center Indent SLIDER potentiometers
- PITCH +/- 1 oct (fine tune and octave settings are also available)
- TIME – envelope time stretch
- MOD – pitch modulation effect
- HARM – harmonic content effect
- FLUX – electric artefact effect
- FILTER – cutoff with and without envelope modulation
- 5 center indent ATTENUVERTERS for CV inputs
- ALT button for accessing the alternative SLIDER functions for FINE TUNE, ACCENT parameters and FILTER RESONANCE
- Manual TRIGGER / GATE button
- CLUTCH button for temporary parameter editing buffer
- Push & turn ENCODER and a 7:7 LED indicator for SOUND & BANK selection, octave select and navigating the settings menu
- 7 CV inputs. One for each SLIDE and 1 assignable MULTI CV input as an additional CV for any of the SLIDERS or BANK & SOUND selection
- Pitch CV 1V/Oct, +/-10V range
- Parameter CV, +/-5V range
- TRIGGER and ACCENT inputs: 2V minimum, rising and falling edge detect.
- 5 TRIGGER input modes: TRIG, GATE, LOOP, OSC, ON/OFF
- 7 ACCENT modes: ACC, DUCK, STARVE, CVFREEZE, JUMP, REVERSE, BURST
- Voltage: +/-12V DC, (10-16 pin cable included)
- Power draw: Peak 220mA at +12V (mean 75mA), 35mA at -12V. 0 at +5V
- Size: 16HP (W x H: 81.3 x 128.5mm)
- Max depth: 35mm excl. knobs, 54mm incl. knobs
- Mass: 190g
