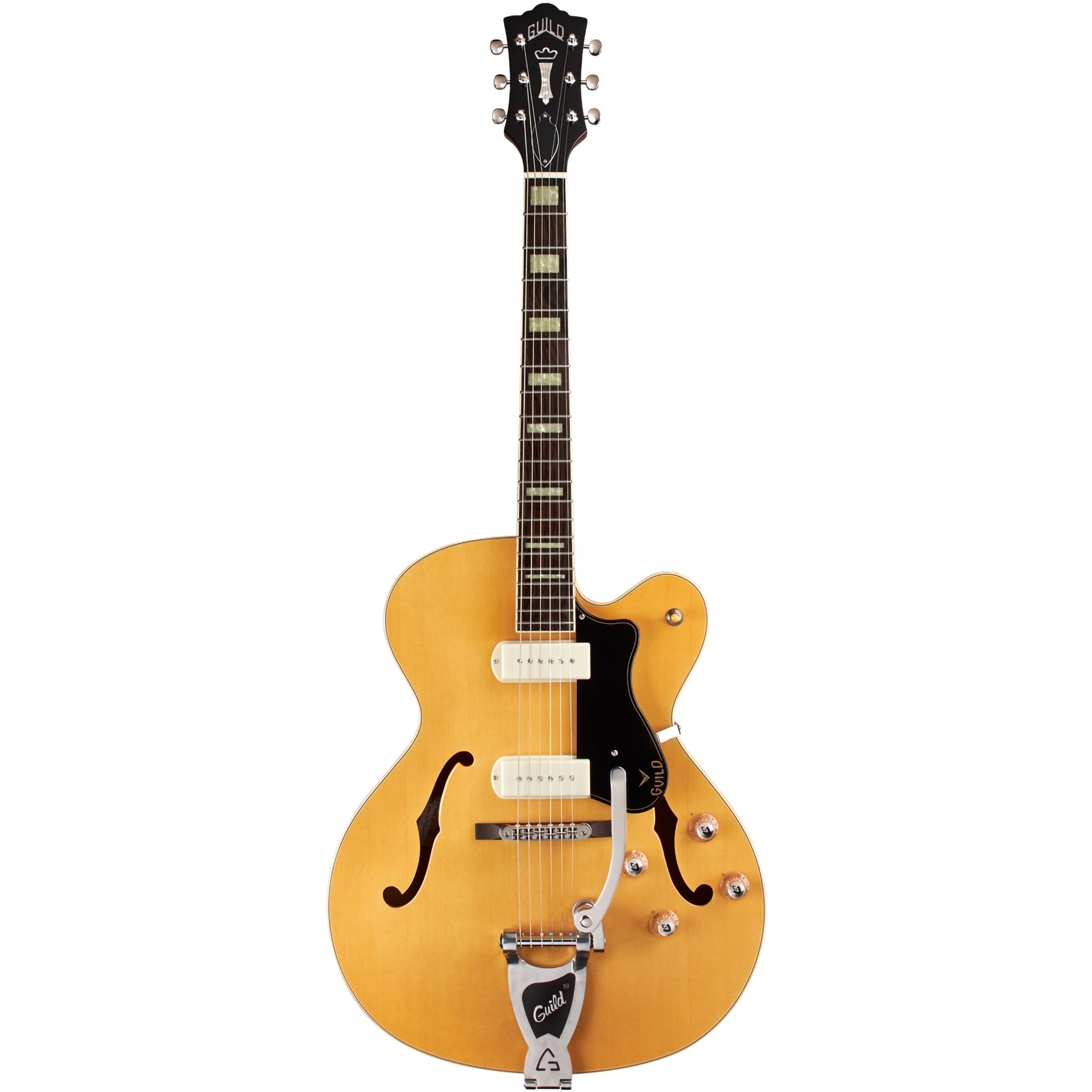

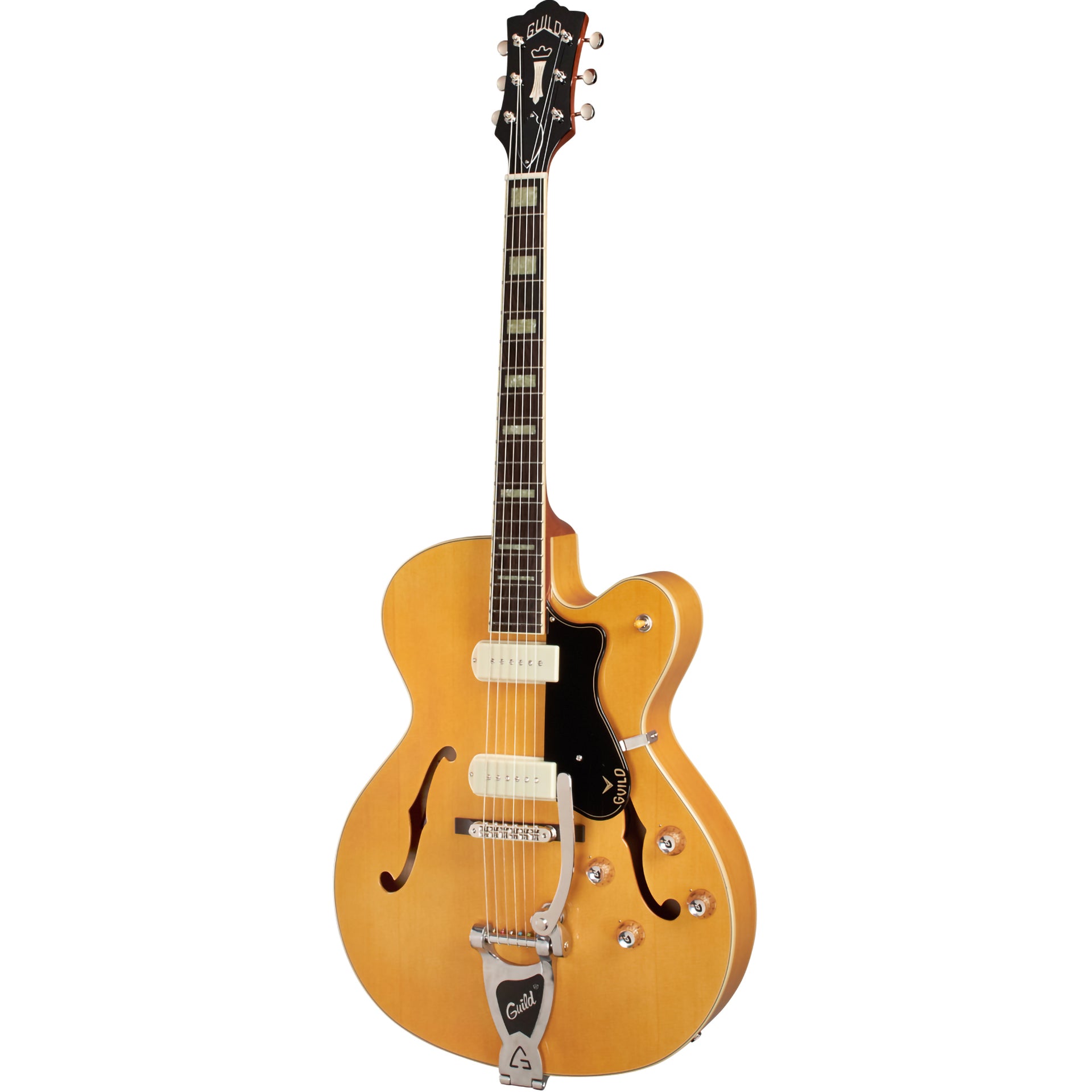

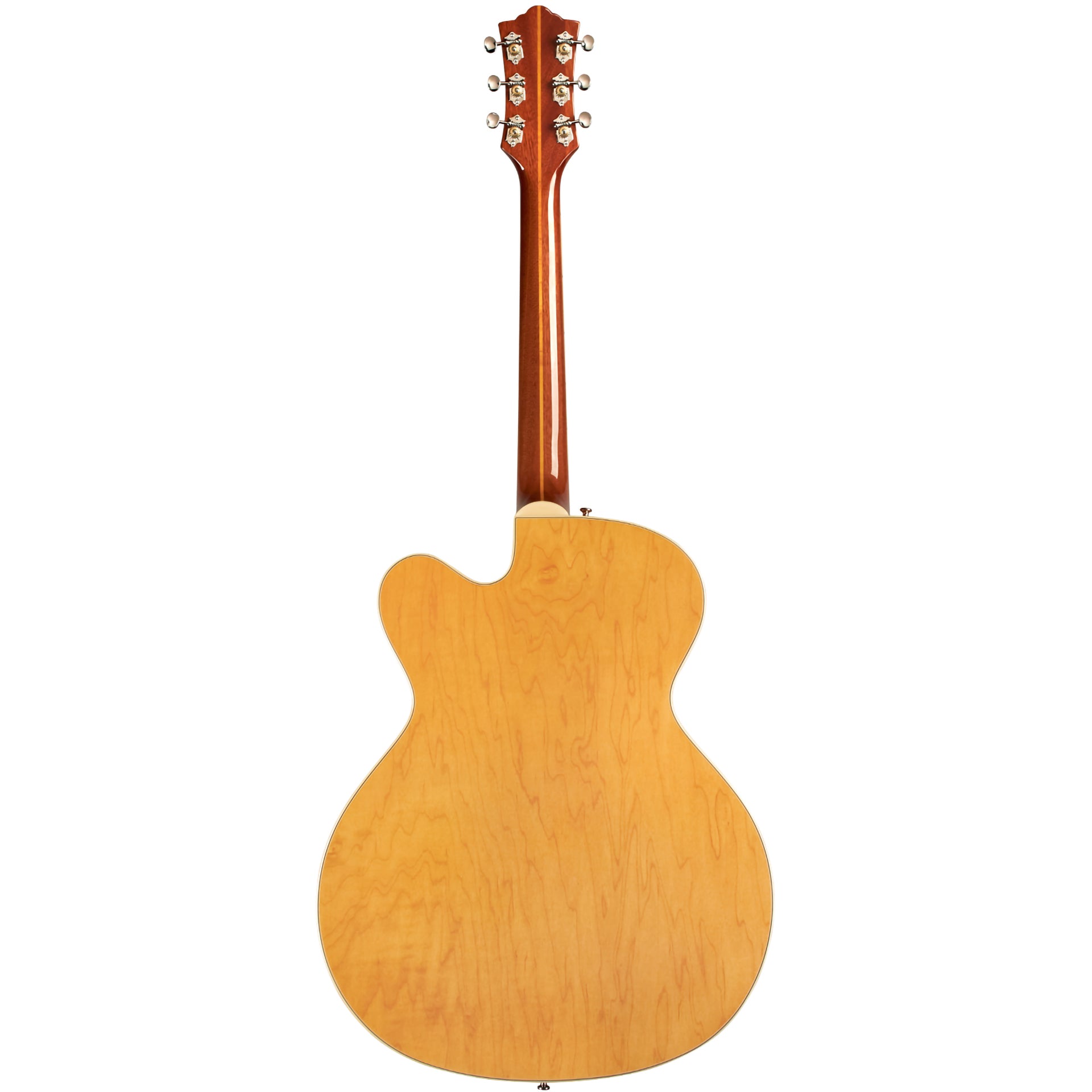

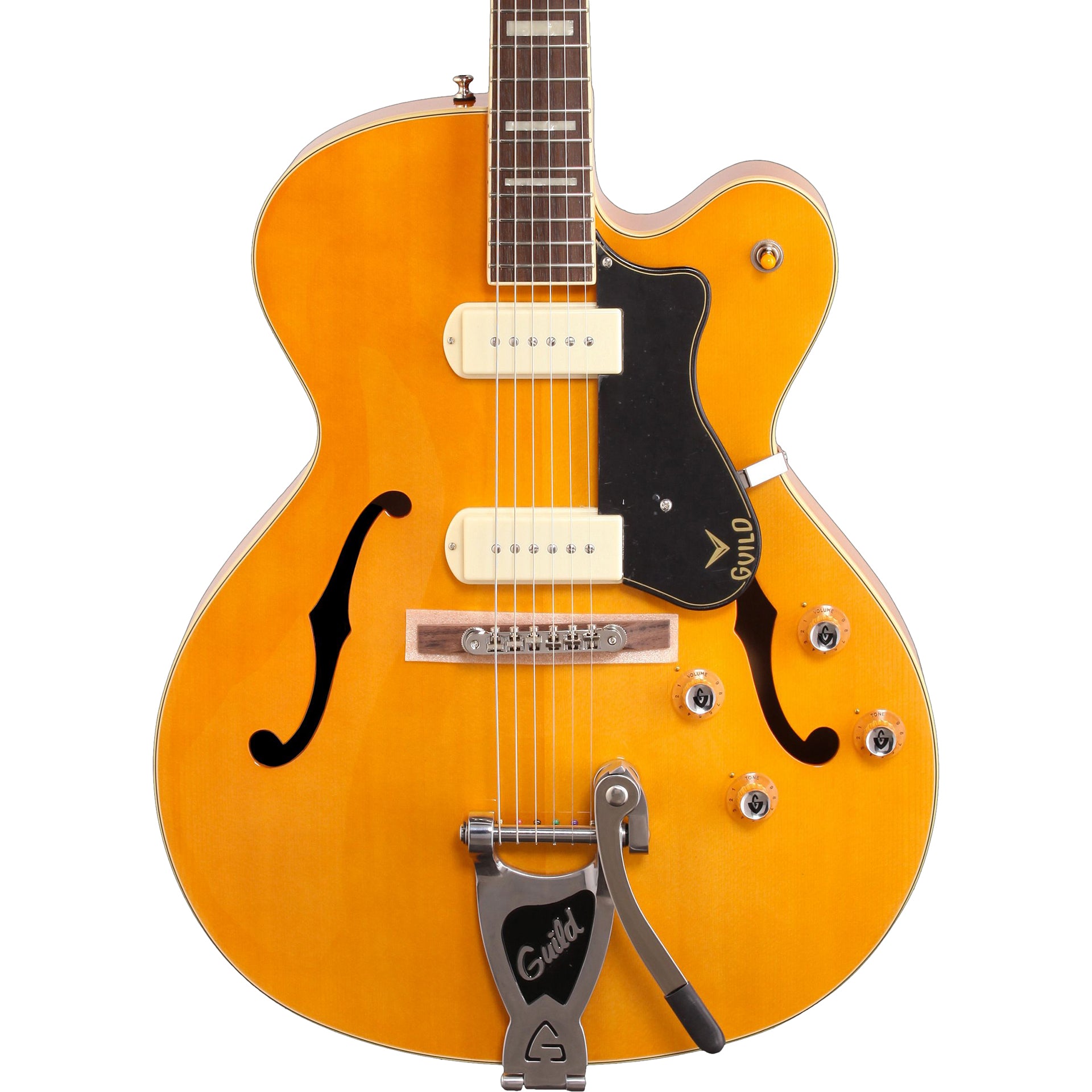

An extraordinary instrument for the swinging soloist and technician, Guild's X-175B Manhattan™ is a masterpiece of the guitar maker's art. It presents the same exceptional appointments as its brother, the X-175 Manhattan™, including a gracefully sculpted hollow body, rock-solid three-piece neck and electrifying dual single-coil pickups, but also features the addition of a Guild Bigsby® vibrato tailpiece and is available in a handsome Blonde finish.
| Product Name | Guild X-175B Manhattan Archtop Semi Hollow Newark St. Electric Guitar, Blonde w/ case |
|---|---|
| Brand | Guild |
| Condition | New |
| MPN | 3795005801 |
| UPC | 885978341726 |
| Shipping Option | Free Shipping to the Continental U.S. |
Body |
|
|---|---|
| Body Type | Hollow Body |
| Body Shape | Guild X-175 |
| Body Top | Arched Spruce |
| Body Wood (Solid Bodies) | N / A |
| Soundhole / F Holes Binding | Unbound F Holes |
| Body Sides | Maple |
| Body Back | Arched Maple |
| Purfling | Black / Ivory |
| Body Binding | Ivoroid |
Neck |
|
| Neck Material | Mahogany with Maple Center Strip |
| Scale Length | 24 3/4" (629mm) |
| Neck Shape | Vintage Soft "U" |
| Nut Width | 1 11/16" (43mm) |
| Neck Thickness 1st Fret | 20mm |
| Neck Thickness 9th Fret | 24mm |
| Truss Rod | Dual Action |
| Truss Rod Wrench | 7mm Socket Wrench |
| Fingerboard Material | Ebony |
| Fingerboard Radius | 9 1/2" (240mm) |
| Fingerboard Inlays | Blocks - Pearloid |
| Frets Total | 20 |
| Fret Type | Narrow Jumbo |
Hardware |
|
| Bridge String Spacing | 2" (52mm) |
| Hardware Finish / Plating | Nickel |
| Bridge | Guild Tune-O-Matic with Ebony Base |
| Tailpiece | Guild Vibrato Tailpiece Hollow Body - Aluminum |
| Nut Material | Bone |
| Tuning Machines | Grover® Sta-Tite™ Open-Gear 18:1 |
| Strap Buttons | Vintage Pawn |
| Pickguard | Black with Guild Logo |
Electronics |
|
| Bridge Pickup | Franz P90 Dog Ear |
| Neck Pickup | Franz P90 Dog Ear |
| Pickup Switch | 3-Way Toggle: 1. Bridge Pickup - 2. Bridge and Neck Pickups - 3. Neck Pickup |
| Controls | Neck Volume & Tone, Bridge Volume & Tone, 3-way Toggle Pickup Switch |
Other |
|
| Strings | D'Addario EXL115 Nickel Wound, Medium (.011 - .049) |
| Included Case | Guild Deluxe Electric Guitar Hardshell Case |
| Upper Bout Width | 12 1/2" (318mm) |
| Lower Bout Width | 17" (432mm) |
| Body Depth Upper Bout | 3" (76mm) |
| Body Depth Lower Bout | 3" (76mm) |
| Body Length | 21" (533mm) |
| Overall Length | 42" (1067mm) |
| Item # | 3795005801 |
Guild X-175B Manhattan Archtop Semi Hollow Newark St. Electric Guitar, Blonde w/ case
Details
An extraordinary instrument for the swinging soloist and technician, Guild's X-175B Manhattan™ is a masterpiece of the guitar maker's art. It presents the same exceptional appointments as its brother, the X-175 Manhattan™, including a gracefully sculpted hollow body, rock-solid three-piece neck and electrifying dual single-coil pickups, but also features the addition of a Guild Bigsby® vibrato tailpiece and is available in a handsome Blonde finish.
| Product Name | Guild X-175B Manhattan Archtop Semi Hollow Newark St. Electric Guitar, Blonde w/ case |
|---|---|
| Brand | Guild |
| Condition | New |
| MPN | 3795005801 |
| UPC | 885978341726 |
| Shipping Option | Free Shipping to the Continental U.S. |
Tech Specs
Body |
|
|---|---|
| Body Type | Hollow Body |
| Body Shape | Guild X-175 |
| Body Top | Arched Spruce |
| Body Wood (Solid Bodies) | N / A |
| Soundhole / F Holes Binding | Unbound F Holes |
| Body Sides | Maple |
| Body Back | Arched Maple |
| Purfling | Black / Ivory |
| Body Binding | Ivoroid |
Neck |
|
| Neck Material | Mahogany with Maple Center Strip |
| Scale Length | 24 3/4" (629mm) |
| Neck Shape | Vintage Soft "U" |
| Nut Width | 1 11/16" (43mm) |
| Neck Thickness 1st Fret | 20mm |
| Neck Thickness 9th Fret | 24mm |
| Truss Rod | Dual Action |
| Truss Rod Wrench | 7mm Socket Wrench |
| Fingerboard Material | Ebony |
| Fingerboard Radius | 9 1/2" (240mm) |
| Fingerboard Inlays | Blocks - Pearloid |
| Frets Total | 20 |
| Fret Type | Narrow Jumbo |
Hardware |
|
| Bridge String Spacing | 2" (52mm) |
| Hardware Finish / Plating | Nickel |
| Bridge | Guild Tune-O-Matic with Ebony Base |
| Tailpiece | Guild Vibrato Tailpiece Hollow Body - Aluminum |
| Nut Material | Bone |
| Tuning Machines | Grover® Sta-Tite™ Open-Gear 18:1 |
| Strap Buttons | Vintage Pawn |
| Pickguard | Black with Guild Logo |
Electronics |
|
| Bridge Pickup | Franz P90 Dog Ear |
| Neck Pickup | Franz P90 Dog Ear |
| Pickup Switch | 3-Way Toggle: 1. Bridge Pickup - 2. Bridge and Neck Pickups - 3. Neck Pickup |
| Controls | Neck Volume & Tone, Bridge Volume & Tone, 3-way Toggle Pickup Switch |
Other |
|
| Strings | D'Addario EXL115 Nickel Wound, Medium (.011 - .049) |
| Included Case | Guild Deluxe Electric Guitar Hardshell Case |
| Upper Bout Width | 12 1/2" (318mm) |
| Lower Bout Width | 17" (432mm) |
| Body Depth Upper Bout | 3" (76mm) |
| Body Depth Lower Bout | 3" (76mm) |
| Body Length | 21" (533mm) |
| Overall Length | 42" (1067mm) |
| Item # | 3795005801 |
