Hedd Type 20 Studio Monitor - 3-Way, 3x300W - Left

Hedd Type 20 Studio Monitor - 3-Way, 3x300W - Left

Out of Stock

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Hedd Type 20 Studio Monitor - 3-Way, 3x300W - Left

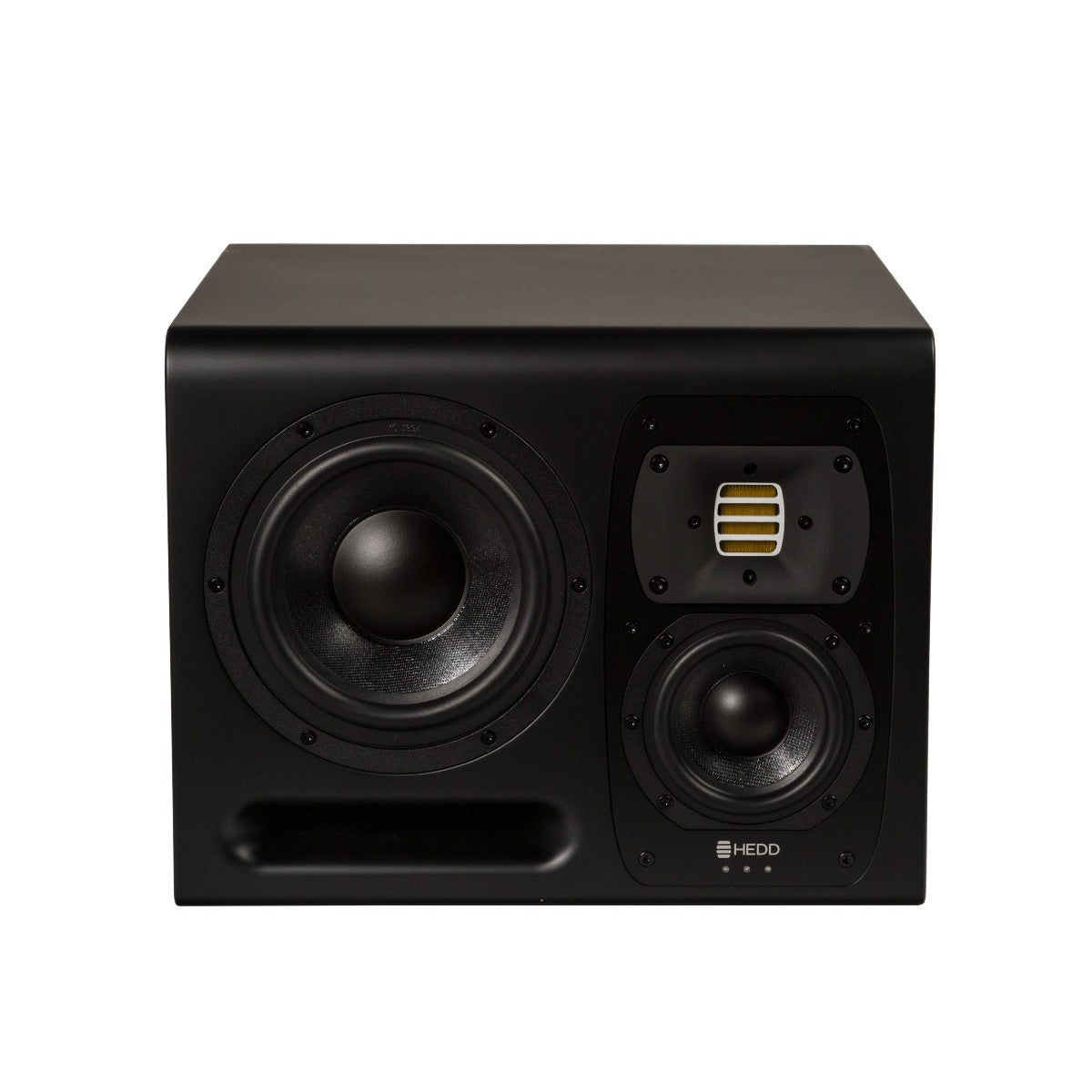

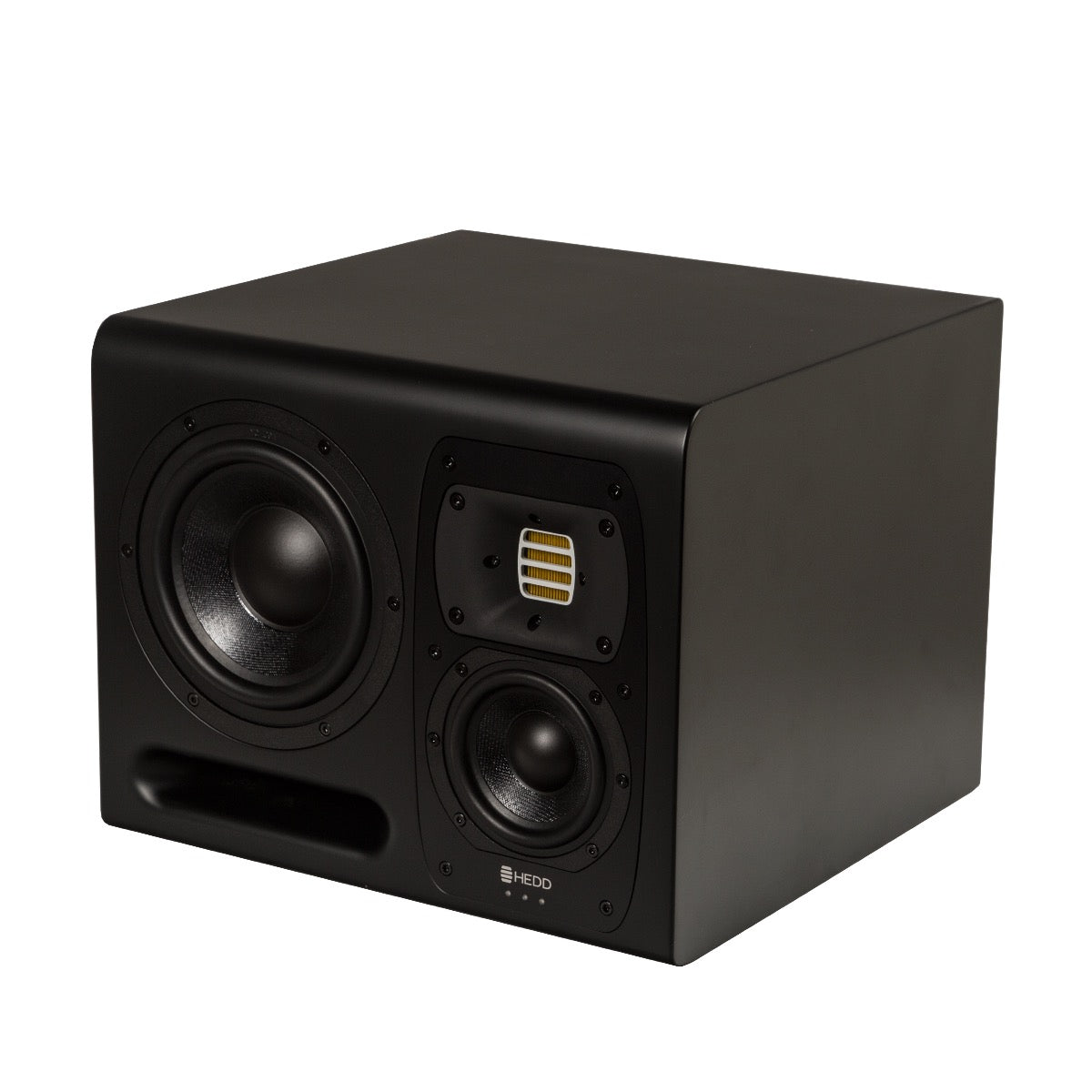

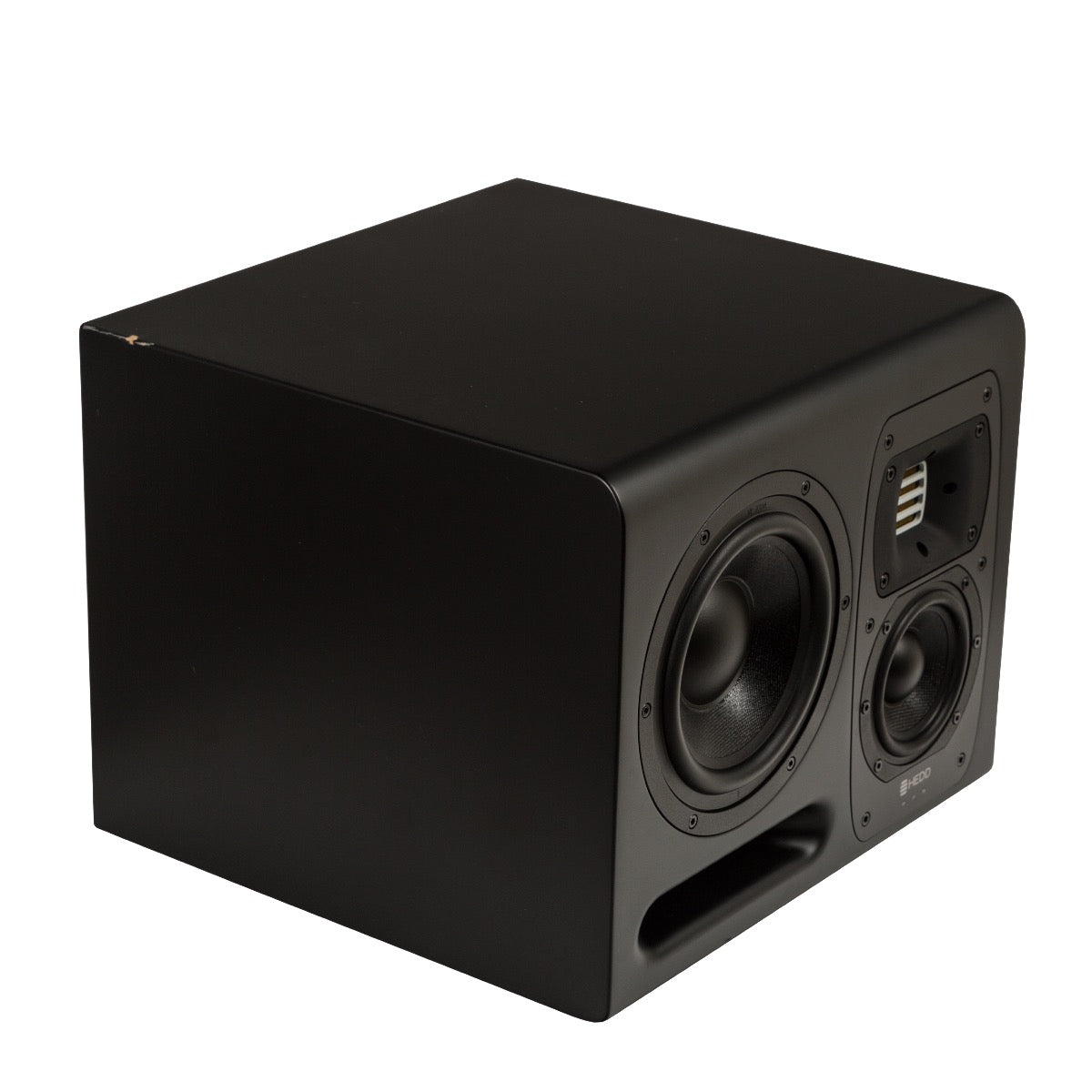

The HEDD Type 20 is a fully-fledged 3-way-system stuffed into a sleek and small footprint cabinet. It gives you the best of both monitoring worlds: convenient dimensions to easily fit the speakers into compact recording, mastering, or sophisticated home studios and the complete skill set of a full-range midfield monitoring system.

The Type 20 is based around a strong, rubber-coated cabinet, that incorporates our self-designed Honeycomb-sandwich woofers (7“ bass / 4“ midrange) and the HEDD Air Motion Transformer tweeter for the most alive and accurate high frequency reproduction. Three 300W Class-D ICEpower modules work in the amp section of these analog speakers. The sound of this ultra-compact monitor is just magic: pristine, powerful and effortless with all the advantages you get from a dedicated 3-way-system. The Type 20 can be noted for its wonderful clarity in the midrange, offering better dynamics and an increased three-dimensionality across its sound stage. With a frequency spectrum ranging from 50kHz all the way down to 32Hz, the Type 20 can manage the most complex and challenging audio situations. It offers you analog monitoring with digital expansion at the highest level.

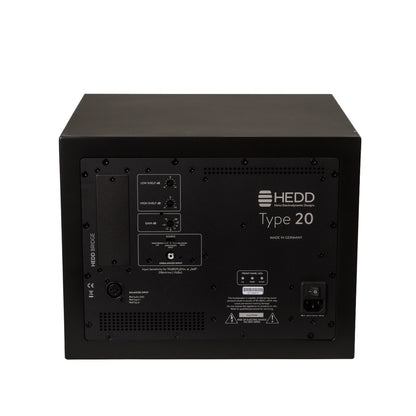

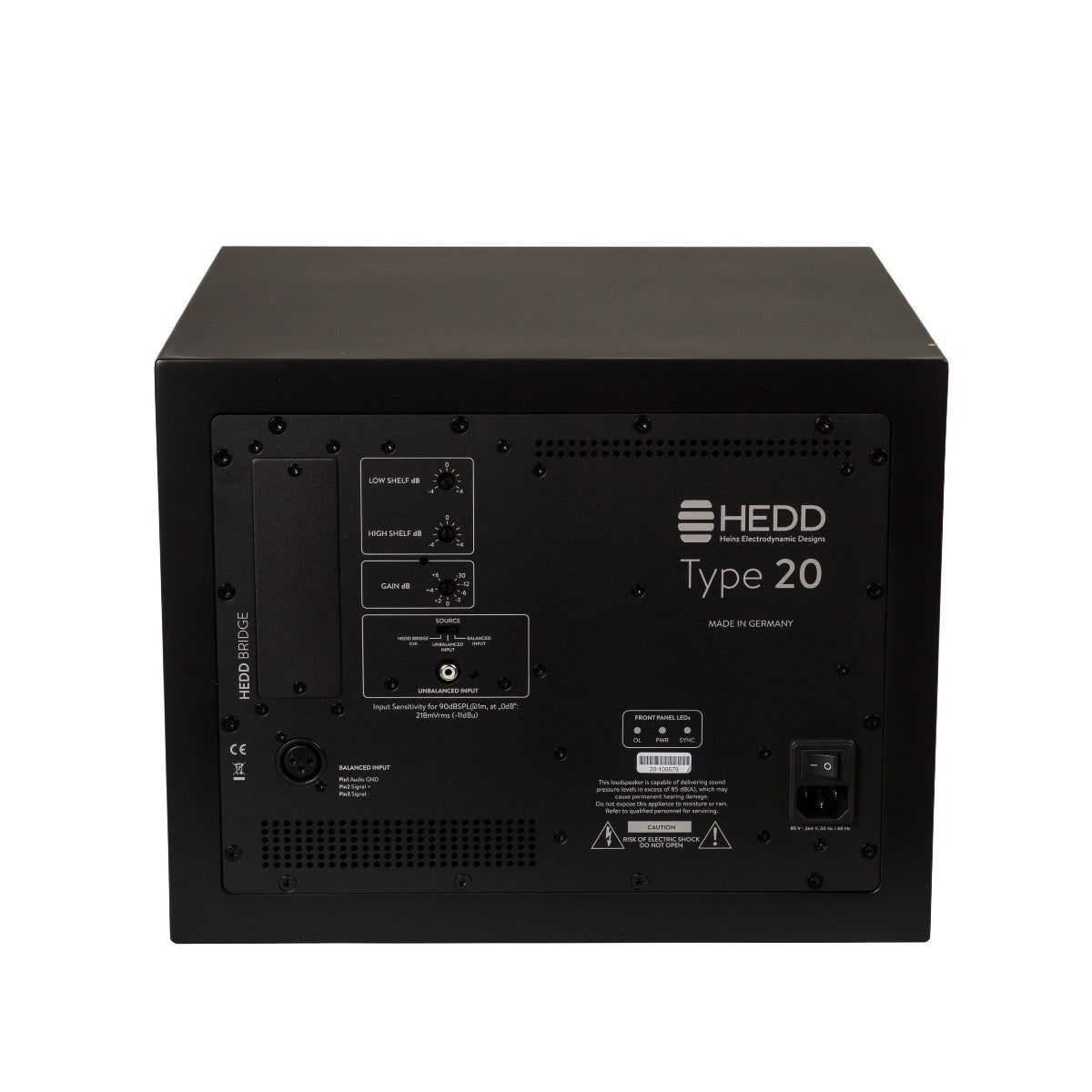

The Type 20 incorporates the versatile HEDD Bridge system. Besides standard analog connections (XLR/RCA), you can insert optional input-cards for AES3-, USB2-, and even Dante / AES67-functionality into the free slot on the backpanel of the speaker.

More Information
Product Name Hedd Type 20 Studio Monitor - 3-Way, 3x300W - Left
Brand hedd
Condition New
MPN type20left
UPC 701197395206
Shipping Option Free Shipping to the Continental U.S.
  • Frequency response: 32Hz – 50kHz (Crossover: 250Hz / 2500Hz)
  • Left Version
  • 3x 300W ICEpower amps from Denmark
  • Max. SPL: ≥120dB
  • XLR & RCA inputs
  • HEDD Bridge modular inputcard-system for digital connectivity ( AES3, Dante / AES67)
  • Solid unibody-like cabinet with a modern matt-black rubber finish
  • Input Gain: -30dB ... +6dB / ±4dB)
  • High (±4dB at 20kHz) and Low (±4dB at 50Hz) shelf controls
  • Universal Mains (85V – 265V)
  • W: 358mm x H: 280mm x D: 338mm
  • Weight: 15kg
  • Made in Germany
  • Drivers
    • Woofer: 1
    • Basket Ø: 7.2” (182mm)
    • Voice coil Ø: 2” (51mm)
    • Cone material: UHC cone (Ultra Honeycomb Composite)
    • Midrange: 1
    • Basket Ø: 4.7” (120mm)
    • Voice coil Ø: 1.25 " (32mm)
    • Cone material: UHC cone (Ultra Honeycomb Composite)
    • Tweeter: 1
    • Type: HEDD AMT (HEDD Air Motion Transformer)
    • Equiv. Diaphragm Ø: 2” (56mm)
  • Input connectors
    • Analog balanced/ unbalanced: XLR / RCA
    • Digital/HEDD Bridge Options: AES67 Ravenna, Dante, AES3/EBU
  • General data
    • Amplification (ICEpower®): 3 x 300W
    • Input gain: -30dB … +6dB
    • High Shelf EQ > 2kHz: ±4dB (at 20kHz)
    • Low Shelf EQ < 200Hz: ±4dB (at 50Hz)
    • Frequency response: 32Hz - 50kHz
    • THD 90dB/1m > 100Hz: ≤0.5%
    • Max SPL sine wave 100Hz - 3kHz /1m: ≥110dB
    • Max SPL peak per pair at 1m: ≥120dB
    • Crossover frequencies: 250Hz / 2.5kHz
    • Input impedance balanced / unbalanced: 10kΩ / 47kΩ
    • Weight: 15kg
    • Height x Width x Depth: 280mm x 358mm x 338mm

Hedd Type 20 Studio Monitor - 3-Way, 3x300W - Left

Details

Hedd Type 20 Studio Monitor - 3-Way, 3x300W - Left

The HEDD Type 20 is a fully-fledged 3-way-system stuffed into a sleek and small footprint cabinet. It gives you the best of both monitoring worlds: convenient dimensions to easily fit the speakers into compact recording, mastering, or sophisticated home studios and the complete skill set of a full-range midfield monitoring system.

The Type 20 is based around a strong, rubber-coated cabinet, that incorporates our self-designed Honeycomb-sandwich woofers (7“ bass / 4“ midrange) and the HEDD Air Motion Transformer tweeter for the most alive and accurate high frequency reproduction. Three 300W Class-D ICEpower modules work in the amp section of these analog speakers. The sound of this ultra-compact monitor is just magic: pristine, powerful and effortless with all the advantages you get from a dedicated 3-way-system. The Type 20 can be noted for its wonderful clarity in the midrange, offering better dynamics and an increased three-dimensionality across its sound stage. With a frequency spectrum ranging from 50kHz all the way down to 32Hz, the Type 20 can manage the most complex and challenging audio situations. It offers you analog monitoring with digital expansion at the highest level.

The Type 20 incorporates the versatile HEDD Bridge system. Besides standard analog connections (XLR/RCA), you can insert optional input-cards for AES3-, USB2-, and even Dante / AES67-functionality into the free slot on the backpanel of the speaker.

More Information
Product Name Hedd Type 20 Studio Monitor - 3-Way, 3x300W - Left
Brand hedd
Condition New
MPN type20left
UPC 701197395206
Shipping Option Free Shipping to the Continental U.S.
Features
  • Frequency response: 32Hz – 50kHz (Crossover: 250Hz / 2500Hz)
  • Left Version
  • 3x 300W ICEpower amps from Denmark
  • Max. SPL: ≥120dB
  • XLR & RCA inputs
  • HEDD Bridge modular inputcard-system for digital connectivity ( AES3, Dante / AES67)
  • Solid unibody-like cabinet with a modern matt-black rubber finish
  • Input Gain: -30dB ... +6dB / ±4dB)
  • High (±4dB at 20kHz) and Low (±4dB at 50Hz) shelf controls
  • Universal Mains (85V – 265V)
  • W: 358mm x H: 280mm x D: 338mm
  • Weight: 15kg
  • Made in Germany
Tech Specs
  • Drivers
    • Woofer: 1
    • Basket Ø: 7.2” (182mm)
    • Voice coil Ø: 2” (51mm)
    • Cone material: UHC cone (Ultra Honeycomb Composite)
    • Midrange: 1
    • Basket Ø: 4.7” (120mm)
    • Voice coil Ø: 1.25 " (32mm)
    • Cone material: UHC cone (Ultra Honeycomb Composite)
    • Tweeter: 1
    • Type: HEDD AMT (HEDD Air Motion Transformer)
    • Equiv. Diaphragm Ø: 2” (56mm)
  • Input connectors
    • Analog balanced/ unbalanced: XLR / RCA
    • Digital/HEDD Bridge Options: AES67 Ravenna, Dante, AES3/EBU
  • General data
    • Amplification (ICEpower®): 3 x 300W
    • Input gain: -30dB … +6dB
    • High Shelf EQ > 2kHz: ±4dB (at 20kHz)
    • Low Shelf EQ < 200Hz: ±4dB (at 50Hz)
    • Frequency response: 32Hz - 50kHz
    • THD 90dB/1m > 100Hz: ≤0.5%
    • Max SPL sine wave 100Hz - 3kHz /1m: ≥110dB
    • Max SPL peak per pair at 1m: ≥120dB
    • Crossover frequencies: 250Hz / 2.5kHz
    • Input impedance balanced / unbalanced: 10kΩ / 47kΩ
    • Weight: 15kg
    • Height x Width x Depth: 280mm x 358mm x 338mm
