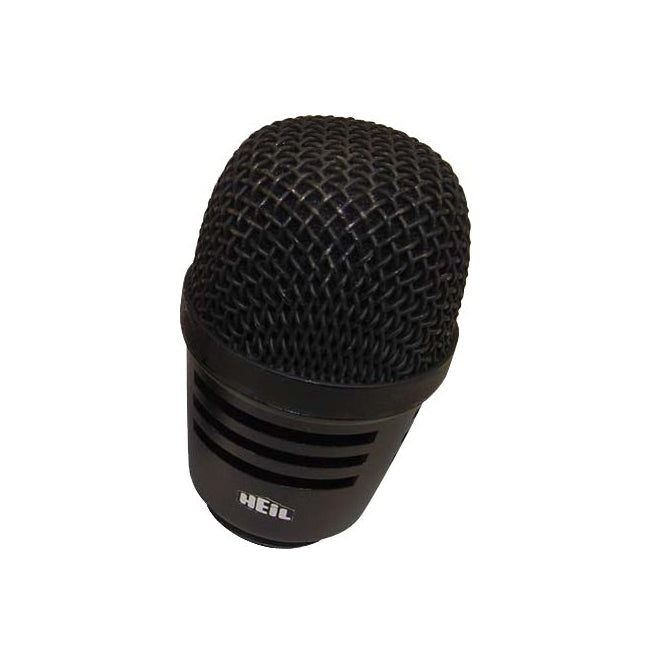

Heil RC35 Wireless Replacement Capsule
The Heil Sound RC 35 contains the 1-1/2" large dynamic element of the PR 35, which produces a wide frequency response, natural vocal articulation, and high rejection from the sides and rear.
Heil replacement capsules are interchangeable with any of the screw-on type hand-held transmitters that receive a 31.3mm/pitch 1.0mm. Some hand-held transmitters have a .035 inch hexagonal-head set screw to secure the microphone capsule. If your transmitter has that, loosen the setscrew in the handle of the mic transmitter before attempting to unscrew the original capsule.
Holding the bottom of the transmitter simply unscrew the original capsule turning it counterclockwise. Carefully remove. The three conductor contact board disconnects the contacts. Avoid touching or damaging the gold plated contacts on the transmitter or the contact board. Screw your new Heil RC Capsule onto the transmitter handle and tighten.
Features
Replacement capsule for hand-held wireless transmitters
Increased vocal articulation
Maximized rear rejection
Lower handling noise
Type: Large-diaphragm (1-1/2") dynamic
Frequency response: 40Hz-18kHz
Output level: 52dB @ 1kHz
Impedance: Balanced 600 ohm output, 3-pin XLR
Polar pattern: End-fire, cardioid, uniform front-to-back discrimination
Weight: 5.5 oz.
Finish: Matte black
| Product Name | Heil RC35 Wireless Replacement Capsule |
|---|---|
| Brand | Heil |
| Condition | New |
| MPN | RC35 |
| UPC | 885936933529 |
| Shipping Option | Free Shipping to the Continental U.S. |
Heil RC35 Wireless Replacement Capsule
Details
Heil RC35 Wireless Replacement Capsule
The Heil Sound RC 35 contains the 1-1/2" large dynamic element of the PR 35, which produces a wide frequency response, natural vocal articulation, and high rejection from the sides and rear.
Heil replacement capsules are interchangeable with any of the screw-on type hand-held transmitters that receive a 31.3mm/pitch 1.0mm. Some hand-held transmitters have a .035 inch hexagonal-head set screw to secure the microphone capsule. If your transmitter has that, loosen the setscrew in the handle of the mic transmitter before attempting to unscrew the original capsule.
Holding the bottom of the transmitter simply unscrew the original capsule turning it counterclockwise. Carefully remove. The three conductor contact board disconnects the contacts. Avoid touching or damaging the gold plated contacts on the transmitter or the contact board. Screw your new Heil RC Capsule onto the transmitter handle and tighten.
Features
Replacement capsule for hand-held wireless transmitters
Increased vocal articulation
Maximized rear rejection
Lower handling noise
Type: Large-diaphragm (1-1/2") dynamic
Frequency response: 40Hz-18kHz
Output level: 52dB @ 1kHz
Impedance: Balanced 600 ohm output, 3-pin XLR
Polar pattern: End-fire, cardioid, uniform front-to-back discrimination
Weight: 5.5 oz.
Finish: Matte black
| Product Name | Heil RC35 Wireless Replacement Capsule |
|---|---|
| Brand | Heil |
| Condition | New |
| MPN | RC35 |
| UPC | 885936933529 |
| Shipping Option | Free Shipping to the Continental U.S. |
