CLASSIC 251 SOUL, MODERN WORKHORSE
Heiserman Audio announces the Type-21, a large-diaphragm condenser microphone that captures the heart and soul of the legendary ELA M 251E in a compact, ultra-versatile package. Type-21 delivers the depth, detail, and character engineers expect from Heiserman Audio in a rugged, phantom-powered format.
MODERN 251 CHARACTER IN A COMPACT FORM
At the core of the Type-21 is the same Generation 5 HK12 capsule found in the acclaimed Heiserman H251, hand-crafted by master technicians in the USA for consistency, nuance, and musicality. Packed into an all-aluminum body, the Type-21 employs a unique transformerless circuit built around a low-noise JFET, precision resistors, and carefully selected tantalum and film capacitors to deliver a rich, dimensional sound with exceptional clarity. This compact footprint makes it ideal for drum rooms, guitar cabs, vocal booths, and any confined space where a classic 251-inspired tone is needed without the bulk.
BUILT TO INSPIRE AND WITHSTAND DAILY USE
The Type-21 is engineered to handle whatever a modern session can throw at it, pairing studio-grade sonics with road-ready durability. A softly glowing Heiserman logo isn’t just for aesthetics - it is a functional part of the circuit and a visual cue that the mic is ready to work. Switchable polar patterns (cardioid, omni, and figure-8), a high-pass filter, and a -15 dB pad give engineers precise control at the source, whether taming low-end buildup or managing high-SPL instruments.
| Product Name | Heiserman Type-21 Large Diaphragm Condenser Microphone |
|---|---|
| Brand | Heiserman |
| Condition | New |
| MPN | TYPE21 |
| Shipping Option | Contact for a shipping quote |
What's in the Box?
- Heiserman Type-21 Large Diaphragm Condenser Microphone
- Hand-crafted Generation 5 HK12 capsule
- Stunning industrial design with softly glowing functional logo
- Switchable cardioid, omni, and figure-8 polar patterns
- High-pass filter and -15 dB pad for flexible source control
- Designed, machined, assembled, and fully made in the USA
- Type: Large diaphragm condenser
- Capsule: Generation 5 HK12 brass and acrylic chambered capsule
- Diaphragm: Dual 6-micron, 24k gold-sputtered Mylar (PET film)
- Power supply: +48 V phantom power via XLR
- Frequency response: 20 Hz – 20 kHz
- Max SPL: 130 dB (145 dB with pad)
- Sensitivity: 20 mV/Pa ±1 dB
- THD @ 1 kHz @ 1 Pa: <0.5%
- Output impedance: 42 Ω
- Amplifier type: Field Effect Transistor
- High-pass filter: 160 Hz
- Connector: Amphenol XLR
- Mount: Standard 57-style mic clip
- Dimensions: Length 138 mm (8.2"), width 50 mm (2"), thickness 28.5 mm (1.13")

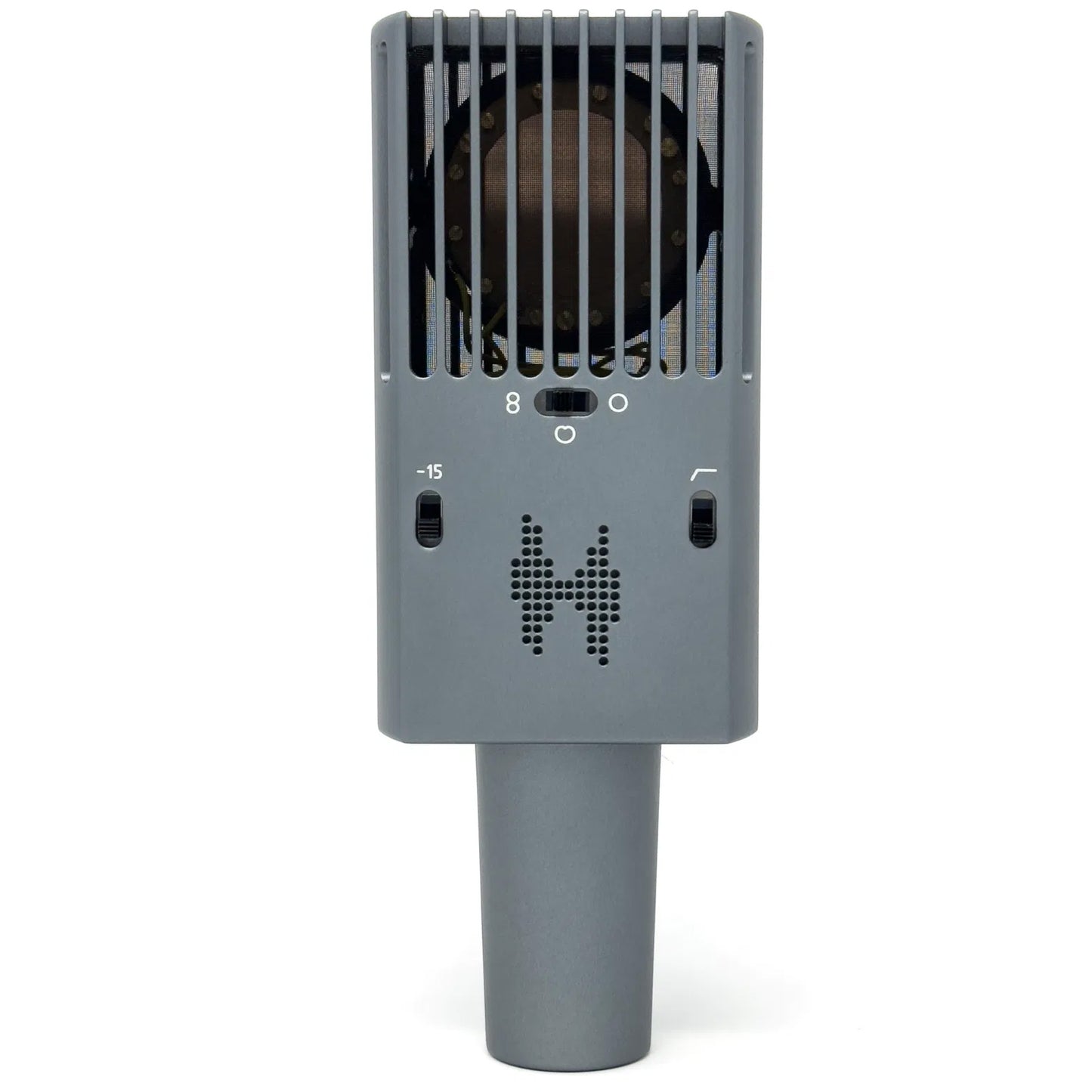

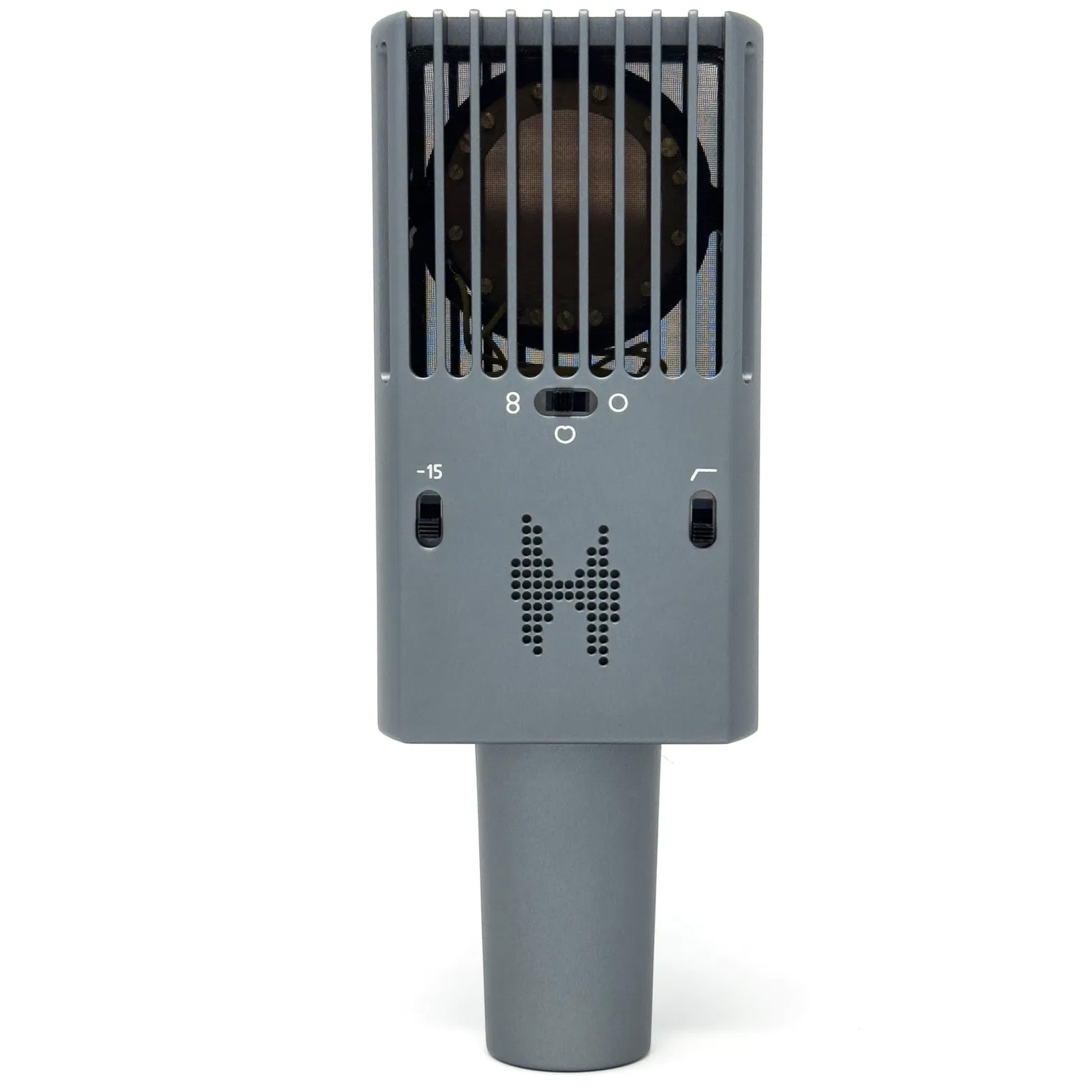

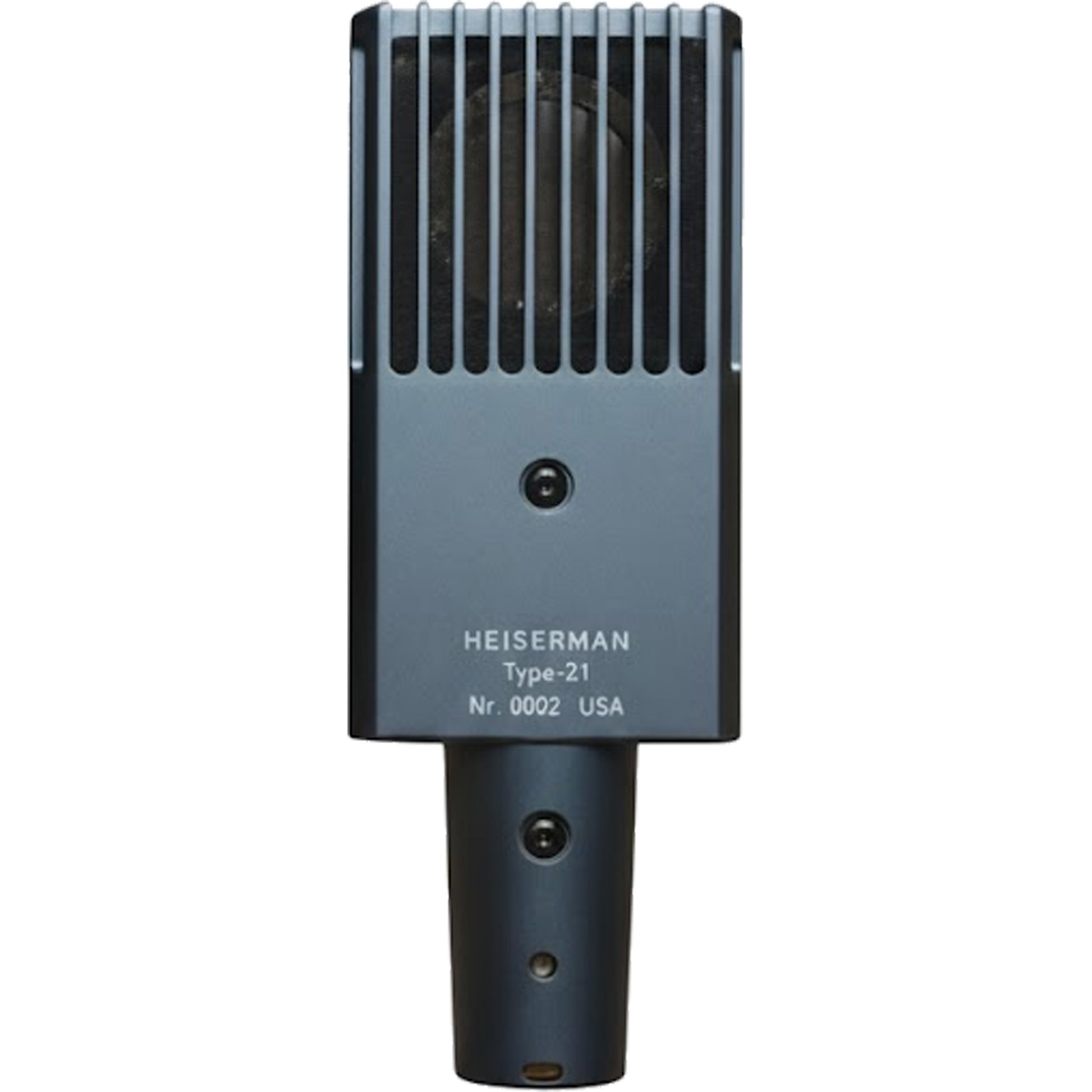

Heiserman Type-21 Large Diaphragm Condenser Microphone
CLASSIC 251 SOUL, MODERN WORKHORSE
Heiserman Audio announces the Type-21, a large-diaphragm condenser microphone that captures the heart and soul of the legendary ELA M 251E in a compact, ultra-versatile package. Type-21 delivers the depth, detail, and character engineers expect from Heiserman Audio in a rugged, phantom-powered format.
MODERN 251 CHARACTER IN A COMPACT FORM
At the core of the Type-21 is the same Generation 5 HK12 capsule found in the acclaimed Heiserman H251, hand-crafted by master technicians in the USA for consistency, nuance, and musicality. Packed into an all-aluminum body, the Type-21 employs a unique transformerless circuit built around a low-noise JFET, precision resistors, and carefully selected tantalum and film capacitors to deliver a rich, dimensional sound with exceptional clarity. This compact footprint makes it ideal for drum rooms, guitar cabs, vocal booths, and any confined space where a classic 251-inspired tone is needed without the bulk.
BUILT TO INSPIRE AND WITHSTAND DAILY USE
The Type-21 is engineered to handle whatever a modern session can throw at it, pairing studio-grade sonics with road-ready durability. A softly glowing Heiserman logo isn’t just for aesthetics - it is a functional part of the circuit and a visual cue that the mic is ready to work. Switchable polar patterns (cardioid, omni, and figure-8), a high-pass filter, and a -15 dB pad give engineers precise control at the source, whether taming low-end buildup or managing high-SPL instruments.
| Product Name | Heiserman Type-21 Large Diaphragm Condenser Microphone |
|---|---|
| Brand | Heiserman |
| Condition | New |
| MPN | TYPE21 |
What's in the Box?
Heiserman Type-21 Large Diaphragm Condenser Microphone- Hand-crafted Generation 5 HK12 capsule
- Stunning industrial design with softly glowing functional logo
- Switchable cardioid, omni, and figure-8 polar patterns
- High-pass filter and -15 dB pad for flexible source control
- Designed, machined, assembled, and fully made in the USA
- Type: Large diaphragm condenser
- Capsule: Generation 5 HK12 brass and acrylic chambered capsule
- Diaphragm: Dual 6-micron, 24k gold-sputtered Mylar (PET film)
- Power supply: +48 V phantom power via XLR
- Frequency response: 20 Hz – 20 kHz
- Max SPL: 130 dB (145 dB with pad)
- Sensitivity: 20 mV/Pa ±1 dB
- THD @ 1 kHz @ 1 Pa: <0.5%
- Output impedance: 42 Ω
- Amplifier type: Field Effect Transistor
- High-pass filter: 160 Hz
- Connector: Amphenol XLR
- Mount: Standard 57-style mic clip
- Dimensions: Length 138 mm (8.2"), width 50 mm (2"), thickness 28.5 mm (1.13")
