Audio Cable Tester

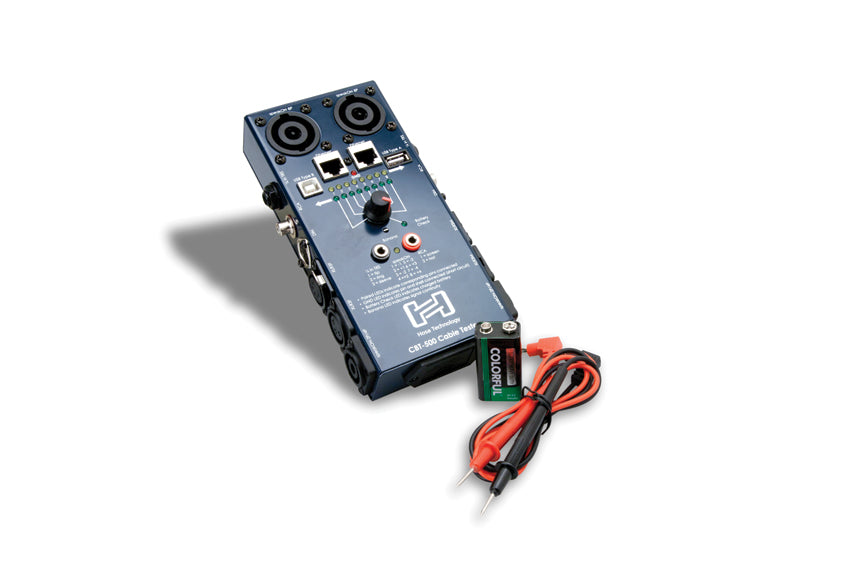

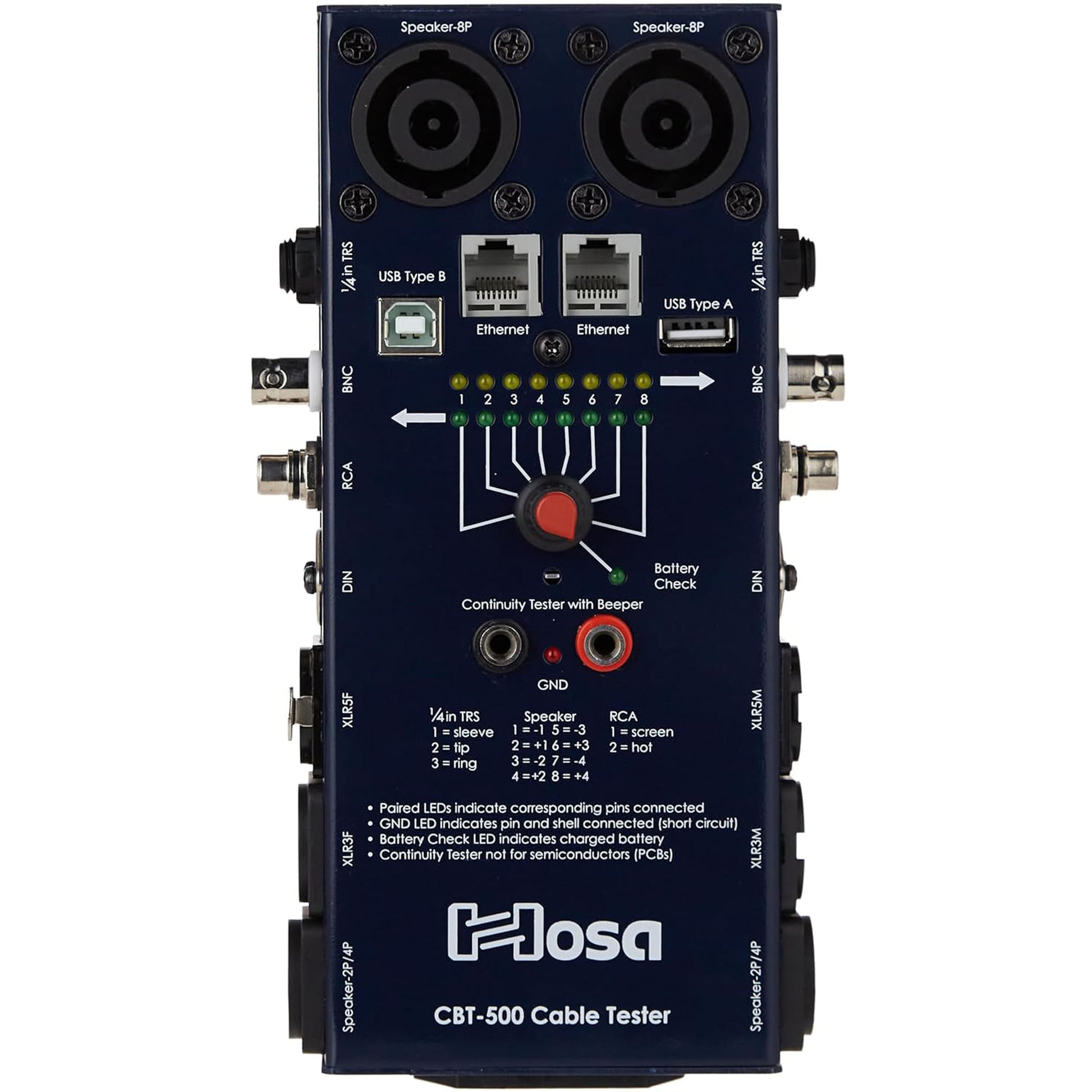

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).
Cable Test:
• Turn knob to position 1
• Plug one connector into corresponding jack on left side of tester
• Plug other connector into corresponding jack on right side of tester
• Turn knob to each position to check wiring of each contact
Continuity Test:
• Apply the tip of each lead to the corresponding contacts
• If continuity exists, the center LED will illuminate and tester will beep
Battery Check:
• Turn knob to Battery Check
• LED will illuminate if the battery is charged
| Product Name | Hosa CBT-500 Cable Tester Audio |
|---|---|
| Brand | Hosa |
| Condition | New |
| MPN | CBT-500 |
| UPC | 728736053939 |
| Shipping Option | Free Shipping on orders over $94.72 |
Hosa CBT-500 Cable Tester Audio
Details
Audio Cable Tester
The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).
Cable Test:
• Turn knob to position 1
• Plug one connector into corresponding jack on left side of tester
• Plug other connector into corresponding jack on right side of tester
• Turn knob to each position to check wiring of each contact
Continuity Test:
• Apply the tip of each lead to the corresponding contacts
• If continuity exists, the center LED will illuminate and tester will beep
Battery Check:
• Turn knob to Battery Check
• LED will illuminate if the battery is charged
| Product Name | Hosa CBT-500 Cable Tester Audio |
|---|---|
| Brand | Hosa |
| Condition | New |
| MPN | CBT-500 |
| UPC | 728736053939 |
| Shipping Option | Free Shipping on orders over $94.72 |
