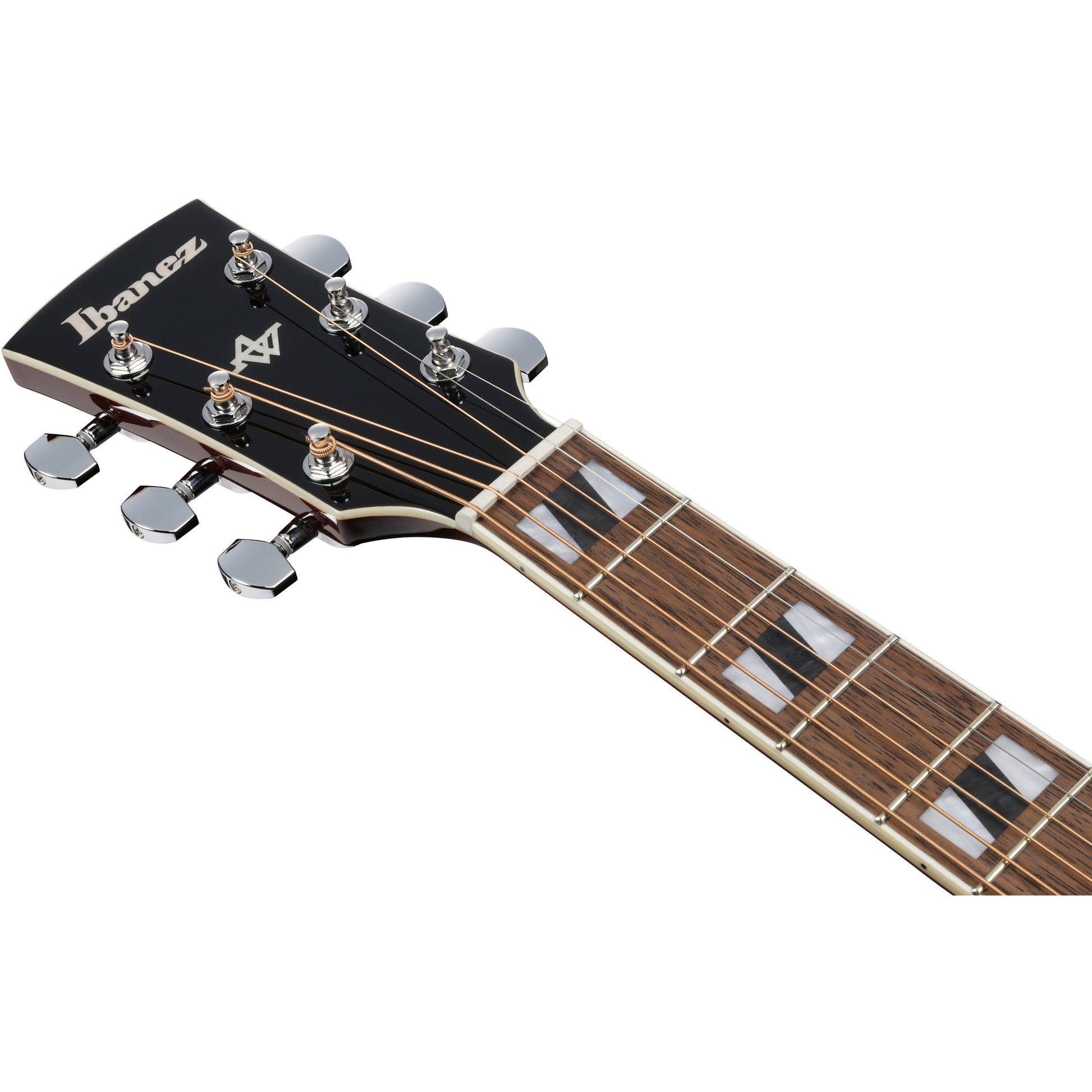

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Laurel fretboard
The Laurel fretboard provides a rich and warm tone.

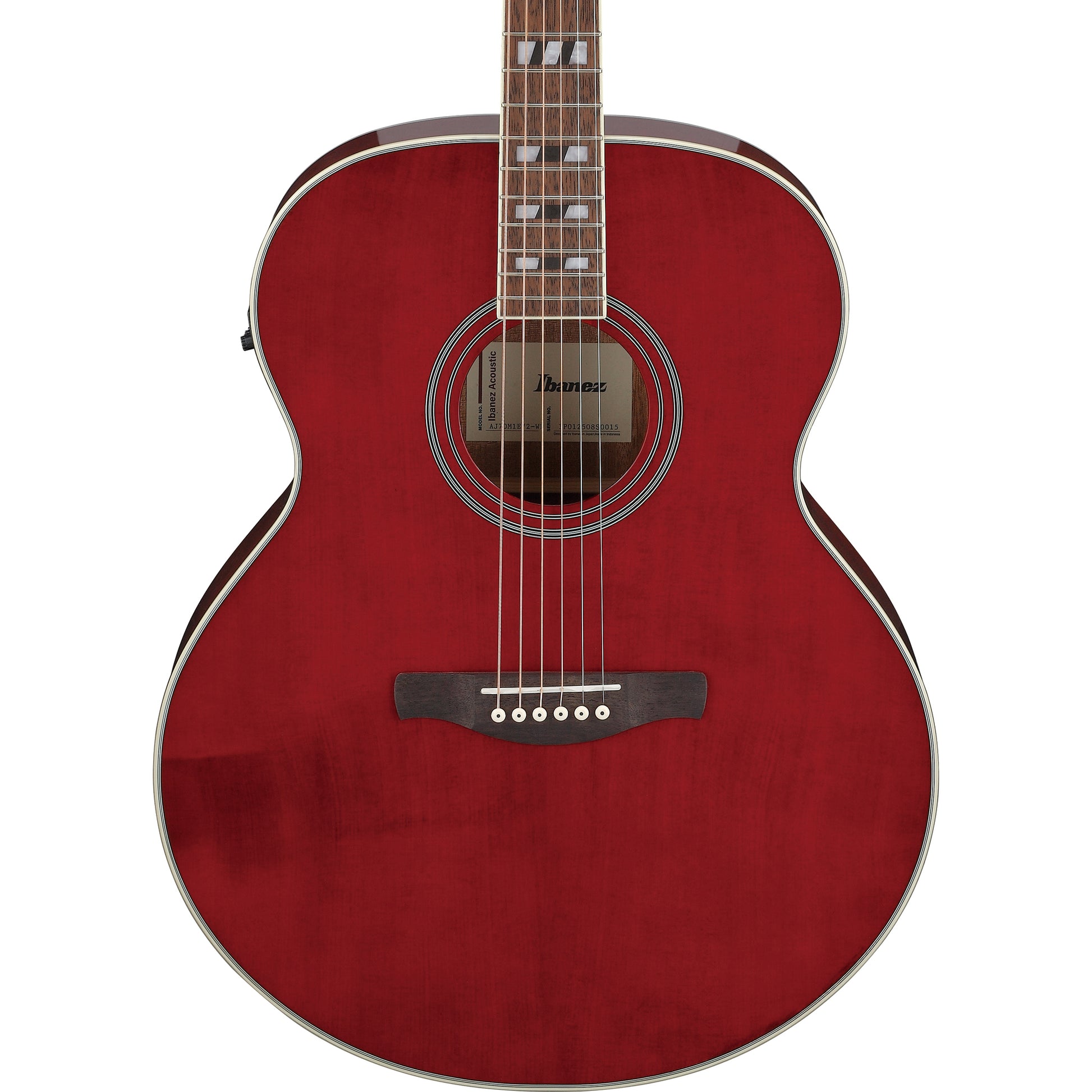

Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

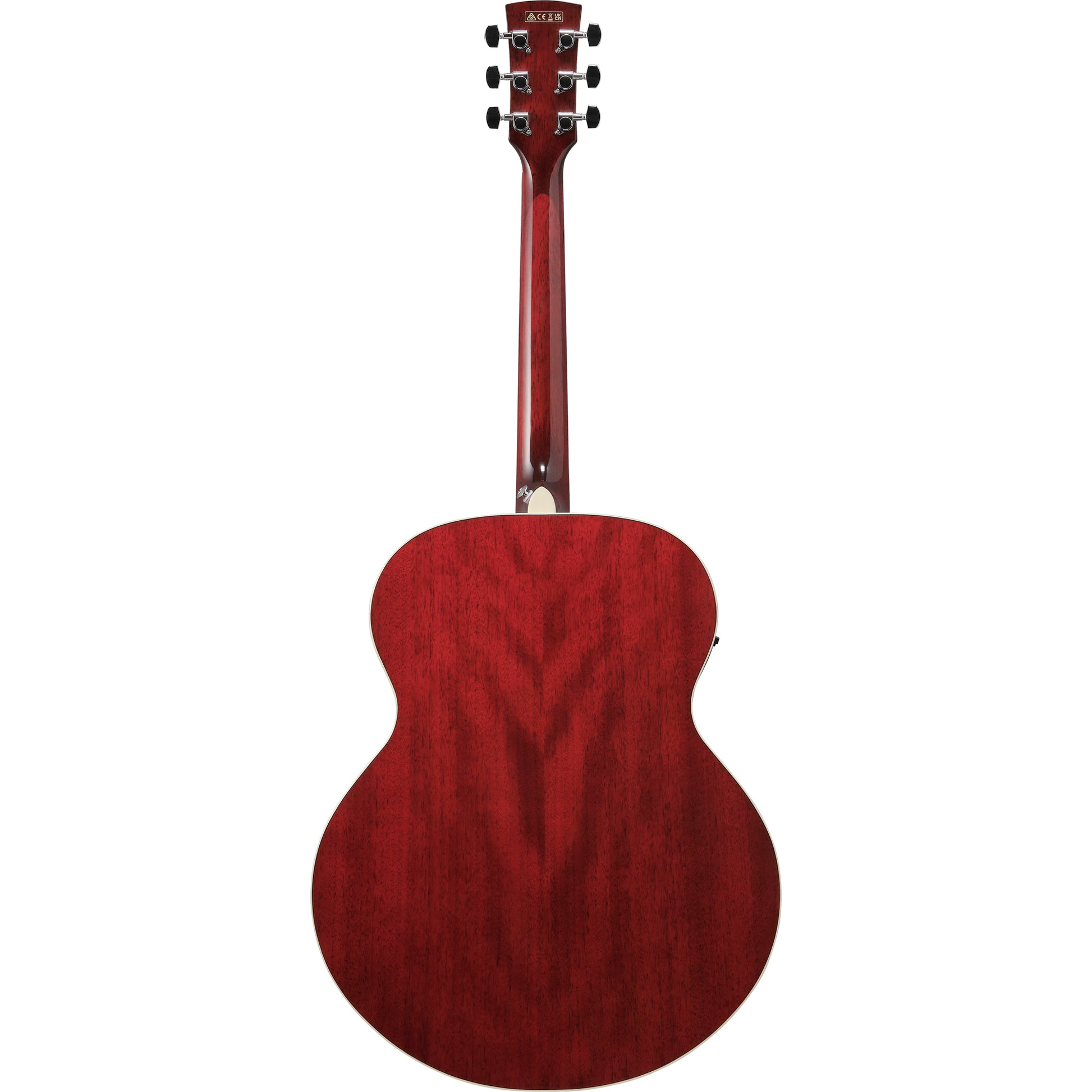

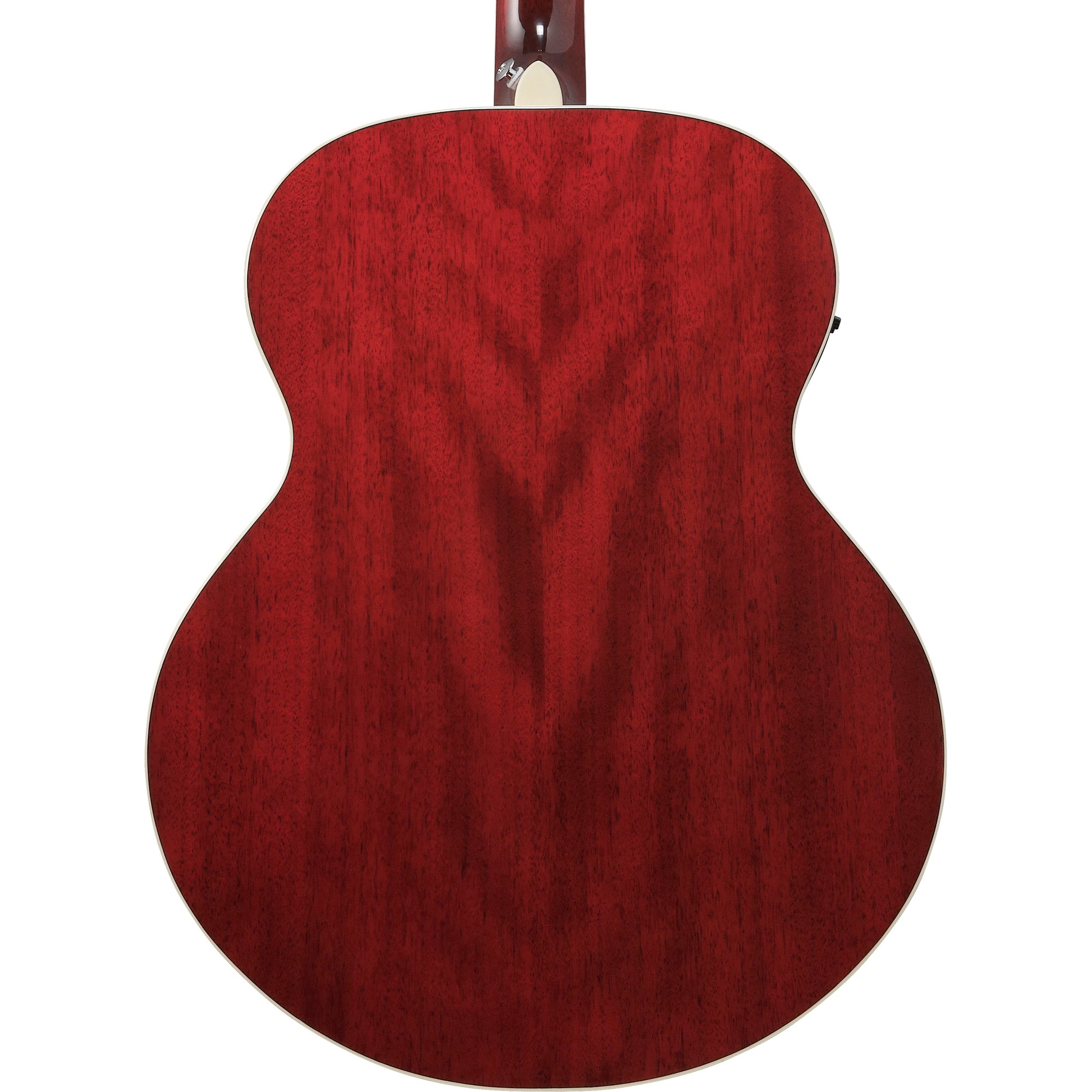

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

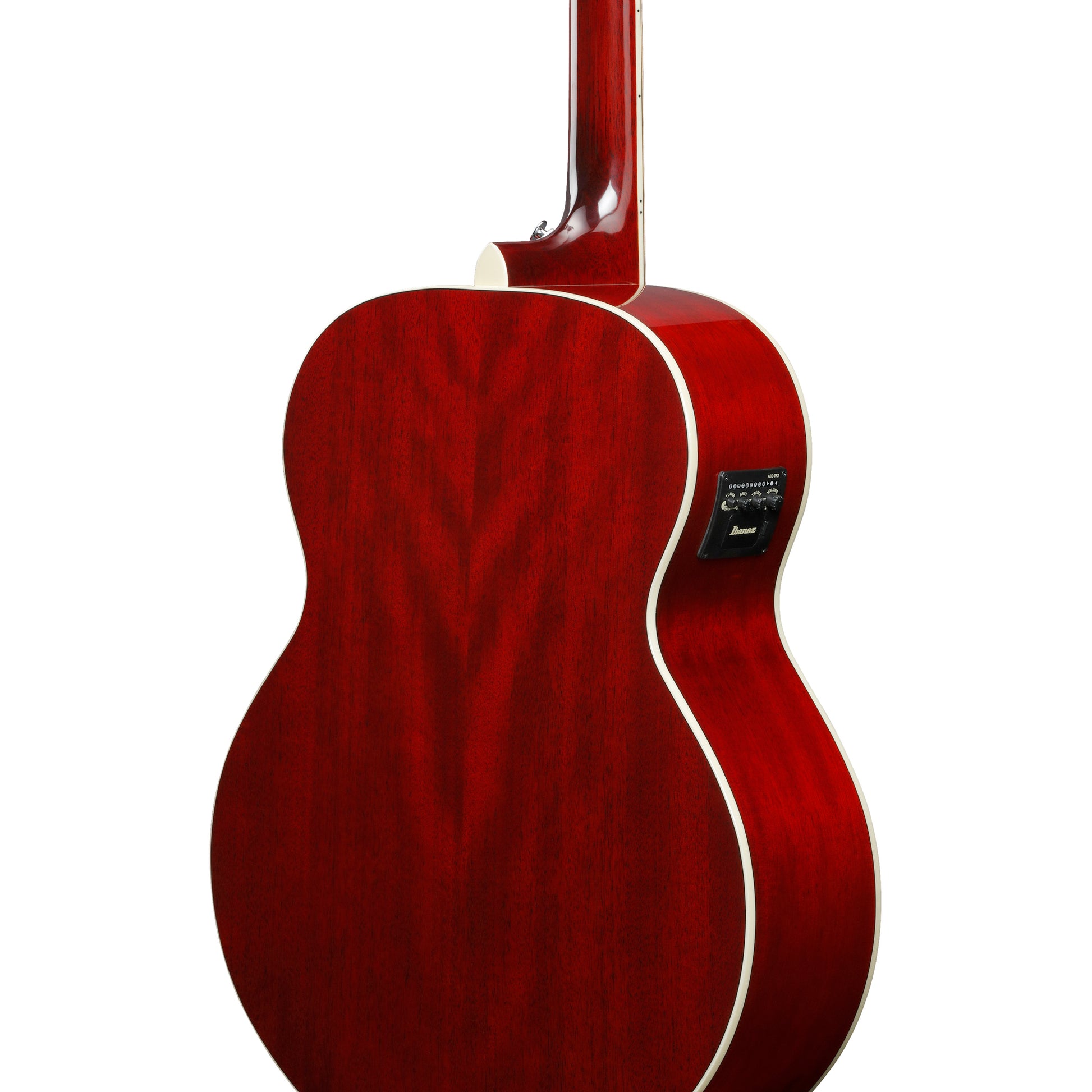

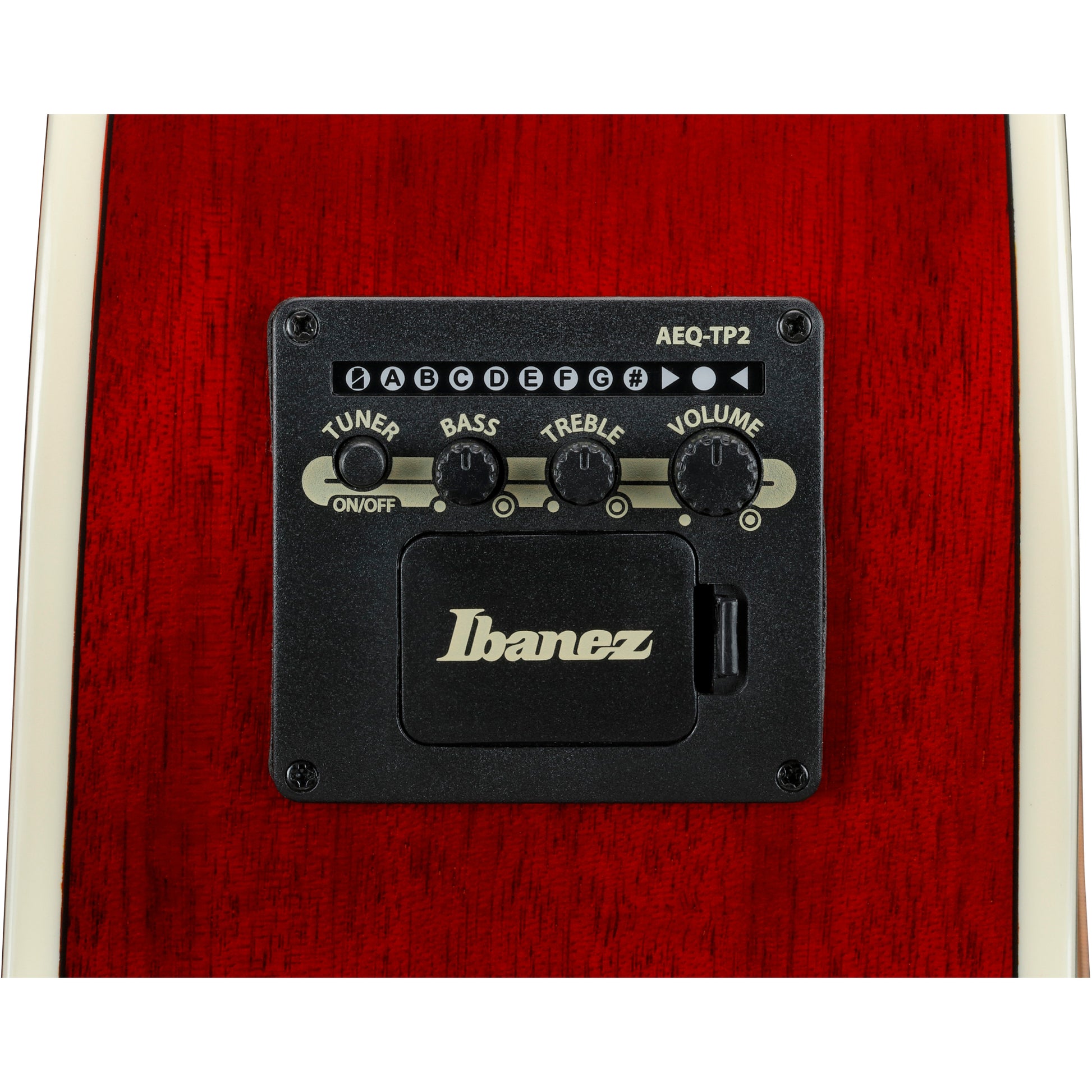

Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.
Laurel bridge
The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
| Product Name | Ibanez AJ70M1E AJ Acoustic Electric Guitar - Wine Red |
|---|---|
| Brand | Ibanez |
| Condition | New |
| MPN | AJ70M1EWR |
| UPC | 4549763377845 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Nyatoh neck
- Laurel fretboard
- Solid Sitka Spruce top
- Okoume back and sides
- Ibanez T-bar Undersaddle pickup
- Ibanez AEQ-TP2 preamp w/Onboard tuner
- Laurel bridge
- Ibanez Advantage™ bridge pins
| Neck Type | AJ |
| Neck Joint | Dovetail |
| Neck Joint Position | 14th fret joint |
| Neck Material | Nyatoh |
| Neck finish | Gloss Polyurethane |
| Neck thickness (1st fret) | 0.83" (21 mm) |
| Neck thickness (7th fret) | 0.87" (22 mm) |
| Scale | 25.5" (648 mm) |
| Nut width | 1.7" (43 mm) |
| End width | 2.14" (54.33 mm) at 14F |
| Number of fret | 20 |
| Fretboard | Laurel |
| Fretboard Radius | 15.75" (400 mm) |
| Inlay | Acrylic block |
| Body Shape | Jumbo |
| Body Top material | Solid Sitka Spruce |
| Body Sides material | Okoume |
| Body Back material | Okoume |
| Body Depth | 4.72" (120 mm) |
| Body Width | 16.37" (416 mm) |
| Body Length | 20.13" (511 mm) |
| Soundhole Rosette | Black & White multi |
| Body Depth@Joint | 3.94" (100 mm) |
| Body Depth@End | 4.72" (120 mm) |
| Body finish | Gloss Polyurethane |
| Total length | 41.34" (1050 mm) |
| Bridge | Laurel |
| Bridge pins | Ibanez Advantage™ |
| Saddle material | Plastic |
| String spacing | 0.43" (11 mm) |
| Nut | Plastic |

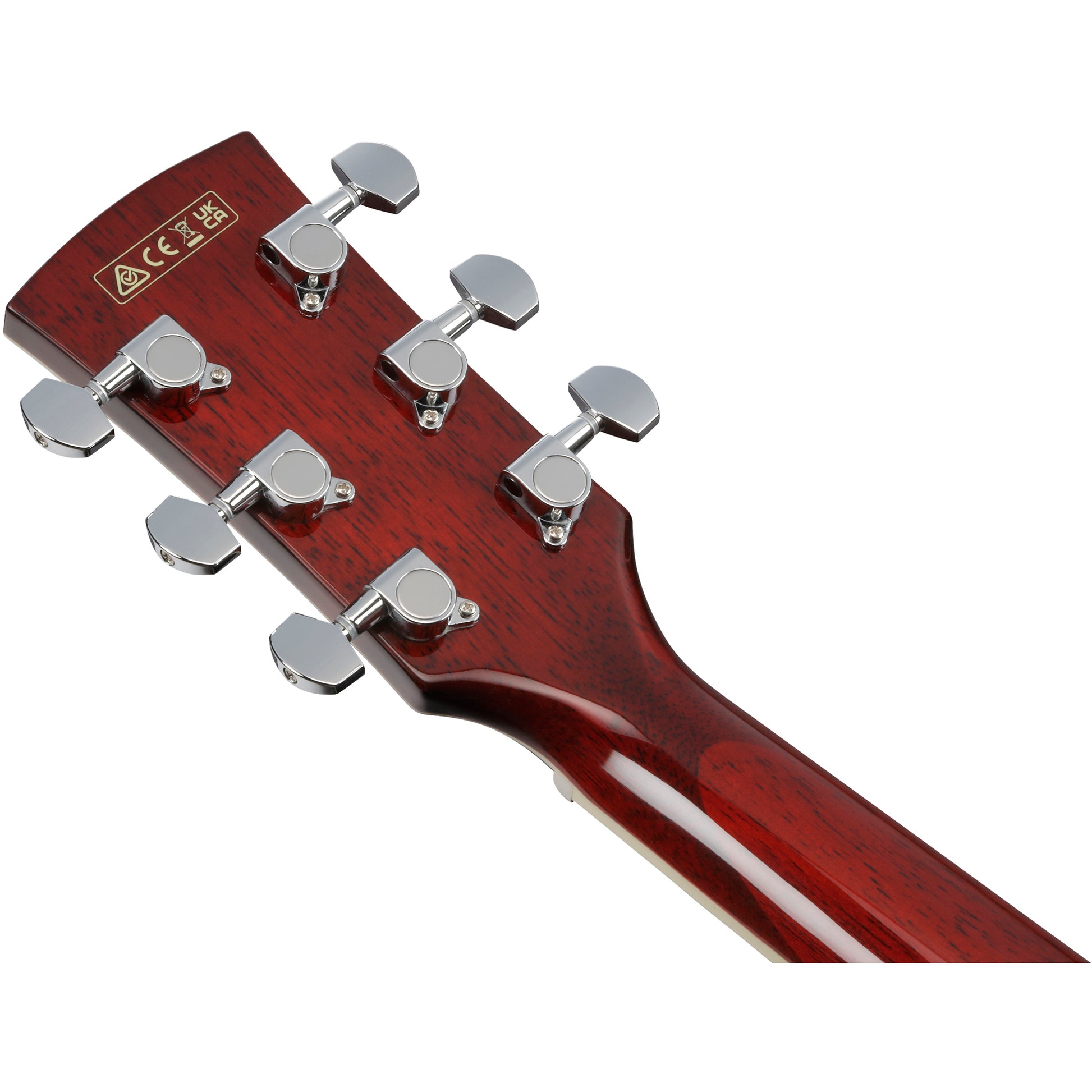

| Machine Head | Chrome Die-cast tuners (18:1 gear ratio) |
| Other Pickup | Ibanez T-bar Undersaddle |
| Preamp | Ibanez AEQ-TP2 preamp w/Onboard tuner |
| Controls, Pickup selector | 1 Volume, Bass, Treble |
| Other Switches | Tuner on/off switch |

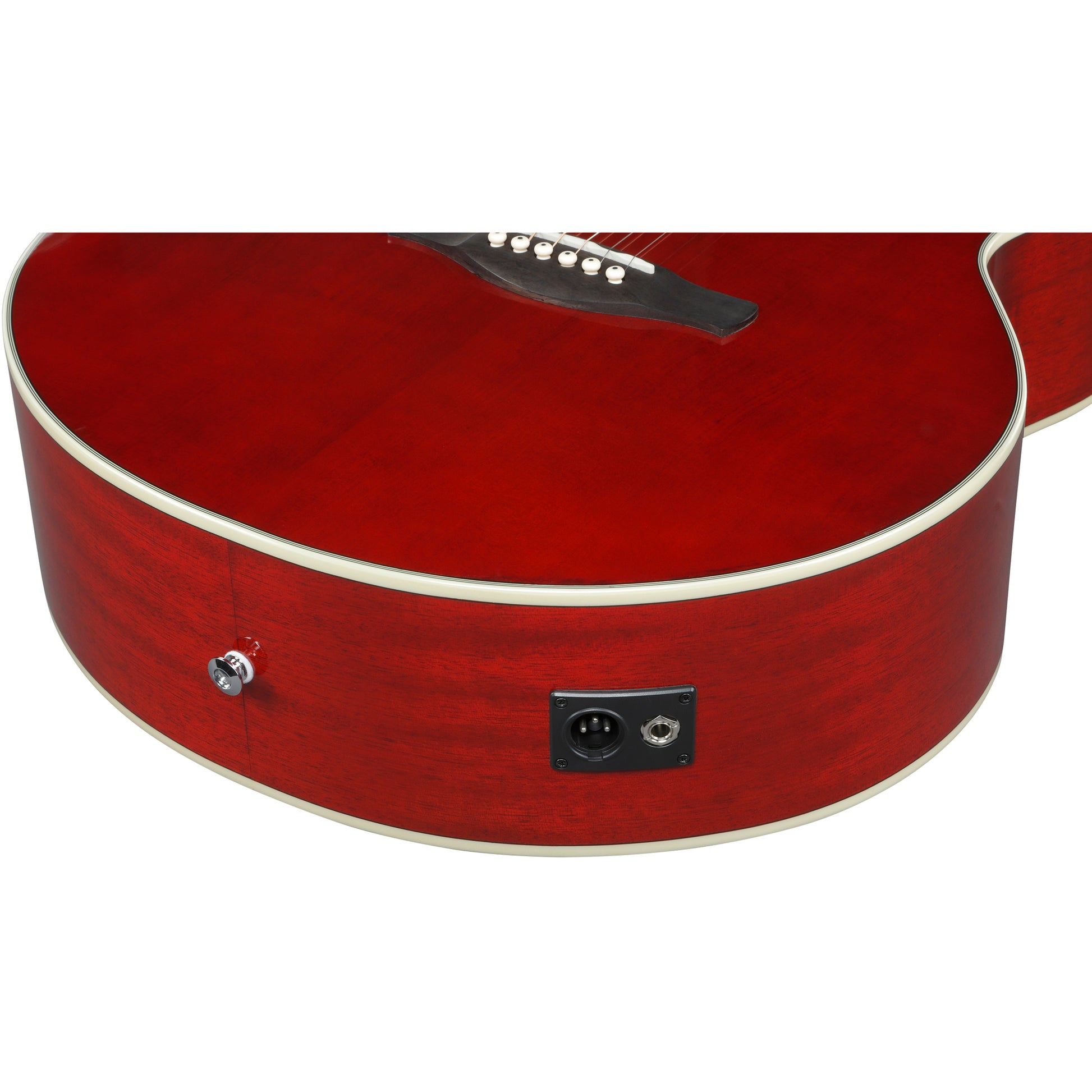

| Output Jack | Balanced XLR & 1/4" outputs |
| String Gauges (from top to bottom) | .012/.016/.024/.032/.042/.053 |
| Special Strings | D'Addario® XTAPB1253 |
| Tuning (from top to bottom) | 1E,2B,3G,4D,5A,6E |
| Other item(s) included | Hex wrench, Saddle, Bridge pin |

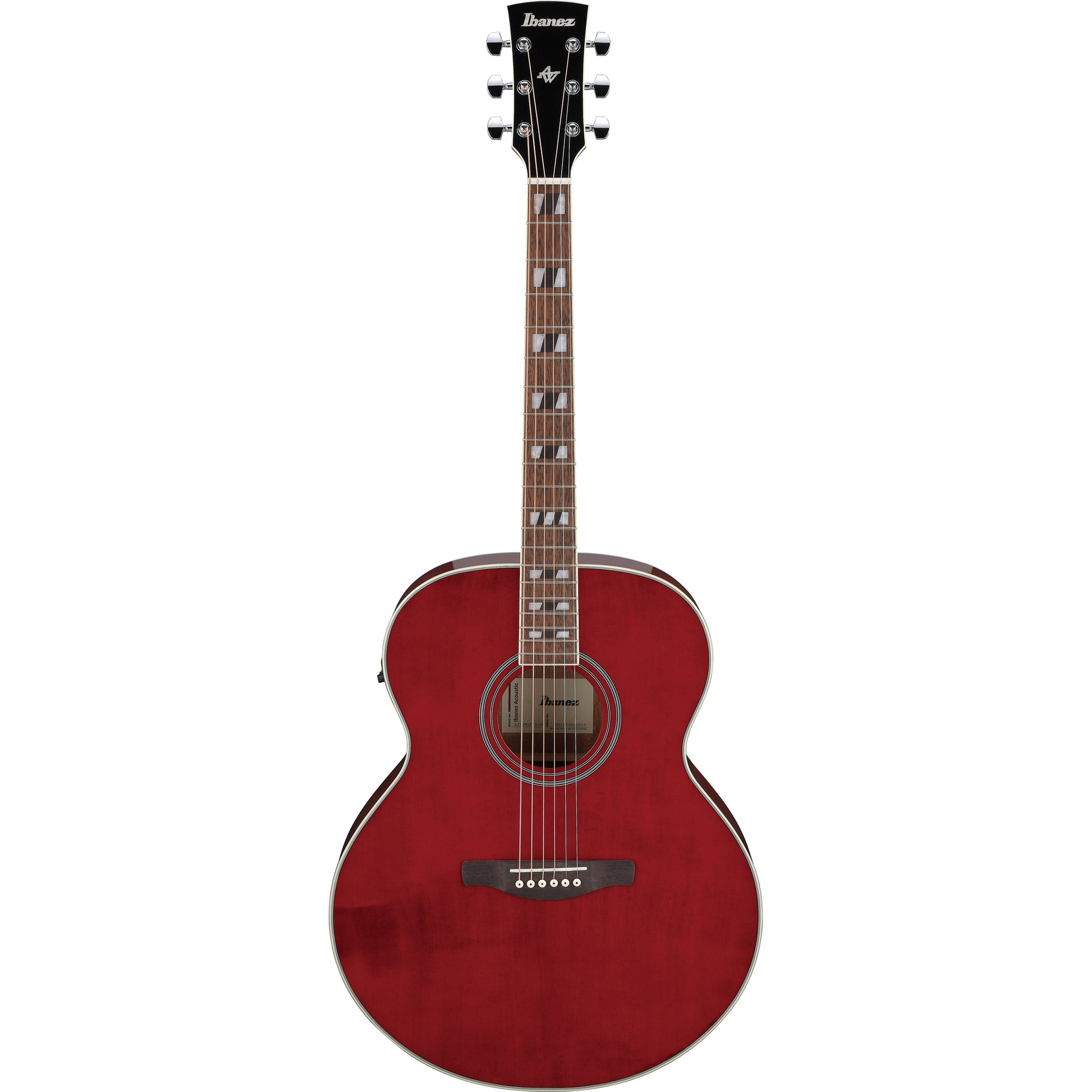

Ibanez AJ70M1E AJ Acoustic Electric Guitar - Wine Red
