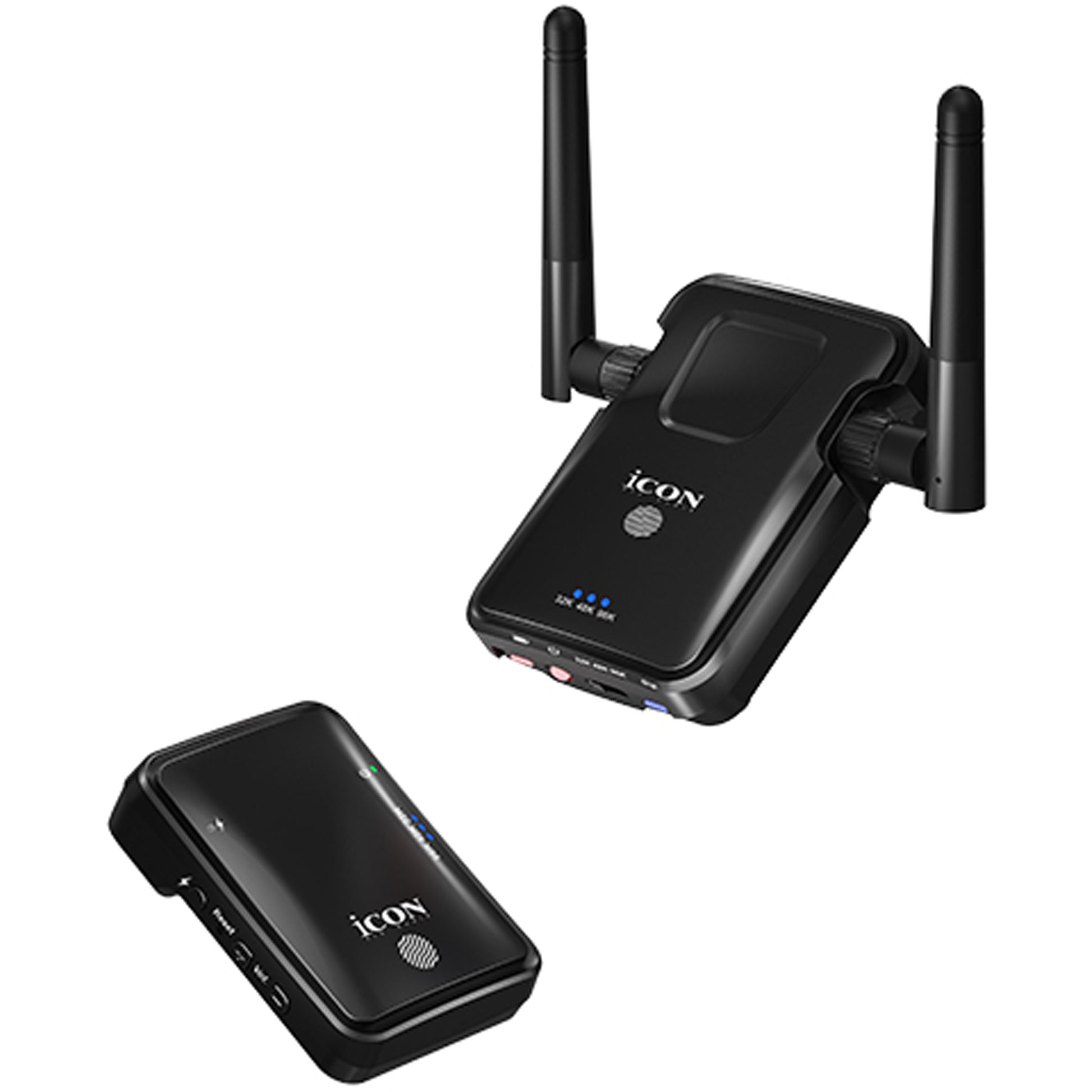

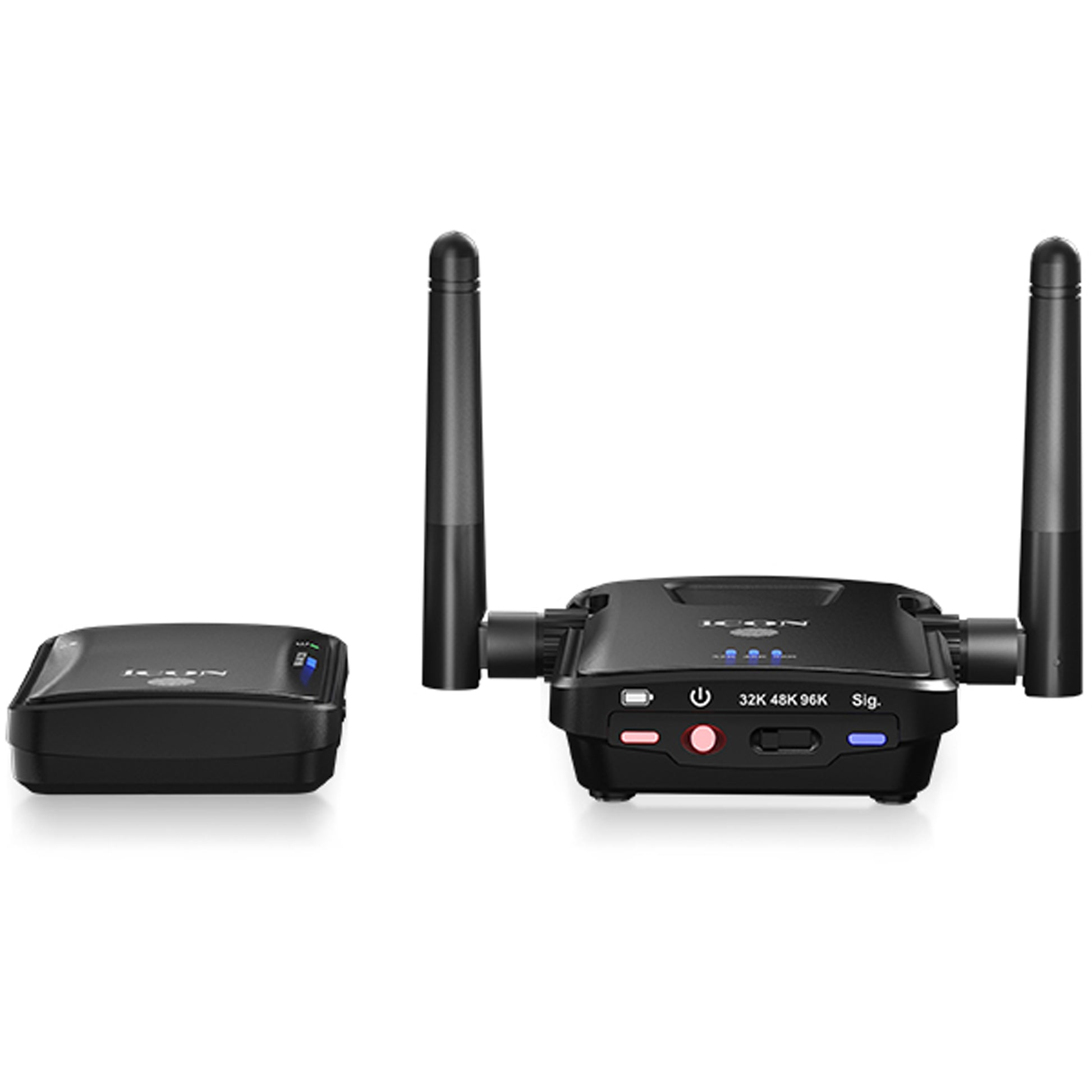

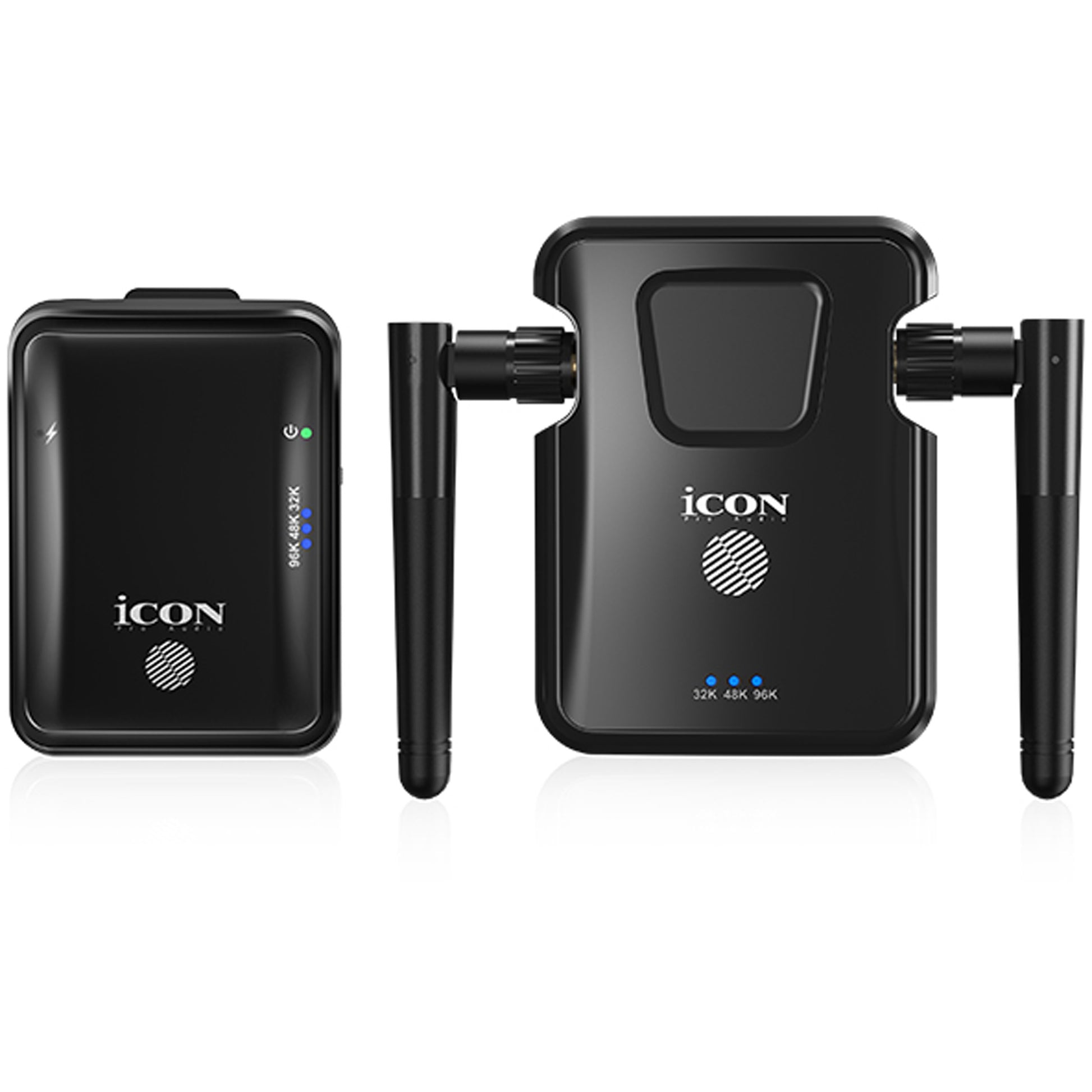

The AirMon Pro is a wireless monitoring system consisting of two modules; a transmitter and a receiver. The system is expandable with limitless receivers per transmitter and up to three transmitters per immediate area, depending on Wi-Fi strength.
Super low latency was at the top of the agenda in the design brief, as was the highest possible audio quality. The signal is transmitted digitally via 2.4 GHz. The available sample rates are 32K, 48K (16 bit mono) or 96K, the latter offering extremely high audio quality, 24 bit stereo signal. This represents unsurpassed audio quality for products of the AirMon Pro’s type and class.
Ideal for podcasters and performers who demand not only professional, but exemplary standards in audio quality, this uniquely advanced system offers robust, intelligent build quality, coupled with a stylish, sleek design.
| Product Name | Icon Airmon Pro Wireless Monitoring System |
|---|---|
| Brand | Icon |
| MPN | IPA-AIRMONPRO |
What's in the Box?
- Icon Airmon Pro Wireless Monitoring System
- USB Recharing cable
- storage pouch
- Sleek, super compact and stylish design
- Uncompressed digital transmission up to 24-bit/96KHz sampling rate
- 2.4GHz proprietary encryption technology for ultra-low latency for wireless transmission (less than 1.58ms)
- Infinitely expandable – use unlimited receivers per one transmitter
- 16 different selectable channels for multiple, individual transmissions simultaneously (use up to three transmitters in one location, depending on Wi-Fi signal)
- Uniquely innovative technology allows the user to select transmission sample rate from 32K, 48K MONO or 96K STEREO
- Headphone output port (3.5mm)
- Simple one button pairing technology
- Type C USB connector for charging
- Included USB C Y cable for convenient charging (both units at the same time)
- Rechargeable battery for both transmitter and receiver
- Belt clip fixture (receiver)
- Approximately six hours use on a full battery charge
| Audio - Transmitter | |
| Sampling bit rate | |
| 96KHz | 24bit |
| 48KHz | 16bit |
| 32KHz | 16bit |
| Channel Mode | |
| 96KHz | STEREO |
| 48KHz | MONO |
| 32KHz | MONO |
| Input Level | -3dBV |
| Input Impedance | 10K ohm |
| Audio - Receiver | |
| Sampling bit rate | |
| 96KHz | 24bit |
| 48KHz | 16bit |
| 32KHz | 16bit |
| Channel Mode | |
| 96KHz | STEREO |
| 48KHz | MONO |
| 32KHz | MONO |
| Output Level | 16mW |
| Output Impedance | 32 ohm |
| Radio Frequency - Transmitter | |
| Operating Frequency | 2400MHz-2483MHz |
| Digital Modulation | GFSK |
| Occupied Bandwidth | 4MHz +4MHz |
| Transmission output | 10mW |
| Selectable Channel | 16 channel |
| Radio Frequency - Receiver | |
| Operating Frequency | 2400MHz-2483MHz |
| Digital Modulation | GFSK |
| Occupied Bandwidth | 4MHz +4MHz |
| Receiving Sensitivity | -85dBm |
| Selectable Channel | 16 channel |
| Power - Transmitter | |
| Current consumption | 140mA |
| Power Requirements | Built-in rechargeable LiPo battery charged via USB 5V, 0.5A |
| Battery Operating Time | 6 hours for 1000 mA use |
| Power - Receiver | |
| Current consumption | 90mA |
| Power Requirements | Built-in rechargeable LiPo battery charged via USB 5V, 0.5A |
| Battery Operating Time | 11 hours for 1000 mA use. |
| Dimensions and Weights - Transmitter | |
| Dimensions (WxDxH) | 53mm x 71mm x 21mm (2.1"x2.8"x0.8") |
| Weight | 78.6g |
| Accessory | USB Recharing cable and storage pouch |
| Dimensions and Weights - Receiver | |
| Dimensions (WxDxH) | 44mm x 61mm x 21mm (1.7"x2.4"x0.8") |
| Weight | 41g |
| Accessory | USB Recharing cable and storage pouch |
Icon Airmon Pro Wireless Monitoring System
The AirMon Pro is a wireless monitoring system consisting of two modules; a transmitter and a receiver. The system is expandable with limitless receivers per transmitter and up to three transmitters per immediate area, depending on Wi-Fi strength.
Super low latency was at the top of the agenda in the design brief, as was the highest possible audio quality. The signal is transmitted digitally via 2.4 GHz. The available sample rates are 32K, 48K (16 bit mono) or 96K, the latter offering extremely high audio quality, 24 bit stereo signal. This represents unsurpassed audio quality for products of the AirMon Pro’s type and class.
Ideal for podcasters and performers who demand not only professional, but exemplary standards in audio quality, this uniquely advanced system offers robust, intelligent build quality, coupled with a stylish, sleek design.
| Product Name | Icon Airmon Pro Wireless Monitoring System |
|---|---|
| Brand | Icon |
| MPN | IPA-AIRMONPRO |
What's in the Box?
- Icon Airmon Pro Wireless Monitoring System
- USB Recharing cable
- storage pouch
- Sleek, super compact and stylish design
- Uncompressed digital transmission up to 24-bit/96KHz sampling rate
- 2.4GHz proprietary encryption technology for ultra-low latency for wireless transmission (less than 1.58ms)
- Infinitely expandable – use unlimited receivers per one transmitter
- 16 different selectable channels for multiple, individual transmissions simultaneously (use up to three transmitters in one location, depending on Wi-Fi signal)
- Uniquely innovative technology allows the user to select transmission sample rate from 32K, 48K MONO or 96K STEREO
- Headphone output port (3.5mm)
- Simple one button pairing technology
- Type C USB connector for charging
- Included USB C Y cable for convenient charging (both units at the same time)
- Rechargeable battery for both transmitter and receiver
- Belt clip fixture (receiver)
- Approximately six hours use on a full battery charge
| Audio - Transmitter | |
| Sampling bit rate | |
| 96KHz | 24bit |
| 48KHz | 16bit |
| 32KHz | 16bit |
| Channel Mode | |
| 96KHz | STEREO |
| 48KHz | MONO |
| 32KHz | MONO |
| Input Level | -3dBV |
| Input Impedance | 10K ohm |
| Audio - Receiver | |
| Sampling bit rate | |
| 96KHz | 24bit |
| 48KHz | 16bit |
| 32KHz | 16bit |
| Channel Mode | |
| 96KHz | STEREO |
| 48KHz | MONO |
| 32KHz | MONO |
| Output Level | 16mW |
| Output Impedance | 32 ohm |
| Radio Frequency - Transmitter | |
| Operating Frequency | 2400MHz-2483MHz |
| Digital Modulation | GFSK |
| Occupied Bandwidth | 4MHz +4MHz |
| Transmission output | 10mW |
| Selectable Channel | 16 channel |
| Radio Frequency - Receiver | |
| Operating Frequency | 2400MHz-2483MHz |
| Digital Modulation | GFSK |
| Occupied Bandwidth | 4MHz +4MHz |
| Receiving Sensitivity | -85dBm |
| Selectable Channel | 16 channel |
| Power - Transmitter | |
| Current consumption | 140mA |
| Power Requirements | Built-in rechargeable LiPo battery charged via USB 5V, 0.5A |
| Battery Operating Time | 6 hours for 1000 mA use |
| Power - Receiver | |
| Current consumption | 90mA |
| Power Requirements | Built-in rechargeable LiPo battery charged via USB 5V, 0.5A |
| Battery Operating Time | 11 hours for 1000 mA use. |
| Dimensions and Weights - Transmitter | |
| Dimensions (WxDxH) | 53mm x 71mm x 21mm (2.1"x2.8"x0.8") |
| Weight | 78.6g |
| Accessory | USB Recharing cable and storage pouch |
| Dimensions and Weights - Receiver | |
| Dimensions (WxDxH) | 44mm x 61mm x 21mm (1.7"x2.4"x0.8") |
| Weight | 41g |
| Accessory | USB Recharing cable and storage pouch |
