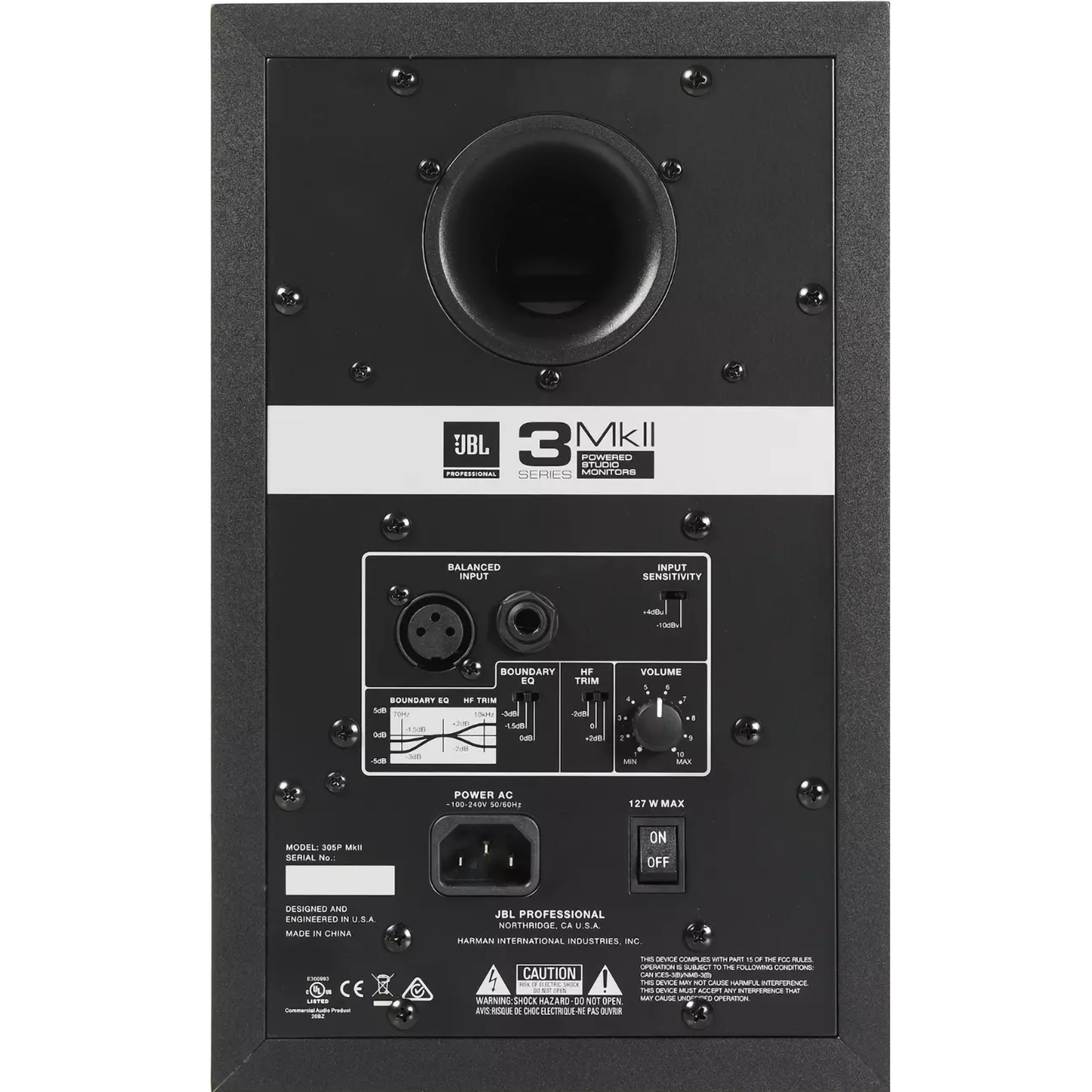

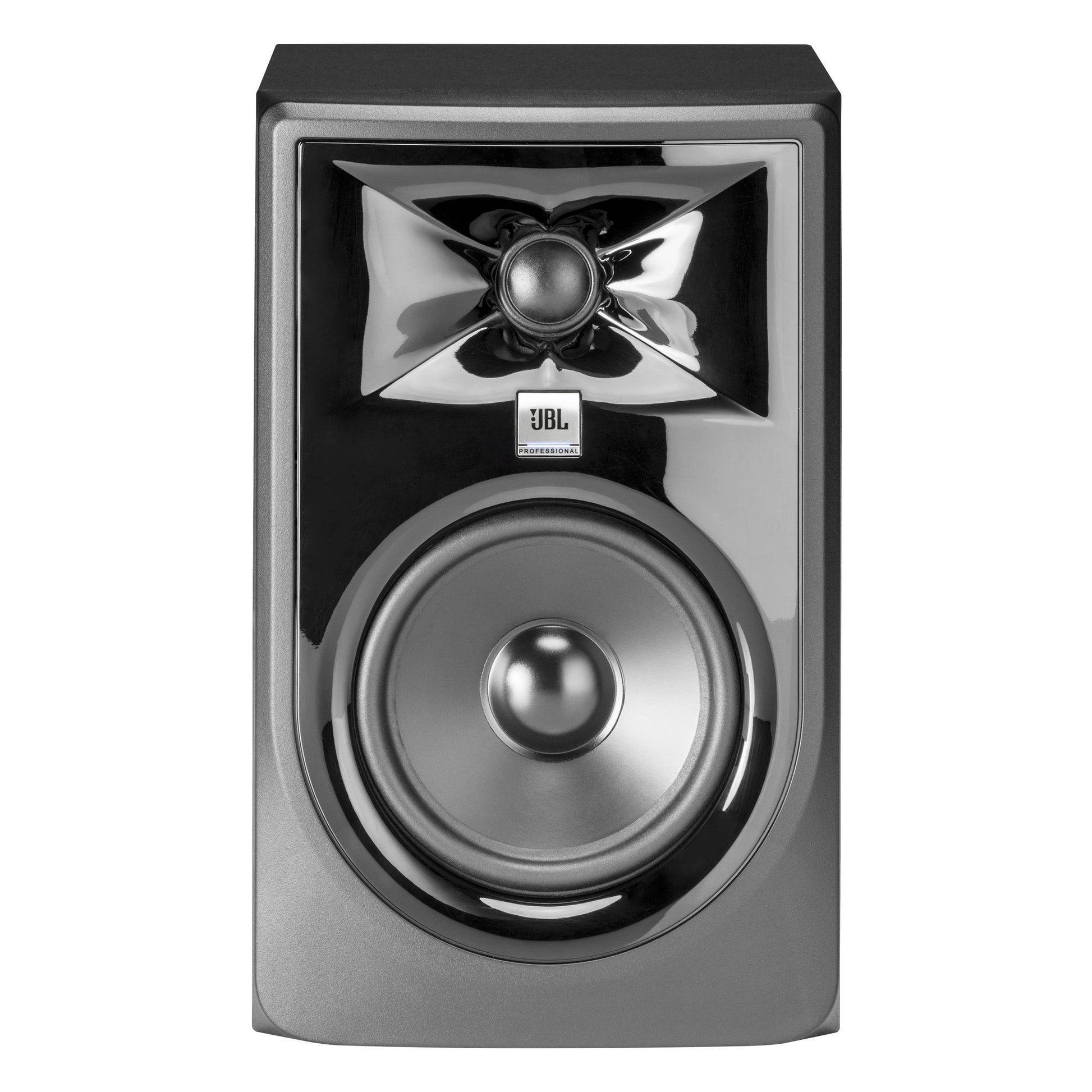

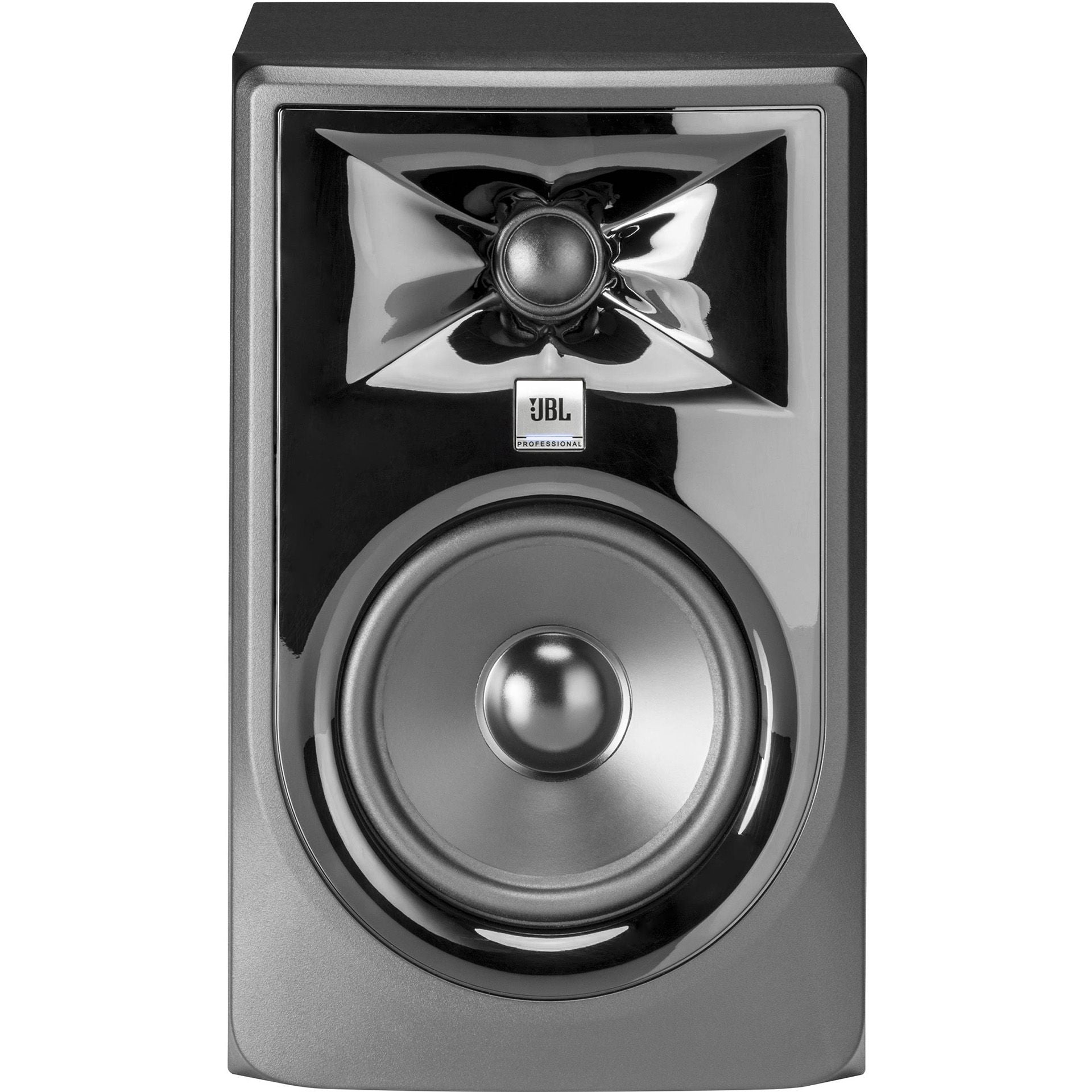

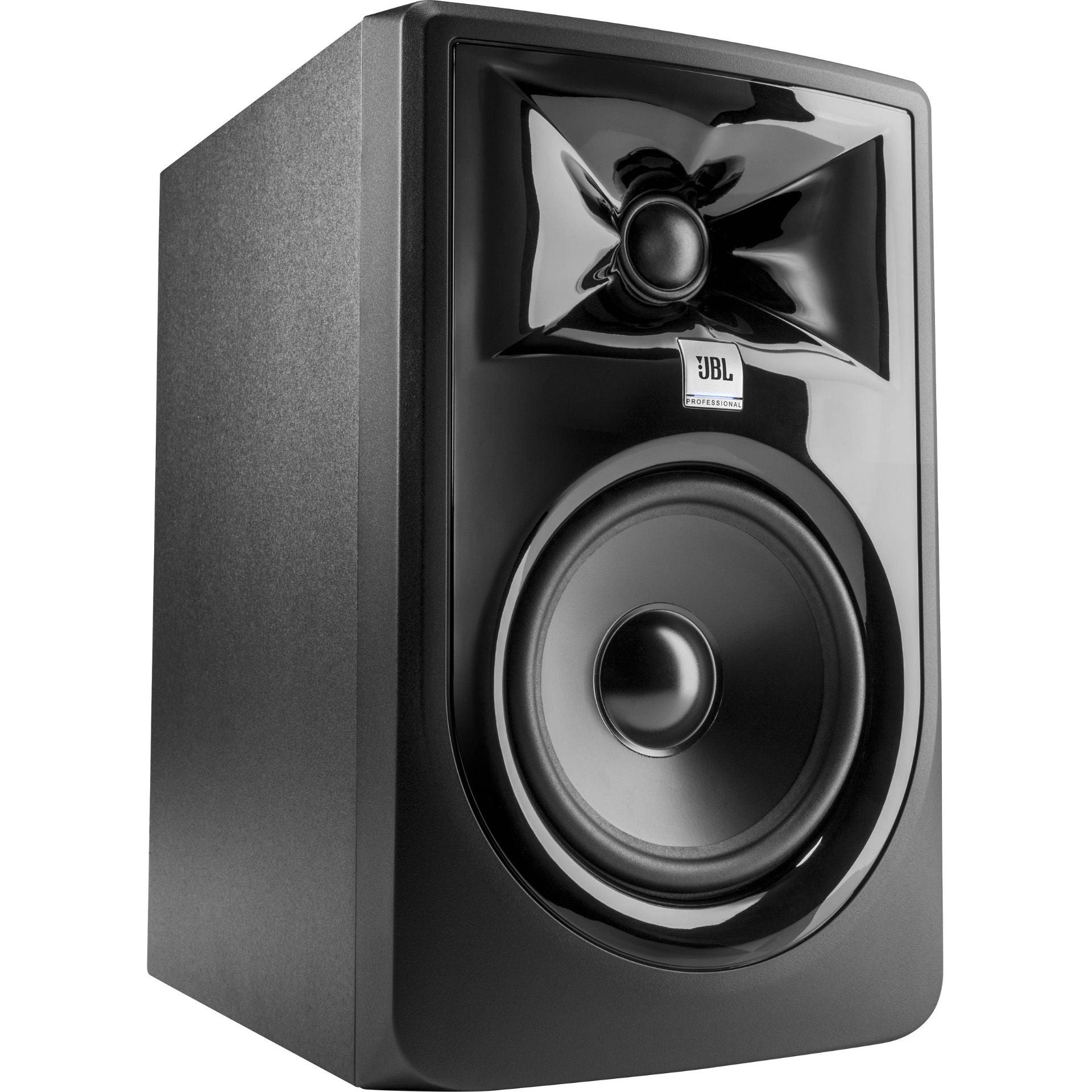

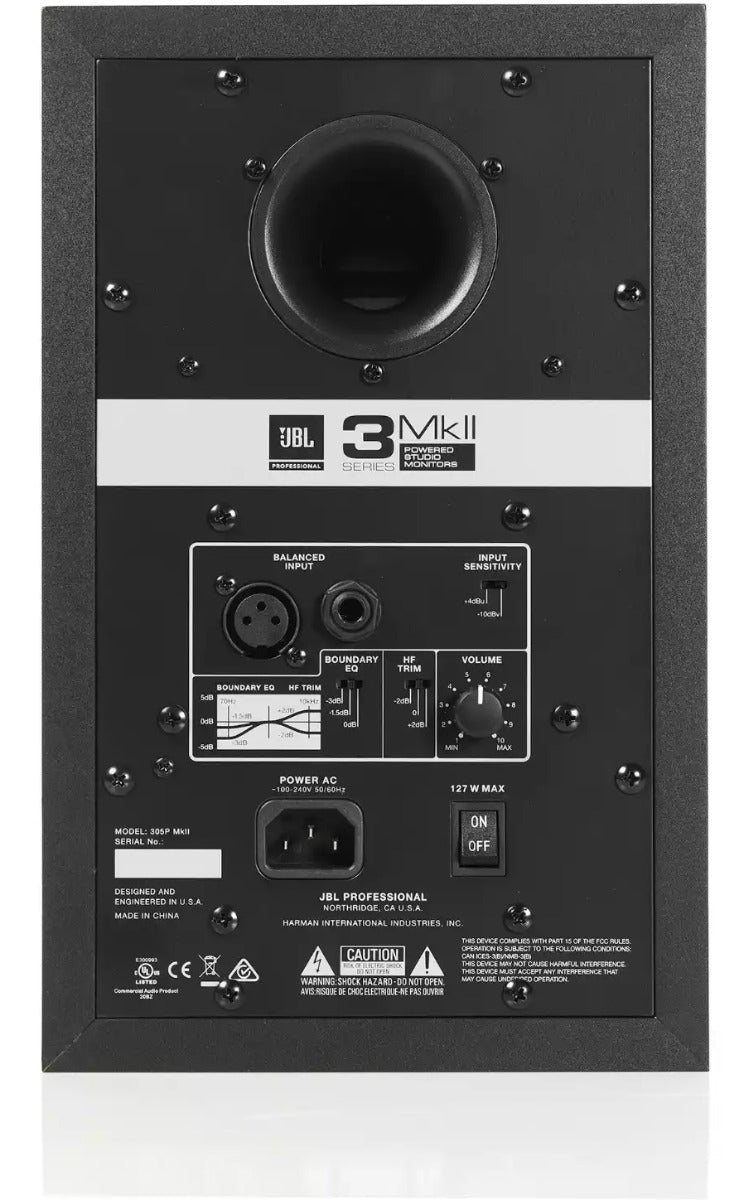

JBL 305P MkII Powered 5" Two-Way Studio Monitor
JBL 305P MkII Powered 5" Two-Way Studio Monitor
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Ready to ship immediately!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews
Building on JBL legacy of high-quality sound performance, the 3 series Mk II represents an upgrade of the impressive LSR3 series. These compact, professional quality, powered studio monitors retain the LSR3 series' image control waveguide for incredible detail and imaging, and the broad sweet spot that means you get optimal sound even off-axis. The Mk II series now features updated high-frequency (HF) and low-frequency (LF) transducers, which respectively provide optimized damping for superior transient response and greater linearity that allows impressively deep bass with lower harmonic distortion. Upgrades also include new boundary equalization (EQ), which restores neutral LF response when speakers are placed on the work surface and adjacent walls. Hear for yourself why JBL is legendary in sound performance and quality!
| Product Name | JBL 305P MkII Powered 5" Two-Way Studio Monitor |
|---|---|
| Brand | JBL |
| Condition | New |
| MPN | 305PMKII |
| UPC | 691991007705 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- JBL 305P MkII Powered 5" Two-Way Studio Monitor
- Power cord
- Quick set-up guide
- x4 Peel-off rubber pads
- MkII series features next-generation JBL transducers, new Boundary EQ, and a sleek new design.Waterproof : No
- Updated HF and LF transducers: new design improvements result in optimized damping for superior transient response and impressive deep bass with lower harmonic distortion
- New boundary EQ: restores neutral low frequency response when speakers are placed on the work surface and adjacent to walls
- Sleek, modern design provides a dramatic flair to any studio
- Broad sweet spot: neutral frequency response across a wide area allows you to fine-tune your mix even while listening off-axis
| LF Driver Size | 127 mm (5") |
| HF Driver Size | 25 mm (1") |
| HF Driver Type | Soft dome |
| Crossover | 1725Hz 4th order acoustic Linkwitz-Riley |
| Power Configuration | Bi-amplified |
| HF Driver Power Amp | 41 W Class D |
| LF Driver Power Amp | 41 W Class D |
| Frequency Response | 49Hz – 20kHz (±3dB) |
| Frequency Range | 43Hz – 20kHz (-10dB) |
| Low Frequency Extension | 43Hz (-10dB) |
| Maximum Continuous SPL | 94dB |
| Maximum Peak SPL | 108dB |
| Maximum Peak Input Level | +6dBV / +20.3dBu (-10dBV / +4dBu) |
| System Distortion Criteria | <10% THD at maximum output with full compressor / limiter engagement |
| Electrical Distortion Criteria | 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output |
| Signal to Noise Ratio | 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output |
| Coverage Pattern | 120° x 90° (horizontal x vertical) |
| HF Trim Control | -2dB, 0dB, +2dB |
| Boundary EQ | LF Shelf @ 50Hz |
| AC Input Voltage | 100 – 240VAC (±10%), 50 / 60Hz |
JBL 305P MkII Powered 5" Two-Way Studio Monitor
Building on JBL legacy of high-quality sound performance, the 3 series Mk II represents an upgrade of the impressive LSR3 series. These compact, professional quality, powered studio monitors retain the LSR3 series' image control waveguide for incredible detail and imaging, and the broad sweet spot that means you get optimal sound even off-axis. The Mk II series now features updated high-frequency (HF) and low-frequency (LF) transducers, which respectively provide optimized damping for superior transient response and greater linearity that allows impressively deep bass with lower harmonic distortion. Upgrades also include new boundary equalization (EQ), which restores neutral LF response when speakers are placed on the work surface and adjacent walls. Hear for yourself why JBL is legendary in sound performance and quality!
| Product Name | JBL 305P MkII Powered 5" Two-Way Studio Monitor |
|---|---|
| Brand | JBL |
| Condition | New |
| MPN | 305PMKII |
| UPC | 691991007705 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- JBL 305P MkII Powered 5" Two-Way Studio Monitor
- Power cord
- Quick set-up guide
- x4 Peel-off rubber pads
- MkII series features next-generation JBL transducers, new Boundary EQ, and a sleek new design.Waterproof : No
- Updated HF and LF transducers: new design improvements result in optimized damping for superior transient response and impressive deep bass with lower harmonic distortion
- New boundary EQ: restores neutral low frequency response when speakers are placed on the work surface and adjacent to walls
- Sleek, modern design provides a dramatic flair to any studio
- Broad sweet spot: neutral frequency response across a wide area allows you to fine-tune your mix even while listening off-axis
| LF Driver Size | 127 mm (5") |
| HF Driver Size | 25 mm (1") |
| HF Driver Type | Soft dome |
| Crossover | 1725Hz 4th order acoustic Linkwitz-Riley |
| Power Configuration | Bi-amplified |
| HF Driver Power Amp | 41 W Class D |
| LF Driver Power Amp | 41 W Class D |
| Frequency Response | 49Hz – 20kHz (±3dB) |
| Frequency Range | 43Hz – 20kHz (-10dB) |
| Low Frequency Extension | 43Hz (-10dB) |
| Maximum Continuous SPL | 94dB |
| Maximum Peak SPL | 108dB |
| Maximum Peak Input Level | +6dBV / +20.3dBu (-10dBV / +4dBu) |
| System Distortion Criteria | <10% THD at maximum output with full compressor / limiter engagement |
| Electrical Distortion Criteria | 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output |
| Signal to Noise Ratio | 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output |
| Coverage Pattern | 120° x 90° (horizontal x vertical) |
| HF Trim Control | -2dB, 0dB, +2dB |
| Boundary EQ | LF Shelf @ 50Hz |
| AC Input Voltage | 100 – 240VAC (±10%), 50 / 60Hz |
