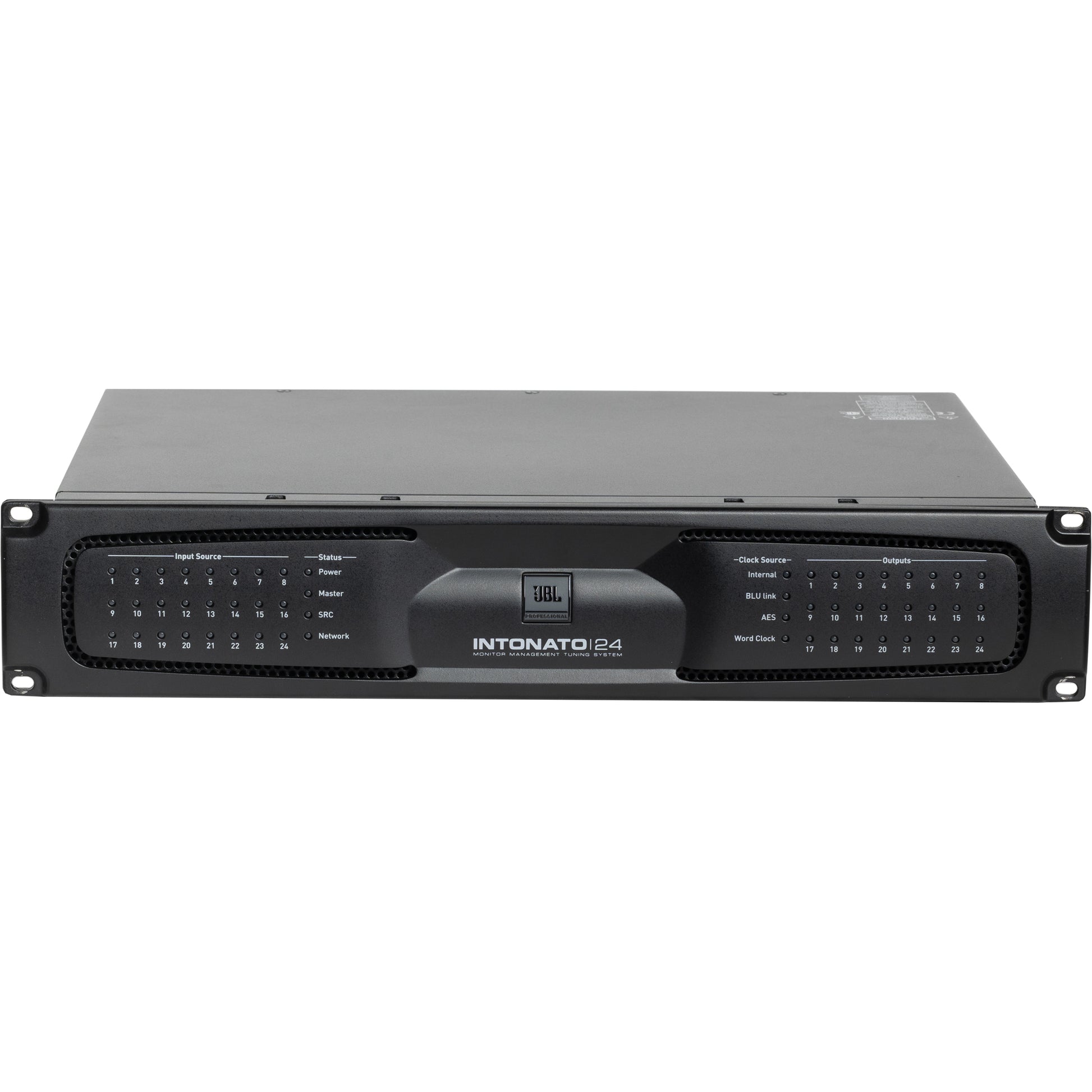

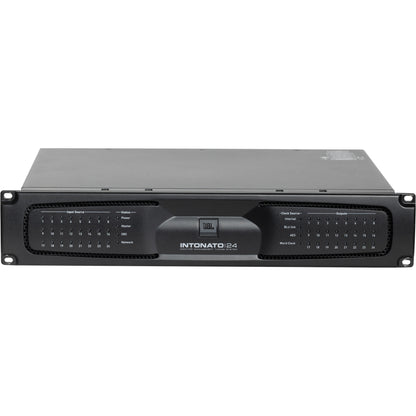

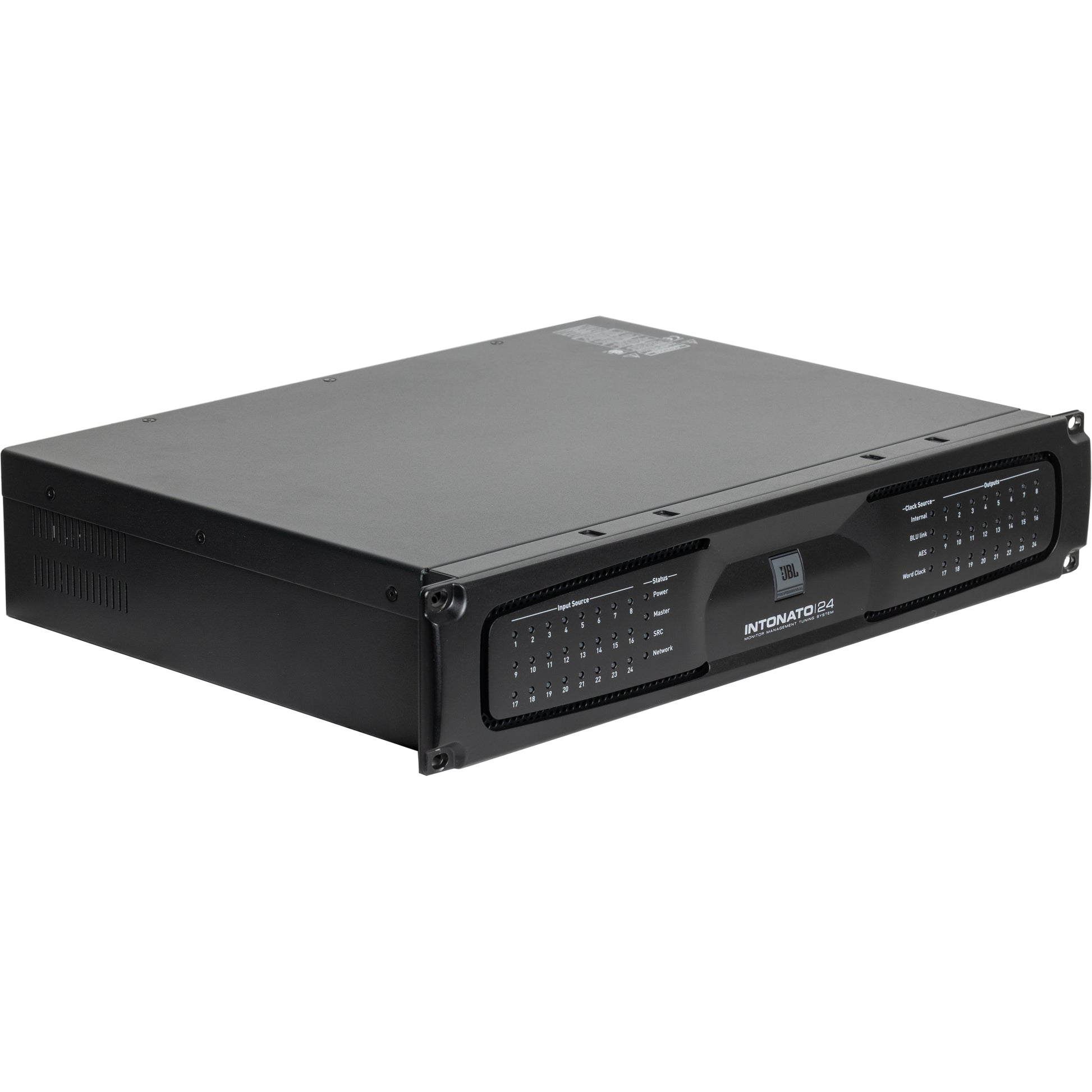

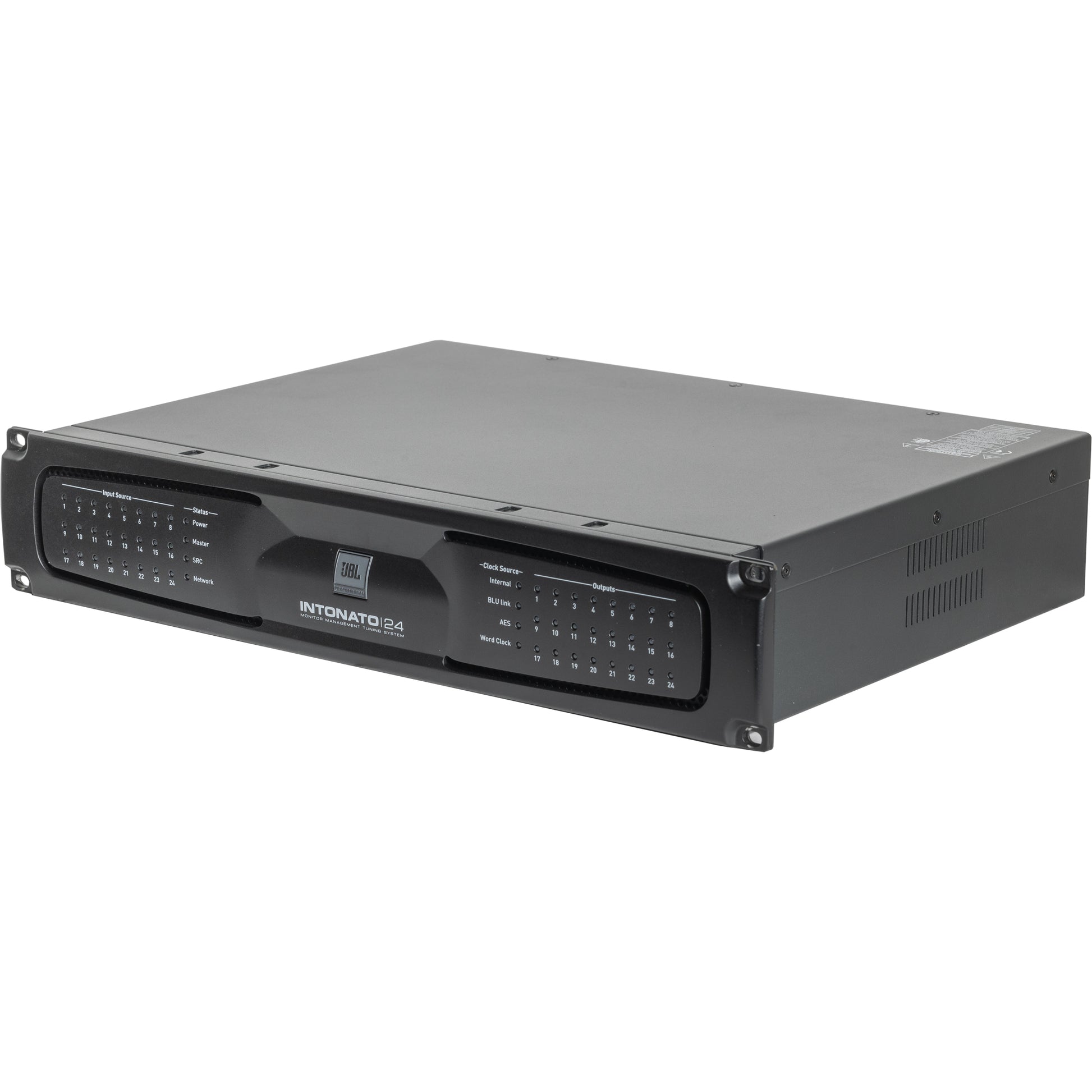

The JBL Intonato 24 Monitor Management Tuning System provides easy setup, automated calibration and comprehensive control of professional monitoring systems. Housed in a 2U rack-mount enclosure, Intonato 24 precisely calibrates and controls up to 24 speakers configured as stereo, surround or immersive audio systems. You can create and instantly recall customized routing of up to 24 analog, digital and networked audio sources. Included software and an optional Desktop Controller put the system’s powerful monitoring features at your fingertips. Intonato 24 delivers the benefits of a precisely calibrated system, and takes control room monitoring to the next level. Intonato, from the Latin verb Intonare meaning “tuned,” “matched,” “in tune,” describes a primary attribute of all speakers in the ideal control room monitoring environment.
| Product Name | JBL Intonato 24 FX Monitor Management Tuning System |
|---|---|
| Brand | JBL |
| Condition | Repack |
| MPN | INTONATO24FX |
| UPC | 691991006197 |
What's in the Box?
- JBL Intonato 24 FX Monitor Management Tuning System
- Compatible with all professional studio monitors
- Input connections for 24 analog, AES /EBU Inputs; up to 256 channels of networked audio in HARMAN BLU link or Dante format (with optional BLUDAN interface)
- Software-controlled analog input sensitivity switches, level indicators and gain trims
- Output connections include 24 analog outputs to powered speakers and power amplifiers;
- BLU link output allows networked connection to HARMAN Crown power amplifiers
- Selectively monitor via one or more monitoring systems of up to 24 speakers
- Volume, Mute, and Dim controls, plus individual speaker Mute and Solo
- Automated Speaker Calibration with included microphone precisely balances, tunes and aligns all speakers to deliver greater accuracy to the mix position in any room; 12 bands of Room EQ, Delay, Level per speaker
- Per-speaker, 8-Band User EQ allows standard and customized response curves such as X-Curve and compensation for perforated screen transmission loss
- Sophisticated subwoofer integration for LFE channels and bass management
- Variable Audio/Video Sync delay allows compensation for video display latency
- Stereo Aux Out with dedicated level control, EQ and talk back system allows an
- independent feed to be sent to talent or a remote “green room”
- Create, store and instantly recall project-specific configurations and speaker tunings
- Intuitive setup and control with included Macintosh, Windows and iOS/Android tablet software or optional Intonato Desktop Controller
- Low-noise fan for quiet operation
| BLU Link Audio Connectors | 2 x RJ45 |
| Latency | 11/Fs (0.23 ms @ 48 kbps, 0.11 ms @ 96 kbps) Pass-Through Latency: 4/Fs (0.08 ms @ 48 kbps, 0.04 ms @ 96 kbps) |
| Word Clock Input | 44.1, 48, 88.2, 96 kHz supported sample rate tolerance |
| A/D Converter | 24-bit |
| Dynamic Range | AD: 114 dB A-weighted DA: 115 dB A-weighted |
| DA Conversion | 24-bit |
| Word Length | Internal Processing: 32-bit |
| Supported Sample Rate | 44.1, 48, 88.2, 96 kHz; 32-192 kHz, sample-rate converters enabled |
| Total Harmonic Distortion (THD) + N | 0.007% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response | 20 Hz to 20 kHz, +0 /- 0.5 dB |
| Latency | AES In to Analog Out (96 kHz): 2.15 ms BLU Link Input to BLU Link Output (96 kHz): 0.04 ms |
| Speaker Tuning Presets | JBL 705i, 708i, and M2 |
| Equalization | User: 8-band fully parametric EQ with selectable filter type Room: 12-band fully parametric EQ |
| Crossover Adjustment | Variable |
| Speaker Output | Delay: Up to 18 ms per output channel for speaker time-of-arrival offset |
| Synchronization | A/V Delay: Up to 150 ms (globally applied to all output channels except aux outputs) |
| AUX Outputs | Delay: Up to 150 ms |
| Volume Control | Master: -120 dB to 0 dB Dim: User adjustable, -120 dB to 0 dB |

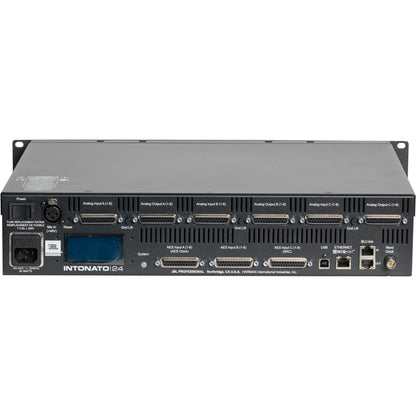

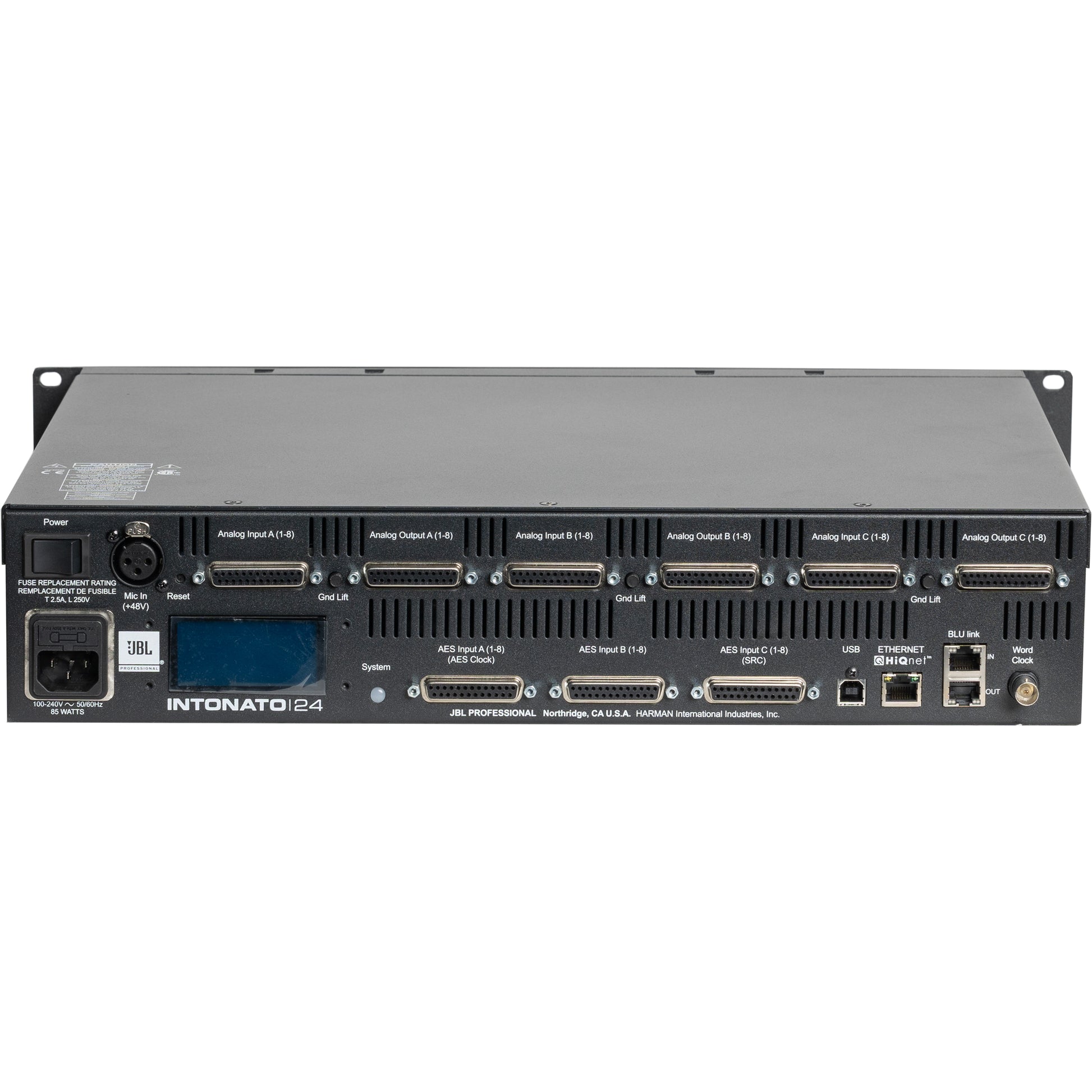

| Audio Output | Total Simultaneous Outputs: 24 analog outputs and 24 simultaneous BLU Link outputs Connectors: 3 x female 25-pin D-Sub connectors 24 Balanced Analog Outputs: 3-pin female XLR Max Output Level: +24 dBu, balanced, ≤ .006% THD |
| Audio Input | Total Simultaneous Inputs: 24 (selectable among the available 24 analog, 24 AES3, and 24 BLU Link input channels) Analog Input Connectors: 3 x female 25-pin D-Sub connectors Type: Electronically balanced, RF filtered Impedance: >48 kOhms balanced, >24 kOhms unbalanced Input Sensitivity: Selectable in software per D-Sub connector Max Input Level: +28 dBu, ≤0.008% THD CMRR 24 x AES3 Digital Inputs 8 Sample Rate Conversion: Selectable in software 1 calibration mic / talk back mic input With Phantom Power: +48 VDC |
| Rack Height | 2 RU |
JBL Intonato 24 FX Monitor Management Tuning System
Details
The JBL Intonato 24 Monitor Management Tuning System provides easy setup, automated calibration and comprehensive control of professional monitoring systems. Housed in a 2U rack-mount enclosure, Intonato 24 precisely calibrates and controls up to 24 speakers configured as stereo, surround or immersive audio systems. You can create and instantly recall customized routing of up to 24 analog, digital and networked audio sources. Included software and an optional Desktop Controller put the system’s powerful monitoring features at your fingertips. Intonato 24 delivers the benefits of a precisely calibrated system, and takes control room monitoring to the next level. Intonato, from the Latin verb Intonare meaning “tuned,” “matched,” “in tune,” describes a primary attribute of all speakers in the ideal control room monitoring environment.
| Product Name | JBL Intonato 24 FX Monitor Management Tuning System |
|---|---|
| Brand | JBL |
| Condition | Repack |
| MPN | INTONATO24FX |
| UPC | 691991006197 |
What's in the Box?
- JBL Intonato 24 FX Monitor Management Tuning System
Features
- Compatible with all professional studio monitors
- Input connections for 24 analog, AES /EBU Inputs; up to 256 channels of networked audio in HARMAN BLU link or Dante format (with optional BLUDAN interface)
- Software-controlled analog input sensitivity switches, level indicators and gain trims
- Output connections include 24 analog outputs to powered speakers and power amplifiers;
- BLU link output allows networked connection to HARMAN Crown power amplifiers
- Selectively monitor via one or more monitoring systems of up to 24 speakers
- Volume, Mute, and Dim controls, plus individual speaker Mute and Solo
- Automated Speaker Calibration with included microphone precisely balances, tunes and aligns all speakers to deliver greater accuracy to the mix position in any room; 12 bands of Room EQ, Delay, Level per speaker
- Per-speaker, 8-Band User EQ allows standard and customized response curves such as X-Curve and compensation for perforated screen transmission loss
- Sophisticated subwoofer integration for LFE channels and bass management
- Variable Audio/Video Sync delay allows compensation for video display latency
- Stereo Aux Out with dedicated level control, EQ and talk back system allows an
- independent feed to be sent to talent or a remote “green room”
- Create, store and instantly recall project-specific configurations and speaker tunings
- Intuitive setup and control with included Macintosh, Windows and iOS/Android tablet software or optional Intonato Desktop Controller
- Low-noise fan for quiet operation
Tech Specs
| BLU Link Audio Connectors | 2 x RJ45 |
| Latency | 11/Fs (0.23 ms @ 48 kbps, 0.11 ms @ 96 kbps) Pass-Through Latency: 4/Fs (0.08 ms @ 48 kbps, 0.04 ms @ 96 kbps) |
| Word Clock Input | 44.1, 48, 88.2, 96 kHz supported sample rate tolerance |
| A/D Converter | 24-bit |
| Dynamic Range | AD: 114 dB A-weighted DA: 115 dB A-weighted |
| DA Conversion | 24-bit |
| Word Length | Internal Processing: 32-bit |
| Supported Sample Rate | 44.1, 48, 88.2, 96 kHz; 32-192 kHz, sample-rate converters enabled |
| Total Harmonic Distortion (THD) + N | 0.007% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response | 20 Hz to 20 kHz, +0 /- 0.5 dB |
| Latency | AES In to Analog Out (96 kHz): 2.15 ms BLU Link Input to BLU Link Output (96 kHz): 0.04 ms |
| Speaker Tuning Presets | JBL 705i, 708i, and M2 |
| Equalization | User: 8-band fully parametric EQ with selectable filter type Room: 12-band fully parametric EQ |
| Crossover Adjustment | Variable |
| Speaker Output | Delay: Up to 18 ms per output channel for speaker time-of-arrival offset |
| Synchronization | A/V Delay: Up to 150 ms (globally applied to all output channels except aux outputs) |
| AUX Outputs | Delay: Up to 150 ms |
| Volume Control | Master: -120 dB to 0 dB Dim: User adjustable, -120 dB to 0 dB |
| Audio Output | Total Simultaneous Outputs: 24 analog outputs and 24 simultaneous BLU Link outputs Connectors: 3 x female 25-pin D-Sub connectors 24 Balanced Analog Outputs: 3-pin female XLR Max Output Level: +24 dBu, balanced, ≤ .006% THD |
| Audio Input | Total Simultaneous Inputs: 24 (selectable among the available 24 analog, 24 AES3, and 24 BLU Link input channels) Analog Input Connectors: 3 x female 25-pin D-Sub connectors Type: Electronically balanced, RF filtered Impedance: >48 kOhms balanced, >24 kOhms unbalanced Input Sensitivity: Selectable in software per D-Sub connector Max Input Level: +28 dBu, ≤0.008% THD CMRR 24 x AES3 Digital Inputs 8 Sample Rate Conversion: Selectable in software 1 calibration mic / talk back mic input With Phantom Power: +48 VDC |
| Rack Height | 2 RU |
