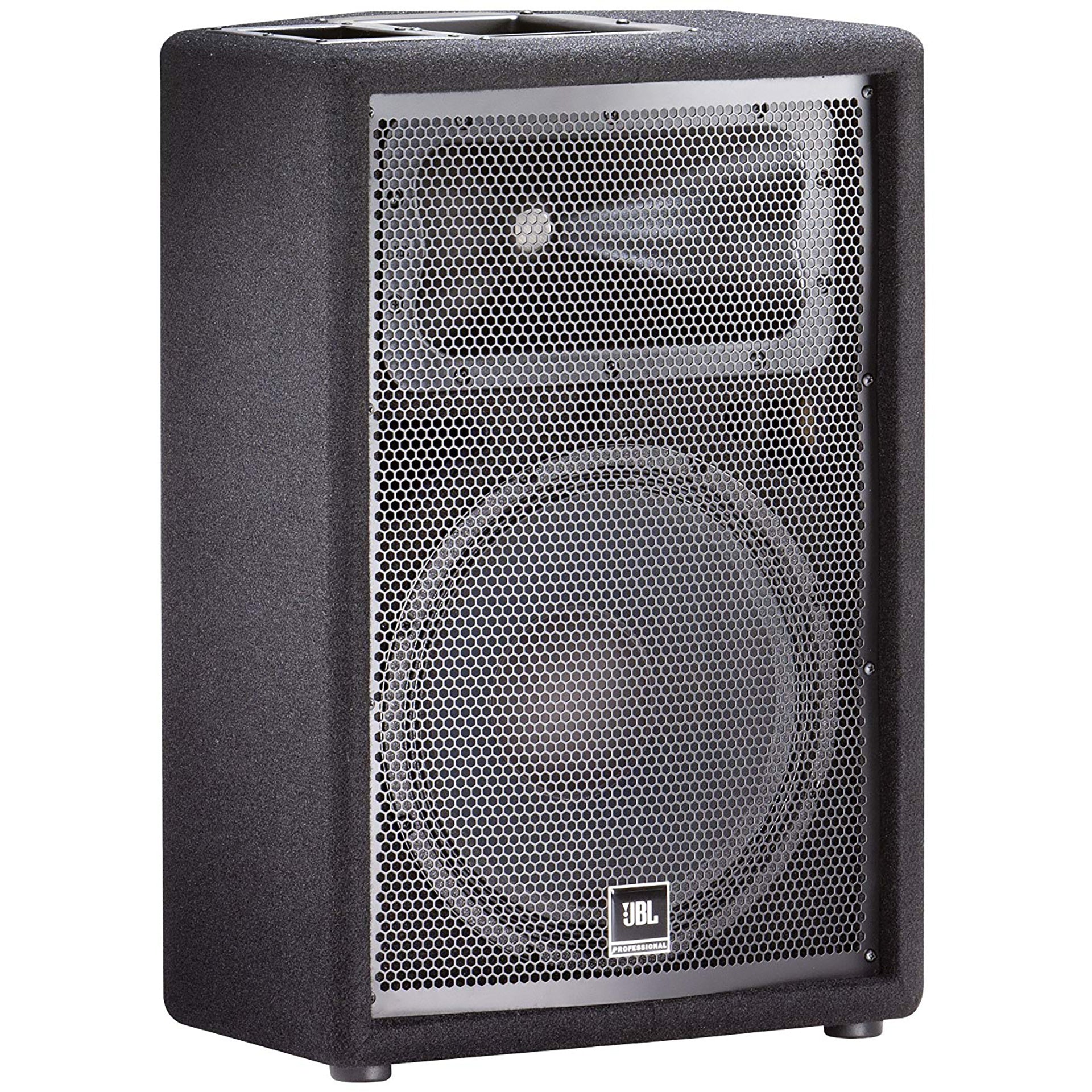

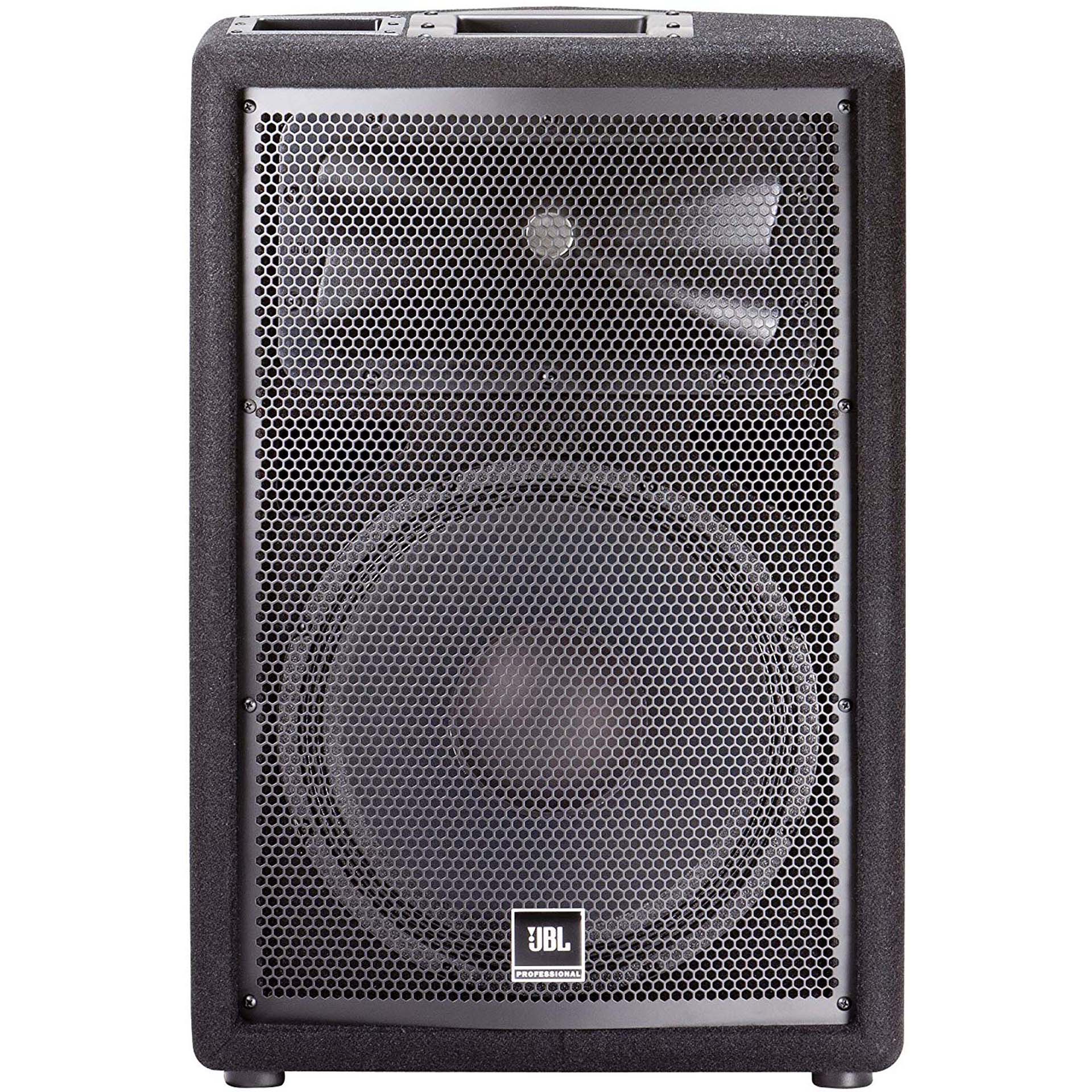

The JRX212 is a portable, 12-inch, two-way speaker system designed specifically for live performance stage monitoring applications. The JRX200 series delivers the performance and prestige that JBL is known for at an affordable price point. To meet these conflicting design goals, they looked at every element of the speaker system design.
JBL kept everything that makes a speaker perform and sound its best and we eliminated things that don't. With performance, value and popular price points, they are going to be building a lot of JRX200 speakers. This means we can apply efficient, high-volume production methods and purchase materials at the lowest cost. That's how JRX200 delivers unprecedented value.
- 12" low-frequency driver with a 2.5"-diameter edgewound ribbon voice coil
- 1" polymer-diaphragm compression driver
- Progressive Transition high-frequency waveguide provides superior coverage control
- Advanced network topology design shapes frequency response
- High-voltage capacitors and inductors with massive cores and heavy-gauge wire
- Rugged, acoustically superior enclosure is constructed from 3/4" MDF
- Attractive 18-gauge hexagon perforated, steel grille protects components

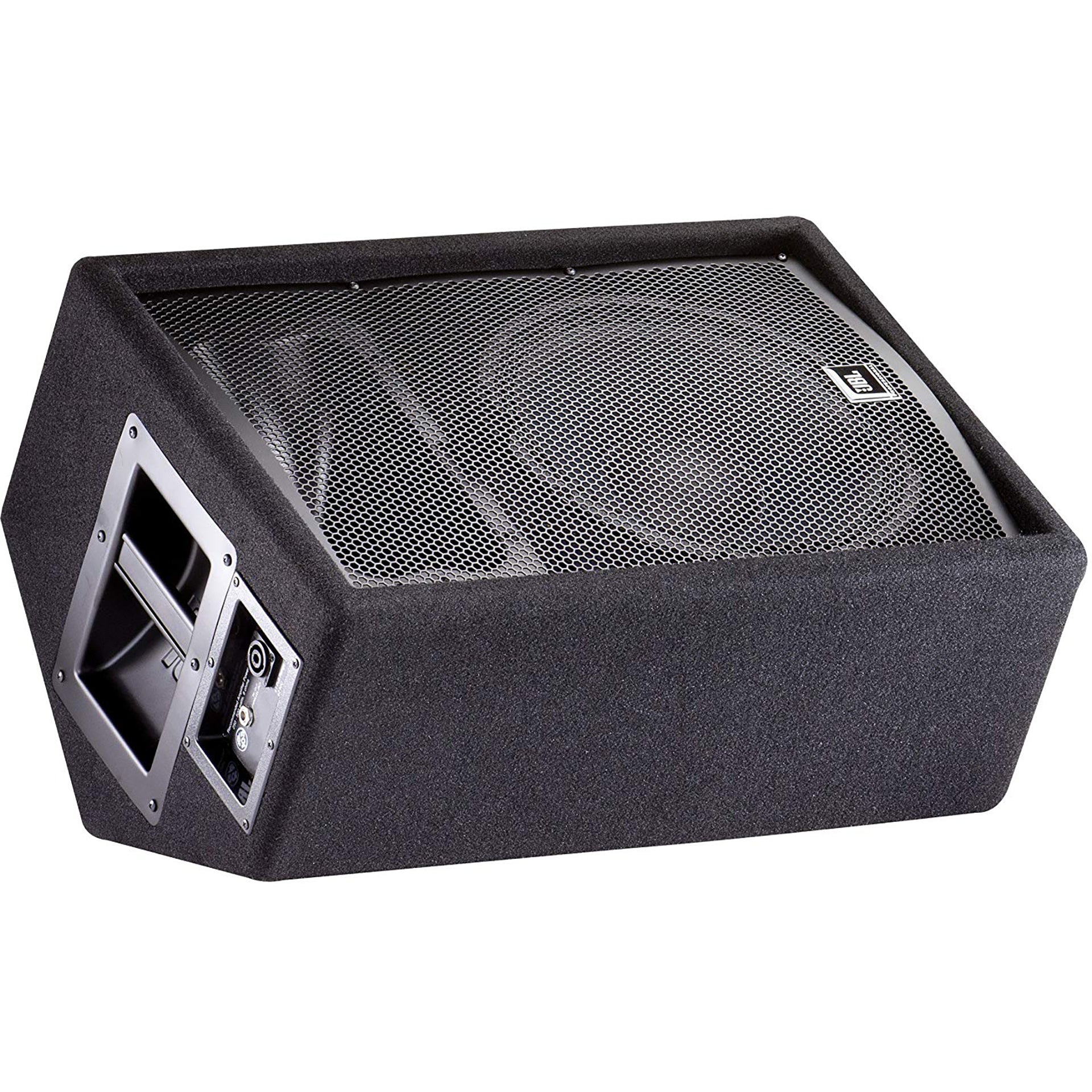

- Dual-angle pole-mount socket lets speaker tilt for more uniform audience coverage
Product Name | JBL JRX212 12" Two-Way Sound Reinforcement Loudspeaker System |
---|---|
Brand | JBL |
Condition | New |
MPN | JRX212 |
UPC | 050036904490 |
Shipping Option | Free Shipping to the Continental U.S. |
Parameter | Specification |
---|---|
Power Rating (Continuous/Peak) | 250 W / 1000 W |
Frequency Range (-10 dB) | 60 Hz - 20 kHz |
Frequency Response (±3 dB) | 80 Hz - 18 kHz |
Sensitivity (@1m) | 98 dB SPL (1w/1m) |
Nominal Impedance | 8 ohms |
Recommended Amplifier Power | 250 W to 500 W into 8 ohms |
Maximum SPL (peak) | 128 dB |
Nominal Dispersion | 90° x 50° |
Crossover Frequency | 2.1 kHz |
Dimensions (H x W x D) | 584 mm x 399 mm x 325 mm (23 in x 15.7 in x 12.8 in) |
Weight | 19.5 kg (43 lb) |
High Frequency Driver | JBL 2414H-C 1" exit compression driver mounted on Progressive Transition Waveguide |
Low Frequency Driver | JBL M112-8 |

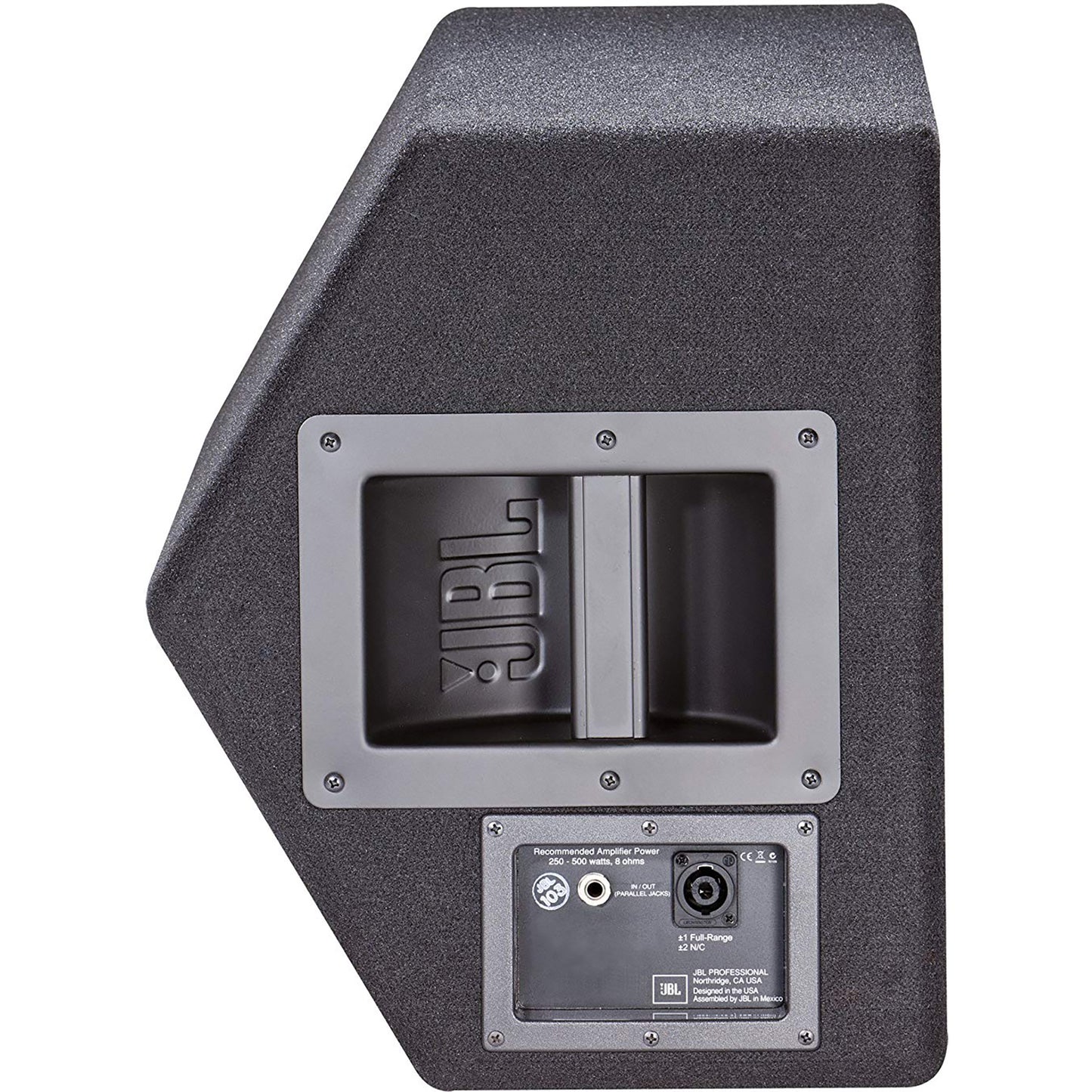

Input Connectors | Neutrik Speakon NL-4 (x1); .25 in TS phone jack (x1); parallel |
Grille | 18-gauge, powder-coated steel |
Mounting & Suspension | 36 mm, dual-angle pole-mount socket |
JBL JRX212 12" Two-Way Sound Reinforcement Loudspeaker System
The JRX212 is a portable, 12-inch, two-way speaker system designed specifically for live performance stage monitoring applications. The JRX200 series delivers the performance and prestige that JBL is known for at an affordable price point. To meet these conflicting design goals, they looked at every element of the speaker system design.
JBL kept everything that makes a speaker perform and sound its best and we eliminated things that don't. With performance, value and popular price points, they are going to be building a lot of JRX200 speakers. This means we can apply efficient, high-volume production methods and purchase materials at the lowest cost. That's how JRX200 delivers unprecedented value.
- 12" low-frequency driver with a 2.5"-diameter edgewound ribbon voice coil
- 1" polymer-diaphragm compression driver
- Progressive Transition high-frequency waveguide provides superior coverage control
- Advanced network topology design shapes frequency response
- High-voltage capacitors and inductors with massive cores and heavy-gauge wire
- Rugged, acoustically superior enclosure is constructed from 3/4" MDF
- Attractive 18-gauge hexagon perforated, steel grille protects components
- Dual-angle pole-mount socket lets speaker tilt for more uniform audience coverage
Product Name | JBL JRX212 12" Two-Way Sound Reinforcement Loudspeaker System |
---|---|
Brand | JBL |
Condition | New |
MPN | JRX212 |
UPC | 050036904490 |
Shipping Option | Free Shipping to the Continental U.S. |
Parameter | Specification |
---|---|
Power Rating (Continuous/Peak) | 250 W / 1000 W |
Frequency Range (-10 dB) | 60 Hz - 20 kHz |
Frequency Response (±3 dB) | 80 Hz - 18 kHz |
Sensitivity (@1m) | 98 dB SPL (1w/1m) |
Nominal Impedance | 8 ohms |
Recommended Amplifier Power | 250 W to 500 W into 8 ohms |
Maximum SPL (peak) | 128 dB |
Nominal Dispersion | 90° x 50° |
Crossover Frequency | 2.1 kHz |
Dimensions (H x W x D) | 584 mm x 399 mm x 325 mm (23 in x 15.7 in x 12.8 in) |
Weight | 19.5 kg (43 lb) |
High Frequency Driver | JBL 2414H-C 1" exit compression driver mounted on Progressive Transition Waveguide |
Low Frequency Driver | JBL M112-8 |
Input Connectors | Neutrik Speakon NL-4 (x1); .25 in TS phone jack (x1); parallel |
Grille | 18-gauge, powder-coated steel |
Mounting & Suspension | 36 mm, dual-angle pole-mount socket |
