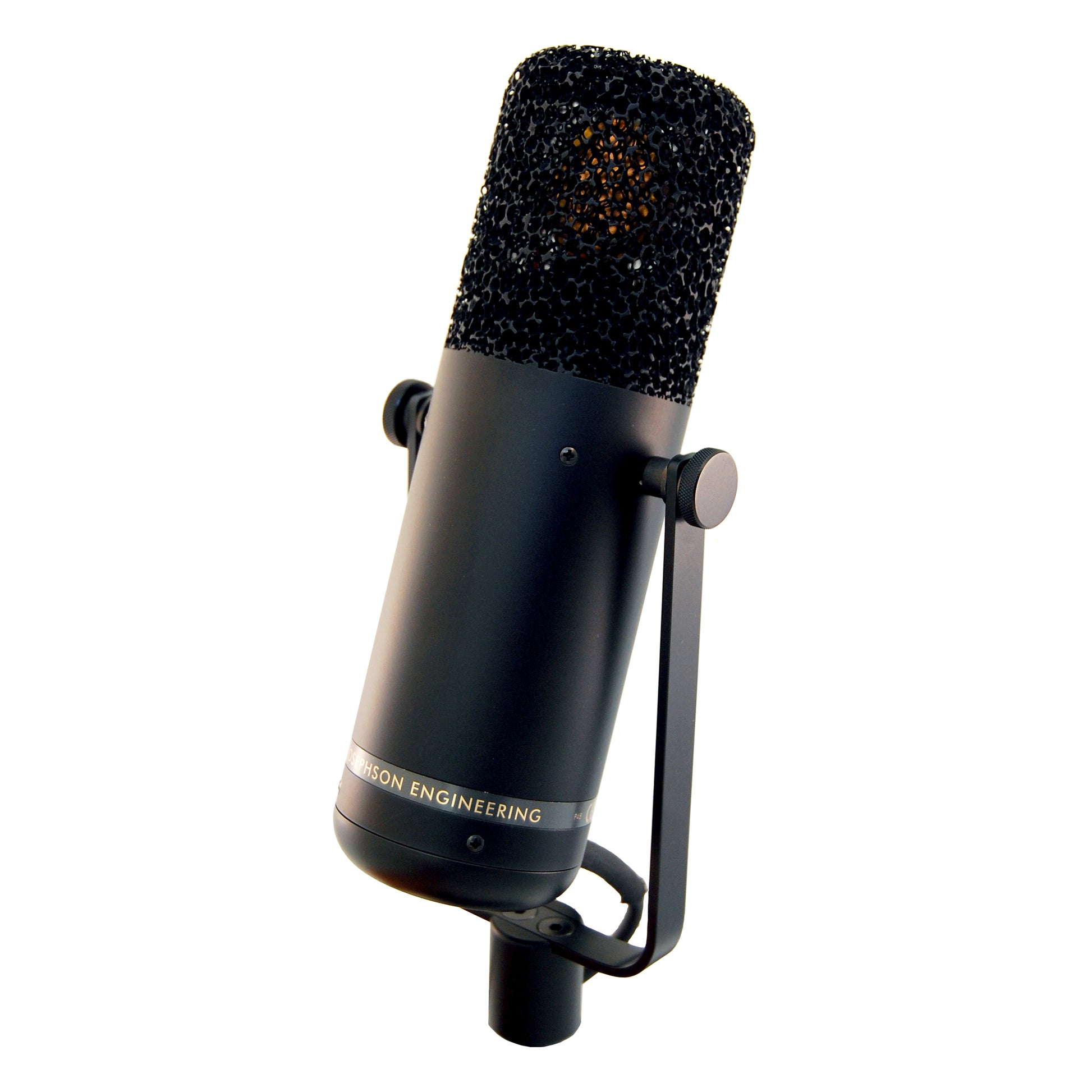

Why you need the Josephson C716 Microphone:
Series Seven microphones provide unprecedented flexibility in studio pickups with a variety of directional patterns. The C716 dual- diaphragm capsule is optimized for cardioid, and is ideal for vocal pickups and instrumentals where a warm, natural sound is needed with minimum acoustic coloration. Off-axis response is particularly smooth, yielding excellent results in a variety of acoustic environments.
The C716 features a cardioid version of the large dual-diaphragm capsule used in Josephson’s C700 series, with a 5 micron evaporated gold diaphragm. The head grille uses Josephson’s patent-pending hard metal foam structure welded to the housing tube, instead of wire mesh or perforated metal. No other structure is needed, so internal reflections are randomized for clean, detailed sound pickup. The entire housing, circuit board, capsule and all its internal parts are made by Josephson in the USA. The microphone features a hard matte black chrome finish for durability in studio use.
The internal circuitry uses a class-A FET front end with active balanced transformerless output using discrete large-geometry devices like those in the Josephson C700 and C617. The internal high voltage linear supply generates capsule polarization voltage without using any digital devices or oscillators, for very low noise.
The capsule assembly in the C716 is internally shock mounted so that the mic may be attached directly to a stand through its rugged yoke mount, without using any external accessories.
Product Name | Josephson C716 Microphone |
---|---|
Brand | Josephson |
Condition | New |
MPN | c716 |
Shipping Option | Free Shipping to the Continental U.S. |
- Pressure-gradient condenser microphone transducer Cardioid directional pattern
- Frequency range 20-20,000 Hz
- Sensitivity -32 dB ref 1V/Pa (26 mV/Pa)
- Equivalent noise level <15 dB SPL, A weighted rms Overload sound level 136 dB SPL
- Power supply P48 phantom, 5 mA
- Diameter 63 mm (100 mm wide at yoke), length 261 mm Weight 1.2 kg
- Output connector 3-pin XLR
- Made in USA
Josephson C716 Microphone
Why you need the Josephson C716 Microphone:
Series Seven microphones provide unprecedented flexibility in studio pickups with a variety of directional patterns. The C716 dual- diaphragm capsule is optimized for cardioid, and is ideal for vocal pickups and instrumentals where a warm, natural sound is needed with minimum acoustic coloration. Off-axis response is particularly smooth, yielding excellent results in a variety of acoustic environments.
The C716 features a cardioid version of the large dual-diaphragm capsule used in Josephson’s C700 series, with a 5 micron evaporated gold diaphragm. The head grille uses Josephson’s patent-pending hard metal foam structure welded to the housing tube, instead of wire mesh or perforated metal. No other structure is needed, so internal reflections are randomized for clean, detailed sound pickup. The entire housing, circuit board, capsule and all its internal parts are made by Josephson in the USA. The microphone features a hard matte black chrome finish for durability in studio use.
The internal circuitry uses a class-A FET front end with active balanced transformerless output using discrete large-geometry devices like those in the Josephson C700 and C617. The internal high voltage linear supply generates capsule polarization voltage without using any digital devices or oscillators, for very low noise.
The capsule assembly in the C716 is internally shock mounted so that the mic may be attached directly to a stand through its rugged yoke mount, without using any external accessories.
Product Name | Josephson C716 Microphone |
---|---|
Brand | Josephson |
Condition | New |
MPN | c716 |
Shipping Option | Free Shipping to the Continental U.S. |
- Pressure-gradient condenser microphone transducer Cardioid directional pattern
- Frequency range 20-20,000 Hz
- Sensitivity -32 dB ref 1V/Pa (26 mV/Pa)
- Equivalent noise level <15 dB SPL, A weighted rms Overload sound level 136 dB SPL
- Power supply P48 phantom, 5 mA
- Diameter 63 mm (100 mm wide at yoke), length 261 mm Weight 1.2 kg
- Output connector 3-pin XLR
- Made in USA
