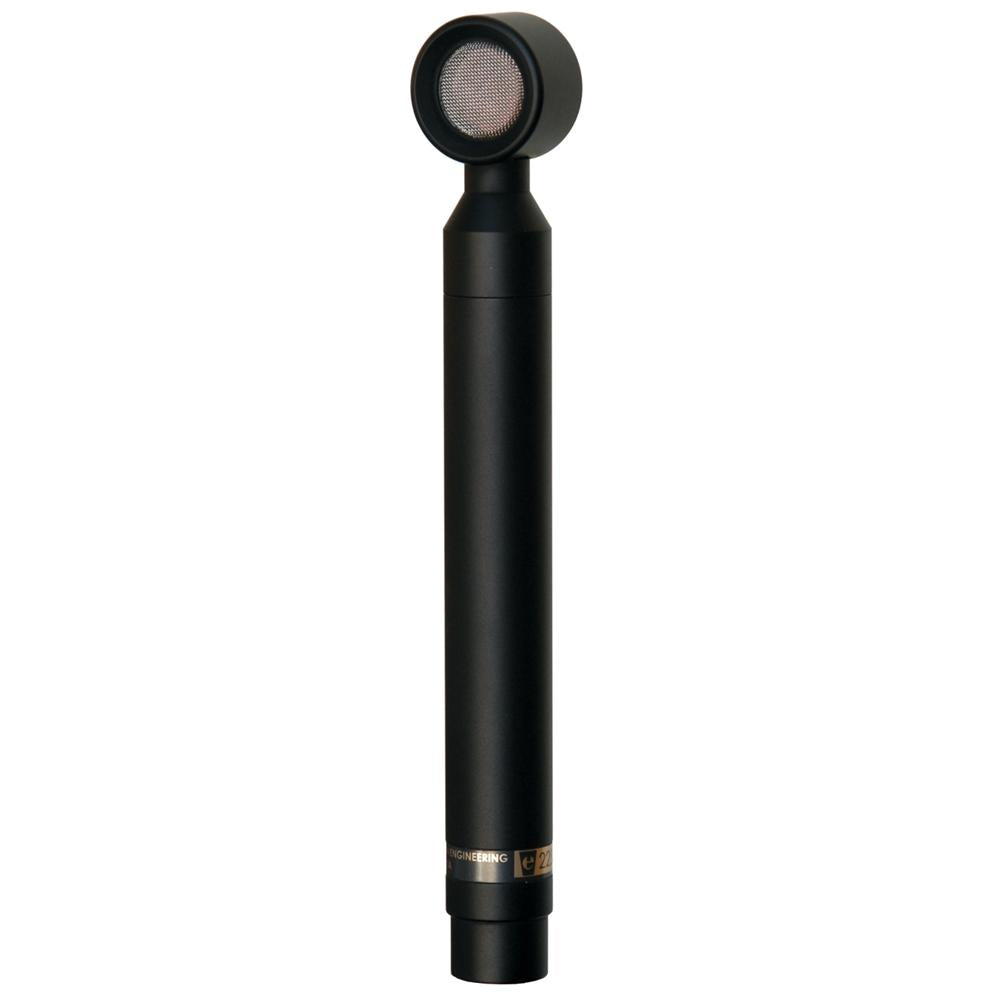

Why you need the Josephson E22s Microphone:
The Josephson e22S side-address cardioid was designed to meet the needs of
noted recording engineer Steve Albini. The physical profile allows unobtrusive
placement, even with tight percussion layouts. Unique among studio condenser
microphones, the e22S capsule geometry is optimized for spot miking
performance. The circuit uses a cascode discrete FET front end, combined with a
custom Lundahl output transformer. The electronics were designed to interface
easily with either transformer or direct coupled mic preamps. The e22S has low
self-noise, so it delivers low level detail, and handles high sound pressure levels
for minimal distortion on extremely loud passages. The microphone housing is
very rugged, with a precision machined, satin black chrome finish.
Product Name | Josephson E22s Microphone |
---|---|
Brand | Josephson |
Condition | New |
MPN | E22S |
Shipping Option | Free Shipping to the Continental U.S. |
- Directional pattern: Cardioid
- Frequency response: 20-20,000 Hz ±2 dB from curve
- Sensitivity: 3.0 mV/Pa
- Rated impedance: 200 ohms
- Equivalent noise level: 15 dB SPL A-weighted
- Maximum SPL: 144 dB
- Weight: 180 g
- Dimensions: 21mm diameter, 190mm long, 30mm head
Josephson E22s Microphone
Details
Why you need the Josephson E22s Microphone:
The Josephson e22S side-address cardioid was designed to meet the needs of
noted recording engineer Steve Albini. The physical profile allows unobtrusive
placement, even with tight percussion layouts. Unique among studio condenser
microphones, the e22S capsule geometry is optimized for spot miking
performance. The circuit uses a cascode discrete FET front end, combined with a
custom Lundahl output transformer. The electronics were designed to interface
easily with either transformer or direct coupled mic preamps. The e22S has low
self-noise, so it delivers low level detail, and handles high sound pressure levels
for minimal distortion on extremely loud passages. The microphone housing is
very rugged, with a precision machined, satin black chrome finish.
Product Name | Josephson E22s Microphone |
---|---|
Brand | Josephson |
Condition | New |
MPN | E22S |
Shipping Option | Free Shipping to the Continental U.S. |
Tech Specs
- Directional pattern: Cardioid
- Frequency response: 20-20,000 Hz ±2 dB from curve
- Sensitivity: 3.0 mV/Pa
- Rated impedance: 200 ohms
- Equivalent noise level: 15 dB SPL A-weighted
- Maximum SPL: 144 dB
- Weight: 180 g
- Dimensions: 21mm diameter, 190mm long, 30mm head
