JZ Microphones engineers' and users' opinion is that any Black Hole Series microphone, which is a fantastic vocal mic, is great on every application it is used. Unbelievable clarity and definition, smoothness and feel full transparency is the way industry professionals describe their own thoughts after using the Black Hole Series microphones to record their music.
Electronic components selected for any JZ microphone have maximum difference of 1.5 % in their technical specifications. Our Flagship microphone BH1S has 0.4% therefore it has lifetime warranty. -10 & -20dB PAD and 3 polar patterns makes BH1S extremely versatile and perfect for day to day recording in any world-class, project or home studios.
| Product Name | JZ Microphones The Black Hole BH1s Multi-Pattern Condenser Microphone |
|---|---|
| Brand | JZ Microphones |
| Condition | New |
| MPN | BH-1S |
| UPC | 4751008670653 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Transducer type electrostatic
- Operating principal pressure gradient
- Diaphragms active diameter 2 x 27 mm
- Frequency range 20 Hz to 20 kHz
- Polar pattern Omni / Cardioid / Figure - 8
- Pad switch -20db /-10db
- Output impedance 50 ohms
- Rated load impedance >250 ohms
- Suggested load impedance 1000 ohms
- Sensitivity at 1000 Hz into 1000 ohms load 18 mV/Pa
- S/N Ratio CCIR 468-3 weighted 75,5 dB
- S/N Ratio DIN/IEC 651 A-weighted 86,5 db-A
- Equivalent noise level DIN/IEC A-weighted 7,5 dB-A
- Maximum SPL for 0.5% THD at 1000 ohm load 134,5 dB
- Dynamic range of the micropho ne preamplifier 127 db
- Phantom powering voltage on pins 2 & 3 of XLR +48 V (+/-4 V
- Current consumption 1,5 mA
- Output connector 3-pin XLR male, gold plated contacts
- Signal polarity positive toward pressure on a frontal diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3
- Dimensions 203 x 51 x 28
| Transducer Type | electrostatic |
| Operating principle | pressure gradient |
| Polar Patterns | Cardioid / Omni / Figure of 8 |
| Diaphragm's active diameter | 2 x 27 mm |
| Frequency Response | 20 Hz - 20 kHz |
| Pad Switch | -10 / -20 dB |
| Sensitivity at 1 kHz | 18 mV/Pa |
| Output Impedance | 50Ω |
| Rate Load Impedance | >250Ω |
| Maximum SPL | 134.5 dB SPL (2.5kΩ, 0.5% THD) |
| S/N Ratio | 86.5 dB-A |
| Noise Level | 7.5 dB-A |
| Dynamic Range | 127 dB |
| Power Requirement | + 48V DC Phantom Power |
| Weight | 590 g |
| Dimensions | 190mm x 48mm x 22mm |
| Current consumption | 1.5 mA |
| Output connector | 3-pin XLR male |

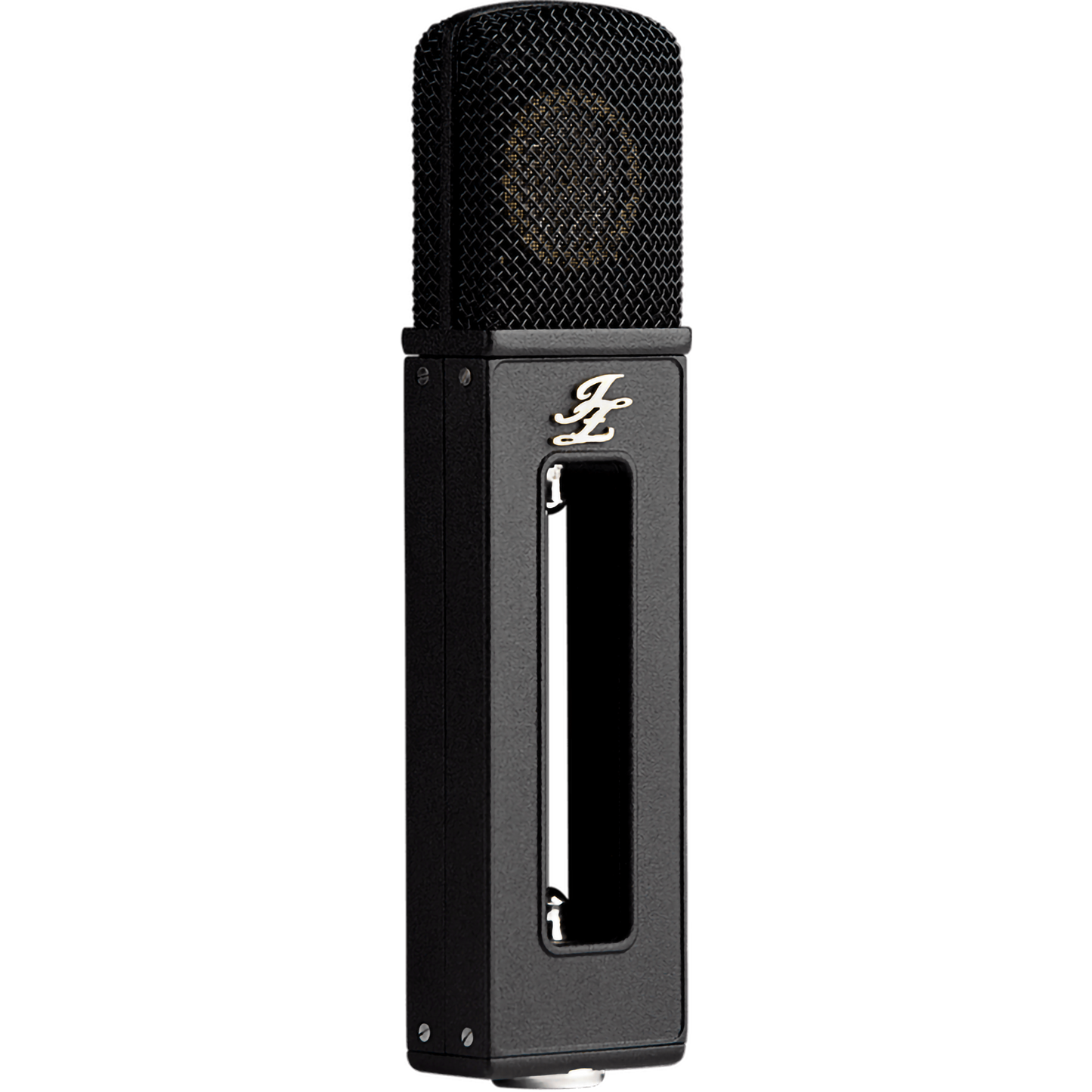

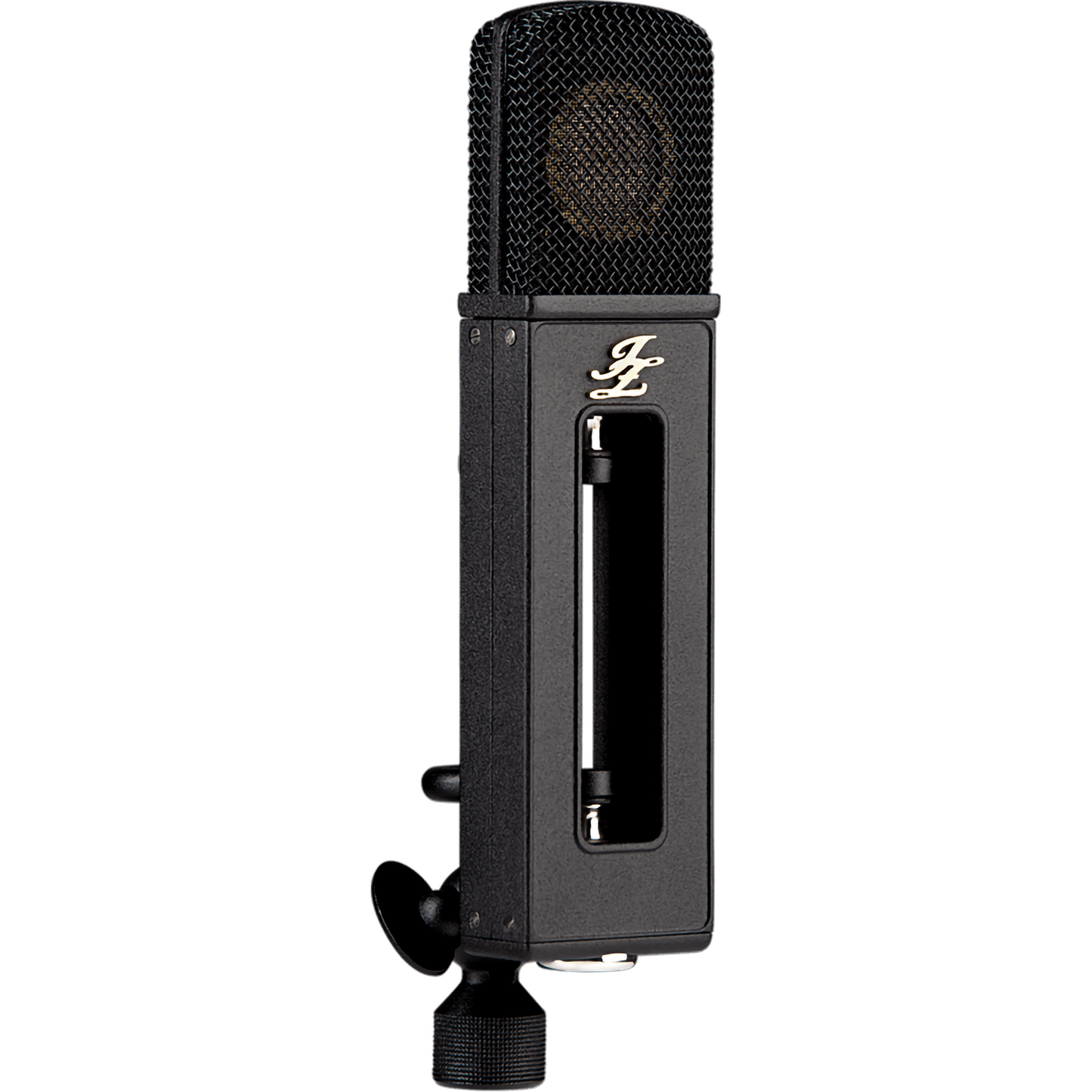

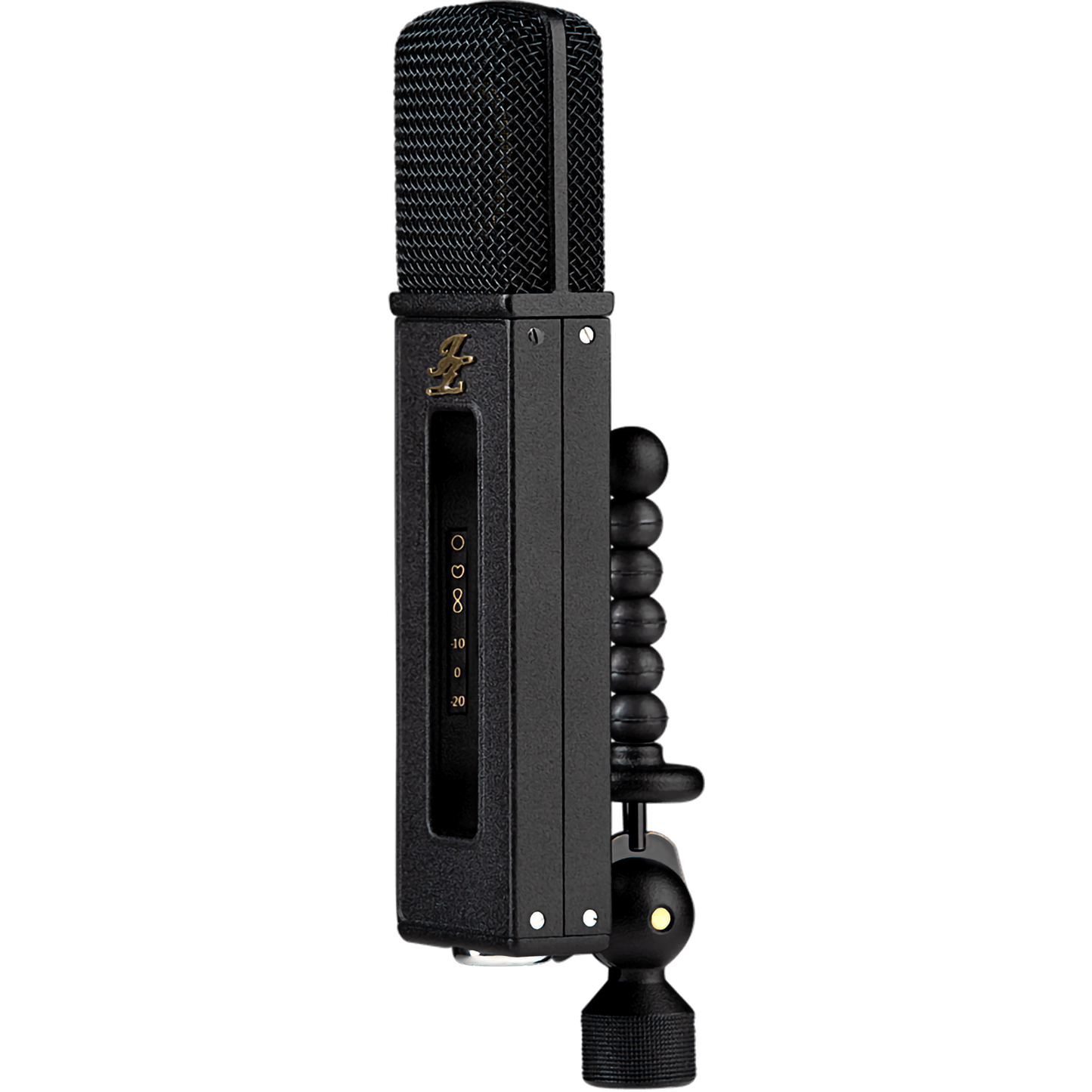

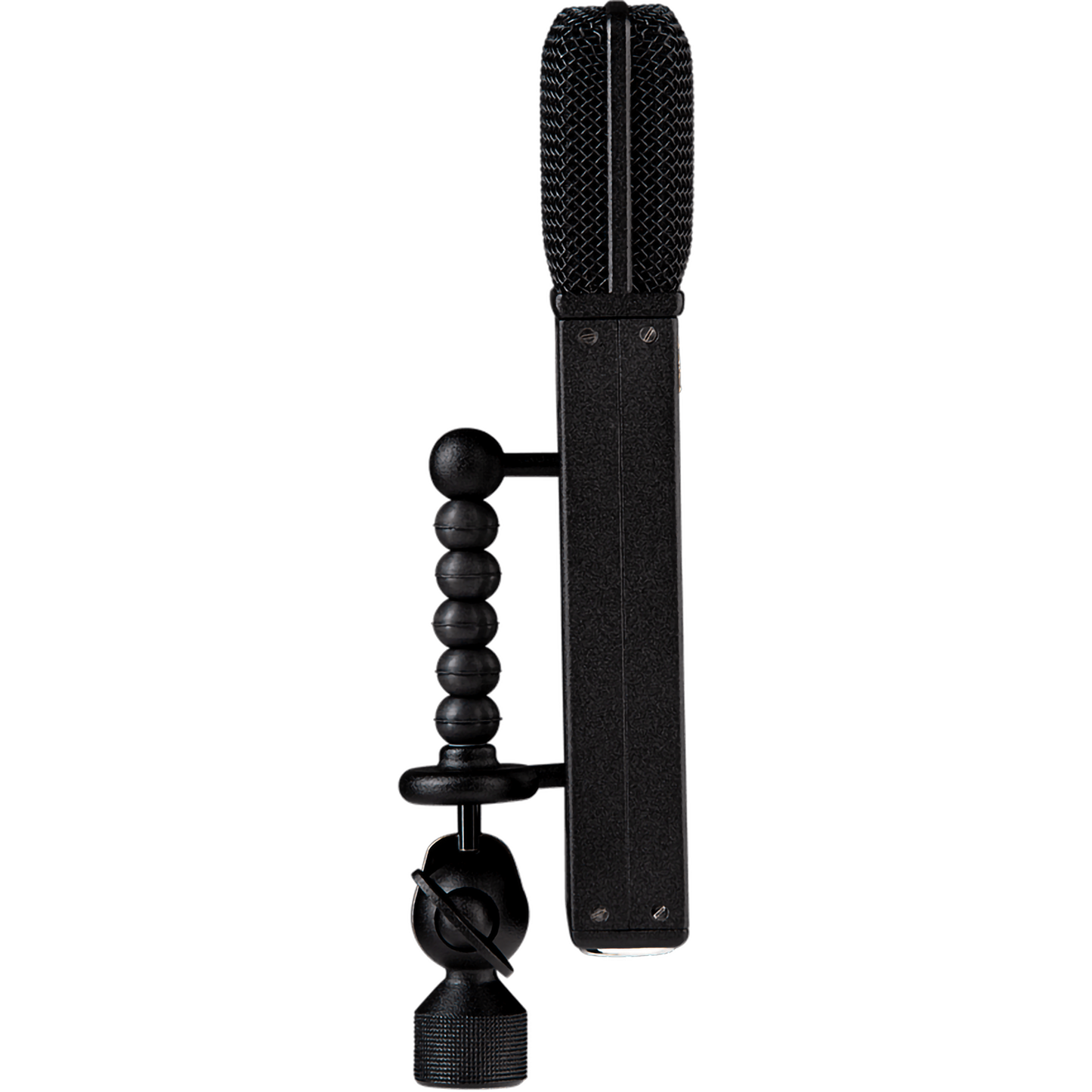

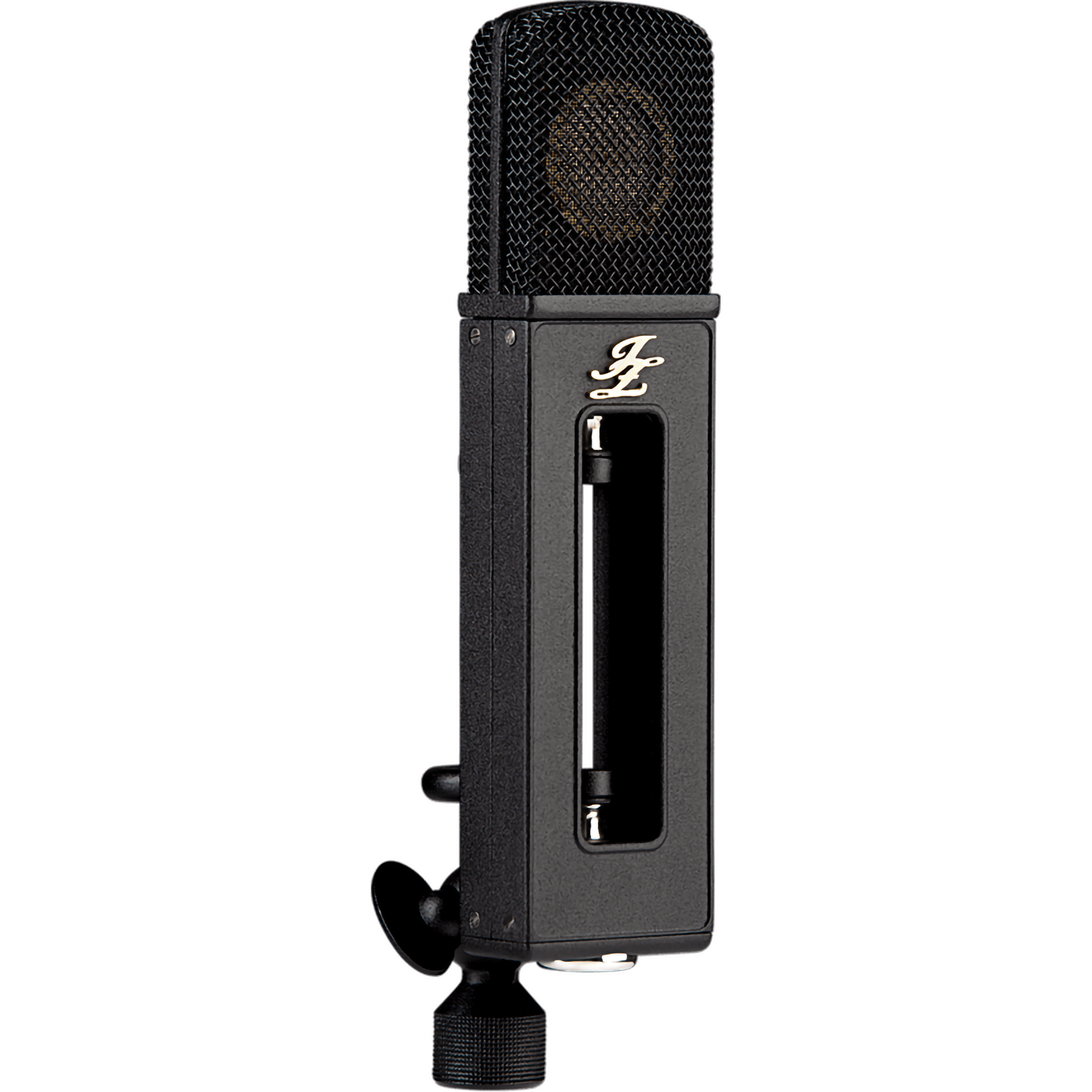

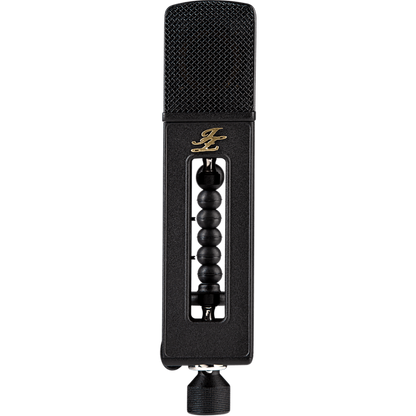

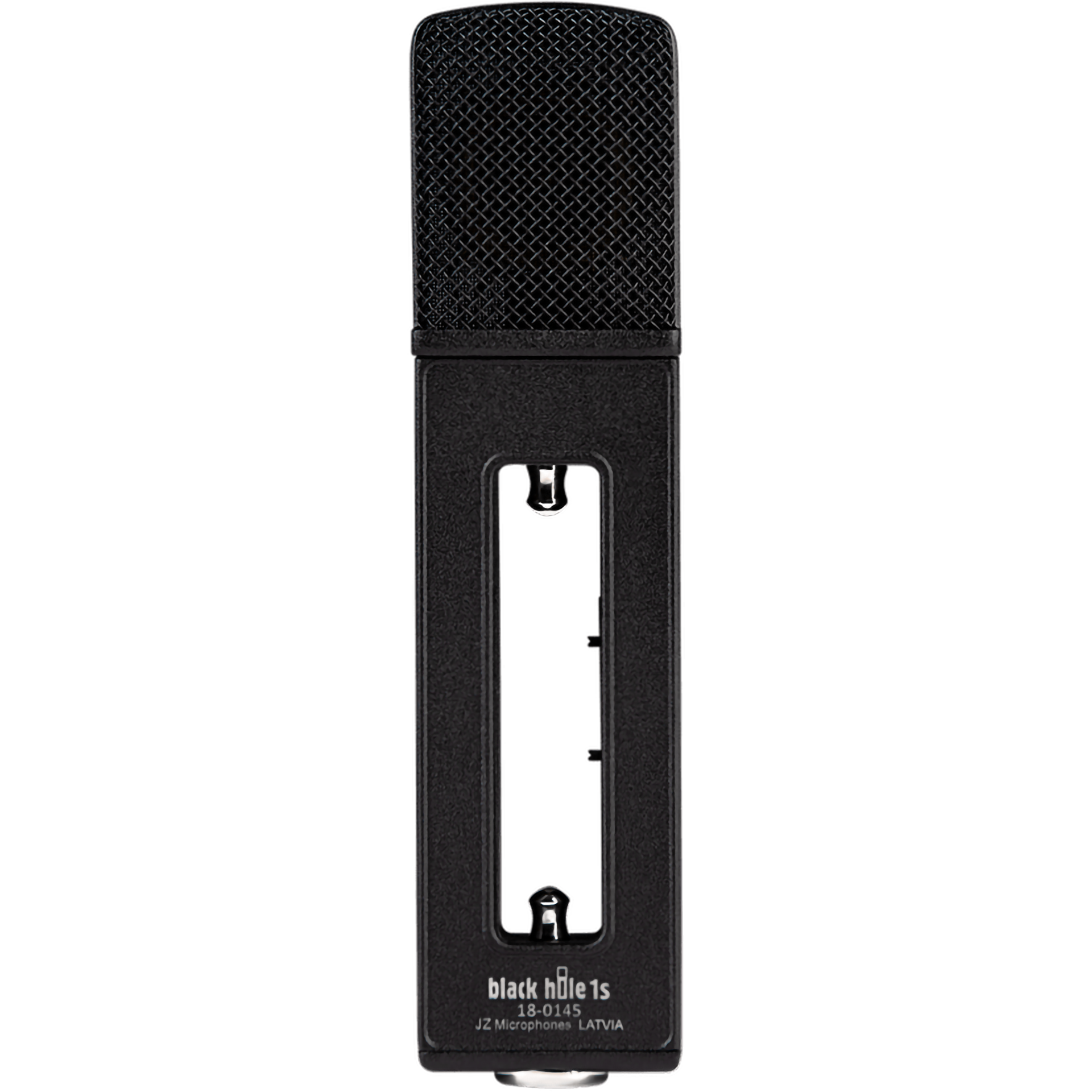

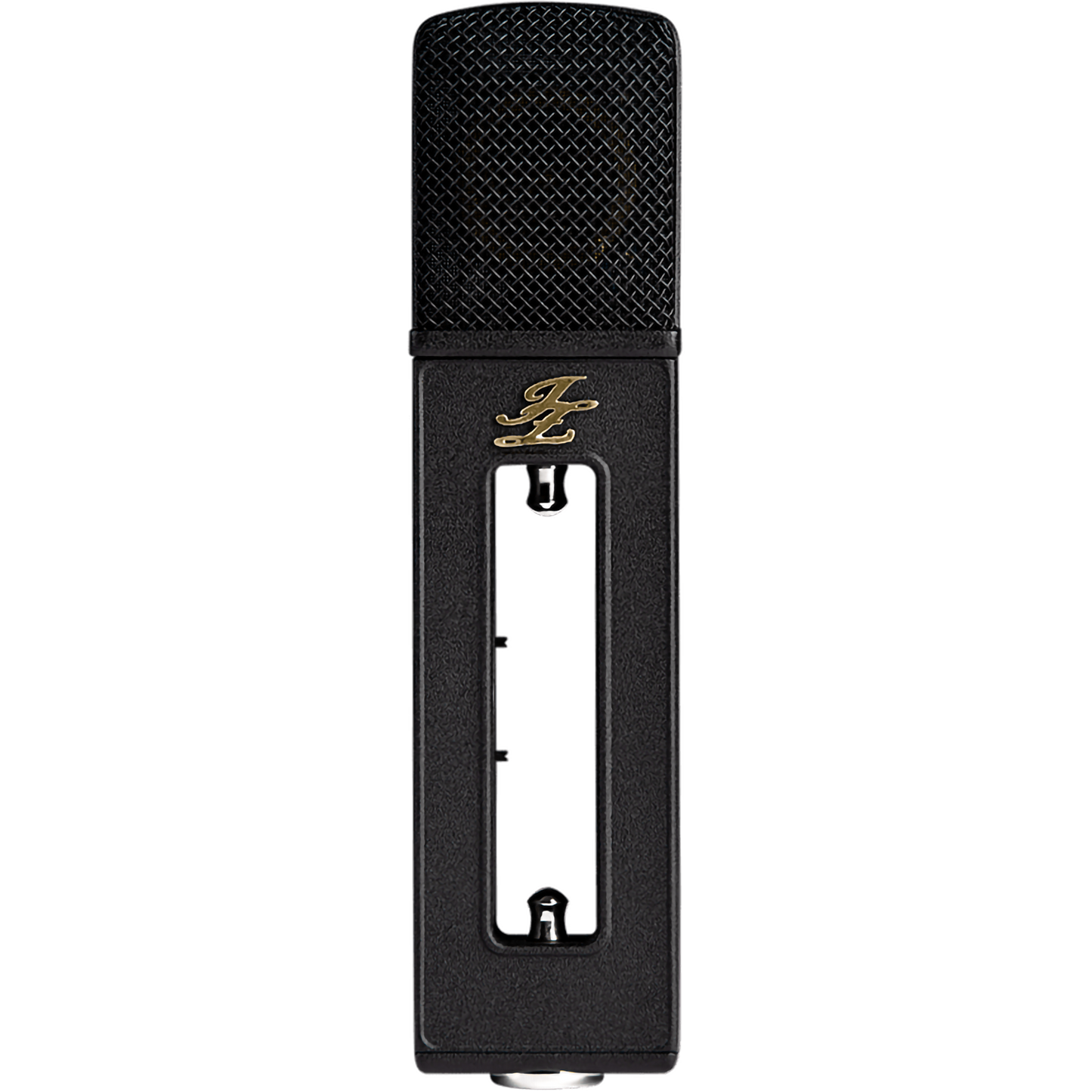

JZ Microphones The Black Hole BH1s Multi-Pattern Condenser Microphone
JZ Microphones engineers' and users' opinion is that any Black Hole Series microphone, which is a fantastic vocal mic, is great on every application it is used. Unbelievable clarity and definition, smoothness and feel full transparency is the way industry professionals describe their own thoughts after using the Black Hole Series microphones to record their music.
Electronic components selected for any JZ microphone have maximum difference of 1.5 % in their technical specifications. Our Flagship microphone BH1S has 0.4% therefore it has lifetime warranty. -10 & -20dB PAD and 3 polar patterns makes BH1S extremely versatile and perfect for day to day recording in any world-class, project or home studios.
| Product Name | JZ Microphones The Black Hole BH1s Multi-Pattern Condenser Microphone |
|---|---|
| Brand | JZ Microphones |
| Condition | New |
| MPN | BH-1S |
| UPC | 4751008670653 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Transducer type electrostatic
- Operating principal pressure gradient
- Diaphragms active diameter 2 x 27 mm
- Frequency range 20 Hz to 20 kHz
- Polar pattern Omni / Cardioid / Figure - 8
- Pad switch -20db /-10db
- Output impedance 50 ohms
- Rated load impedance >250 ohms
- Suggested load impedance 1000 ohms
- Sensitivity at 1000 Hz into 1000 ohms load 18 mV/Pa
- S/N Ratio CCIR 468-3 weighted 75,5 dB
- S/N Ratio DIN/IEC 651 A-weighted 86,5 db-A
- Equivalent noise level DIN/IEC A-weighted 7,5 dB-A
- Maximum SPL for 0.5% THD at 1000 ohm load 134,5 dB
- Dynamic range of the micropho ne preamplifier 127 db
- Phantom powering voltage on pins 2 & 3 of XLR +48 V (+/-4 V
- Current consumption 1,5 mA
- Output connector 3-pin XLR male, gold plated contacts
- Signal polarity positive toward pressure on a frontal diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3
- Dimensions 203 x 51 x 28
| Transducer Type | electrostatic |
| Operating principle | pressure gradient |
| Polar Patterns | Cardioid / Omni / Figure of 8 |
| Diaphragm's active diameter | 2 x 27 mm |
| Frequency Response | 20 Hz - 20 kHz |
| Pad Switch | -10 / -20 dB |
| Sensitivity at 1 kHz | 18 mV/Pa |
| Output Impedance | 50Ω |
| Rate Load Impedance | >250Ω |
| Maximum SPL | 134.5 dB SPL (2.5kΩ, 0.5% THD) |
| S/N Ratio | 86.5 dB-A |
| Noise Level | 7.5 dB-A |
| Dynamic Range | 127 dB |
| Power Requirement | + 48V DC Phantom Power |
| Weight | 590 g |
| Dimensions | 190mm x 48mm x 22mm |
| Current consumption | 1.5 mA |
| Output connector | 3-pin XLR male |
