U 67 the same as U47 is still considered to be one of the finest microphones ever made, therefore JZ Microphones brought to life several great ideas of improvements to add and implement into own JZ Vintage 67 series microphones.
The heart of Vintage 67 microphone is Golden Drop 67 Capsule (GDC67) and equiped with innovative inner shock-mounting system and adjustable swivel mount, Vintage 67 microphone has perfect functionality and legendary U 67 feel at amazing price point and availability for a handcrafted and tested microphone.
Vintage 67
Transducer type electrostatic
Operating principal pressure gradient
Diaphragms active diameter 25 mm
Frequency range 20 Hz to 20 kHz
Polar pattern cardioid
Output impedance 50 ohms
Rated load impedance 1000 ohms
Suggested load impedance > 500 ohms
Sensitivity at 1000 Hz into 1000 ohms load 22 mV/Pa
S/N Ratio CCIR 468-3 weighted 76 dB
S/N Ratio DIN/IEC 651 A-weighted 87 db-A
Equivalent noise level DIN/IEC A-weighted 6 dB-A
Maximum SPL for 0.5% THD at 1000 ohm load 134 dB
Dynamic range of the microphone preamplifier 128 db
Phantom powering voltage on pins 2 & 3 of XLR +48 V (+/-4 V)
Current consumption < 2 mA
Output connector 3-pin XLR male, gold plated contacts
Signal polarity
positive toward pressure on a diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3
| Product Name | JZ Microphones Vintage 67 Microphone |
|---|---|
| Brand | JZ Microphones |
| Condition | New |
| MPN | VINTAGE67 |
| UPC | 4751008670684 |
| Shipping Option | Free Shipping to the Continental U.S. |
- V67 is a premium class large diaphragm condenser microphone ready to offer that classic vintage vibe, loved throughout decades.
- True electrostatic Golden Drop™ capsule provides crystal clear and transparent sound without harshness.
- Class A discrete electronics for maximum performance, durability and extremely low self-noise.
- Built by hand, using only the best, most carefully selected electronic components, each and every JZ Microphones product allow you to fully capture the very essence of the performance.
- Smart built-in shock-mount technology will kill all unnecessary vibrations and keep the signal untouched giving you the best recording experience

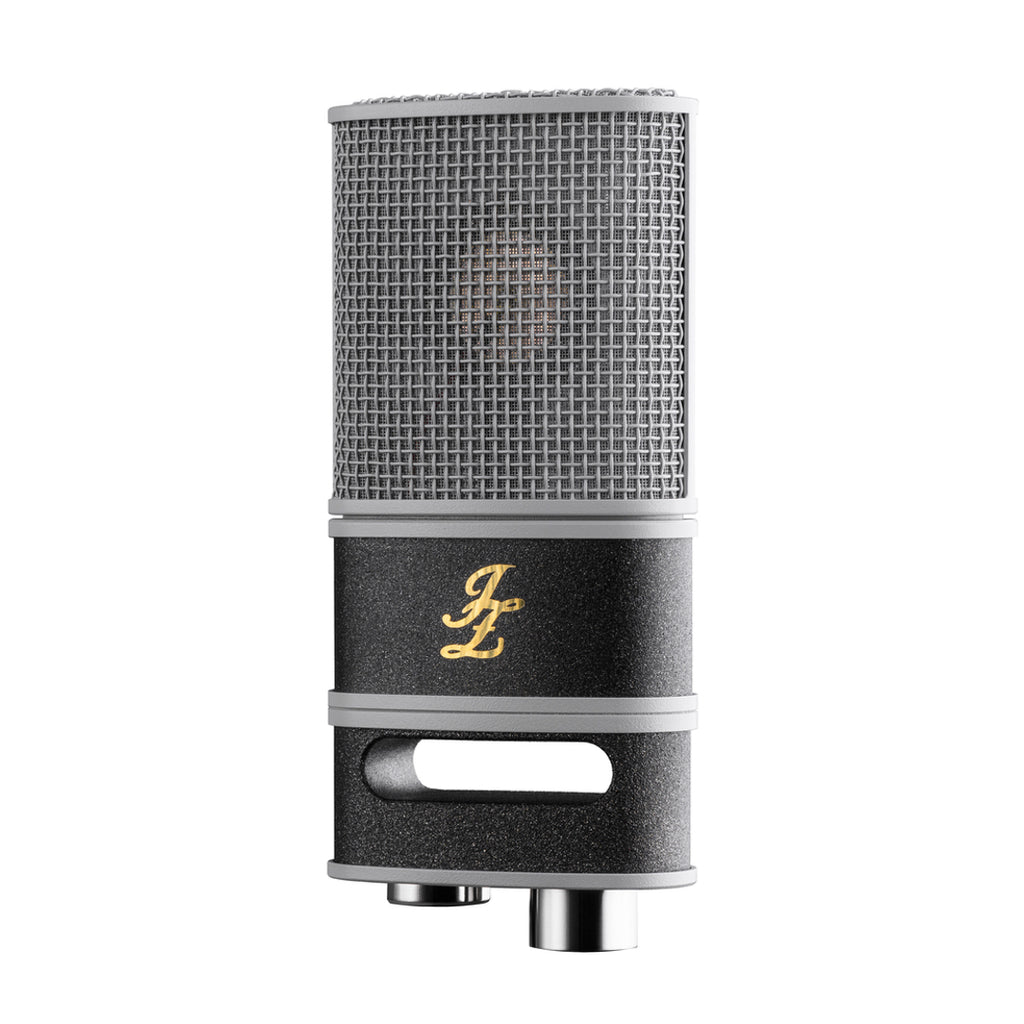

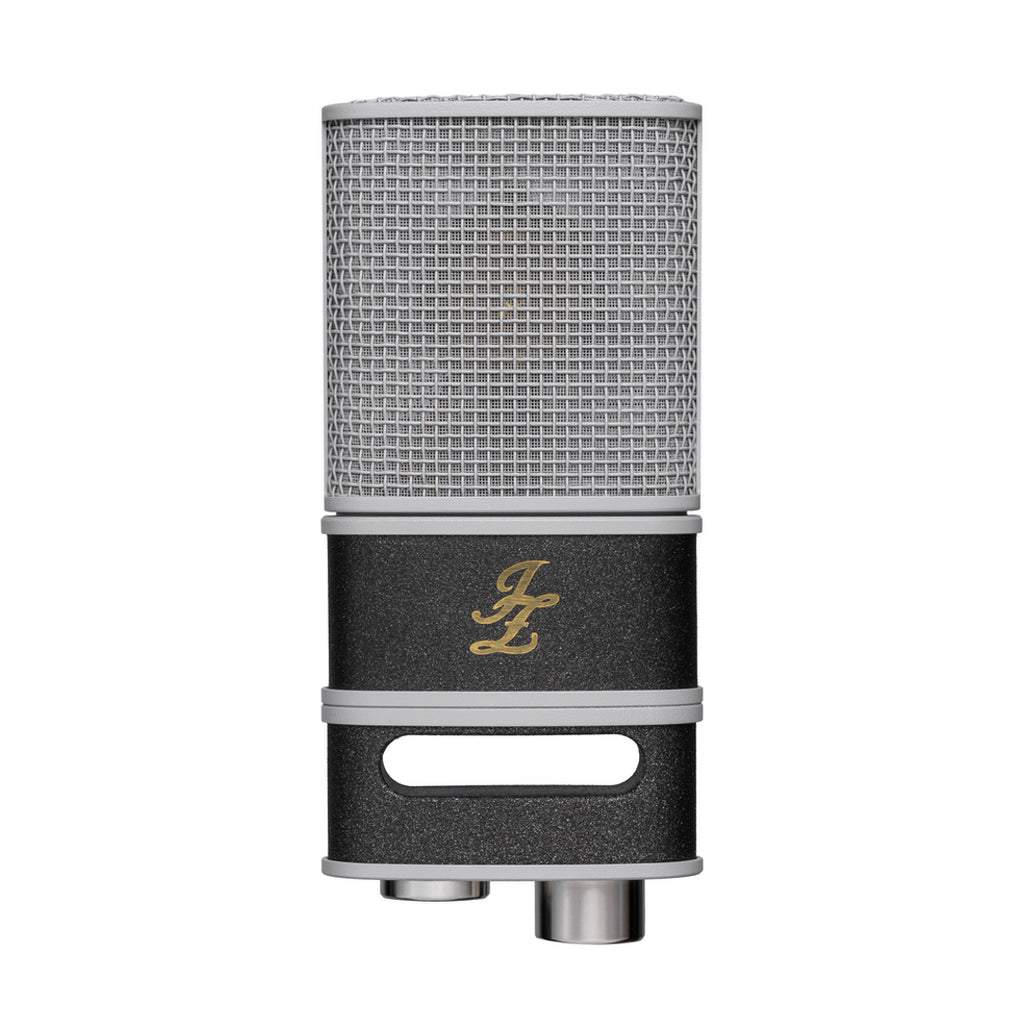

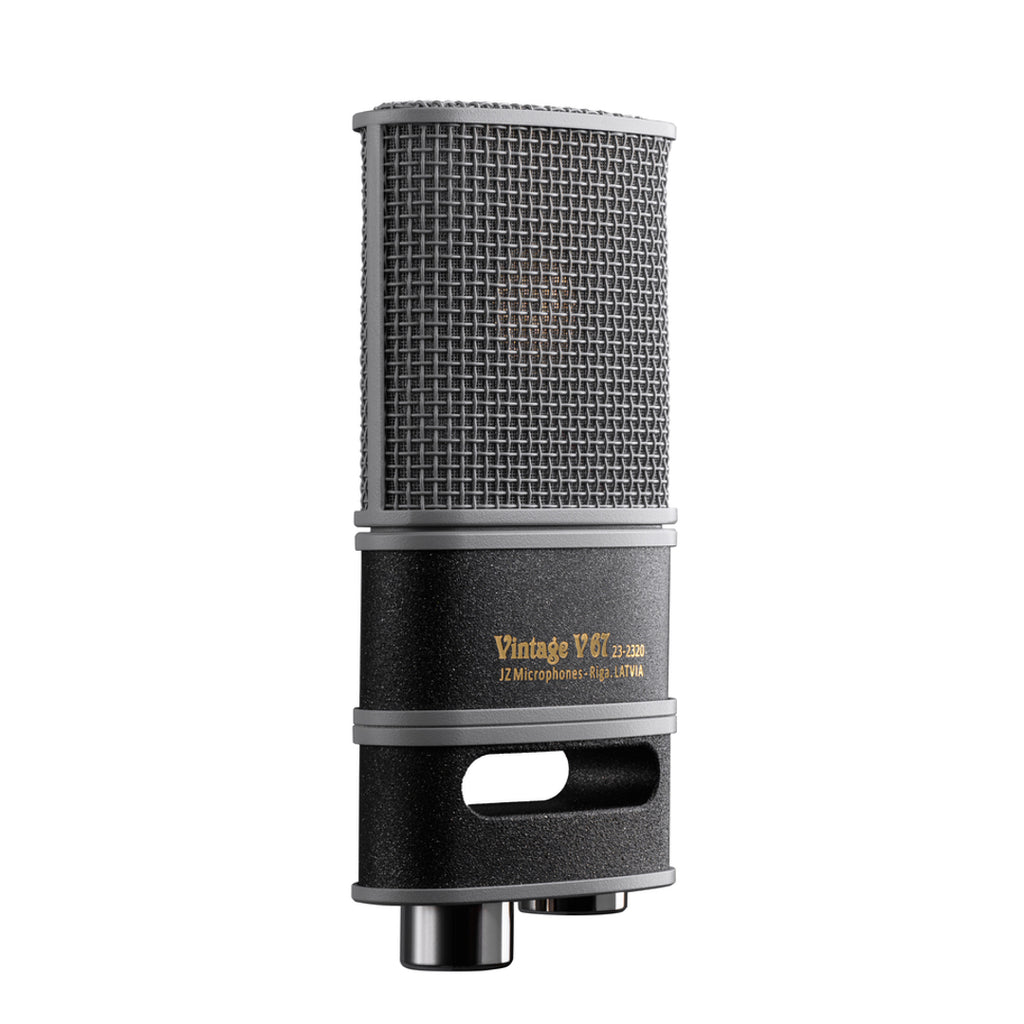

JZ Microphones Vintage 67 Microphone
Details
U 67 the same as U47 is still considered to be one of the finest microphones ever made, therefore JZ Microphones brought to life several great ideas of improvements to add and implement into own JZ Vintage 67 series microphones.
The heart of Vintage 67 microphone is Golden Drop 67 Capsule (GDC67) and equipped with innovative inner shock-mounting system, Vintage 67 microphone has perfect functionality and legendary U 67 feel at an amazing price point and availability for a handcrafted and tested microphone.
| Product Name | JZ Microphones Vintage 67 Microphone |
|---|---|
| Brand | JZ Microphones |
| Condition | New |
| MPN | VINTAGE67 |
| UPC | 4751008670684 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- V67 is a premium class large diaphragm condenser microphone ready to offer that classic vintage vibe, loved throughout decades.
- True electrostatic Golden Drop™ capsule provides crystal clear and transparent sound without harshness.
- Class A discrete electronics for maximum performance, durability and extremely low self-noise.
- Built by hand, using only the best, most carefully selected electronic components, each and every JZ Microphones product allow you to fully capture the very essence of the performance.
- Smart built-in shock-mount technology will kill all unnecessary vibrations and keep the signal untouched giving you the best recording experience
