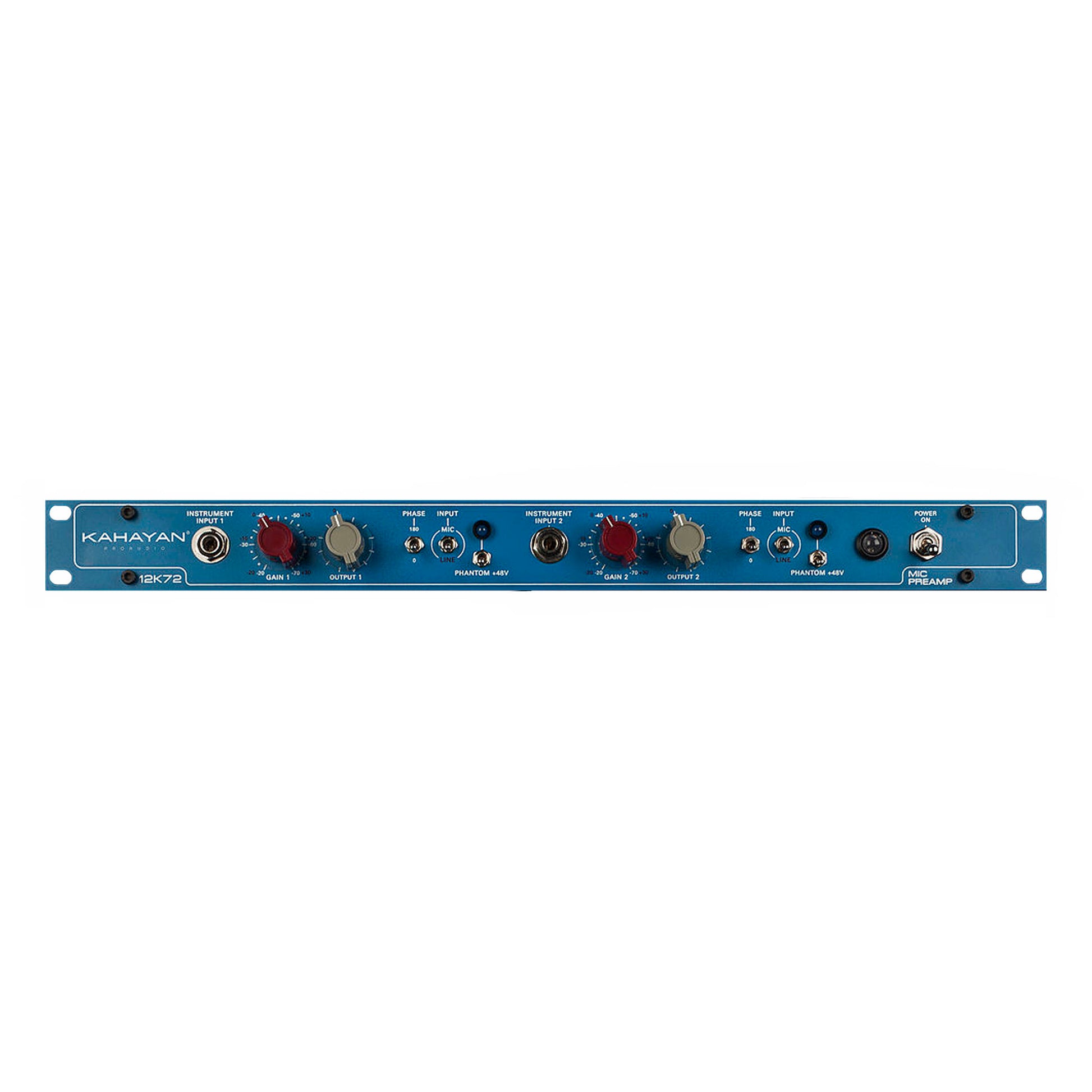

Kahayan 12K72 Stereo Mic Preamp

Kahayan 12K72 Stereo Mic Preamp

On order with the manufacturer!

View full details
  • Details
  • Tech Specs
  • Reviews

Why you need the Kahayan 12K72 Stereo Mic Preamp:

The 12k72 is a high class preamplifier which contains a ‘module’ per channel. The main feature of these ‘modules’ is a sound completely clear and transparent, with deep bass and an extremely natural treble.



The components used in manufacturing comes essentially from the same manufacturers that supplied the 70s modules for manufacturing the original ones, reproducing and expanding the known benefits of these, and as for the other materials used they are all high quality components, we refer to the wires, rotary switches, resistors, capacitors and connectors.

Features:

  • Steel Rack 1 unit format.
  • Two mic / line in pure independent working class A.
  • Using technology discreetly (without chips).
  • Gain control in steps of 5dB.
  • Output Level Control in steps.
  • Phantom power 48v with pilot light.
  • Phase reverse switch.
  • Switch selection  microphone / Line (can use the equipment in    Mastering step as a hue).
  • Inputs and outputs, balanced and unbalanced (XLR and jack) that grants two different hues of sound.
  • Power supply of high quality.
  • Front input jack for connecting high impedance electric instruments (guitar, bass, synth, etc.).
More Information
Product Name Kahayan 12K72 Stereo Mic Preamp
Brand Kahayan
MPN 12K72preamp
Shipping Option Free Shipping to the Continental U.S.
  • Inputs: Mic Input: 1200Ω, 3 pin XLR bal. Instrument Input: 10KΩ, stereo jack bal.
  • Outputs: Balanced: 3 pin XLR
  • Unbalanced: Jack Mono. The signal is taken before the output transformer giving another colour to the balanced output
  • Max. Gain: XLR input: 65 db
  • Output control:Key steps of 12 positions adjustable in 1dB steps (the typical fader function)
  • Distorsion: To 22 dbu of output, 40hz less than 0.1%,1Khz less than 0.03% 10 Khz less than 0.05%
  • POWER SUPPLY: 220v. 50hz. 110v. 60hz

Kahayan 12K72 Stereo Mic Preamp

Details

Why you need the Kahayan 12K72 Stereo Mic Preamp:

The 12k72 is a high class preamplifier which contains a ‘module’ per channel. The main feature of these ‘modules’ is a sound completely clear and transparent, with deep bass and an extremely natural treble.



The components used in manufacturing comes essentially from the same manufacturers that supplied the 70s modules for manufacturing the original ones, reproducing and expanding the known benefits of these, and as for the other materials used they are all high quality components, we refer to the wires, rotary switches, resistors, capacitors and connectors.

Features:

  • Steel Rack 1 unit format.
  • Two mic / line in pure independent working class A.
  • Using technology discreetly (without chips).
  • Gain control in steps of 5dB.
  • Output Level Control in steps.
  • Phantom power 48v with pilot light.
  • Phase reverse switch.
  • Switch selection  microphone / Line (can use the equipment in    Mastering step as a hue).
  • Inputs and outputs, balanced and unbalanced (XLR and jack) that grants two different hues of sound.
  • Power supply of high quality.
  • Front input jack for connecting high impedance electric instruments (guitar, bass, synth, etc.).
More Information
Product Name Kahayan 12K72 Stereo Mic Preamp
Brand Kahayan
MPN 12K72preamp
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
  • Inputs: Mic Input: 1200Ω, 3 pin XLR bal. Instrument Input: 10KΩ, stereo jack bal.
  • Outputs: Balanced: 3 pin XLR
  • Unbalanced: Jack Mono. The signal is taken before the output transformer giving another colour to the balanced output
  • Max. Gain: XLR input: 65 db
  • Output control:Key steps of 12 positions adjustable in 1dB steps (the typical fader function)
  • Distorsion: To 22 dbu of output, 40hz less than 0.1%,1Khz less than 0.03% 10 Khz less than 0.05%
  • POWER SUPPLY: 220v. 50hz. 110v. 60hz
