DN4816U

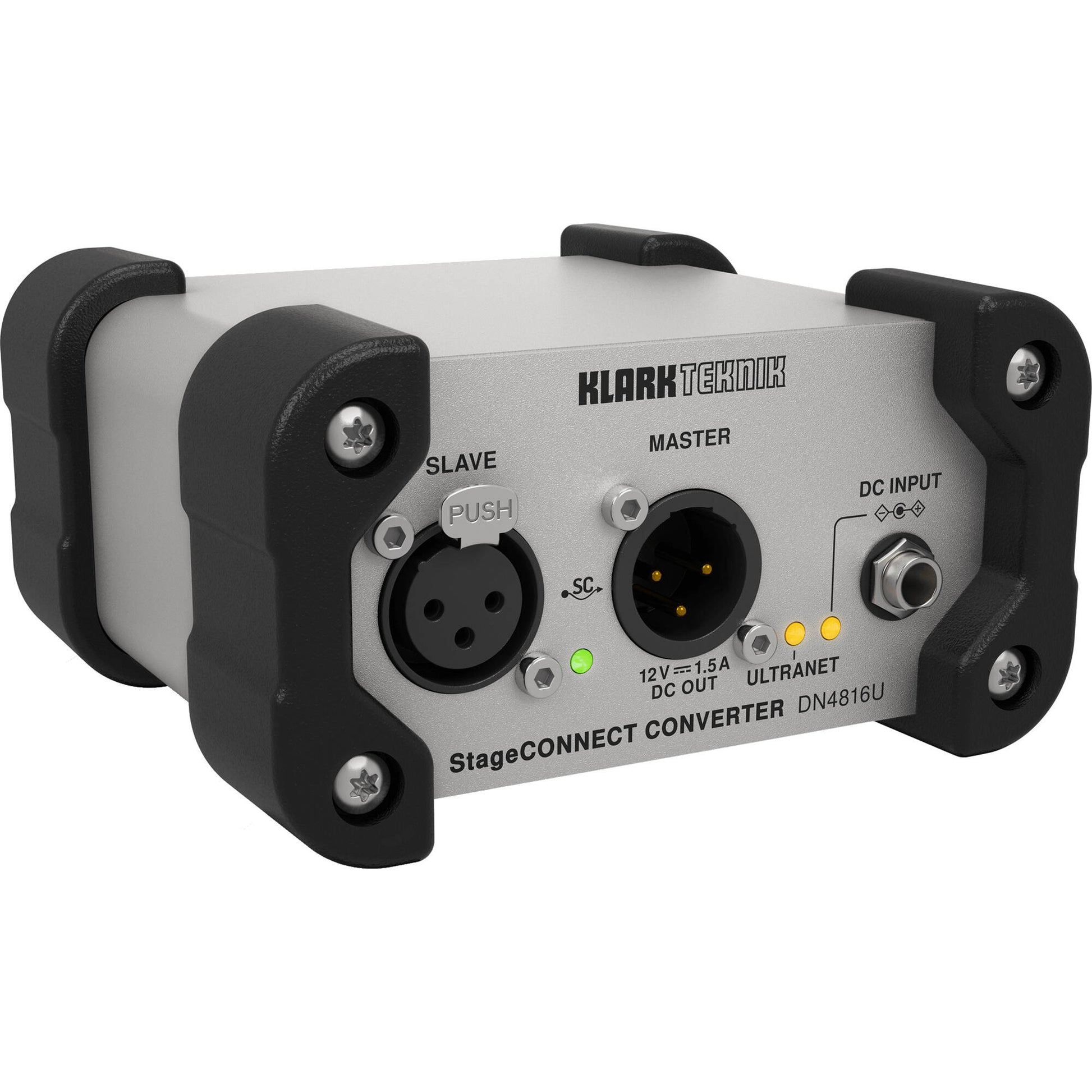

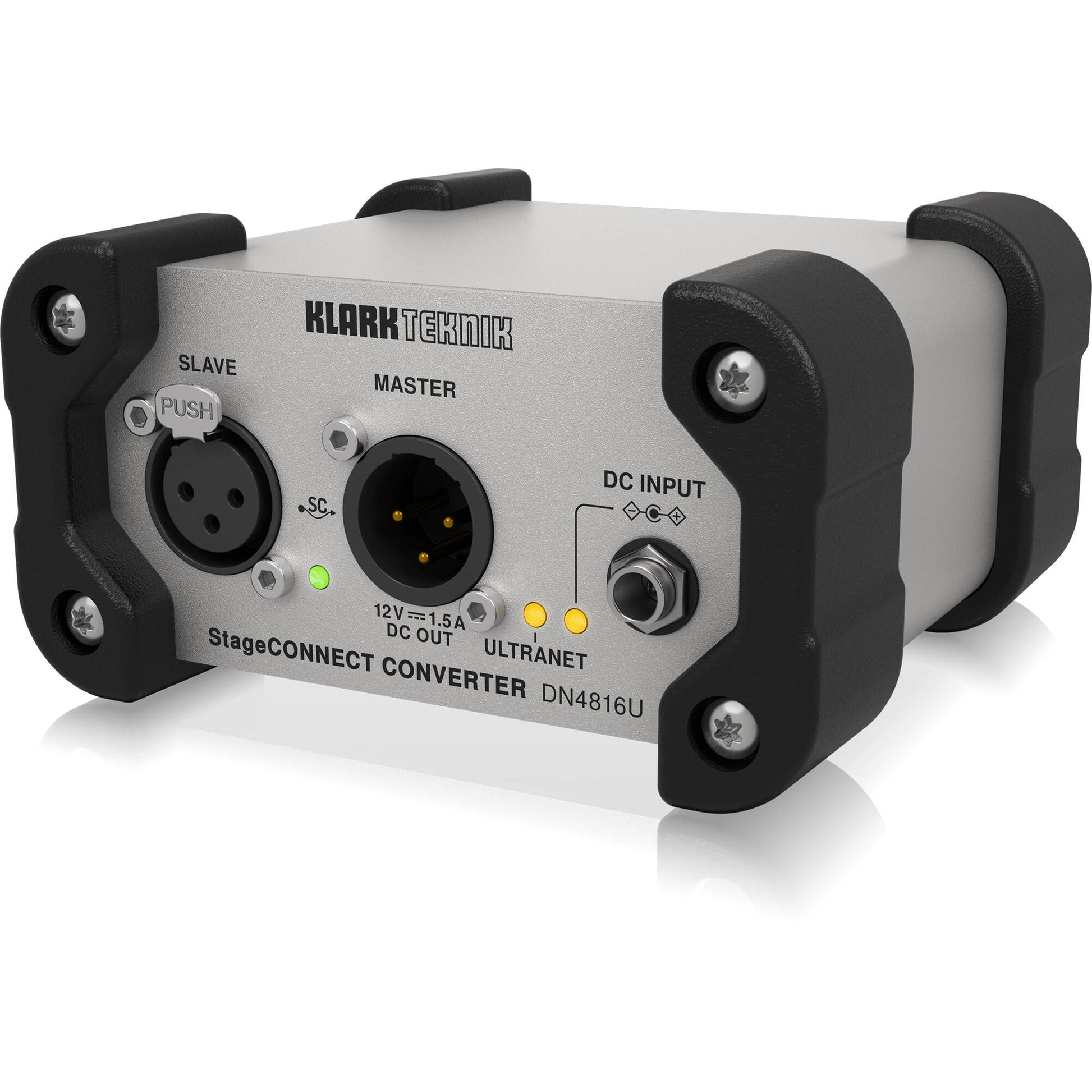

The Klark Teknik DN4816U is a universal and compact interface box for sharing 32 channels of audio between StageConnect devices, Behringer Ultranet and USB audio on your PC. There are countless applications: Send USB audio to Behringer P16 personal monitor mixers, use a Midas MR18 as 16 CH input box for Behringer WING or record 32 channels from WING directly in your DAW.
SC-Devices interconnect with a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will allocate the channels for their respective connectivity automatically.
StageConnect – The Future of XLR
What if any standard XLR or DMX cable could be used to transmit more than one channel of audio?
What if that cable could transmit signals not only one way, but bi-directionally?
What if that cable would allow the passage of control data or even MIDI at the same time?
What if a connected StageConnect device could receive up to 18 W of power through that same cable?
Well, these capabilities are exactly what StageConnect delivers – a new interface standard to be released by Music Tribe after two years of development. The Midas DN48XX Series is one of the first available I/O interfaces based on the StageConnect standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.5 ms of latency.
For optimum performance and long cable runs 110 Ohm DMX cable is required.
Ecosystem and Beyond
The DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. This new ecosystem was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind, the devices can be used with other SC devices like Midas HUB4. The new ecosystem opens up a wide field of audio devices. Whether it is distributed I/O devices on stage or equipment in the siderack - the uses for the DN48XX Series are virtually endless.
Cascade Interfaces to Meet Your Requirements

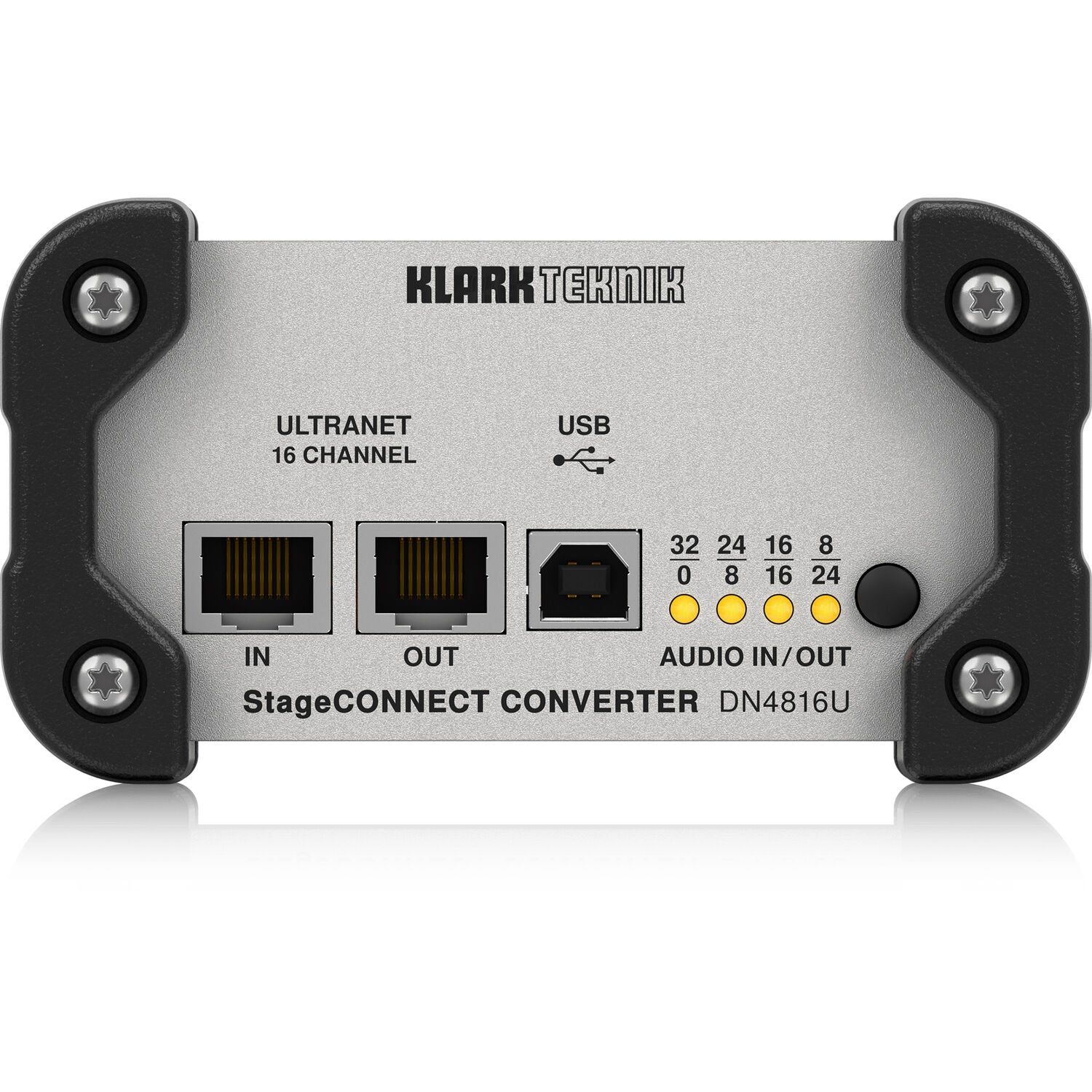

No matter if you want to use StageConnect for connecting external effects, wireless or playback Systems, the Klark Teknik and Midas DN48XX Series devices can easily be daisy-chained to meet the requirements of your I/O configuration. With a total bandwidth of 32 channels, all combinations ranging from 32 inputs, through 16 inputs and outputs in parallel to 32 outputs can be achieved using different combinations of DN48XX interfaces connected with a simple XLR cable. To adapt for different requirements, the DN4816U provides a button to configure the USB I/O configuration.
| Product Name | Klark Teknik DN4816U StageCONNECT Interface Bridge |
|---|---|
| Brand | Klark Teknik |
| MPN | 000-E0U02-00010 |
| UPC | 4033653131315 |
What's in the Box?
- Klark Teknik DN4816U StageCONNECT Interface Bridge
- DI Box sized interface for connecting StageConnect devices to Behringer Ultranet systems and USB multi-channel audio
- StageConnect 32-channel audio transmission at sub-milisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz, using standard XLR microphone or DMX cable
- Asynchronous 32-channel sample rate conversion allows connecting different clock domains and sample rates with 0.4 ms latency and 140 dB dynamic range
- Supports bi-directional audio configurations, with control data and 12 VDC / 18 W remote power

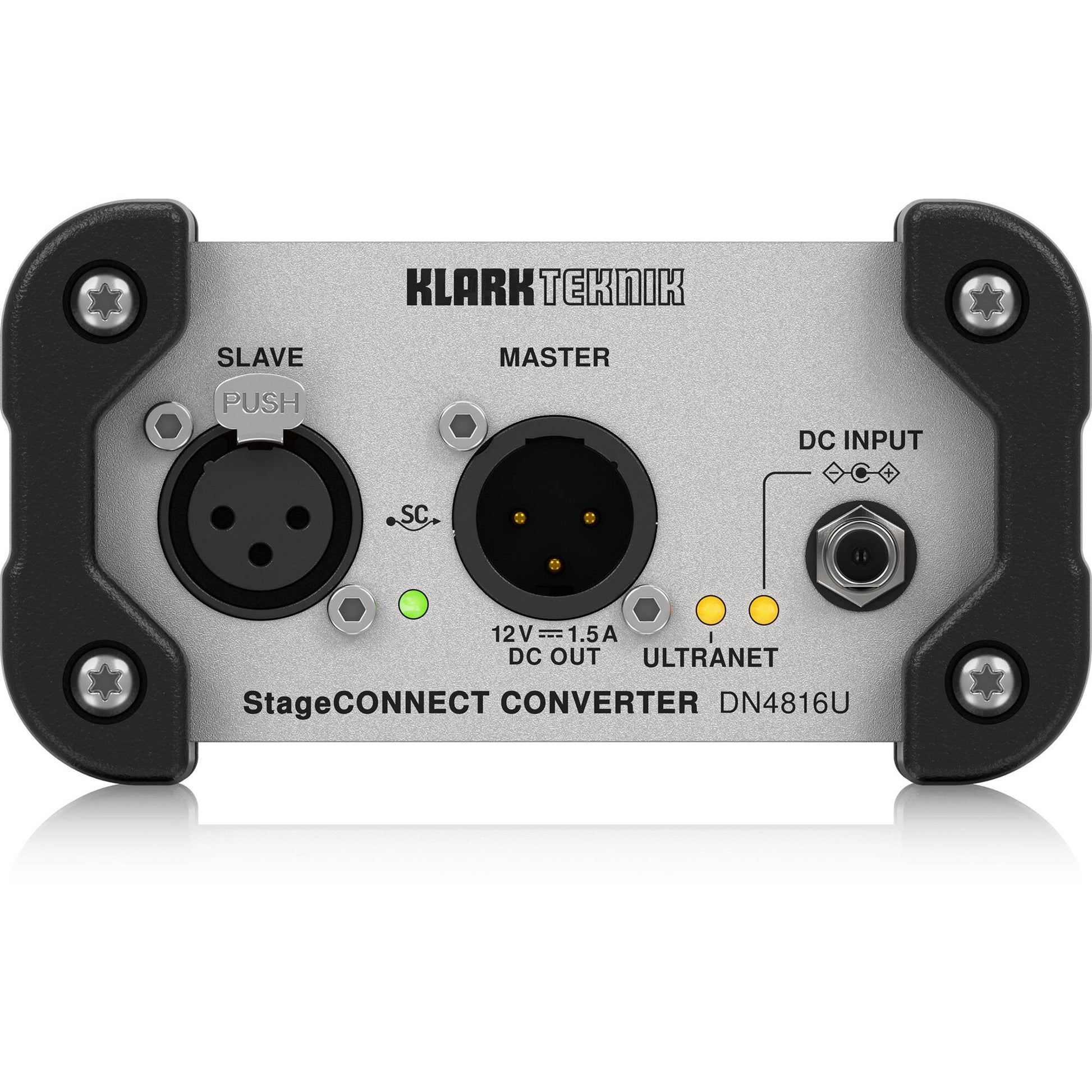

- Master and Slave ports allow exchanging multi-channel audio with a chain of other StageConnect devices
- Can be used for sending StageConnect or USB signals to P16 personal monitoring mixers or Turbosound iQ speakers
- Behringer Ultranet signals can be converted to StageConnect or USB streams
- Slave mode for use with StageConnect enabled mixing consoles, stageboxes and hubs
- External power supply for stand-alone use and offering remote power on the StageConnect Master output
Klark Teknik DN4816U StageCONNECT Interface Bridge
DN4816U
The Klark Teknik DN4816U is a universal and compact interface box for sharing 32 channels of audio between StageConnect devices, Behringer Ultranet and USB audio on your PC. There are countless applications: Send USB audio to Behringer P16 personal monitor mixers, use a Midas MR18 as 16 CH input box for Behringer WING or record 32 channels from WING directly in your DAW.
SC-Devices interconnect with a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will allocate the channels for their respective connectivity automatically.
StageConnect – The Future of XLR
What if any standard XLR or DMX cable could be used to transmit more than one channel of audio?
What if that cable could transmit signals not only one way, but bi-directionally?
What if that cable would allow the passage of control data or even MIDI at the same time?
What if a connected StageConnect device could receive up to 18 W of power through that same cable?
Well, these capabilities are exactly what StageConnect delivers – a new interface standard to be released by Music Tribe after two years of development. The Midas DN48XX Series is one of the first available I/O interfaces based on the StageConnect standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.5 ms of latency.
For optimum performance and long cable runs 110 Ohm DMX cable is required.
Ecosystem and Beyond
The DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. This new ecosystem was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind, the devices can be used with other SC devices like Midas HUB4. The new ecosystem opens up a wide field of audio devices. Whether it is distributed I/O devices on stage or equipment in the siderack - the uses for the DN48XX Series are virtually endless.
Cascade Interfaces to Meet Your Requirements
No matter if you want to use StageConnect for connecting external effects, wireless or playback Systems, the Klark Teknik and Midas DN48XX Series devices can easily be daisy-chained to meet the requirements of your I/O configuration. With a total bandwidth of 32 channels, all combinations ranging from 32 inputs, through 16 inputs and outputs in parallel to 32 outputs can be achieved using different combinations of DN48XX interfaces connected with a simple XLR cable. To adapt for different requirements, the DN4816U provides a button to configure the USB I/O configuration.
| Product Name | Klark Teknik DN4816U StageCONNECT Interface Bridge |
|---|---|
| Brand | Klark Teknik |
| MPN | 000-E0U02-00010 |
| UPC | 4033653131315 |
What's in the Box?
Klark Teknik DN4816U StageCONNECT Interface Bridge- DI Box sized interface for connecting StageConnect devices to Behringer Ultranet systems and USB multi-channel audio
- StageConnect 32-channel audio transmission at sub-milisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz, using standard XLR microphone or DMX cable
- Asynchronous 32-channel sample rate conversion allows connecting different clock domains and sample rates with 0.4 ms latency and 140 dB dynamic range
- Supports bi-directional audio configurations, with control data and 12 VDC / 18 W remote power
- Master and Slave ports allow exchanging multi-channel audio with a chain of other StageConnect devices
- Can be used for sending StageConnect or USB signals to P16 personal monitoring mixers or Turbosound iQ speakers
- Behringer Ultranet signals can be converted to StageConnect or USB streams
- Slave mode for use with StageConnect enabled mixing consoles, stageboxes and hubs
- External power supply for stand-alone use and offering remote power on the StageConnect Master output
