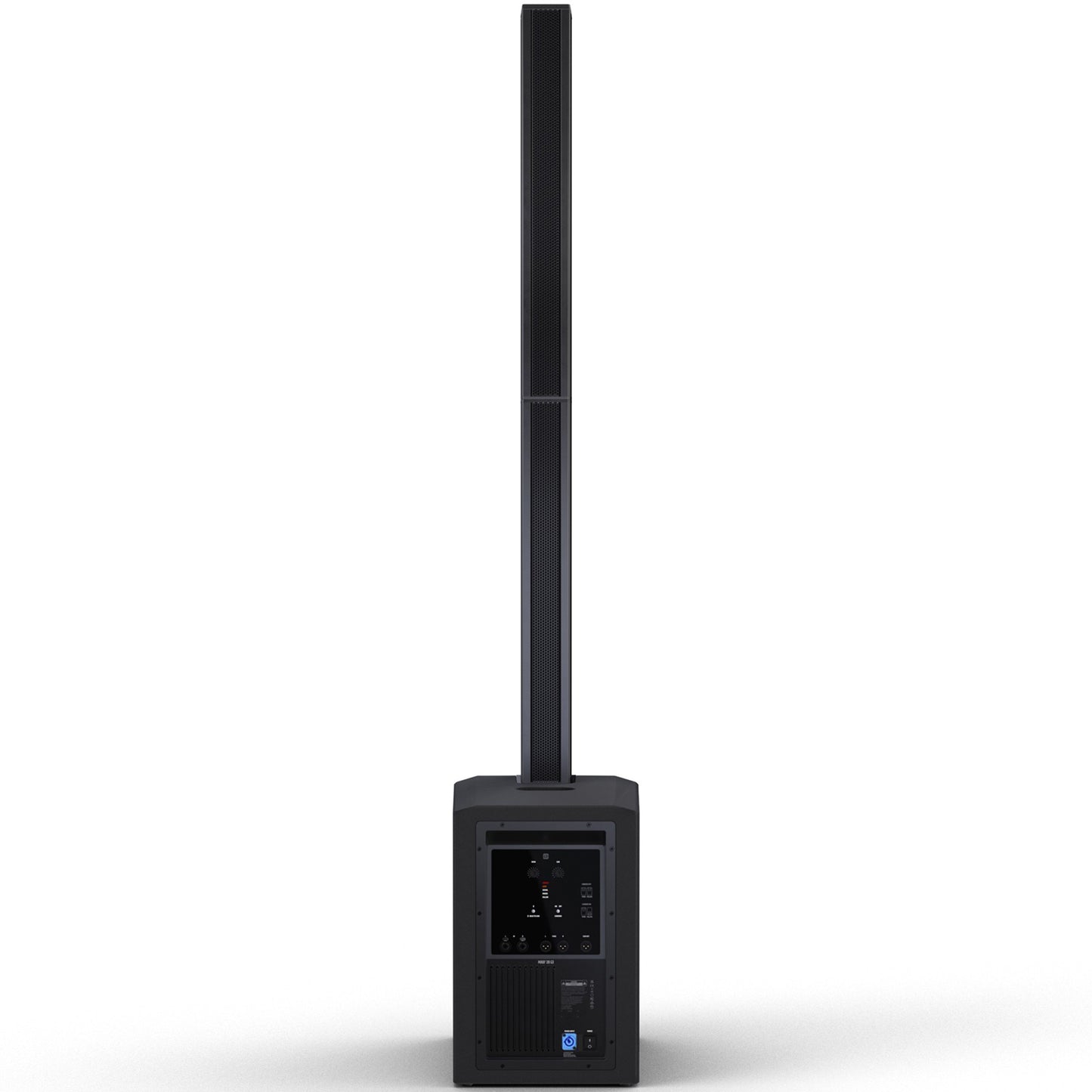

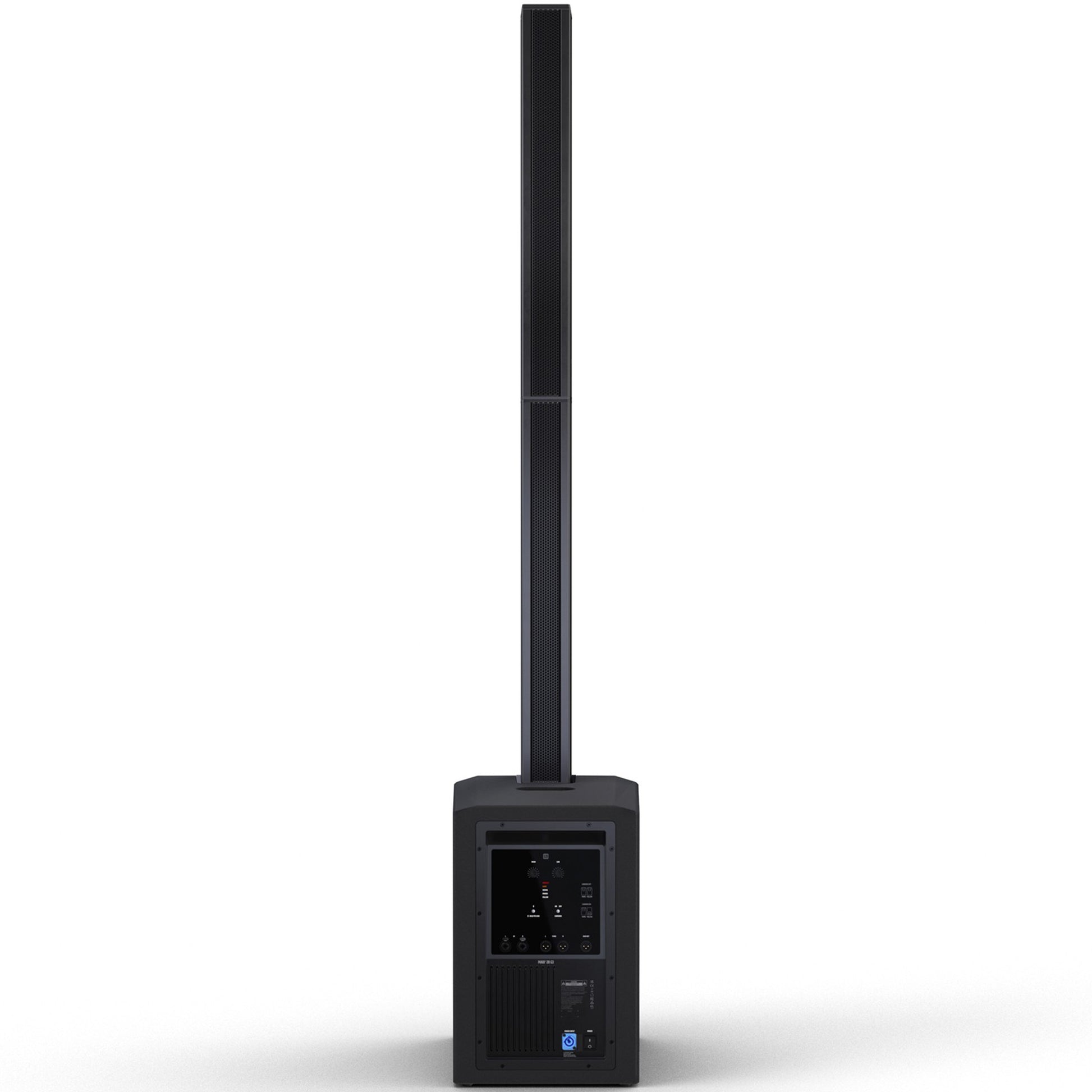

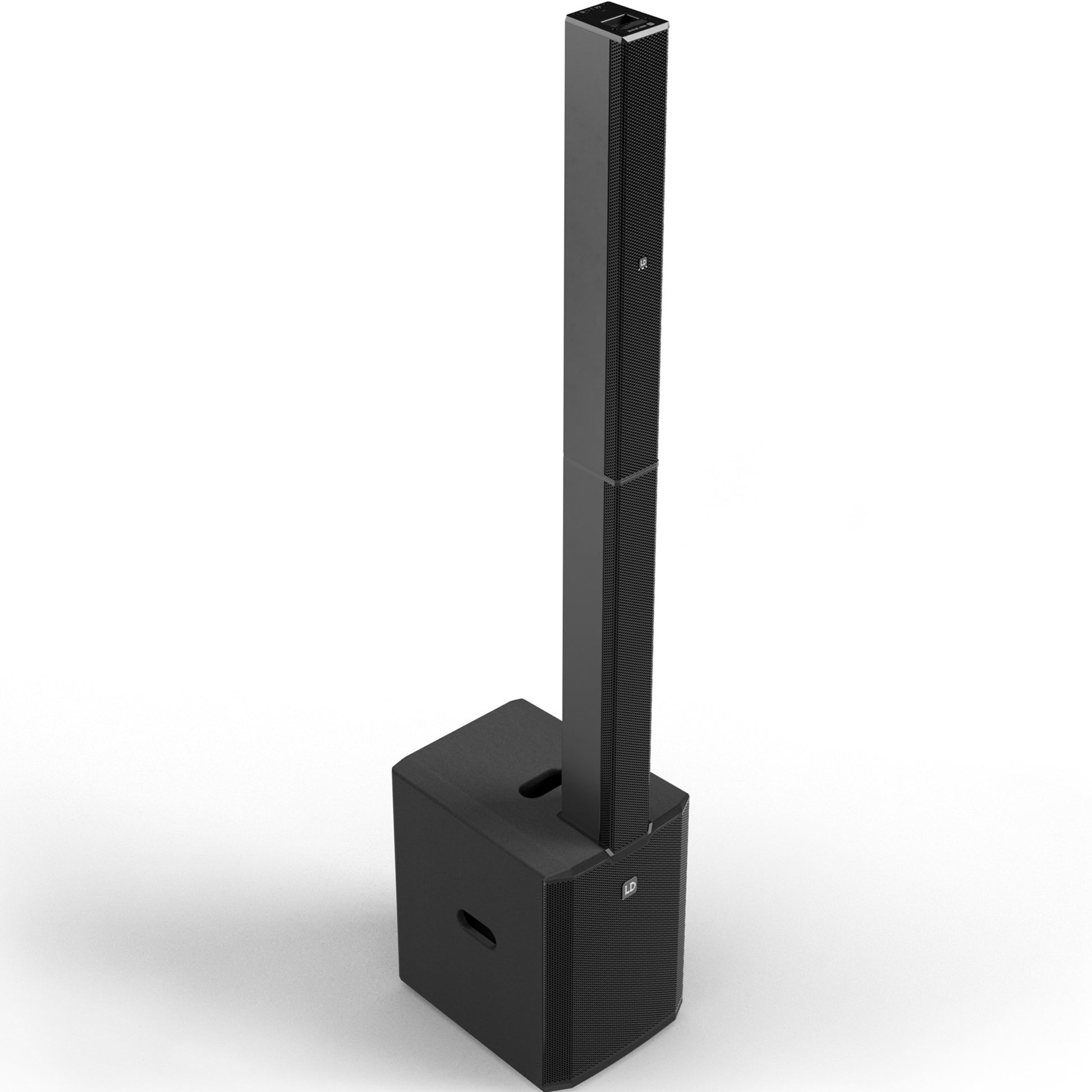

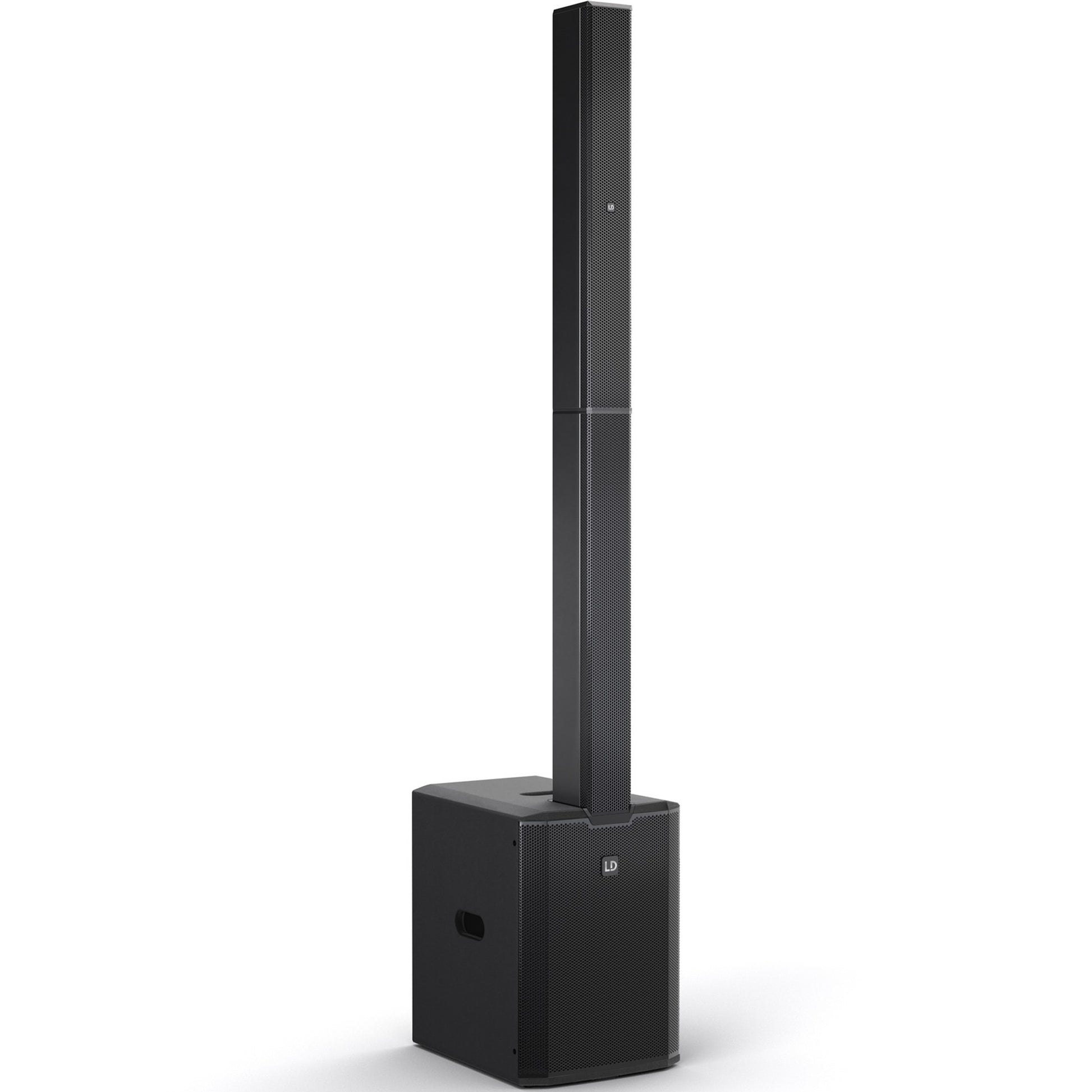

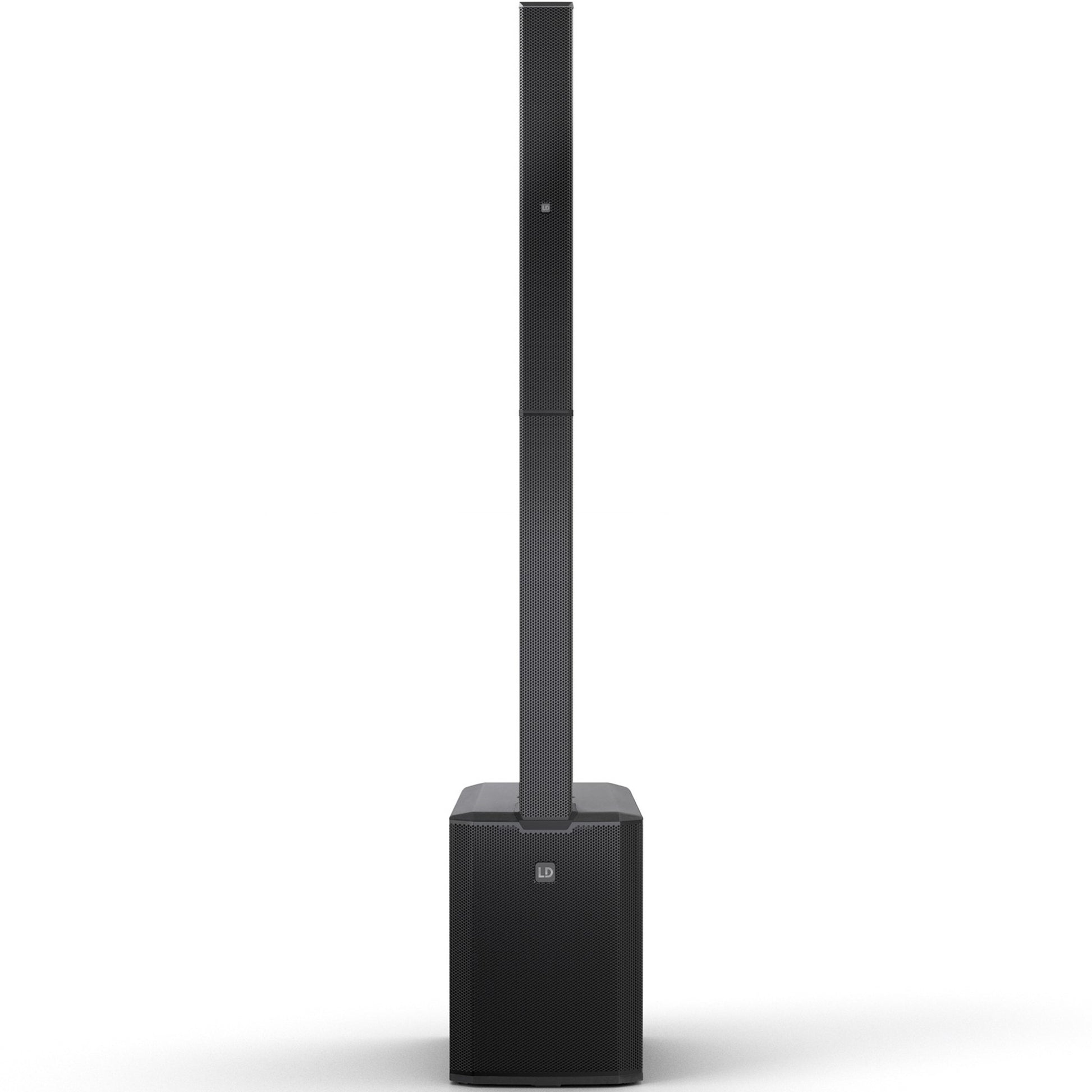

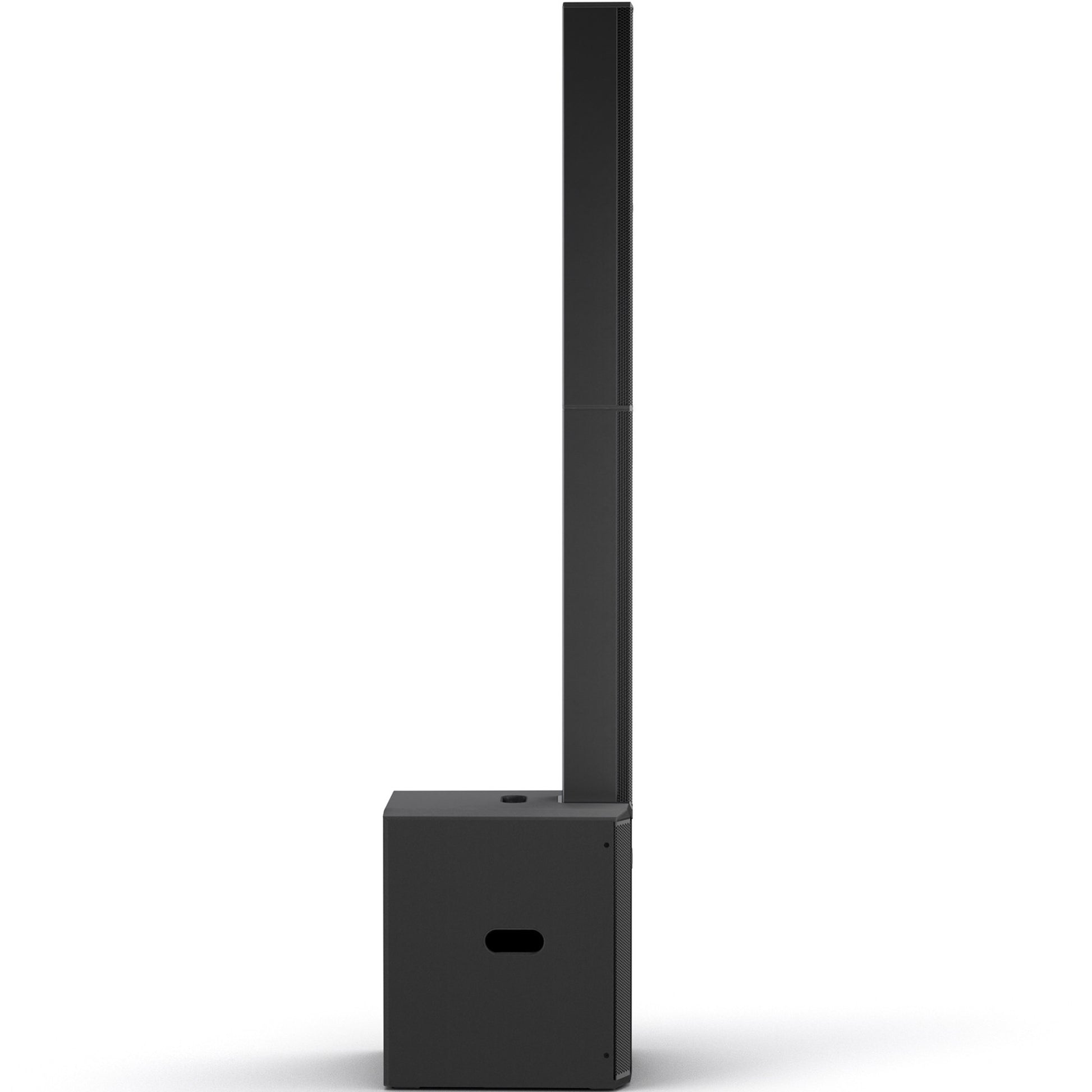

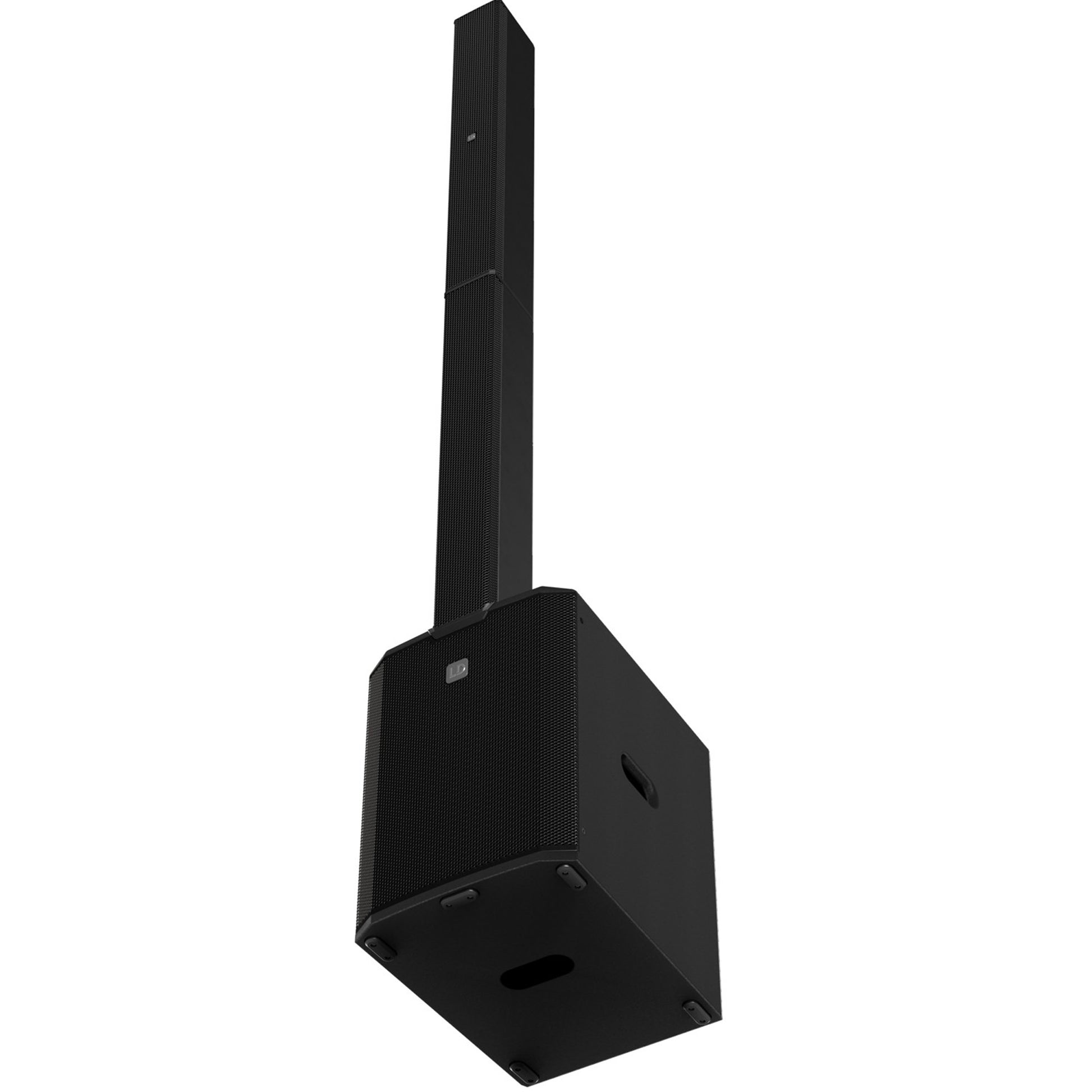

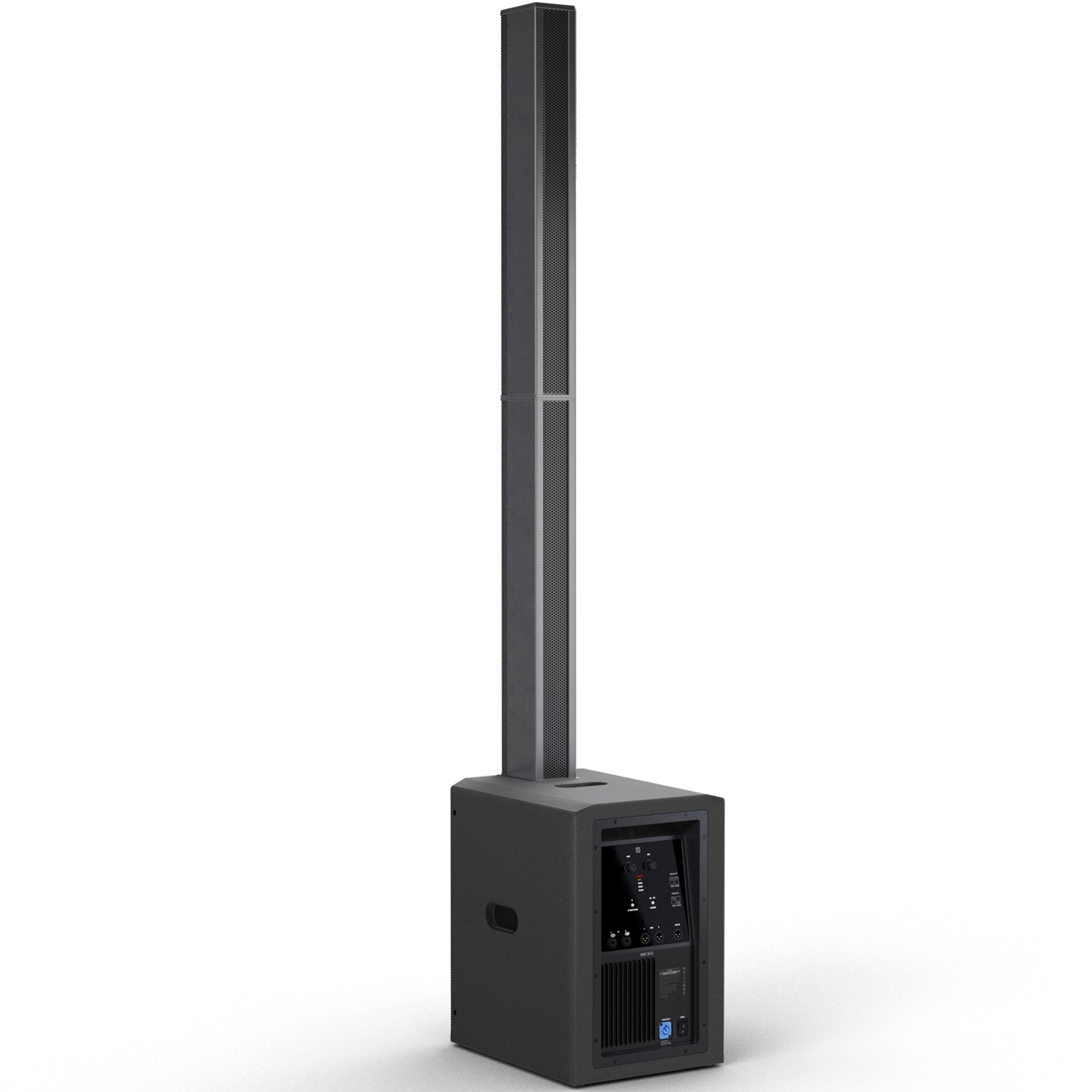

LD Systems MAUI 28 G3 Powered Column PA System

LD Systems MAUI 28 G3 Powered Column PA System

On order with the manufacturer!

View full details Liquid error (sections/main-product line 888): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Tech Specs

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 28 G3 delivers a huge, powerful and precise sound featuring 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

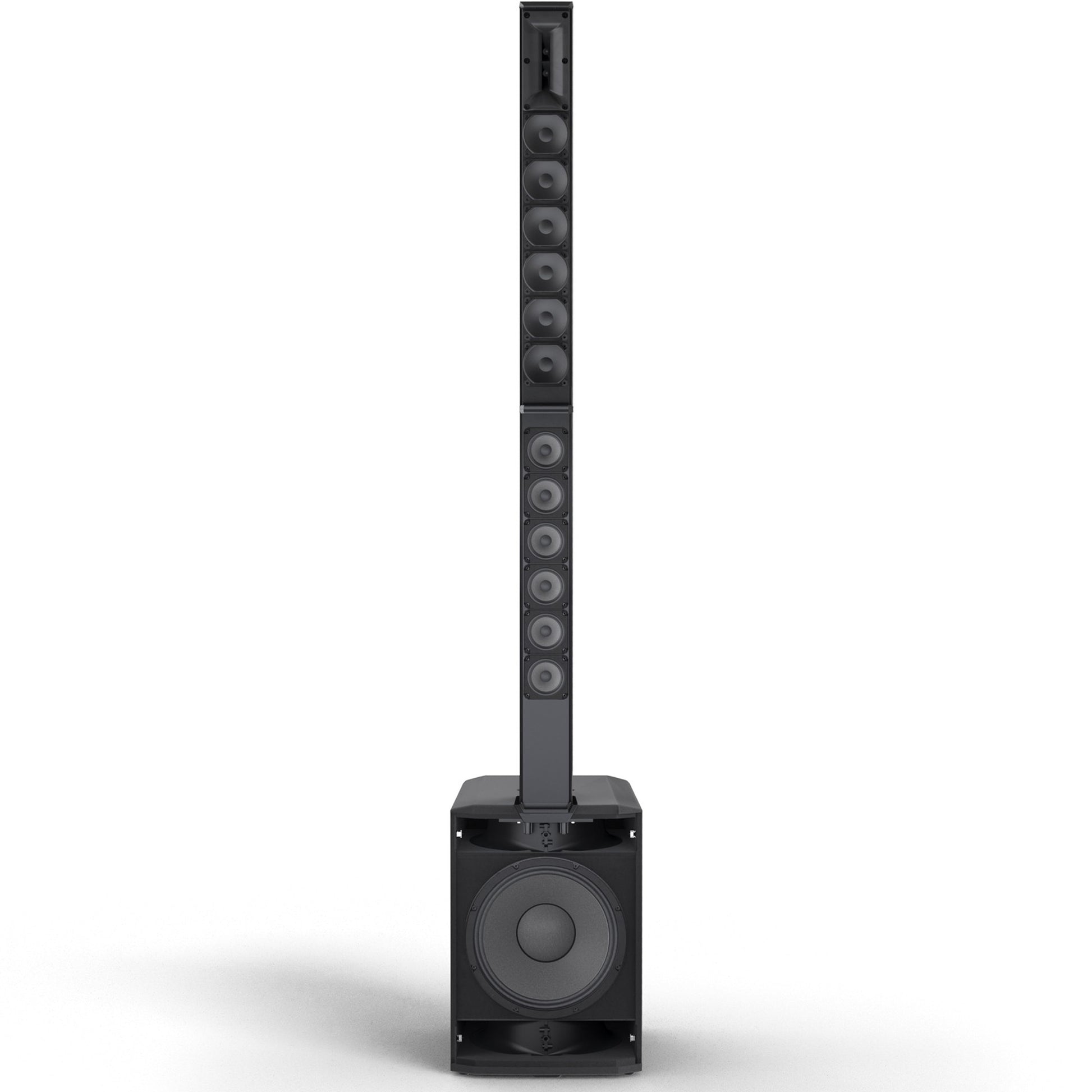

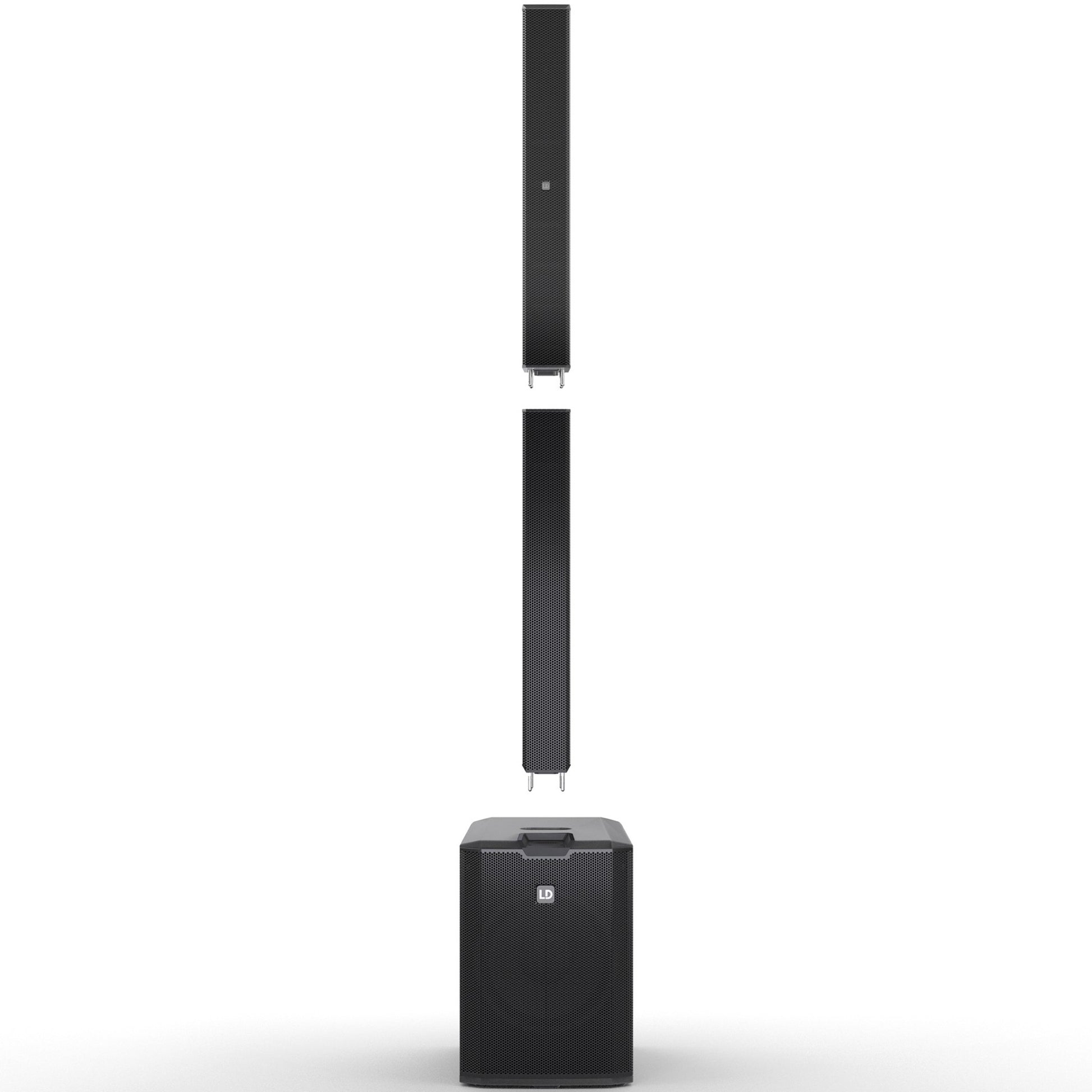

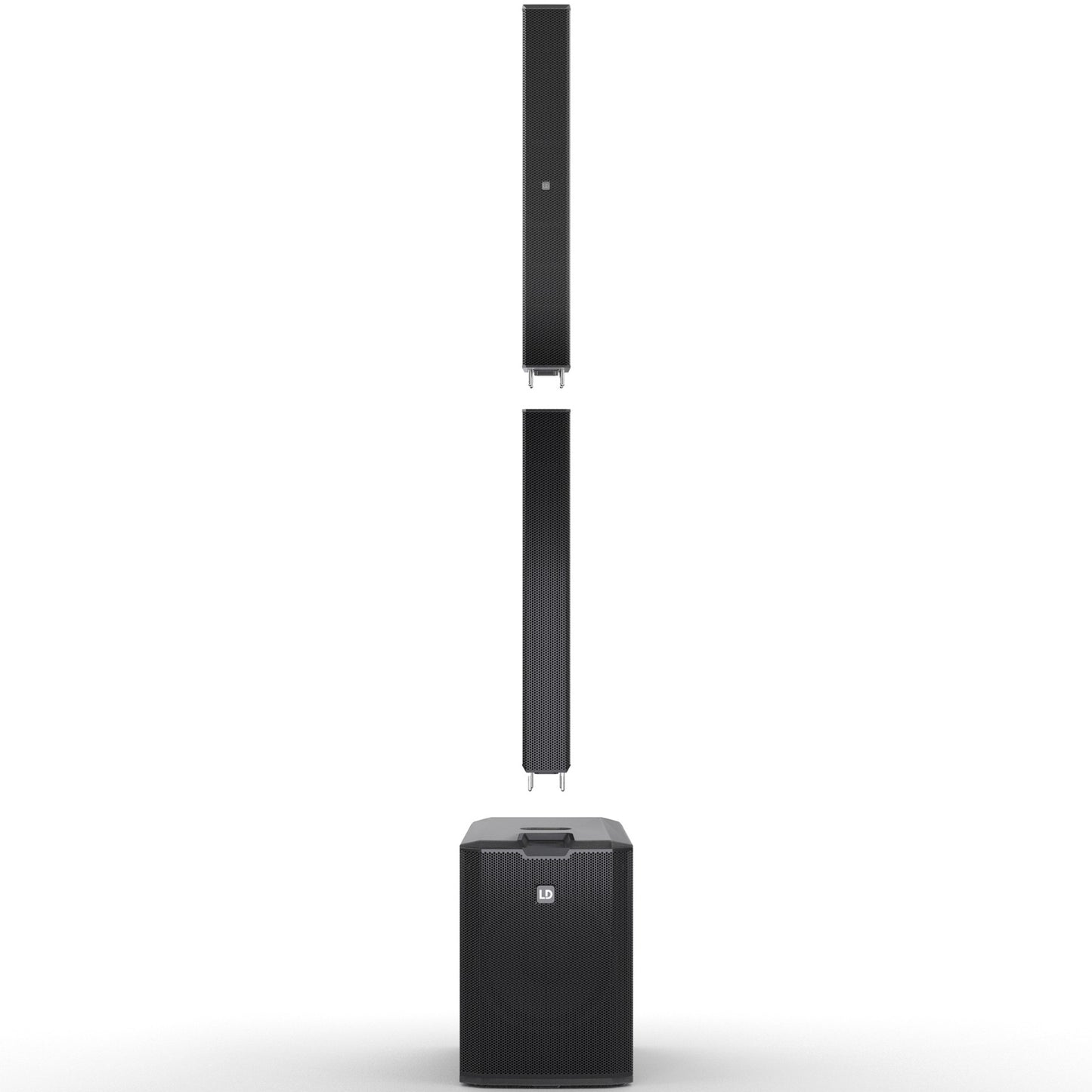

With its sleek and elegant design, the MAUI 28 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The columns of the MAUI 28 G3 are designed as cardioid speakers. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound.

Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

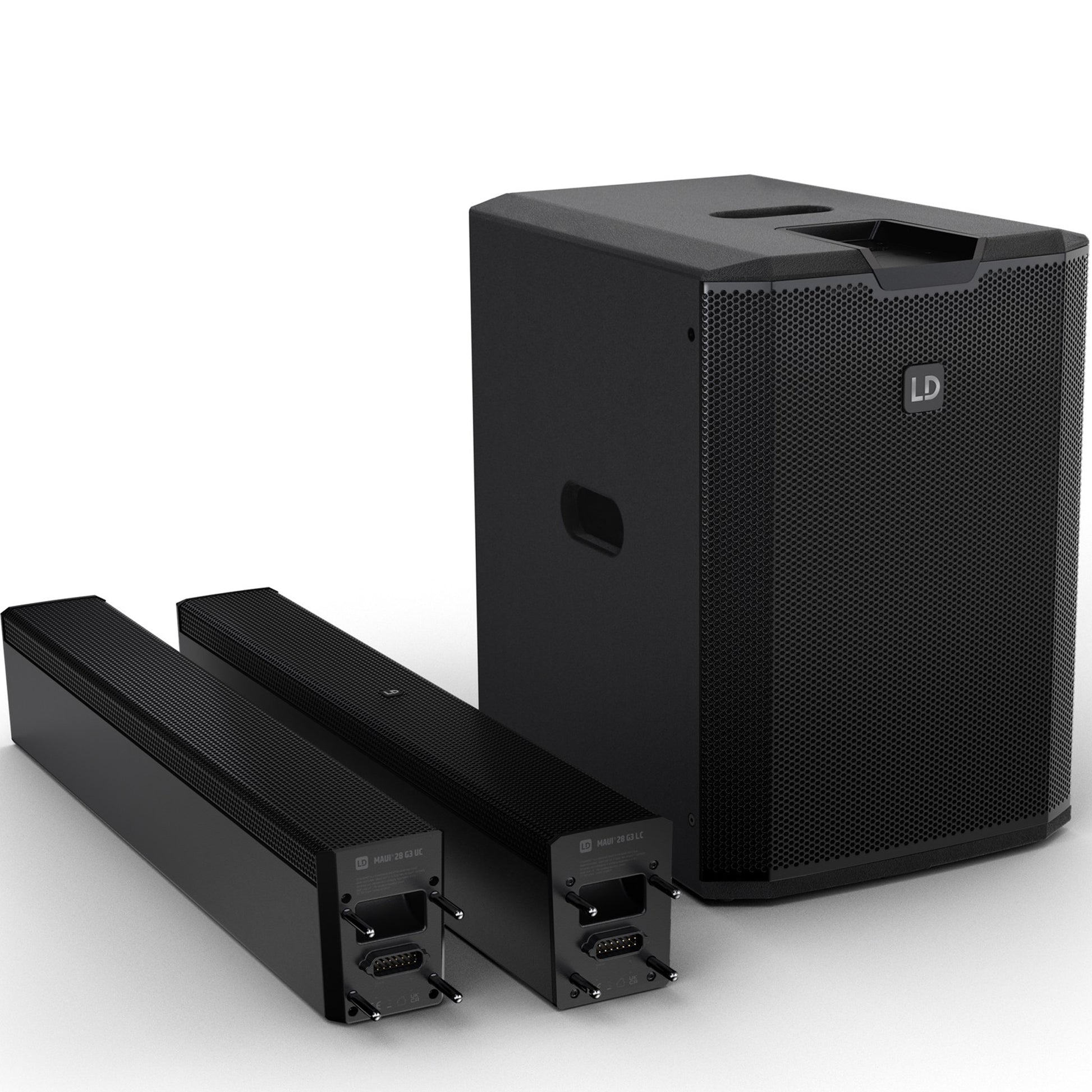

The MAUI 28 G3 is a real sound machine, yet also convinces with its sophisticated features in the day-to-day life of DJs, musicians and technicians. Thanks to Bluetooth 5.0, the column PA becomes even more versatile. Transport is as easy as usual, while the enhanced, hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...

More Information
Product Name LD Systems MAUI 28 G3 Powered Column PA System
Brand Ld Systems
Condition New
MPN LDS-MAUI28G3
UPC 4049521882838
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • LD Systems MAUI 28 G3 Powered Column PA System
  • 2 x Column Speakers
  • Subwoofer
  • Power Cord
  • Limited 2-Year Manufacturer Warranty
  • For DJs, Singer-Songwriters, Small Bands
  • Bluetooth Audio with Stereo Streaming
  • Powered Subwoofer Module with Sat Out
  • Array with 12 x Midrange + 2 x Tweeters
  • 120 x 30° Coverage, 37 Hz to 20 kHz
  • 2 x Combo XLR-1/4" Inputs
  • 2 x XLR Outputs, Subwoofer Ext Out
  • Cardioid Subwoofer Setting
  • Includes Power Cord

General

Speaker Configuration 1x 3-Way Speaker Column with Subwoofer
Number of Input Channels 2 (2 x Mono)
Amplifier Power Rating 1000 W RMS
Amplifier Class Class-D

Speakers

Enclosure Type Bass-Reflex
HF Driver 2x 0.5" / 12.7 mm Horn-Loaded Tweeter
HF Voice Coil 1" / 25.4 mm
MF Driver 12x 3.5" / 88.9 mm
MF Voice Coil 0.75" / 19.05 mm
Subwoofer Driver 1x 12" / 304.8 mm Woofer
Subwoofer Voice Coil 3" / 76.2 mm
Magnet HF Driver: Neodymium / MF Driver/Subwoofer: Ferrite

Signal Processing

Input Pad No
EQ No
Semi-Parametric EQ No
Effects No
DSP Yes: 24-Bit DSP at 48 kHz
Dynamic Processing Multiband Limiter

Performance

Frequency Response 37 Hz to 20 kHz
Maximum SPL 127 dB
Coverage Angle 120° H x 30° V
Protections DC Fault, Output Limiter, Short Circuit, Thermal

Connectivity

Audio I/O 2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input, 2x XLR 3-Pin Male Balanced Line Thru, 1x XLR 3-Pin Male Balanced Subwoofer Output
USB I/O No
Mobile App Compatible No
Network I/O No
Wireless Connectivity Bluetooth

Wireless

Bluetooth 5.0

Power

AC Input Power 100 to 120 VAC, 50 / 60 Hz (T 5 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 5 A L 250 V)
Power Consumption 400 W
AC Power I/O 1x IEC Input

Physical

Transport Options Subwoofer: 1x Handle (Top)
Cooling Convection
Construction Material Aluminum, Plywood, Polyurethane
Environmental Resistance No
Dimensions System: 80.8" / 2052 mm (Full Assembly)
Subwoofer: 20.7 x 18.6 x 14.6" / 527 x 472 x 370 mm
Top Speaker: 60.6 x 5.3 x 4.1" / 1540 x 135 x 103 mm
Weight System: 78 lb / 35.4 kg (Full Assembly)
Subwoofer: 50.3 lb / 22.8 kg
Top Speaker: 27.8 lb / 12.6 kg
