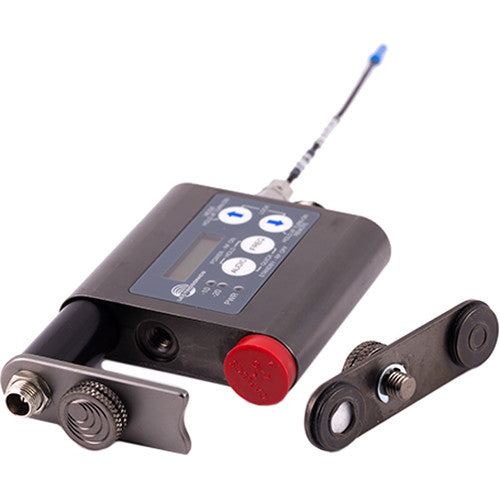

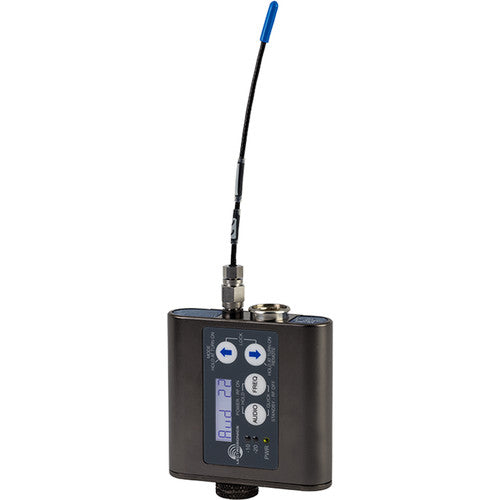

The Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter incorporates Lectrosonics patented Digital Hybrid Wireless technology, in a package no bigger than a pager. The SMQV transmitter is miniature in size yet rugged enough to withstand rigorous daily use in the field or in studios.

To meet the demand for both extended operating range and extended battery life, the SMQV transmitters offer selectable output power of 50, 100 or 250 mW. A third selection at 50 mW is provided for some theatrical applications, where the system design specifies lower transmitter power. The SMQV transmitter offers 256 user-selectable UHF frequencies. The Switchcraft TA5M audio input has user-calibrated 44 dB gain range, and accepts electret lavaliere mics, dynamic mics, or line level signals. A DSP-controlled analog audio limiter is employed before the A-D converter. The limiter has a range of more than 30 dB and a dual-release envelope, making the limiter transparent while maintaining low distortion.

• Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Freq Block 20)
• Variable, Selectable Power Output
• Digital Hybrid Wireless Technology
• Membrane-Switch Controls w/ LCD Display
