LR Baggs Para Acoustic DI Preamp / Direct Box
LR Baggs Para Acoustic DI Preamp / Direct Box
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews
Overview
The Para DI is a studio-quality direct box, featuring a five-band equalizer with tunable notch and midrange controls, adjustable gain and phase inversion. Our proprietary Quasi-Passive EQ circuitry is totally transparent and allows control over voicing without sacrificing tone -- a big advance over conventional equalizers. In short, the Para D.I. Is engineered to bring out the best in any pickup.
Features
• Discrete pure class A FET input for audiophile-quality sound and
very low noise
• 5 Band EQ controls include treble, presence and bass controls,
along with tunable notch filter and sweepable mid EQ with 2
octave range
• Phase inversion switch for increased feedback control
• Proprietary Quasi-Passive EQô places synthesized passive EQ
circuitry in a parallel side-chain with main signal for control of
instrument voicing without sacrificing tonal purity
• 24 dB of adjustable gain for optimum performance and the
lowest noise with a variety of input sources, including low
output pickups
• Balanced XLR and unbalanced ºî outputs for use with an amp or
PA or both simultaneously
• High input impedance (10 Meg) delivers the full potential of any
pickup
• High current buffered output drives long cables into difficult,
low impedance loads without fidelity loss
• Heavy duty steel box provides extra protection
• Runs on 48V phantom power or 9V battery, which provides 200
hours of playtime

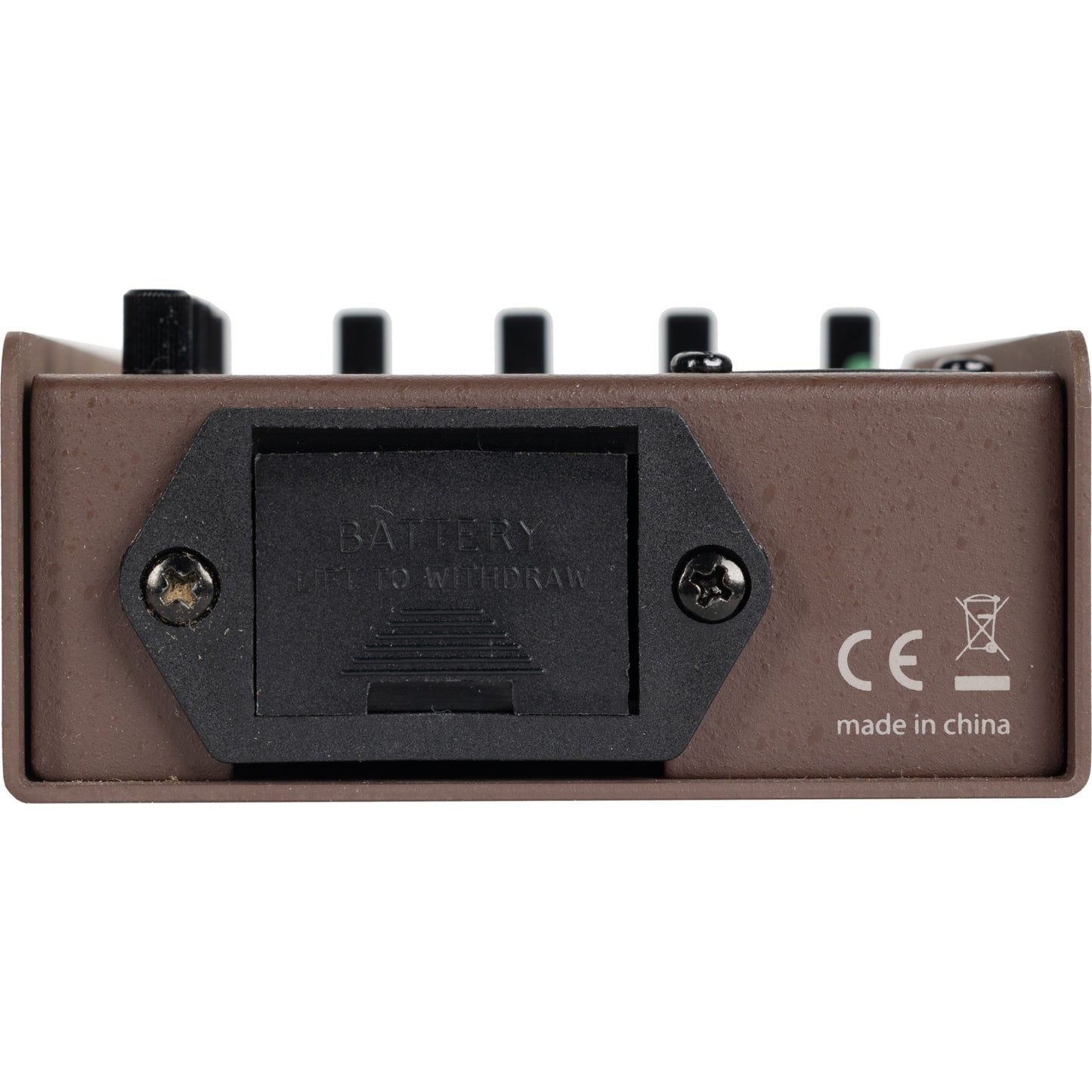

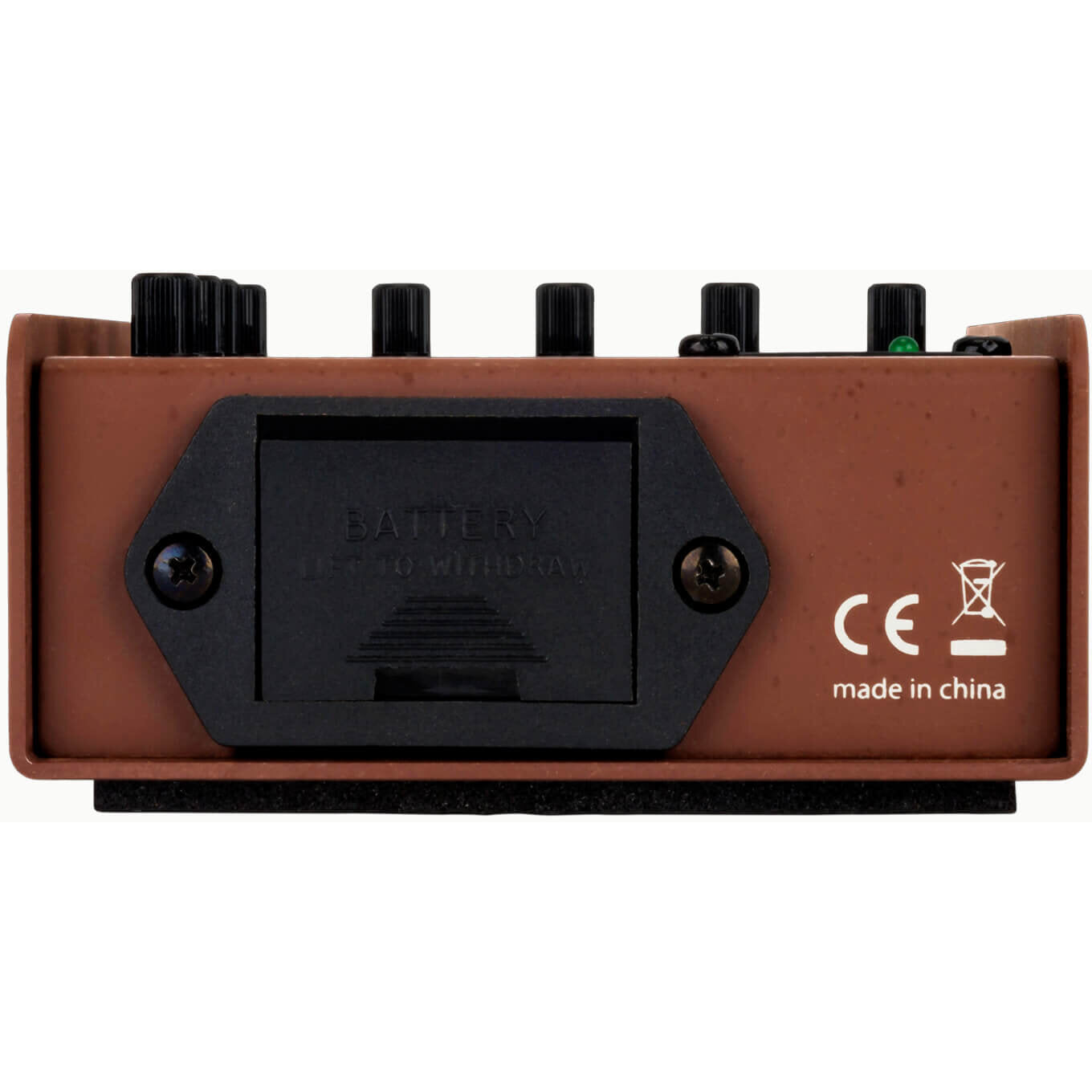

• External battery compartment allows quick and easy battery
changes
Specifications
• Size: 5.6" x 3.6" x 1.9"
• Weight: 14.5 oz.
• Battery Type: Single 9V
• Current Consumption: 2.9mA
• Battery Life: > 200 Hours (alkaline)
• External Power: 30-48V Phantom Power
• EQ - Low: ± 12dB @ 85Hz
• EQ - Notch: ± 6dB @ 98Hz-247Hz
• EQ - Midrange: ± 12dB @ 400Hz-1.6kHz
• EQ - Presence: ± 6dB @ 5kHz
• EQ - Treble: ± 12dB @ 10kHz
• Low Cut Filter: Fixed, 12dB/oct. @ 35Hz
• Sensitive: -3dBu
• Gain - Adjustable: From 4dB-24dB
• Input Impedance: 10 Megohms
• Signal to Noise: -88dB, unweighted
• FX Send Impedance: 12k
• FX Return Impedance: 100k
• Output Impedance: 600 ohms
| Product Name | LR Baggs Para Acoustic DI Preamp / Direct Box |
|---|---|
| Brand | LR Baggs |
| Condition | New |
| MPN | PARADI |
| UPC | 897042002112 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Adjustable gain for both passive and active pickups
- 5 band EQ with tunable notch and midrange bands
- Phase inversion for best sound and feedback control
- XLR and ¼" outputs
- Works with 9V battery or 48V phantom power
| Size | 5.6" x 3.6" x 1.9" |
| Weight | 14.5 oz. |
| Battery Type | Single 9V |
| Current Consumption | 2.9mA |
| Battery Life | > 200 Hours (alkaline) |
| External Power | 30-48V Phantom Power |
| EQ - Low | ± 12dB @ 85Hz |
| EQ - Notch | ± 6dB @ 98Hz-247Hz |
| EQ - Midrange | ± 12dB @ 400Hz-1.6kHz |
| EQ - Presence | ± 6dB @ 5kHz |
| EQ - Treble | ± 12dB @ 10kHz |
| Low Cut Filter | Fixed, 12dB/oct. @ 35Hz |
| Sensitivity | -3dBu |
| Gain - Adjustable | From 4dB-24dB |
| Input Impedance | 10 Megohms |
| Signal to Noise | -88dB, unweighted |
| FX Send Impedance | 12k |
| FX Return Impedance | 100k |
| Output Impedance | 600 ohms |
