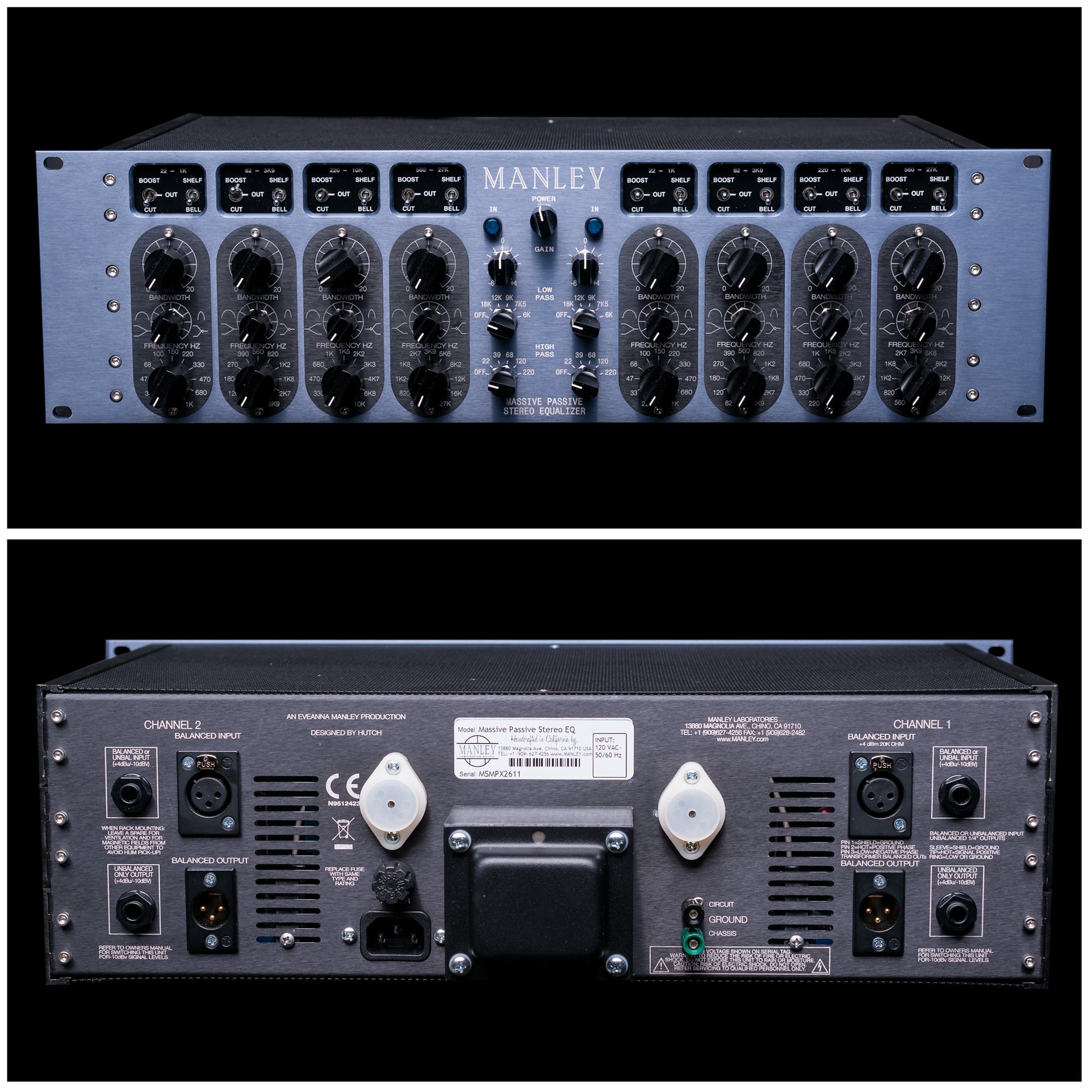

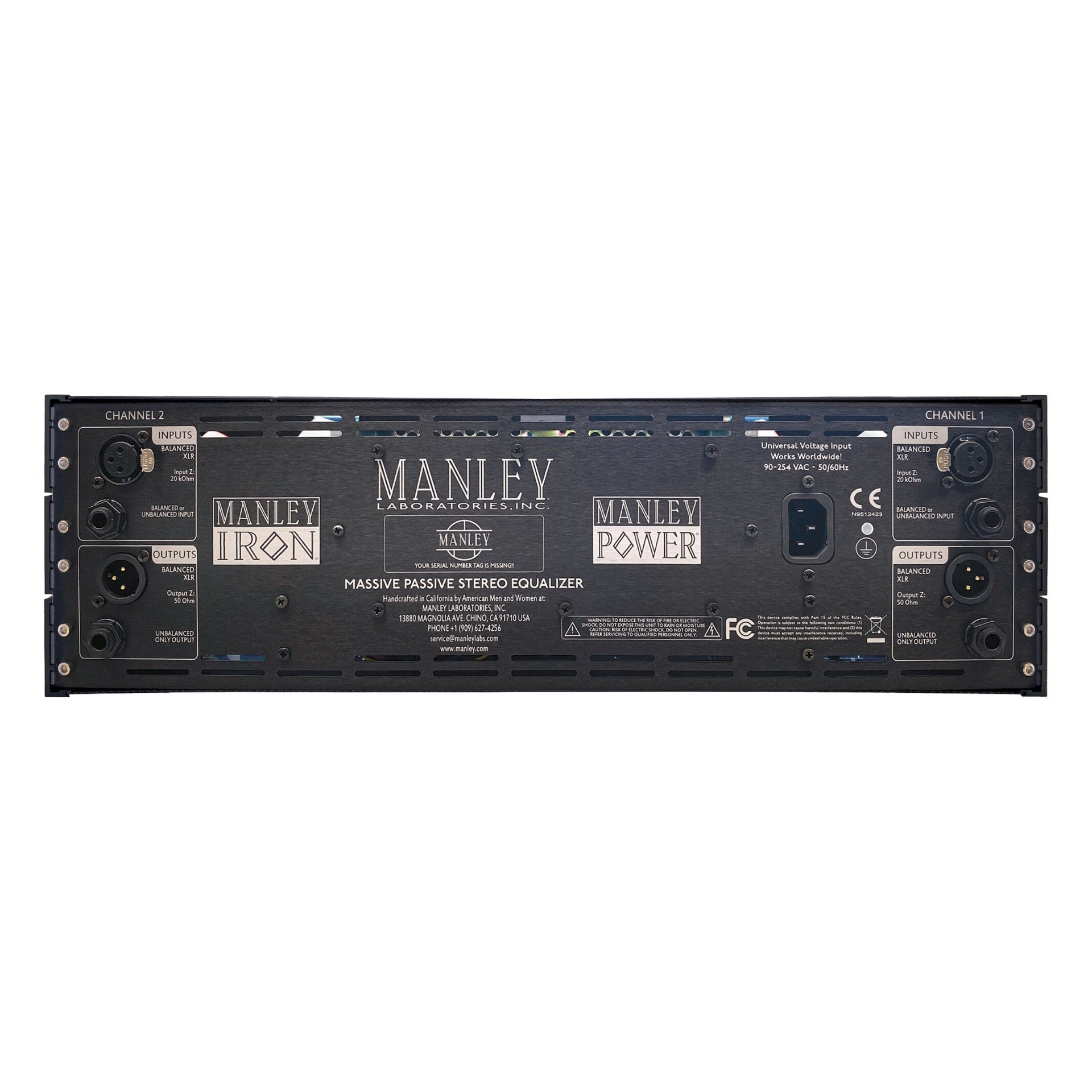

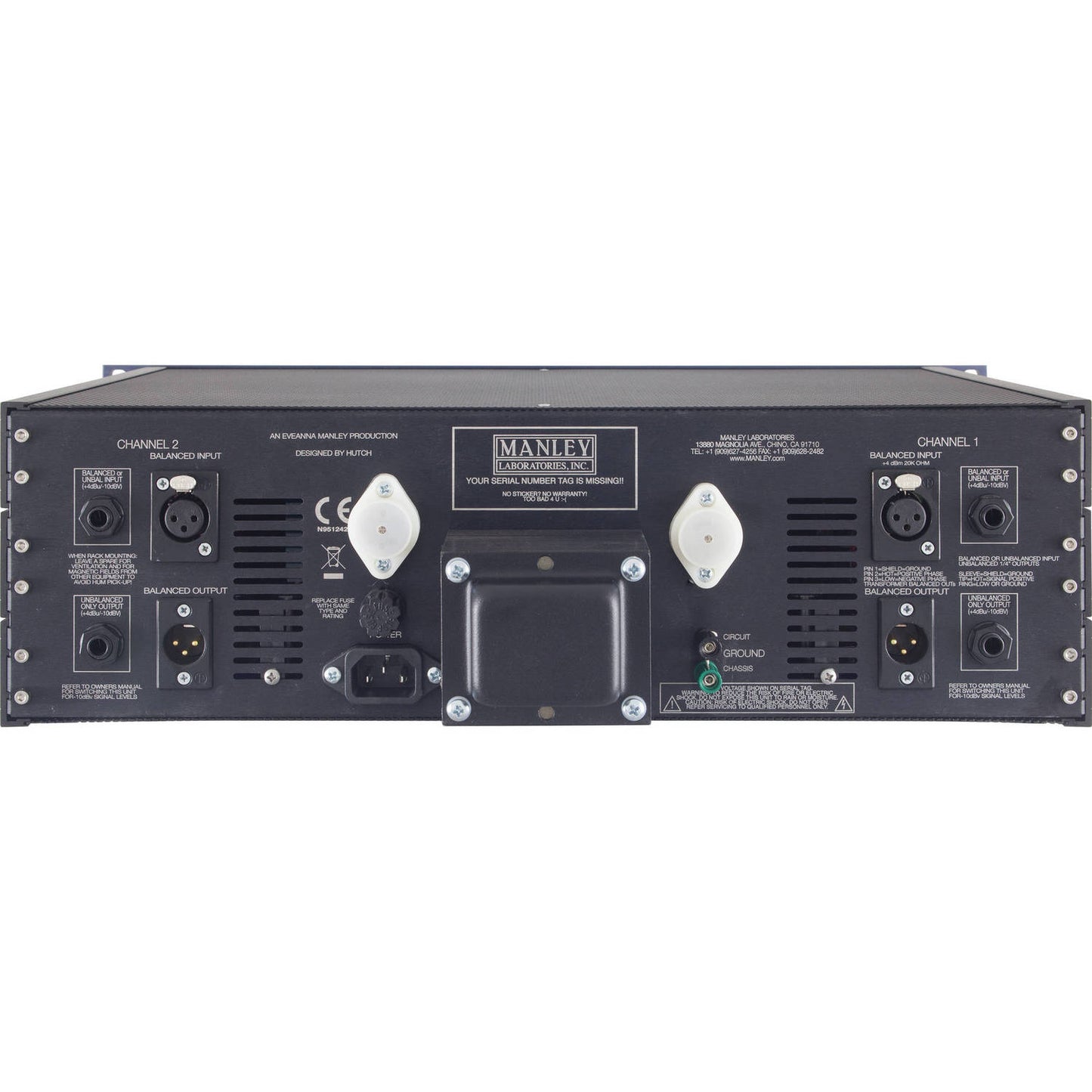

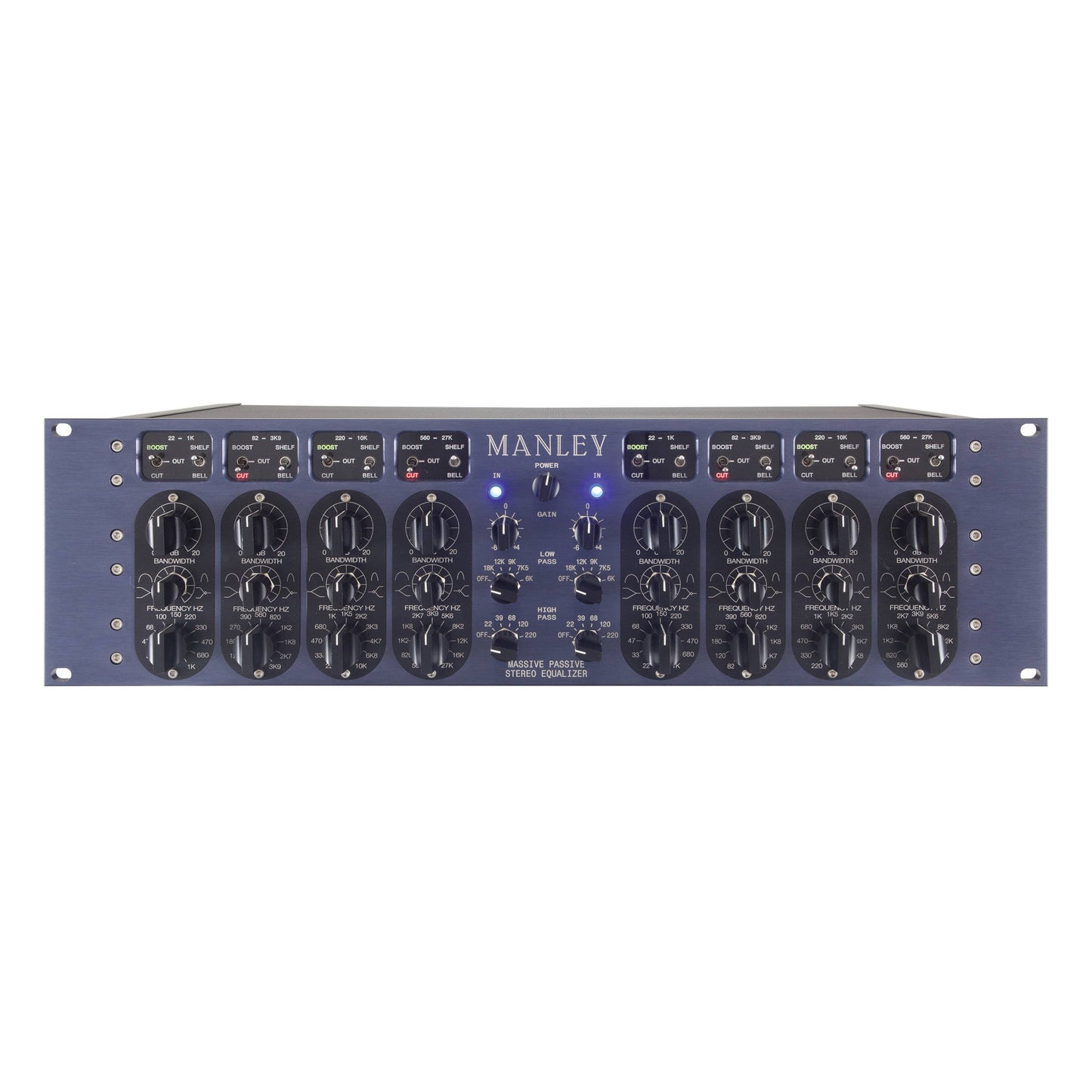

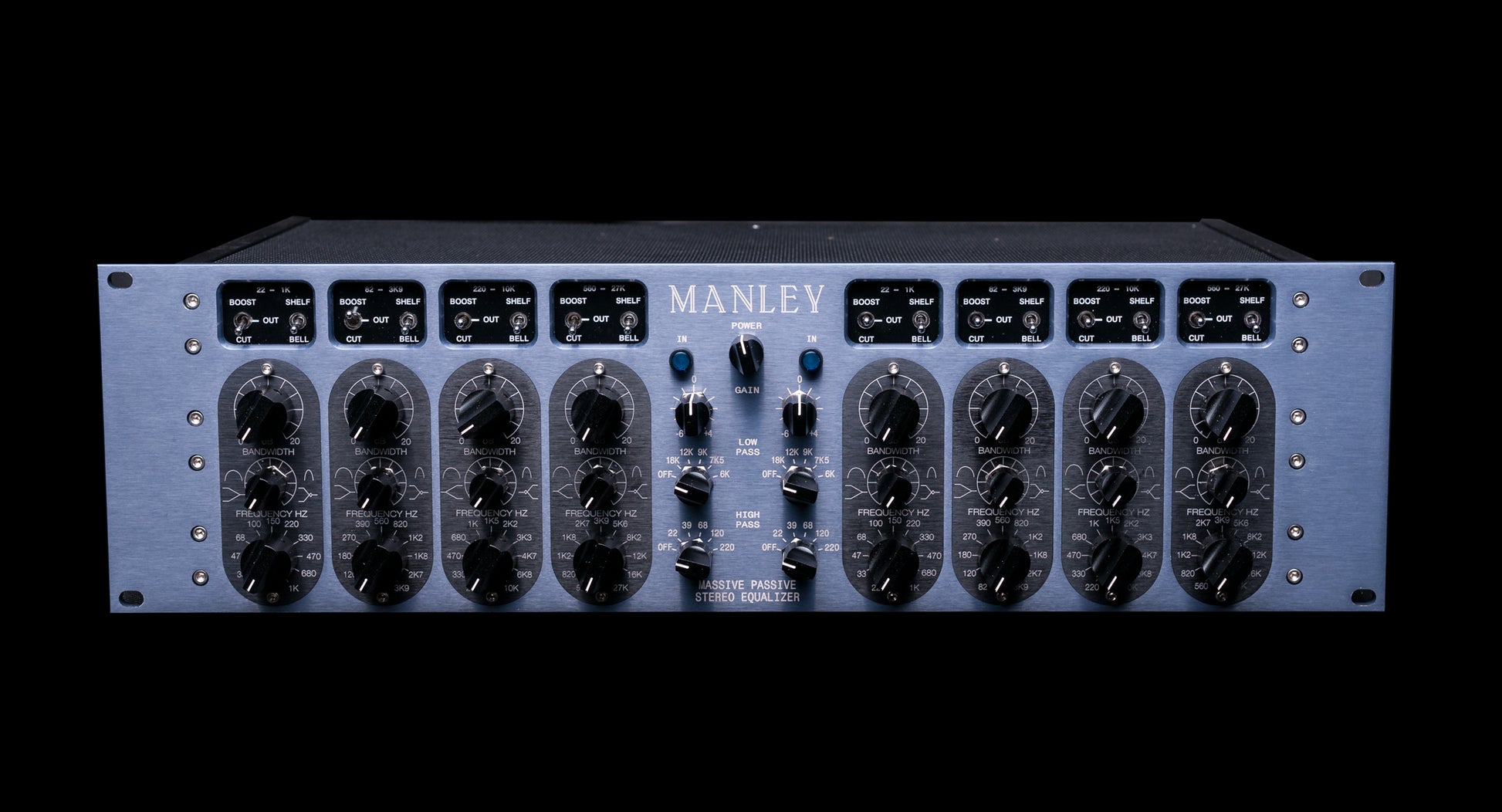

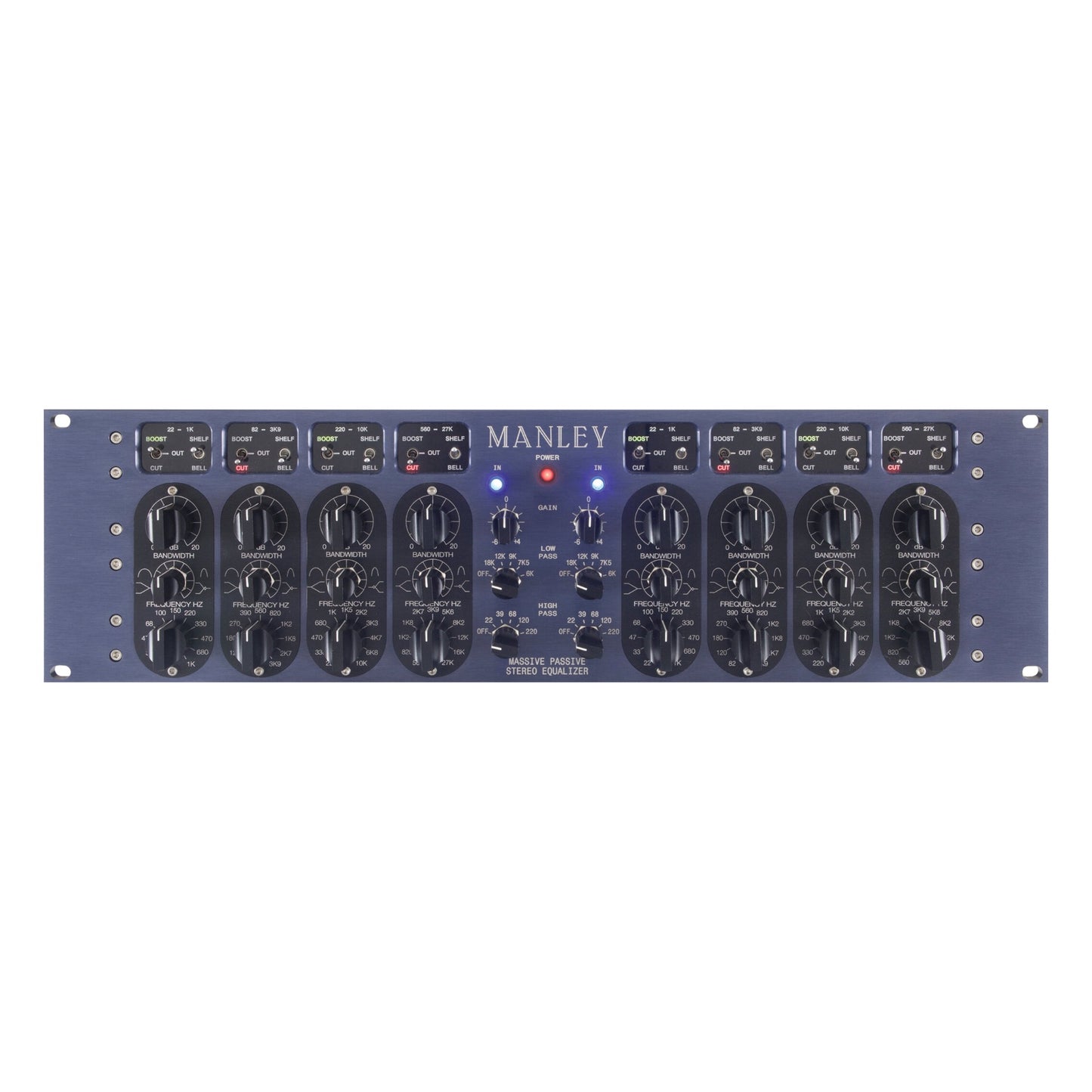

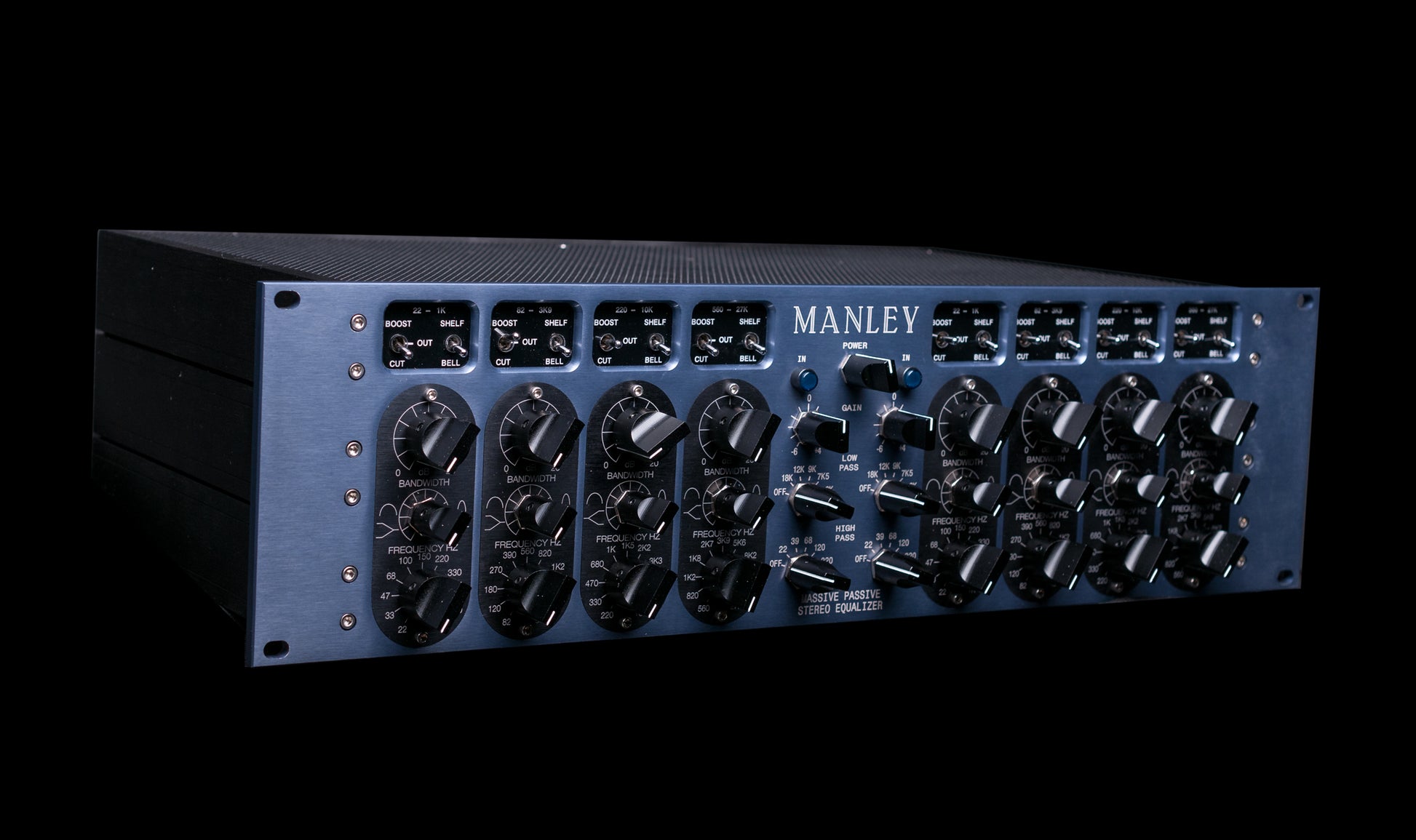

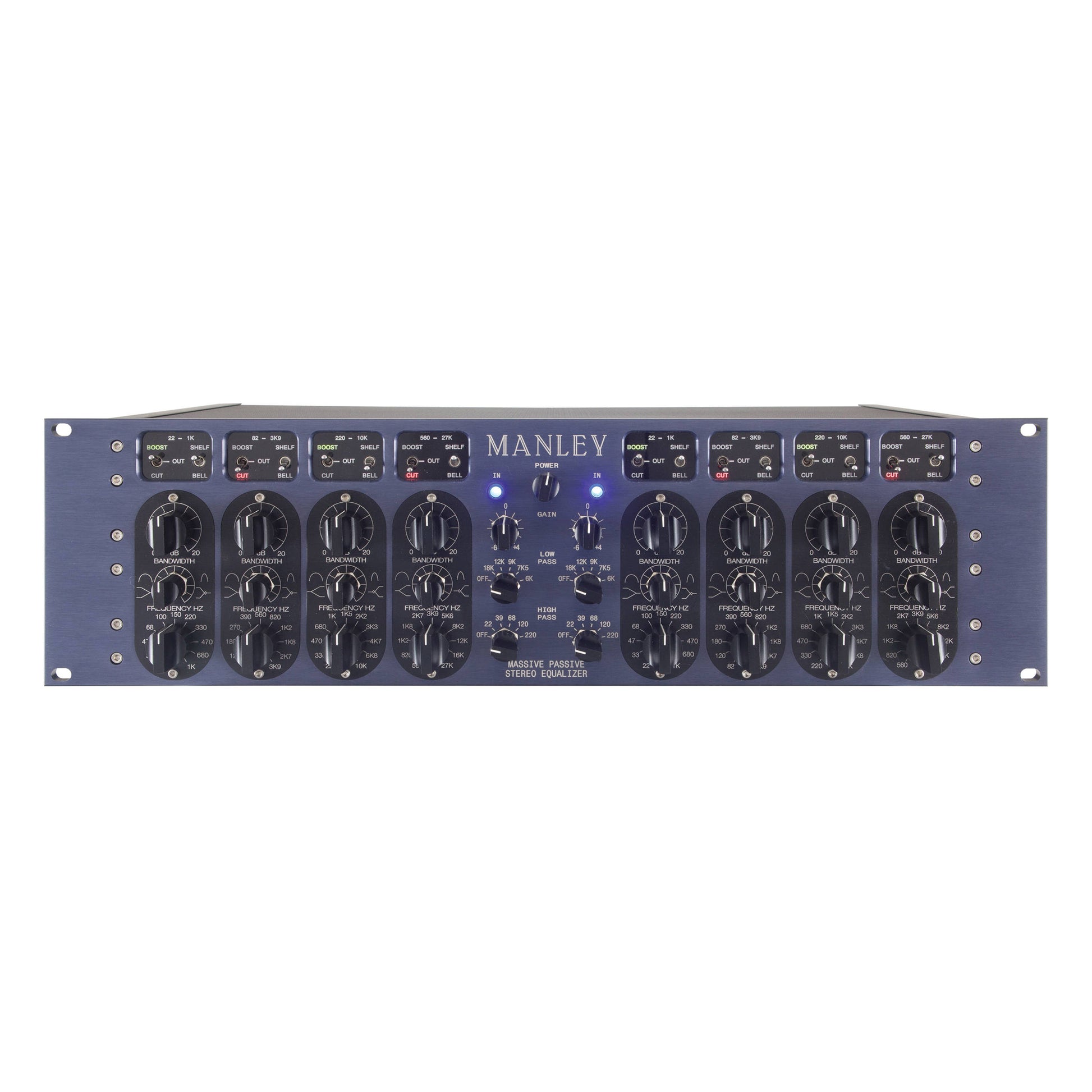

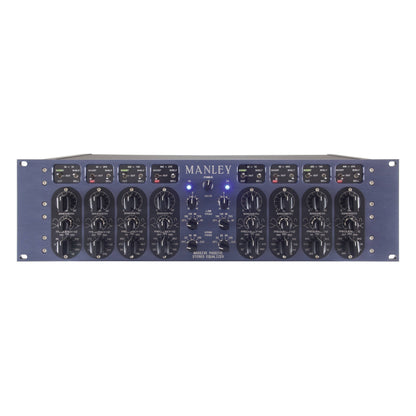

Manley Labs Massive Passive Stereo Tube EQ

Manley Labs Massive Passive Stereo Tube EQ

$6,999.00
$6,999.00
Sale Sold out

+ Free Shipping

Blink Image Blink Image

Limited quantities available!

All-Passive tone sculpting circuitry Unique Shelf curves use the "bandwidth" control Overlapping and Interleaved Frequency choices Every band switchable to shelf or bell Vacuum tube make-up gain and line drivers Parallel symmetrical topology Premium components throughout Passive HP and LP Filters plus gain trims
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

The MASSIVE PASSIVE is a two channel, four band equalizer, with additional high pass and low pass filters. "Passive" refers to the tone shaping part of this clever new EQ design not using any active circuitry. Only metal film resistors, film capacitors and hand-wound inductors sculpt the sound, kinda like a Pultec EQ on hyper-steroids. Super-beefy, hugely-high-headroom Manley all-tube make-up gain amplifiers deliver your tunes into the next realm. "Massive".... it's a fitting word for this beast. You'll need to experience this.

The Filters
5 frequencies Hi Pass and bypass, PLUS 5 frequencies Lo Pass with bypass. We made them extra steep. 36 dB/oct ! Why? When you need to remove the garbage, this does the trick and allows more of the real music to be untouched. The other reason is that it sounds killer when combined with the regular bands. Towards the mids this degree of steepness may be tamed somewhat. We're going for pure "usefulness" not "well, we guess it's standard". Thinking drums and guitar stacks, and other tough jobs. These filters are passive too.
  • High Pass Filters = 22, 39, 68, 120, 220, OFF
  • Low Pass Filters = 6K, 7K5, 9K, 12K, 18K, OFF
Parametric Frequencies
LOW - 22, 33, 47, 68, 100, 150, 220, 330, 470, 680, 1K
LM - 82, 120, 180, 270, 390, 560, 820, 1K2, 1K8, 2K7, 3K9
HM - 220, 330, 470, 680, 1K, 1K5, 2K2, 3K3, 4K7, 6K8, 10K
HI - 560, 820, 1K2, 1K8, 2K7, 3K9, 5K6, 8K2, 12K, 16K, 27K

More Information
Product Name Manley Labs Massive Passive Stereo Tube EQ
Brand Manley Labs
Condition New
MPN MassivePassive
UPC 890833000038
Shipping Option Free Shipping to the Continental U.S.
  • All-Passive tone sculpting circuitry
  • Unique Shelf curves use the "bandwidth" control
  • Overlapping and Interleaved Frequency choices
  • Every band switchable to shelf or bell
  • Vacuum tube make-up gain and line drivers
  • Parallel symmetrical topology
  • Premium components throughout
  • Passive HP and LP Filters plus gain trims

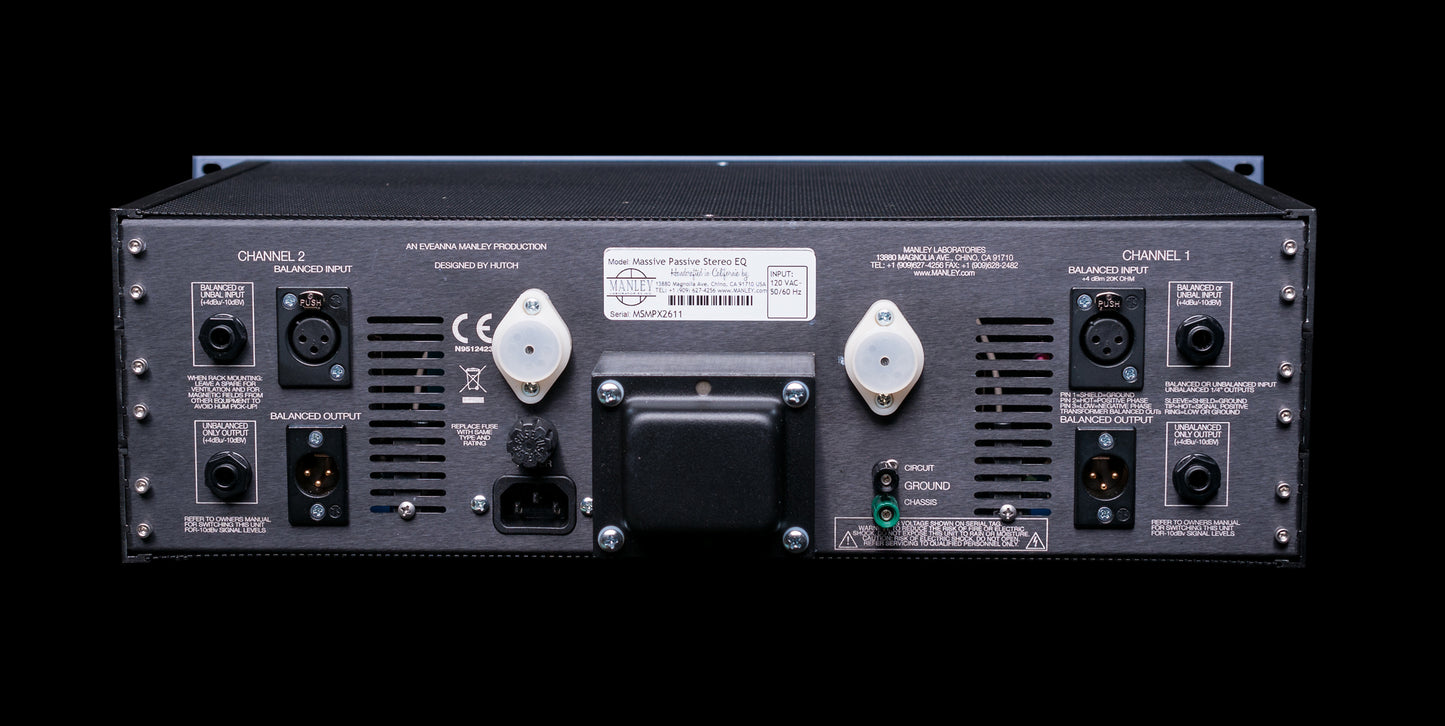

  • Ins & Outs Balanced XLR & 1/4" (accepts unbalanced)
  • Level +4 dBu nominal, internal switches for -10 operation
  • Bypass Switch bypasses EQ & tube circuits (not hardwire)
  • 44 Frequencies (roughly 1/4 octave spacing)
  • Frequency Range: 22 Hz to 27 kHz
  • EQ Boost/Cut Range : 20 dB boost, 20 dB cut
  • Nominal Q range: 1.5 to 3 (uniquely active in shelf modes)
  • Frequency Response: ±2 dB: 8 Hz to 60 KHz
  • Maximum Output @ 1.5% THD +37 dBv; +26dBv @ 20 Hz
  • THD & Noise (1KHz @ +4 dBu): 0.06%
  • Noise Floor (referred to +4dBu): -85 dB (A Weight)
  • Dynamic Range: 120 dB
  • Tube Complement: 2 x 12AX7 EH, 4 x 6414 for serial MSMPX### after 2/2004
  • Tube Complement: 2 x 5751, 4 x 6414 for serial MSMP### until 2/2004
  • Power Consumption (120/240VAC): 72 watts
  • Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
  • Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
  • Mains Voltage Frequency: 50~ 60Hz
  • Size (3U): 19" x 5.25" x 10"
  • Weight: Unit 21 lbs. Shipping Weight: 27 lbs.

Manley Labs Massive Passive Stereo Tube EQ
Details

The MASSIVE PASSIVE is a two channel, four band equalizer, with additional high pass and low pass filters. "Passive" refers to the tone shaping part of this clever new EQ design not using any active circuitry. Only metal film resistors, film capacitors and hand-wound inductors sculpt the sound, kinda like a Pultec EQ on hyper-steroids. Super-beefy, hugely-high-headroom Manley all-tube make-up gain amplifiers deliver your tunes into the next realm. "Massive".... it's a fitting word for this beast. You'll need to experience this.

The Filters
5 frequencies Hi Pass and bypass, PLUS 5 frequencies Lo Pass with bypass. We made them extra steep. 36 dB/oct ! Why? When you need to remove the garbage, this does the trick and allows more of the real music to be untouched. The other reason is that it sounds killer when combined with the regular bands. Towards the mids this degree of steepness may be tamed somewhat. We're going for pure "usefulness" not "well, we guess it's standard". Thinking drums and guitar stacks, and other tough jobs. These filters are passive too.
  • High Pass Filters = 22, 39, 68, 120, 220, OFF
  • Low Pass Filters = 6K, 7K5, 9K, 12K, 18K, OFF
Parametric Frequencies
LOW - 22, 33, 47, 68, 100, 150, 220, 330, 470, 680, 1K
LM - 82, 120, 180, 270, 390, 560, 820, 1K2, 1K8, 2K7, 3K9
HM - 220, 330, 470, 680, 1K, 1K5, 2K2, 3K3, 4K7, 6K8, 10K
HI - 560, 820, 1K2, 1K8, 2K7, 3K9, 5K6, 8K2, 12K, 16K, 27K

More Information
Product Name Manley Labs Massive Passive Stereo Tube EQ
Brand Manley Labs
Condition New
MPN MassivePassive
UPC 890833000038
Shipping Option Free Shipping to the Continental U.S.
Features
  • All-Passive tone sculpting circuitry
  • Unique Shelf curves use the "bandwidth" control
  • Overlapping and Interleaved Frequency choices
  • Every band switchable to shelf or bell
  • Vacuum tube make-up gain and line drivers
  • Parallel symmetrical topology
  • Premium components throughout
  • Passive HP and LP Filters plus gain trims
Tech Specs
  • Ins & Outs Balanced XLR & 1/4" (accepts unbalanced)
  • Level +4 dBu nominal, internal switches for -10 operation
  • Bypass Switch bypasses EQ & tube circuits (not hardwire)
  • 44 Frequencies (roughly 1/4 octave spacing)
  • Frequency Range: 22 Hz to 27 kHz
  • EQ Boost/Cut Range : 20 dB boost, 20 dB cut
  • Nominal Q range: 1.5 to 3 (uniquely active in shelf modes)
  • Frequency Response: ±2 dB: 8 Hz to 60 KHz
  • Maximum Output @ 1.5% THD +37 dBv; +26dBv @ 20 Hz
  • THD & Noise (1KHz @ +4 dBu): 0.06%
  • Noise Floor (referred to +4dBu): -85 dB (A Weight)
  • Dynamic Range: 120 dB
  • Tube Complement: 2 x 12AX7 EH, 4 x 6414 for serial MSMPX### after 2/2004
  • Tube Complement: 2 x 5751, 4 x 6414 for serial MSMP### until 2/2004
  • Power Consumption (120/240VAC): 72 watts
  • Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
  • Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
  • Mains Voltage Frequency: 50~ 60Hz
  • Size (3U): 19" x 5.25" x 10"
  • Weight: Unit 21 lbs. Shipping Weight: 27 lbs.
