There is absolutely no mistaking the Dual Rectifier’s hard-hitting articulation, scooped mids, and high-gain “sizzle,” which has unquestionably redefined the sound of American-style high-gain guitar tone. Since their introduction in 1992, Mesa’s Rectifier series amps have undergone several revisions, culminating in the 3-channel model available today. While the current model preserves the sound and spirit of the original early/mid 90’s versions, many players wish they could go back in time and add the original voiced and layout design to their arsenal. Now, you can.

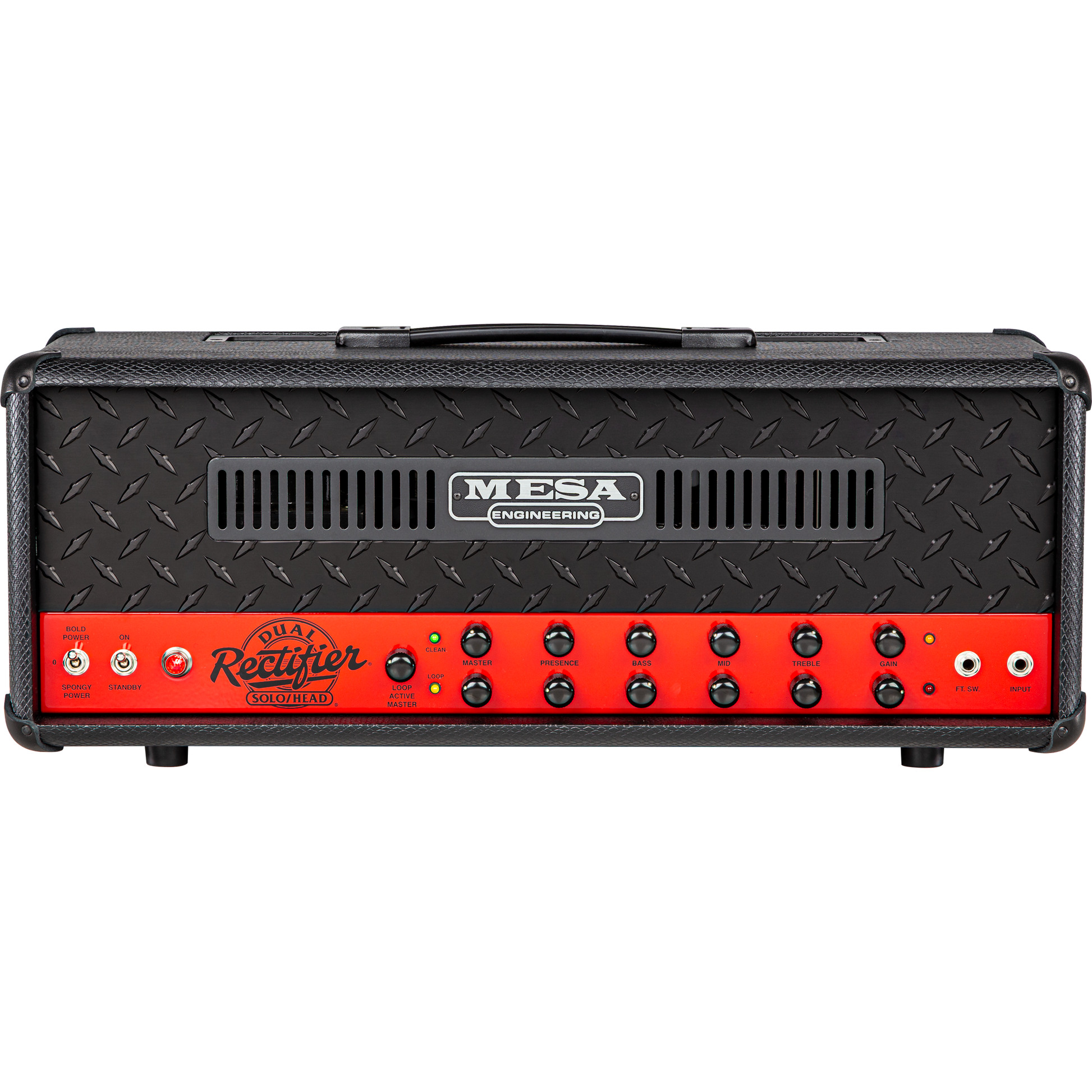

The Limited Edition Mesa '90s Dual Rectifier revisits the early 90’s “F revision” of the modern classic while incorporating key upgrades of more recent revisions. Expect distinctly throaty & present mids, super-tight low-end, and a more aggressive gain structure. The simple yet versatile front-panel controls mark a return to the original Orange-and-Red dual-channel layout. The Orange offers vintage-voiced cleans with a robust low end through a more mid-forward “vintage voiced” drive sound. The Red channel features a decidedly modern, aggressive response, with famously scooped mids and the ultra-high gain sizzle that made the Dual Rectifier an instant classic. Each channel can be “cloned” to provide foot-switchable access to two different settings of the same channel. Each channel is equipped with an independent 3-band EQ, Presence, and Master Volume.

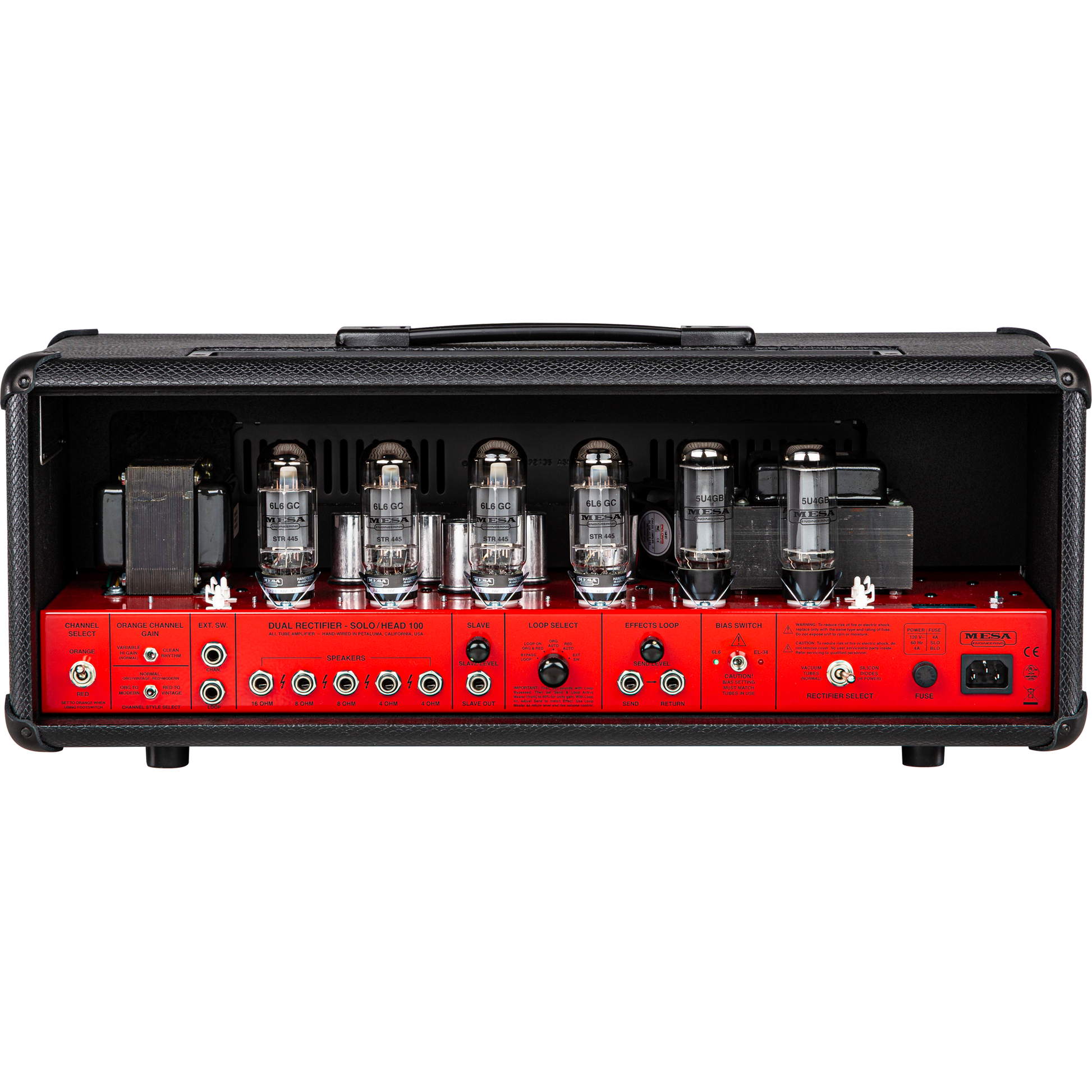

On the back panel, the power toggle lets you further customize sound and feel from bold to spongy-style sag, and choose solid-state diodes or an old-school tube rectifier for each channel. The 90s Dual Rectifier produces 100 watts of power using a quartet of 6L6 power tubes that can be easily swapped out for EL34s, with the flip of the bias switch. An updated effects loop is wired in series, delivering a much better sound, with lower noise than the originals. Topping everything off in a striking visual style, the Limited Edition 90s Dual Rectifier is decked out in a Black Snake Vinyl cover, blacked-out Diamond face, plus Rosso Scuderia Red control panel, for a custom 90s look.
| Product Name | Mesa Boogie Limited Run 90’s Dual Rectifier Head Amplifier - Black Snake Vinyl, Rosso Scuderia Red Chassis |
|---|---|
| Brand | Mesa Boogie |
| Condition | New |
| MPN | 2.DR2BR.V33.DP2.HBPT |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Mesa Boogie Limited Run 90’s Dual Rectifier Head Amplifier - Black Snake Vinyl, Rosso Scuderia Red Chassis
- Footswitch & Slipcover
- Dual Channel Simplicity – Simple, straightforward design for ease of use and great tones fast
- Channel Style/Cloning – Allows “cloning” of Vintage or Modern Modes on either channel
- Patented Switchable Rectifiers – Tube or silicon diode rectification to tune the sound, character, and feel
- 100 Watts of Robust Class A/B Tube Power – Bias Select switch for stock 6L6 tubes or a swap to EL34 tubes
- BOLD/SPONGY “Variac” Switch – Reduced voltage setting for increased harmonics and elastic feel
General Information |
|
|---|---|
| Product Name & Format | 90s Dual Rectifier Limited Run |
| Product Series | Rectifier Series |
| Build Location | Built In Petaluma, CA, with the World’s Finest Materials |
| Available Formats | Head |
Quick Overview |
|
| Wattage | 100 Watts |
| Power Tube Type | 4x Mesa 6L6 Power Tubes |
| Channels & Modes | 2 Fully Independent Channels with 3 Modes |
| Mode Voicings/Styles | Channel 1 “Orange” (LED light color) features: Clean or Variable High Gain (“Vintage”) Modes. With Channel Style (Cloning) Switch, can also be set to Modern High Gain (“Red”) Mode. Channel 2 “Red” (LED light color) features: Modern High Gain Mode, or with the Channel Style/Cloning Switch it can also be set to Variable “Vintage” High Gain (“Orange”) Mode |
| Channel Controls | Independent Gain, Treble, Middle, Bass, Presence & Master Controls |
| Graphic EQ / Reverb / FX / Solo | Series FX loop |
| Footswitchable Functions | Compact, 1 Button Footswitch (Channel 1/2) |
| Speaker(s) & Impedance | n/a |
| Weight | 41 lbs (18.6 kg) |
| Dimensions | 10" (25.4 cm) H x 25 1/2" (64.77 cm) W x 9 7/8" (24.77 cm) D |
Amplifier Features |
|
| Amp Type | Tube |
| Chassis Material | Chrome Plated Steel in Rosso Scuderia Red |
| Rectifier Type | Selectable Tube or Silicon Diode Rectification |
| Rectifier Tube(s) | 2x 5U4GB |
| Variac Power Switch | Yes – Bold/Spongy Power Switch selects between full voltage or reduced voltage |
| Preamp Tubes | 5x 12AX7 |
| Power Amp Tubes | 4x 6L6 |
| Bias Switch for Alternate Power Tube Types | Yes (6L6 or EL34 Bias Switch) |
| Maintenance Free Fixed Bias | Yes |
| Built-In Power Amp Attenuation | n/a |
| Power Amp Details (Class & Wattage) | Class A/B - 100 Watts |
| Cooling | Fan |
| Number of Footswitchable Channels | Two Channels |
| Number of Style Modes | Three |
| Number of Style Modes Per Channel | Ch 1 (Orange) = 3, Ch 2 (Red) = 2 |
| Graphic EQ and/or Contour | n/a |
| Reverb / Effects & Bypass Options | n/a |
| Effects Loop & Bypass Options | Fully bypassable, Channel or Footswitch assignable, Tube-Driven, Series FX Loop with dedicated Send and Amp Master Volume controls when activated |
| Global Output Level Control | Yes (Activated when FX Loop is used) |
| Global Solo Level Control | n/a |
| True-Bypass Options | True-Bypassable FX Loop |
| Tuner Output | n/a |
| External Switching Jacks / MIDI | External Switching Jacks for Channel Switching & FX Loop |
| Speaker Outputs | 8 Ohm x2, 4 Ohm x2, and 16 Ohm x1 |
| Cabinet Simulation - Direct Live/Recording Output | n/a |
| Internal Amp Load (For Speaker-Less Performance) | n/a |
| Headphone Output | n/a |
| Slave Output | Yes, with Level control |
Accessories |
|
| Footswitch | Compact, 1 Button Footswitch (Channel 1/2) |
| Slipcover | Included - Fitted Slipcover |
Cabinet Features |
|
| Cabinet Material | Marine Grade, Baltic Birch |
| Limited Run Finish | Rosso Scuderia Red Chassis, Black Snake Vinyl, Black Diamond Plate Grille and Vents, Black/Black Handle & Leather Corners |
| Custom Finish Options | n/a |
| Casters | n/a |
Weight & Dimensions |
|
| Weight | 41 lbs (18.6 kg) |
| Height | 10" (25.4 cm) |
| Width | 25 1/2" (64.77 cm) |
| Depth | 9 7/8" (24.77 cm) |
Mesa Boogie Limited Run 90’s Dual Rectifier Head Amplifier - Black Snake Vinyl, Rosso Scuderia Red Chassis
There is absolutely no mistaking the Dual Rectifier’s hard-hitting articulation, scooped mids, and high-gain “sizzle,” which has unquestionably redefined the sound of American-style high-gain guitar tone. Since their introduction in 1992, Mesa’s Rectifier series amps have undergone several revisions, culminating in the 3-channel model available today. While the current model preserves the sound and spirit of the original early/mid 90’s versions, many players wish they could go back in time and add the original voiced and layout design to their arsenal. Now, you can.
The Limited Edition Mesa '90s Dual Rectifier revisits the early 90’s “F revision” of the modern classic while incorporating key upgrades of more recent revisions. Expect distinctly throaty & present mids, super-tight low-end, and a more aggressive gain structure. The simple yet versatile front-panel controls mark a return to the original Orange-and-Red dual-channel layout. The Orange offers vintage-voiced cleans with a robust low end through a more mid-forward “vintage voiced” drive sound. The Red channel features a decidedly modern, aggressive response, with famously scooped mids and the ultra-high gain sizzle that made the Dual Rectifier an instant classic. Each channel can be “cloned” to provide foot-switchable access to two different settings of the same channel. Each channel is equipped with an independent 3-band EQ, Presence, and Master Volume.
On the back panel, the power toggle lets you further customize sound and feel from bold to spongy-style sag, and choose solid-state diodes or an old-school tube rectifier for each channel. The 90s Dual Rectifier produces 100 watts of power using a quartet of 6L6 power tubes that can be easily swapped out for EL34s, with the flip of the bias switch. An updated effects loop is wired in series, delivering a much better sound, with lower noise than the originals. Topping everything off in a striking visual style, the Limited Edition 90s Dual Rectifier is decked out in a Black Snake Vinyl cover, blacked-out Diamond face, plus Rosso Scuderia Red control panel, for a custom 90s look.
| Product Name | Mesa Boogie Limited Run 90’s Dual Rectifier Head Amplifier - Black Snake Vinyl, Rosso Scuderia Red Chassis |
|---|---|
| Brand | Mesa Boogie |
| Condition | New |
| MPN | 2.DR2BR.V33.DP2.HBPT |
What's in the Box?
- Mesa Boogie Limited Run 90’s Dual Rectifier Head Amplifier - Black Snake Vinyl, Rosso Scuderia Red Chassis
- Footswitch & Slipcover
- Dual Channel Simplicity – Simple, straightforward design for ease of use and great tones fast
- Channel Style/Cloning – Allows “cloning” of Vintage or Modern Modes on either channel
- Patented Switchable Rectifiers – Tube or silicon diode rectification to tune the sound, character, and feel
- 100 Watts of Robust Class A/B Tube Power – Bias Select switch for stock 6L6 tubes or a swap to EL34 tubes
- BOLD/SPONGY “Variac” Switch – Reduced voltage setting for increased harmonics and elastic feel
General Information |
|
|---|---|
| Product Name & Format | 90s Dual Rectifier Limited Run |
| Product Series | Rectifier Series |
| Build Location | Built In Petaluma, CA, with the World’s Finest Materials |
| Available Formats | Head |
Quick Overview |
|
| Wattage | 100 Watts |
| Power Tube Type | 4x Mesa 6L6 Power Tubes |
| Channels & Modes | 2 Fully Independent Channels with 3 Modes |
| Mode Voicings/Styles | Channel 1 “Orange” (LED light color) features: Clean or Variable High Gain (“Vintage”) Modes. With Channel Style (Cloning) Switch, can also be set to Modern High Gain (“Red”) Mode. Channel 2 “Red” (LED light color) features: Modern High Gain Mode, or with the Channel Style/Cloning Switch it can also be set to Variable “Vintage” High Gain (“Orange”) Mode |
| Channel Controls | Independent Gain, Treble, Middle, Bass, Presence & Master Controls |
| Graphic EQ / Reverb / FX / Solo | Series FX loop |
| Footswitchable Functions | Compact, 1 Button Footswitch (Channel 1/2) |
| Speaker(s) & Impedance | n/a |
| Weight | 41 lbs (18.6 kg) |
| Dimensions | 10" (25.4 cm) H x 25 1/2" (64.77 cm) W x 9 7/8" (24.77 cm) D |
Amplifier Features |
|
| Amp Type | Tube |
| Chassis Material | Chrome Plated Steel in Rosso Scuderia Red |
| Rectifier Type | Selectable Tube or Silicon Diode Rectification |
| Rectifier Tube(s) | 2x 5U4GB |
| Variac Power Switch | Yes – Bold/Spongy Power Switch selects between full voltage or reduced voltage |
| Preamp Tubes | 5x 12AX7 |
| Power Amp Tubes | 4x 6L6 |
| Bias Switch for Alternate Power Tube Types | Yes (6L6 or EL34 Bias Switch) |
| Maintenance Free Fixed Bias | Yes |
| Built-In Power Amp Attenuation | n/a |
| Power Amp Details (Class & Wattage) | Class A/B - 100 Watts |
| Cooling | Fan |
| Number of Footswitchable Channels | Two Channels |
| Number of Style Modes | Three |
| Number of Style Modes Per Channel | Ch 1 (Orange) = 3, Ch 2 (Red) = 2 |
| Graphic EQ and/or Contour | n/a |
| Reverb / Effects & Bypass Options | n/a |
| Effects Loop & Bypass Options | Fully bypassable, Channel or Footswitch assignable, Tube-Driven, Series FX Loop with dedicated Send and Amp Master Volume controls when activated |
| Global Output Level Control | Yes (Activated when FX Loop is used) |
| Global Solo Level Control | n/a |
| True-Bypass Options | True-Bypassable FX Loop |
| Tuner Output | n/a |
| External Switching Jacks / MIDI | External Switching Jacks for Channel Switching & FX Loop |
| Speaker Outputs | 8 Ohm x2, 4 Ohm x2, and 16 Ohm x1 |
| Cabinet Simulation - Direct Live/Recording Output | n/a |
| Internal Amp Load (For Speaker-Less Performance) | n/a |
| Headphone Output | n/a |
| Slave Output | Yes, with Level control |
Accessories |
|
| Footswitch | Compact, 1 Button Footswitch (Channel 1/2) |
| Slipcover | Included - Fitted Slipcover |
Cabinet Features |
|
| Cabinet Material | Marine Grade, Baltic Birch |
| Limited Run Finish | Rosso Scuderia Red Chassis, Black Snake Vinyl, Black Diamond Plate Grille and Vents, Black/Black Handle & Leather Corners |
| Custom Finish Options | n/a |
| Casters | n/a |
Weight & Dimensions |
|
| Weight | 41 lbs (18.6 kg) |
| Height | 10" (25.4 cm) |
| Width | 25 1/2" (64.77 cm) |
| Depth | 9 7/8" (24.77 cm) |
